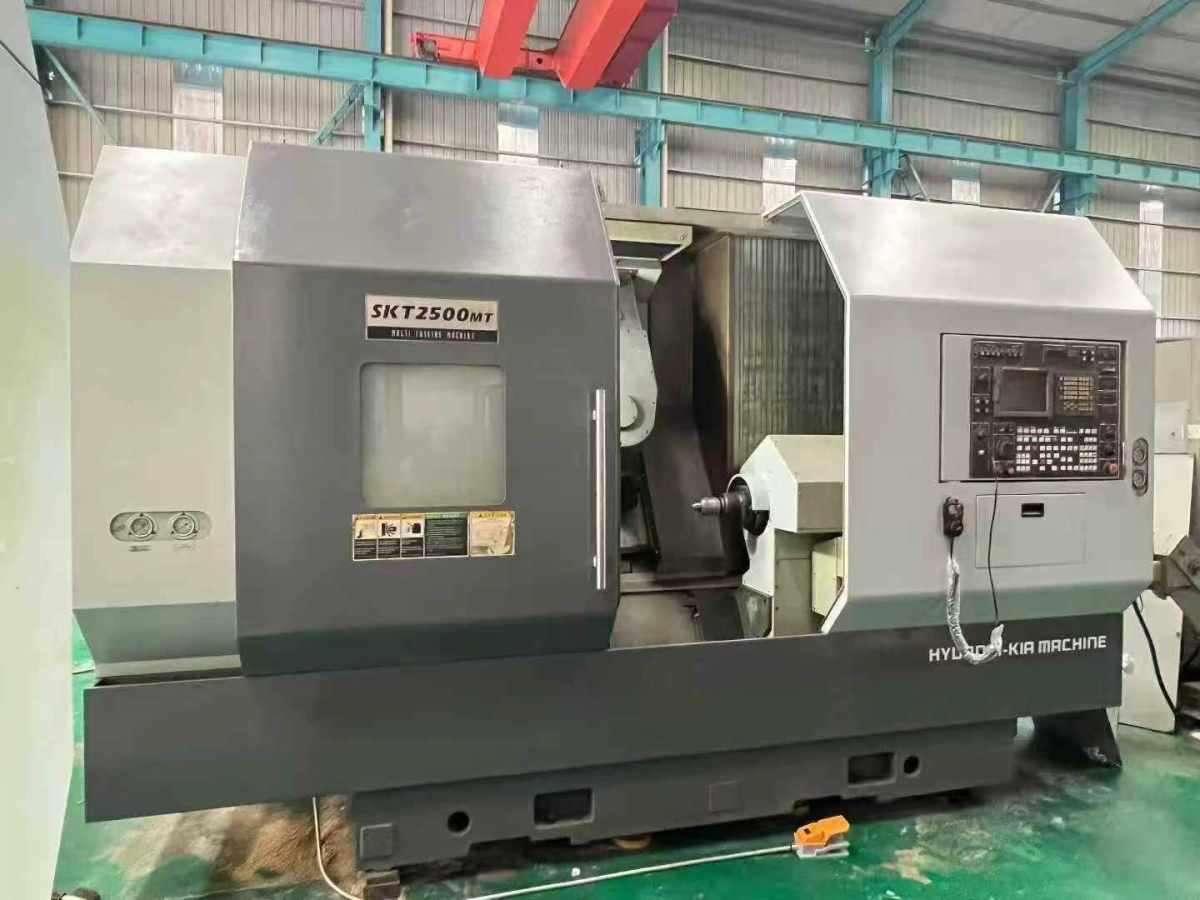

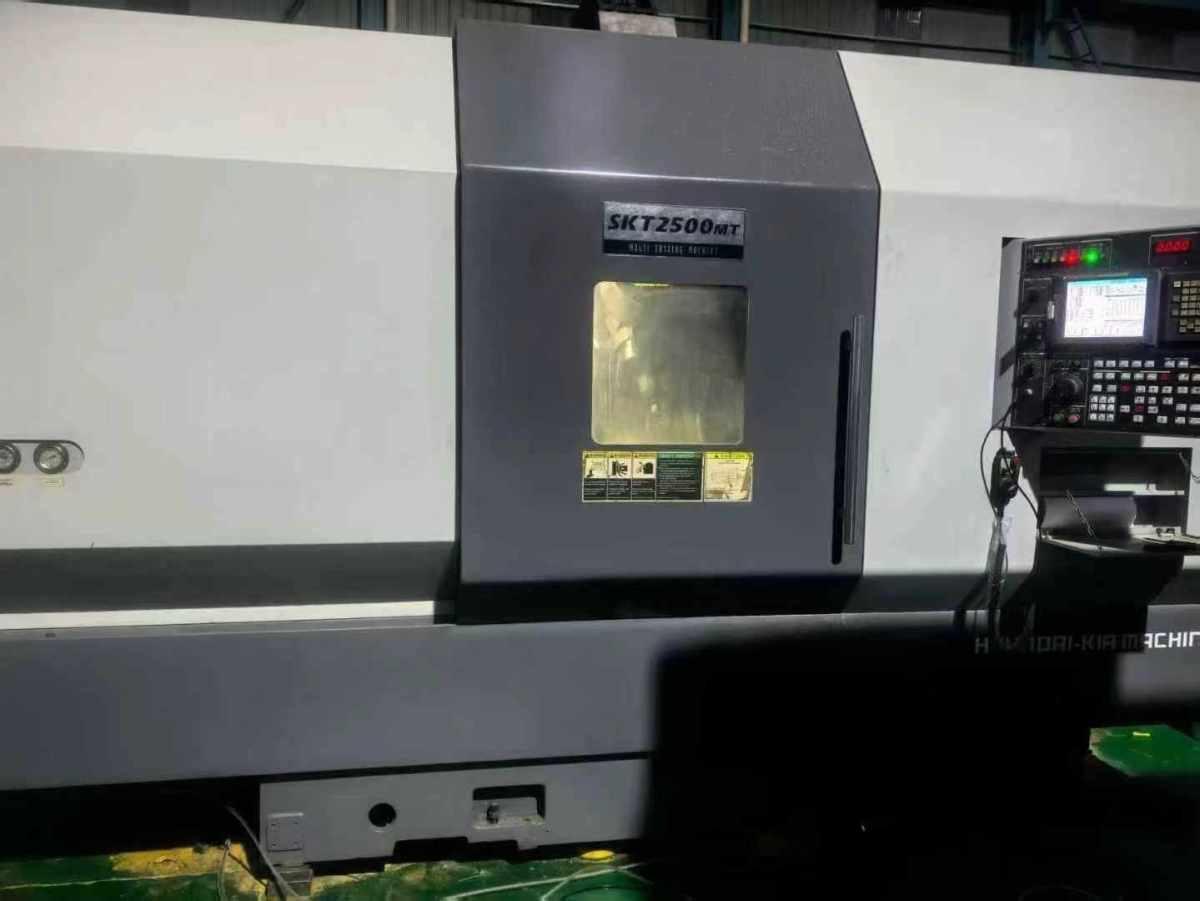

HYUNDAI WIA SKT2500MT CNC turning lathe

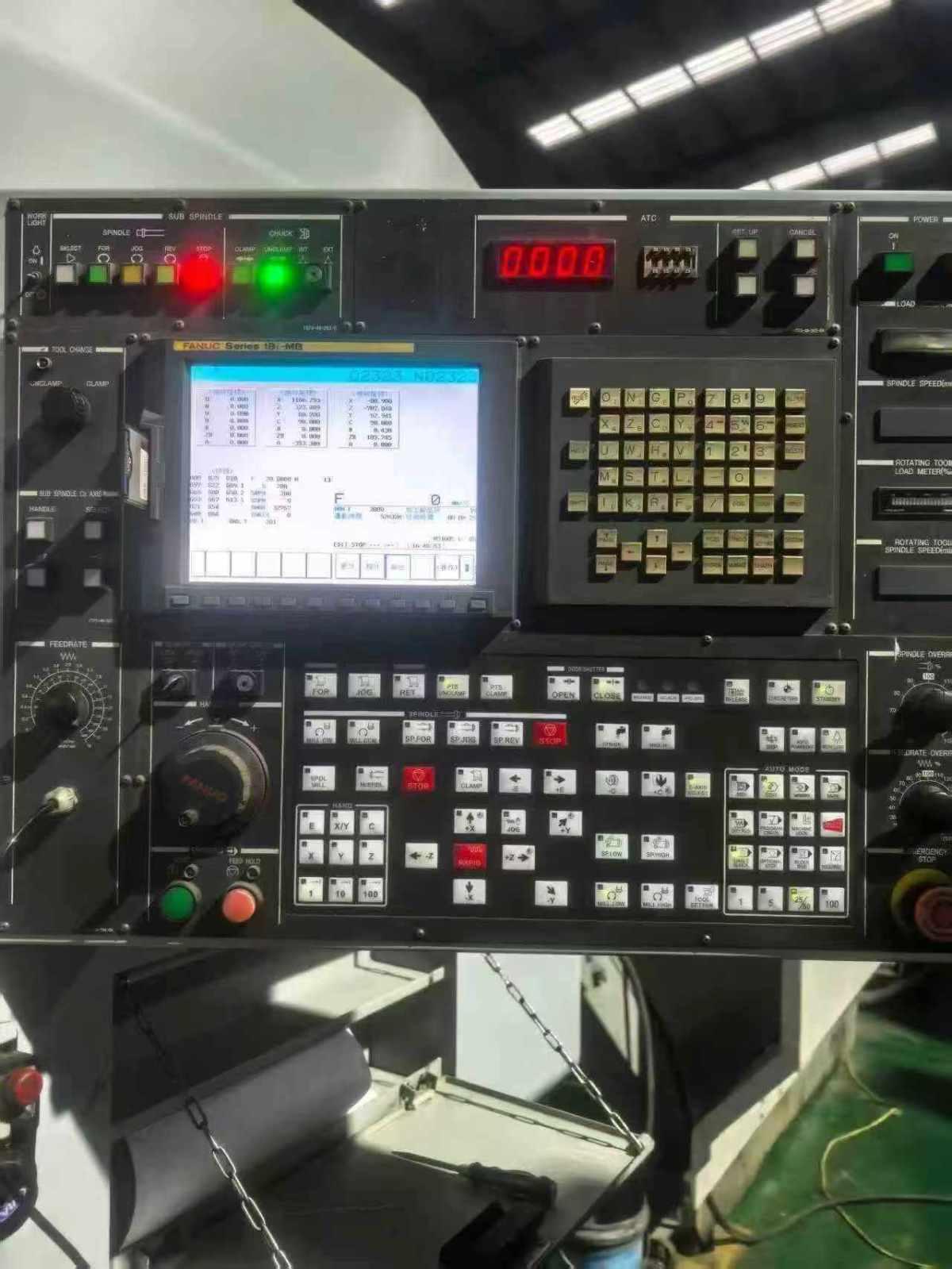

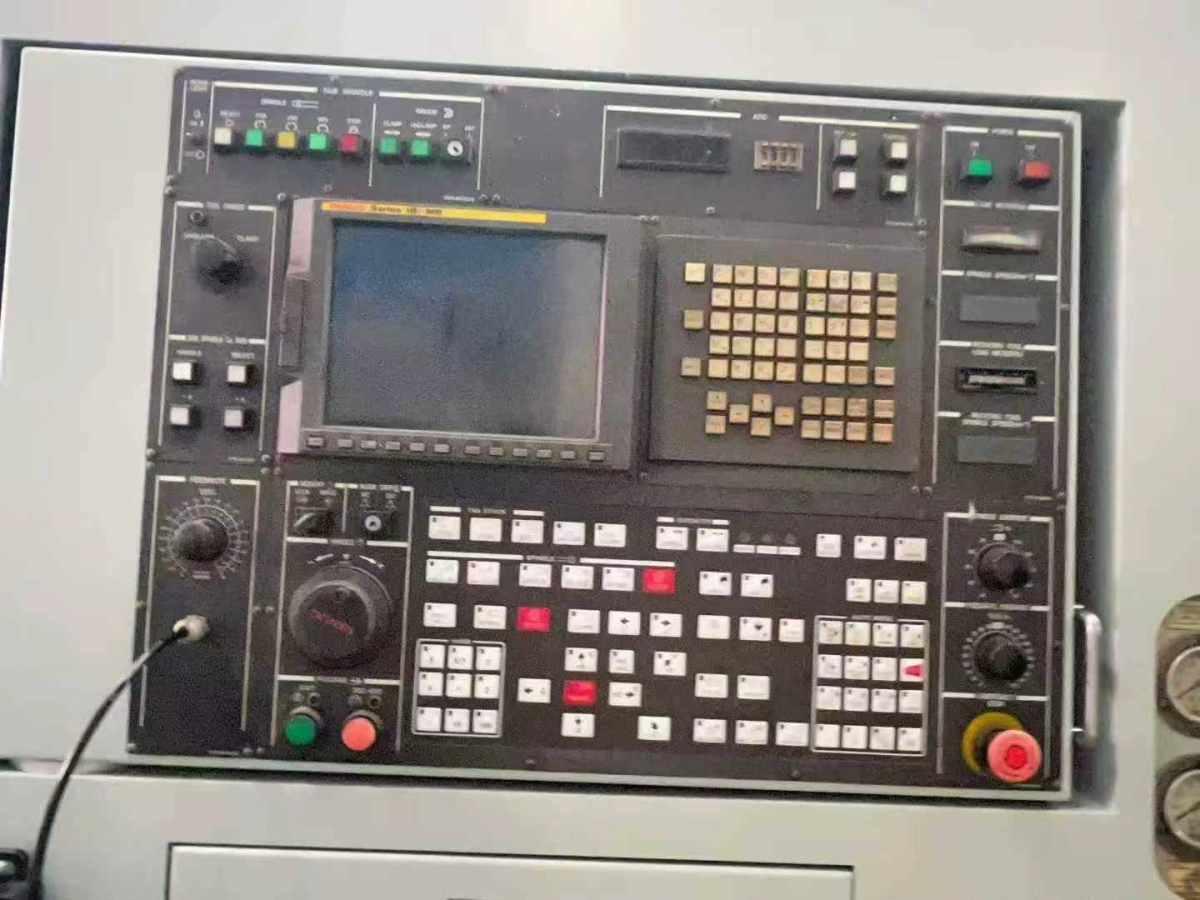

CNC System: FANUC 18i-TB
Three-axis travel (X/Y/Z): 635 × 110 × 762 mm
B-axis swing range: +100° to -120°
C-axis indexing accuracy: 0.01°
Maximum swing over bed: approx. 780 mm
Maximum machining diameter: 500 mm
Maximum machining length: 1000 – 1100 mm
Main Spindle:
Bar capacity: 76 mm
Speed range: 20 – 3500 rpm
Power: 22 / 30 kW
Chuck size: 10 inch
Sub Spindle:
Bar capacity: 54 mm
Speed range: 20 – 4500 rpm
Power: 7.5 / 11 kW
Chuck size: 8 inch
Milling Spindle:
Speed range: 60 – 8000 rpm
Tool magazine capacity: 42 – 43 tools (ATC)
Machine weight: approx. 12,100 kg
