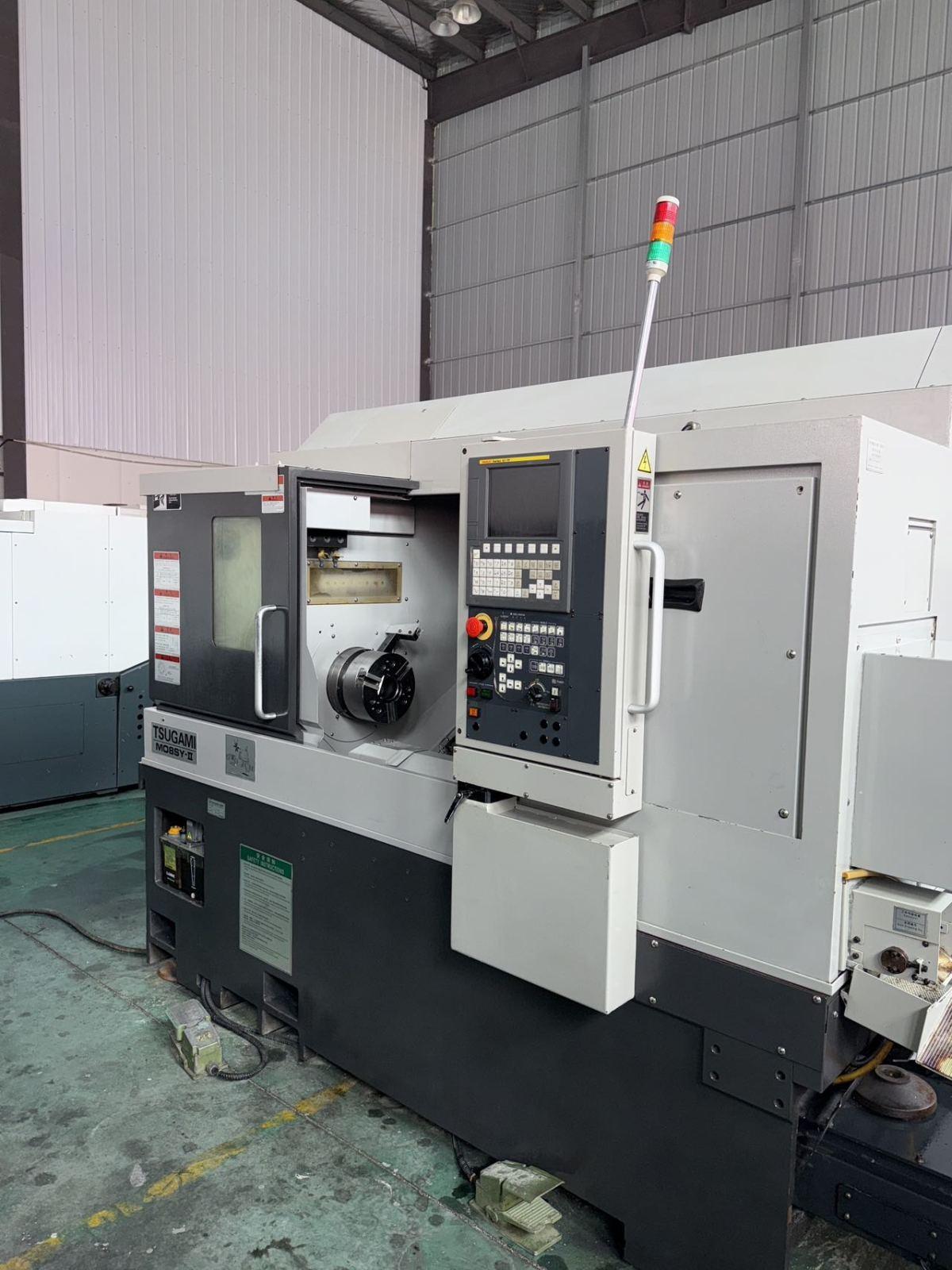

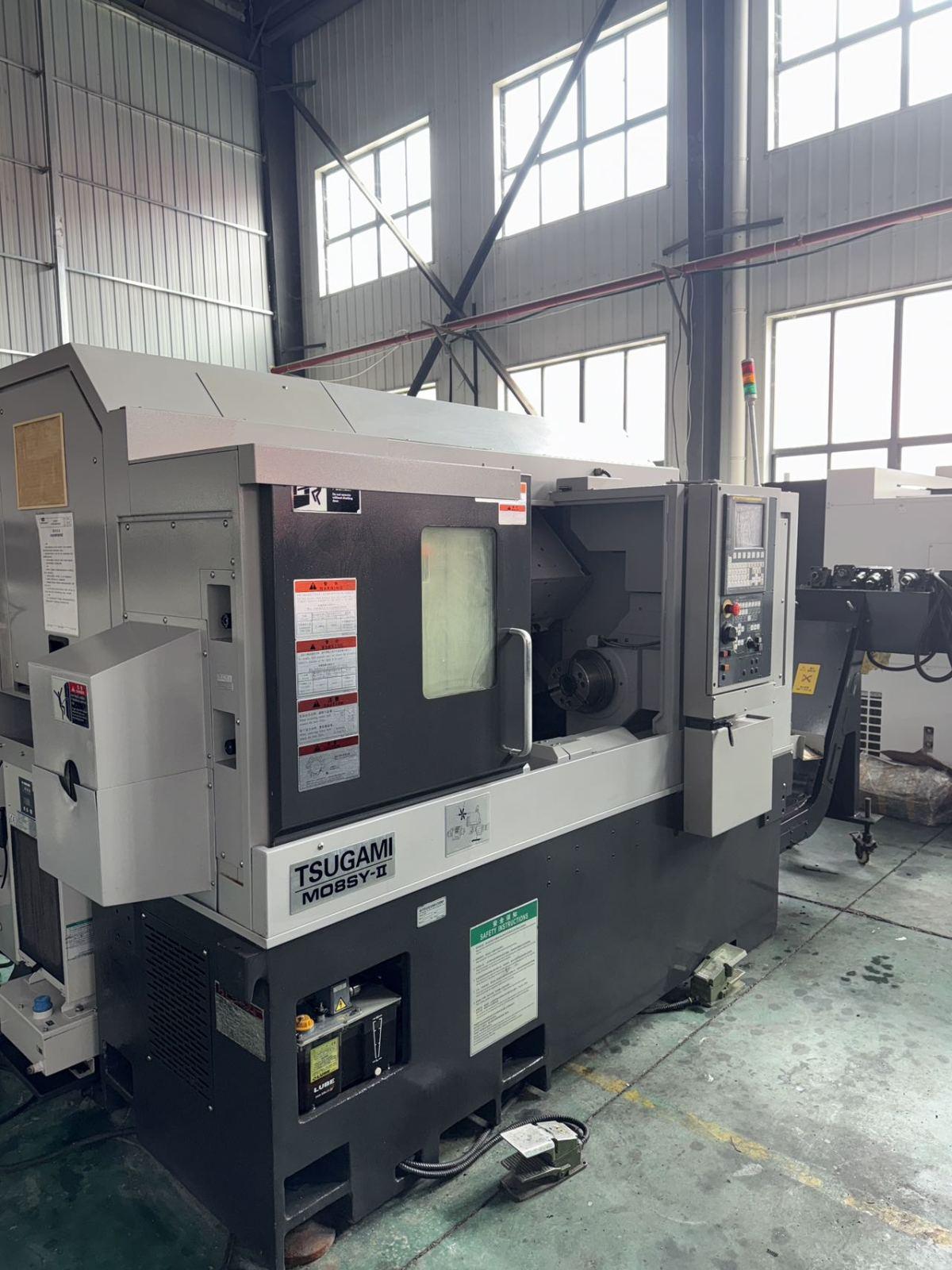

Tsugami M08SY-II Turn Mill Machining Centre

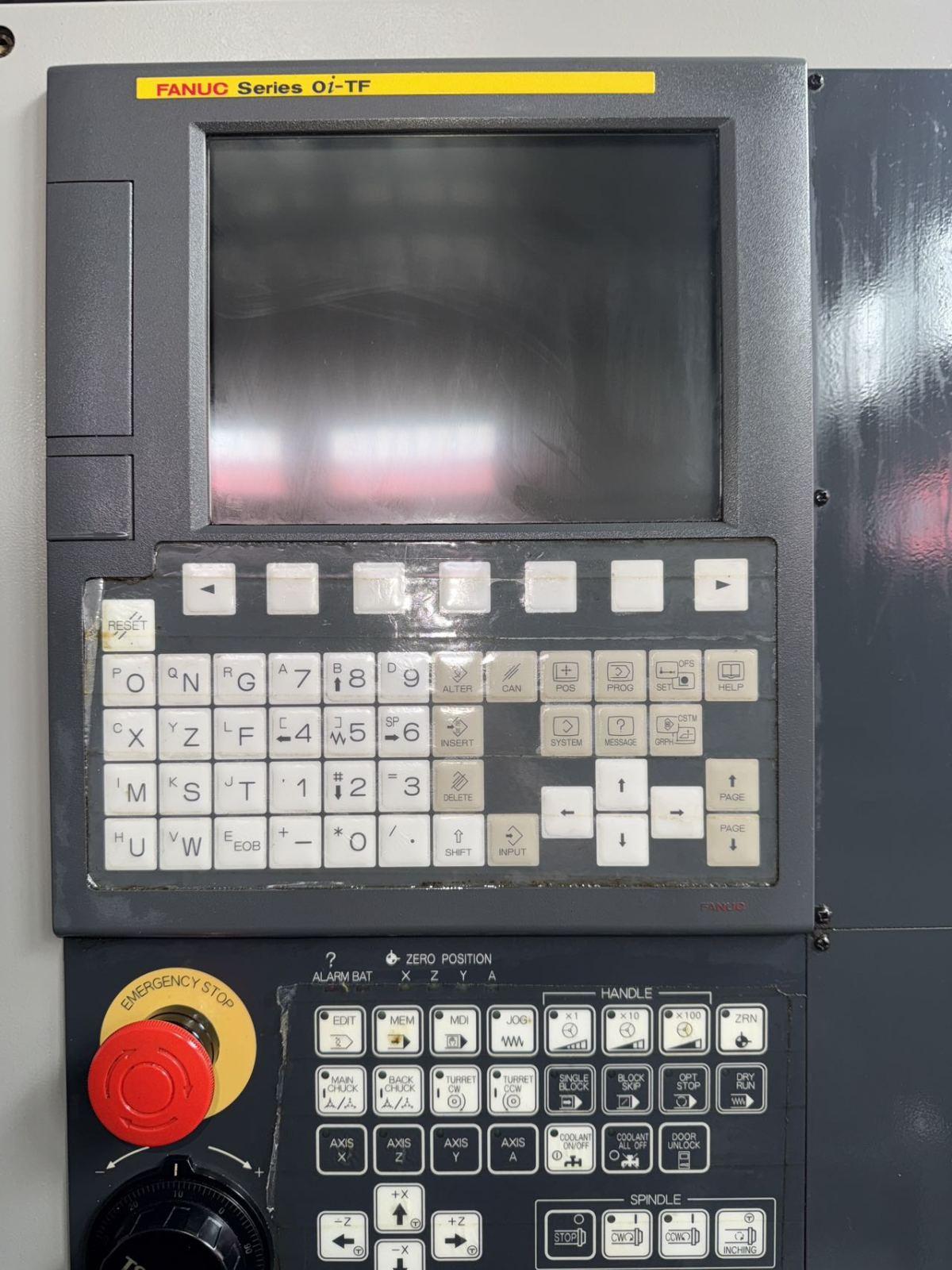

CNC System: FANUC Oi-TF Plus
X / Z / A / Y axis travel: 221 × 400 × 506 × ±50 mm
X / Z / A / Y rapid traverse rate: 24 × 27 × 30 × 12 m/min

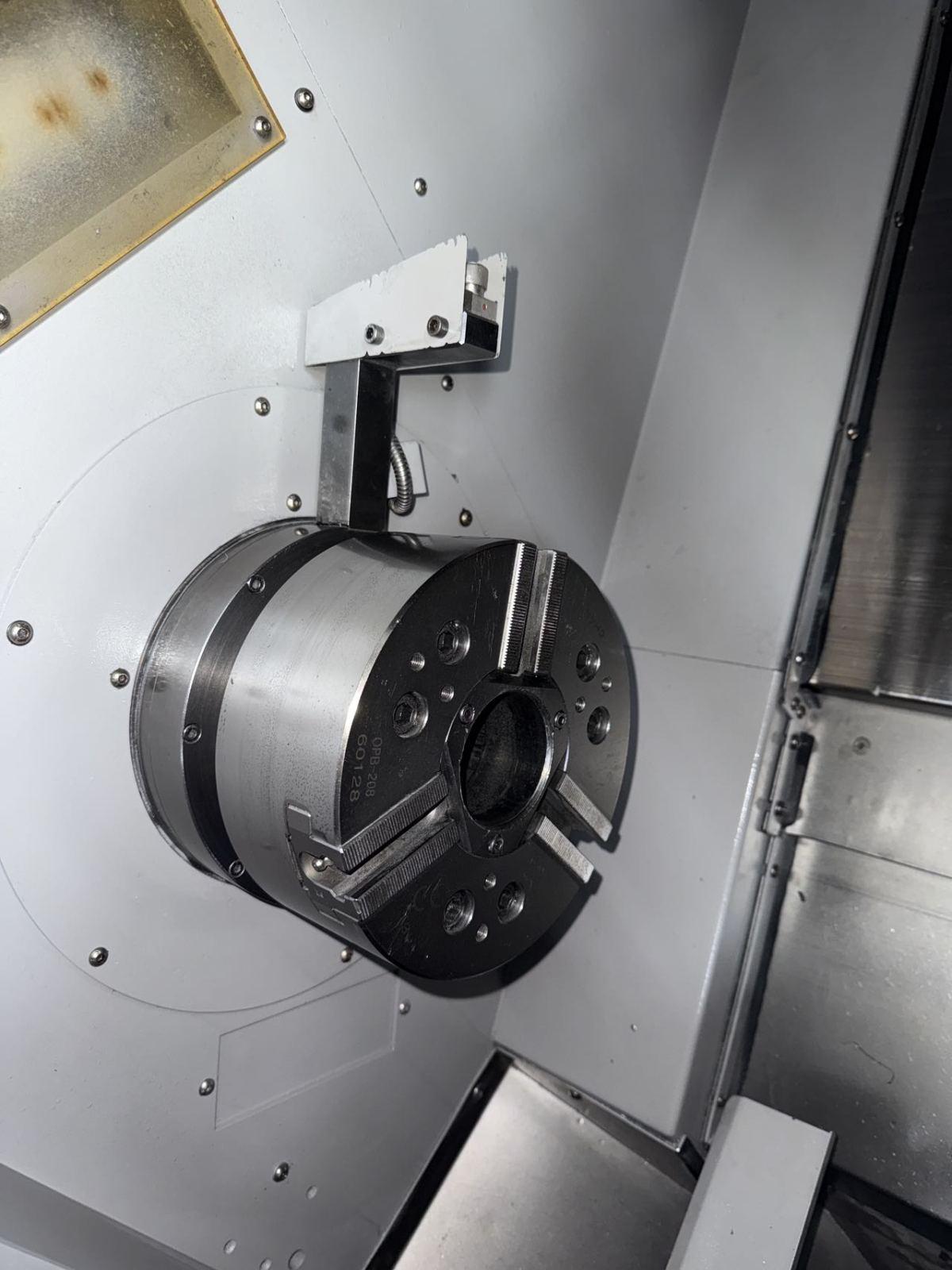

Main spindle through-hole diameter: 65 mm
Main spindle motor power: 7.5 / 11 kW
Main spindle speed: 4500 rpm

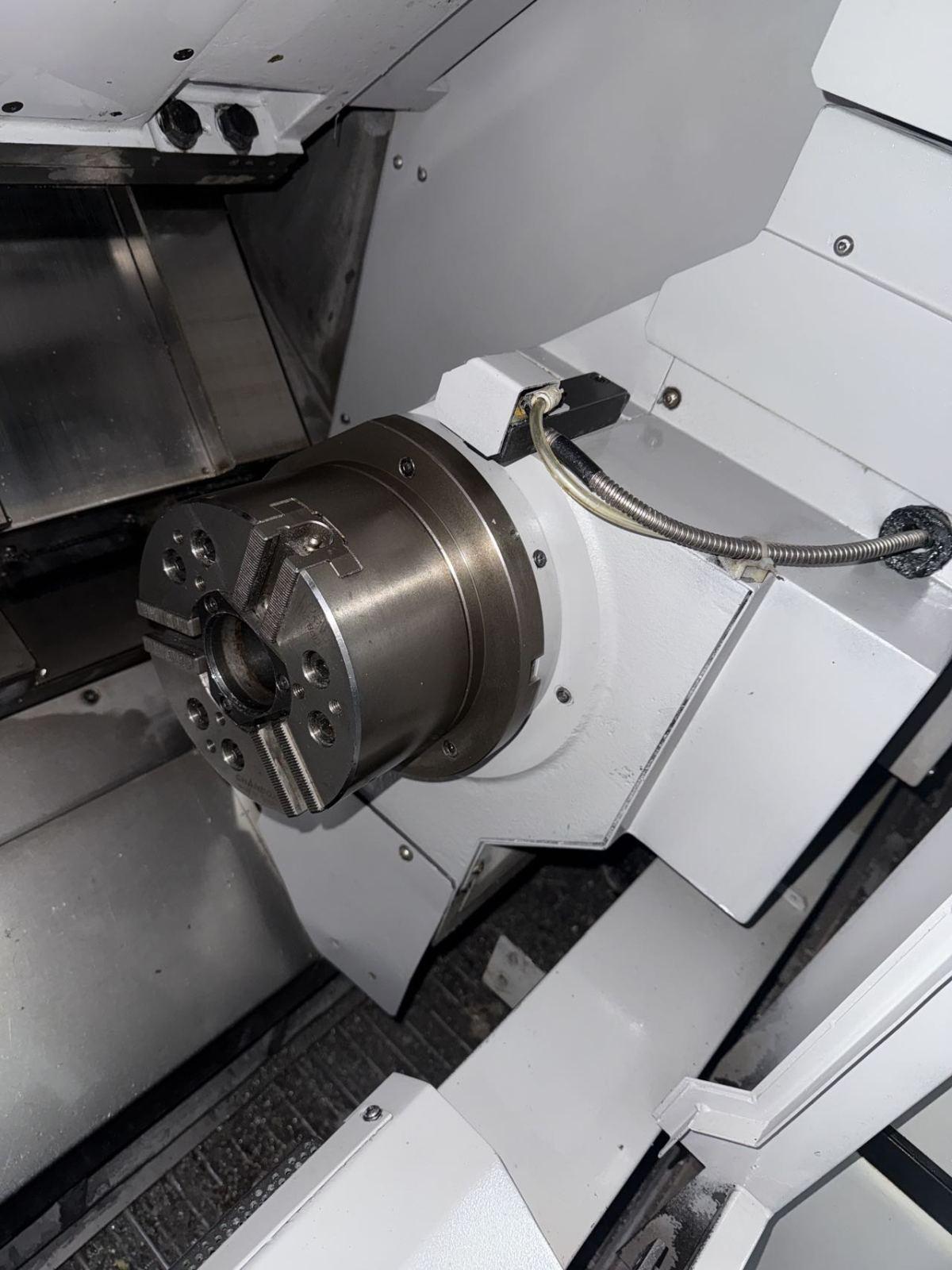

Sub spindle through-hole diameter: 59 mm
Sub spindle motor power: 5.5 / 7.5 kW
Sub spindle speed: 4500 rpm

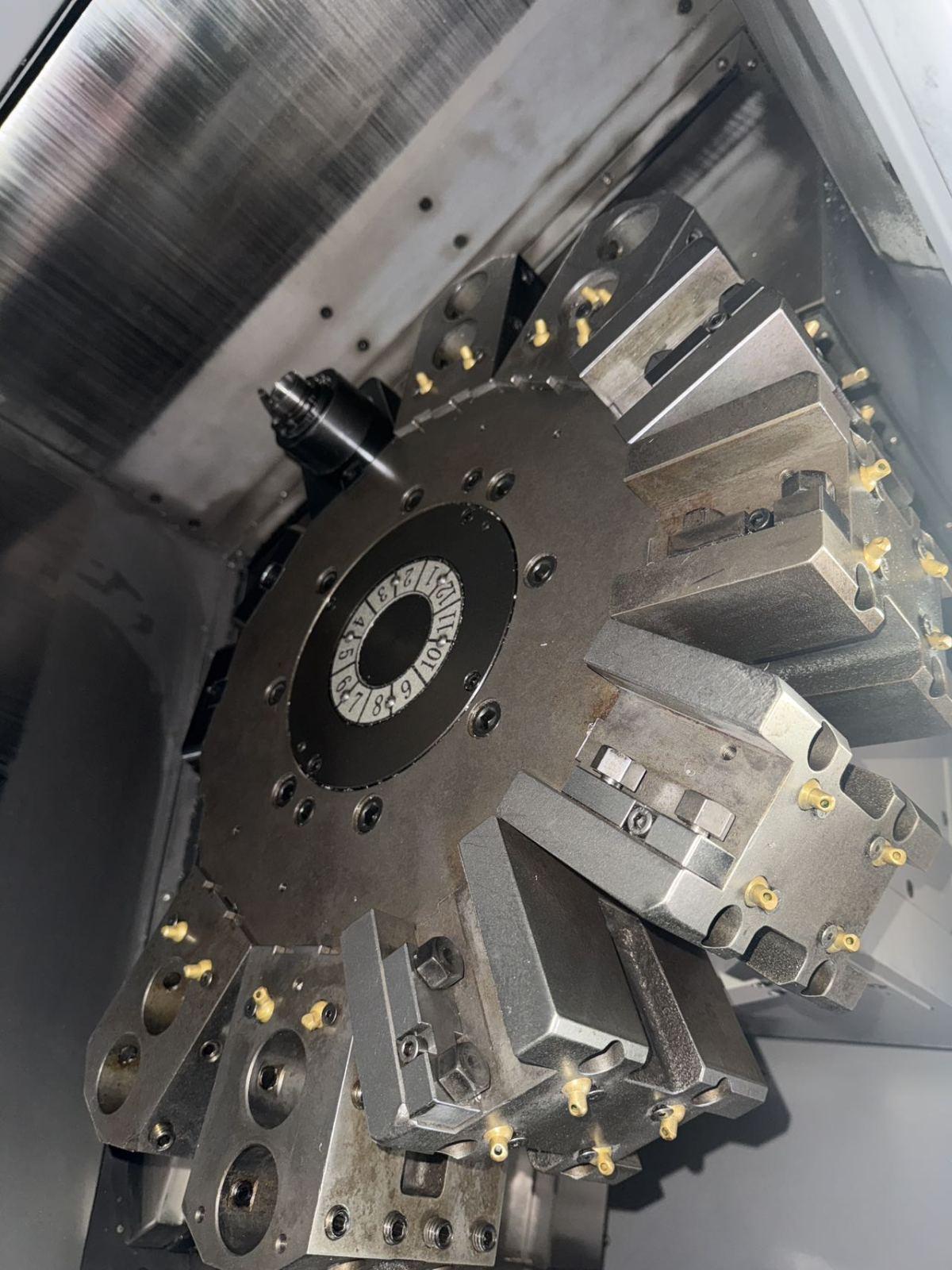

Tool turret: 12-station servo turret
Number of turret stations: 12
Turret speed: 5000 rpm
External tool shank size: 25 mm
Maximum machining diameter: 280 mm
Maximum machining length: 380 mm
