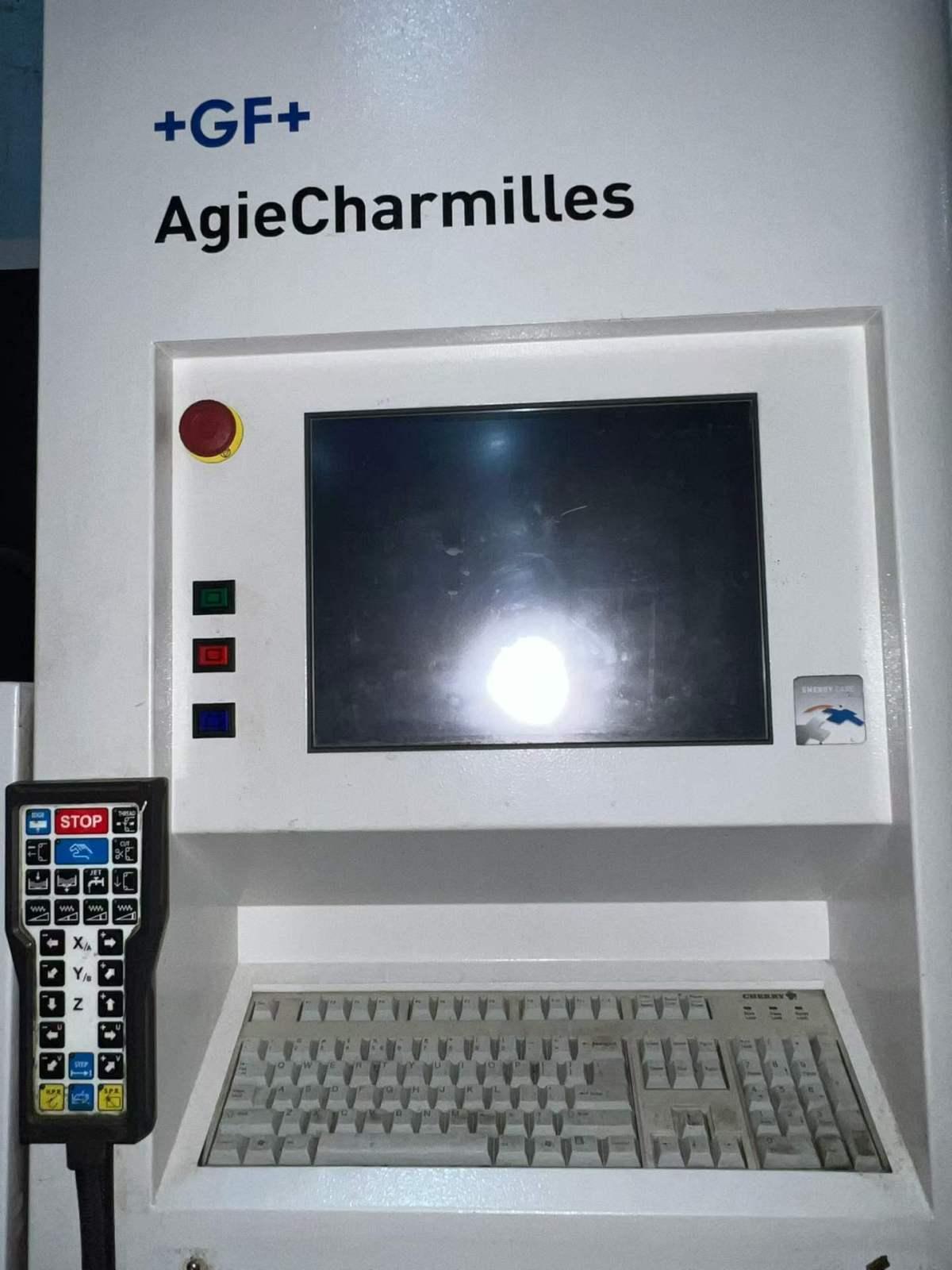

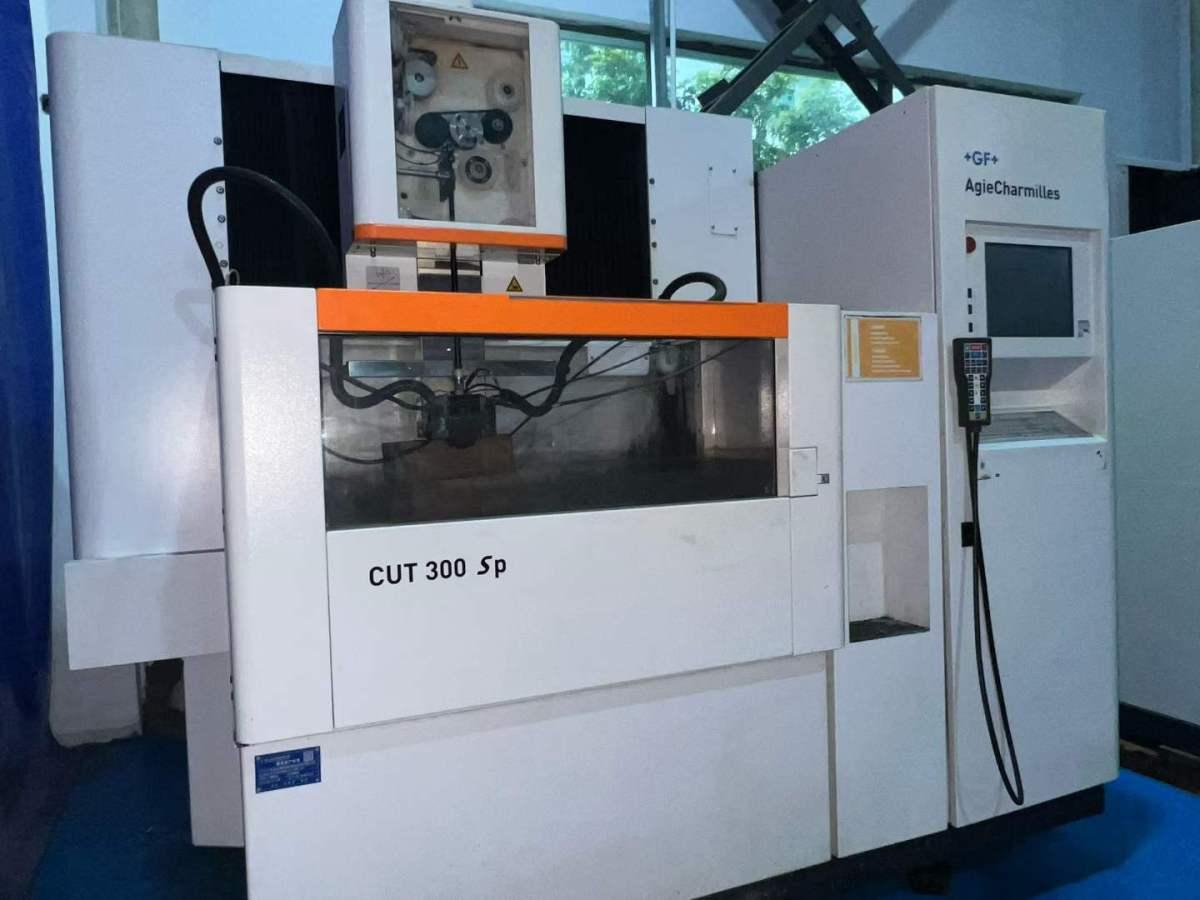

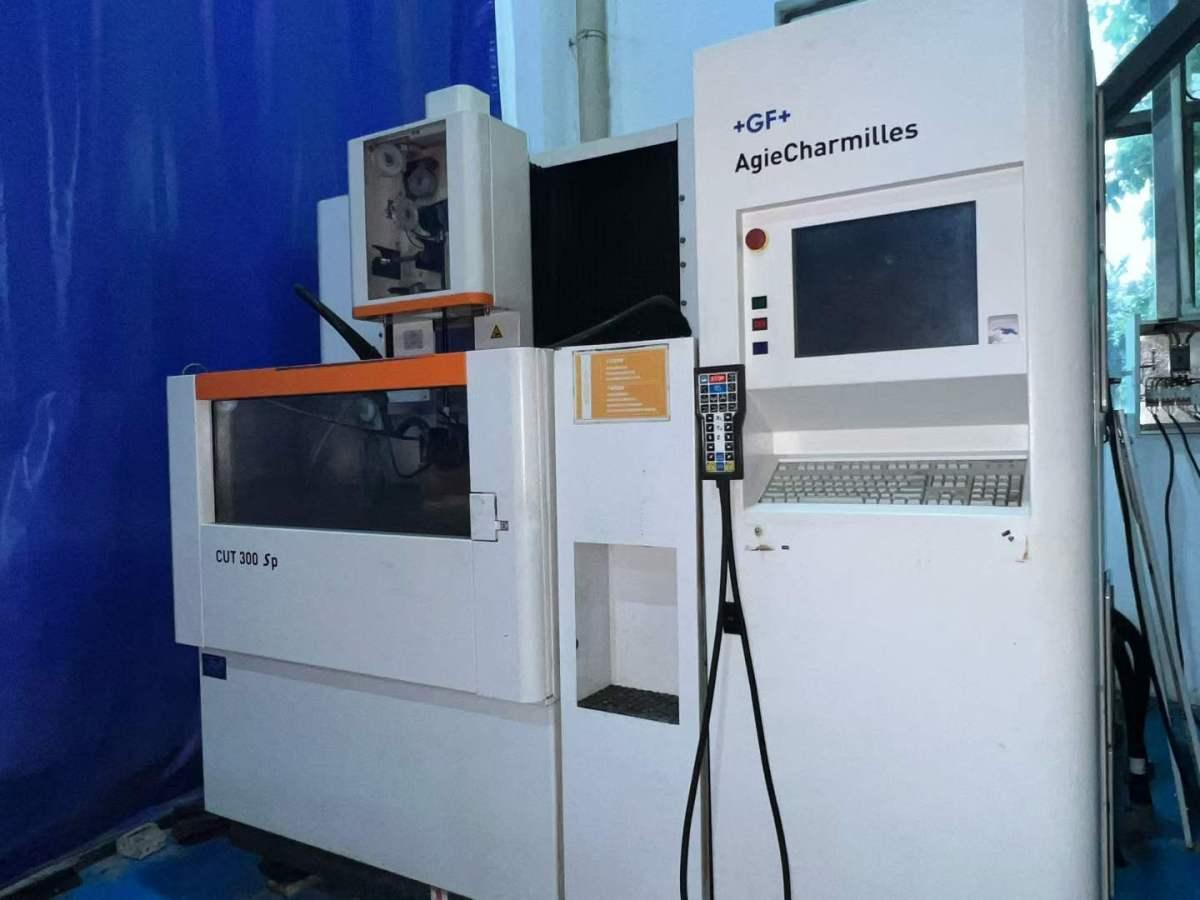

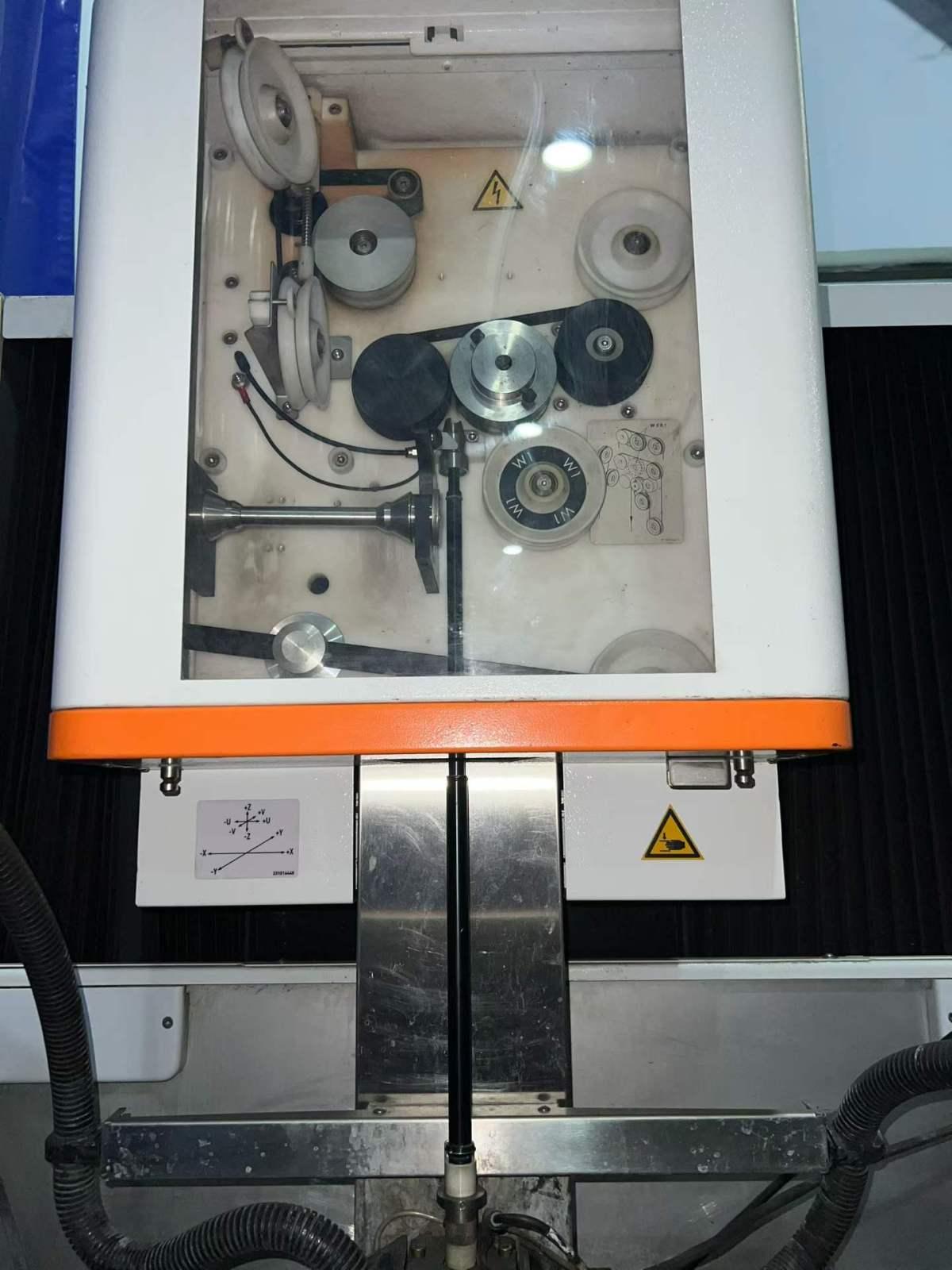

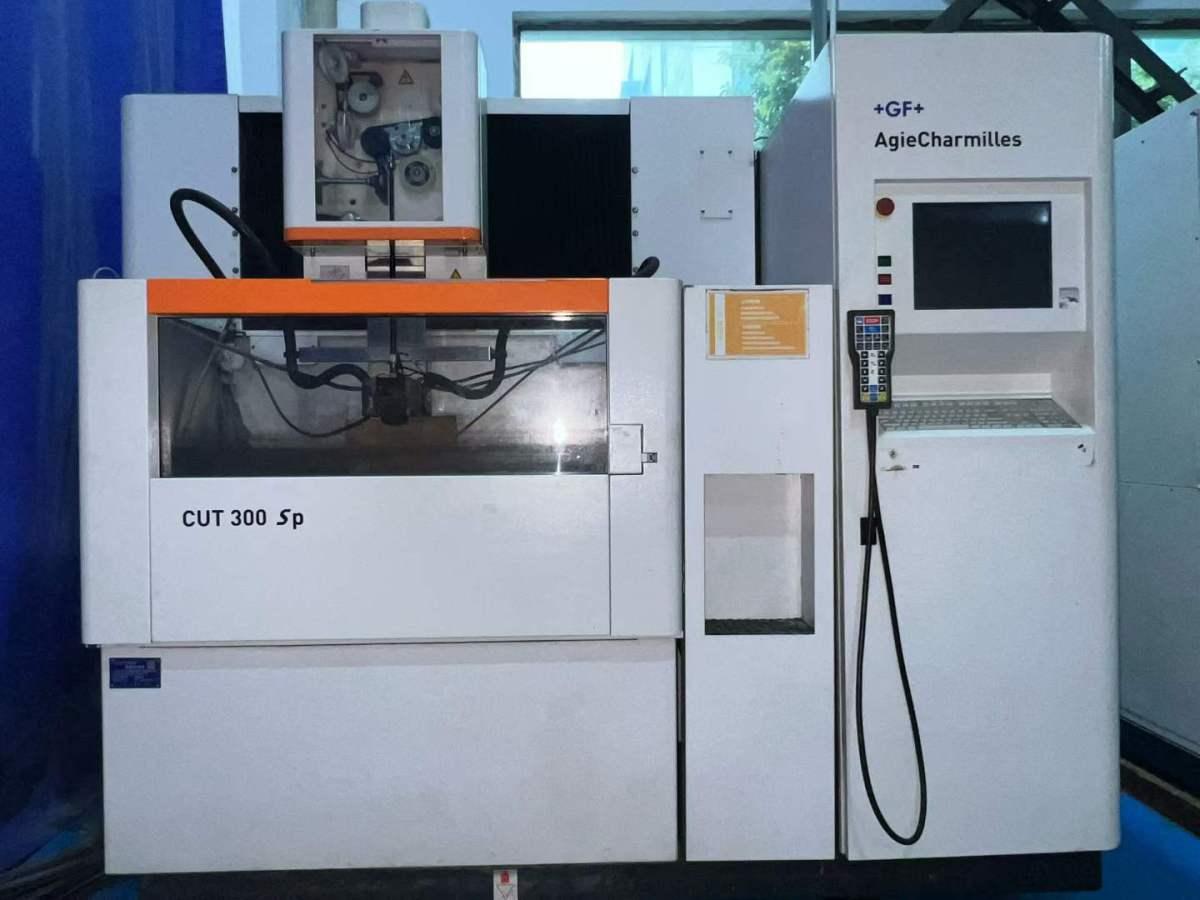

Charmilles CUT 300 SP Wire cutting machine

X/Y/Z travel : 300×250×250mm
U/V axis travel: ±50×±50mm
Maximum machining  taper: ±30° (when the plate thickness is 50mm)
±15° (when the plate thickness is 100mm)
machining  precision: ±2μm
Surface finish: Ra0.08μm (Mirror machining  effect)
Electrode wire compatibility: Diameter 0.1 to 0.3mm
Maximum machining  efficiency: approximately 300mm²/min
Maximum workpiece size: 600×450×250mm
Maximum workpiece weight: 500kg
