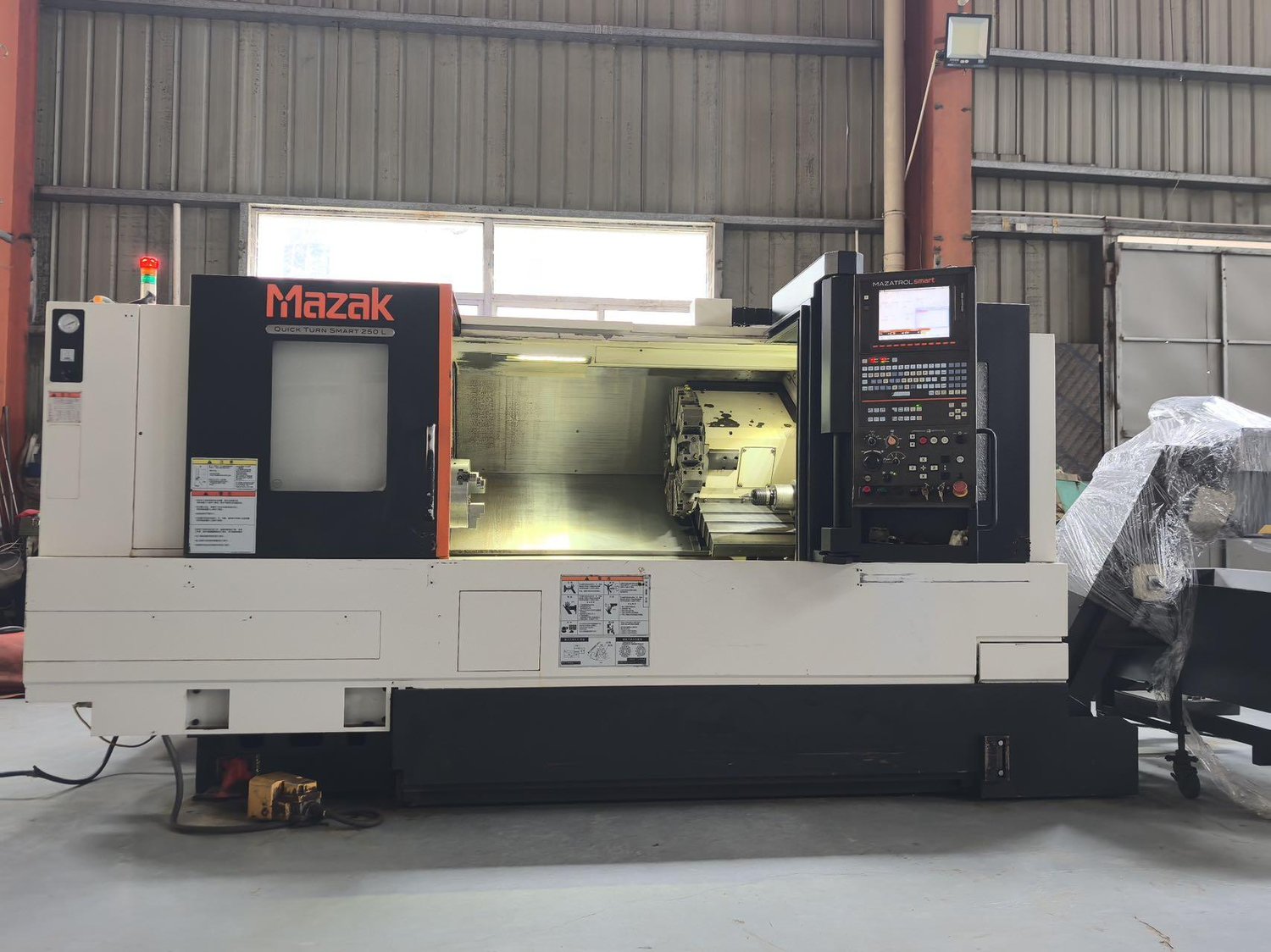

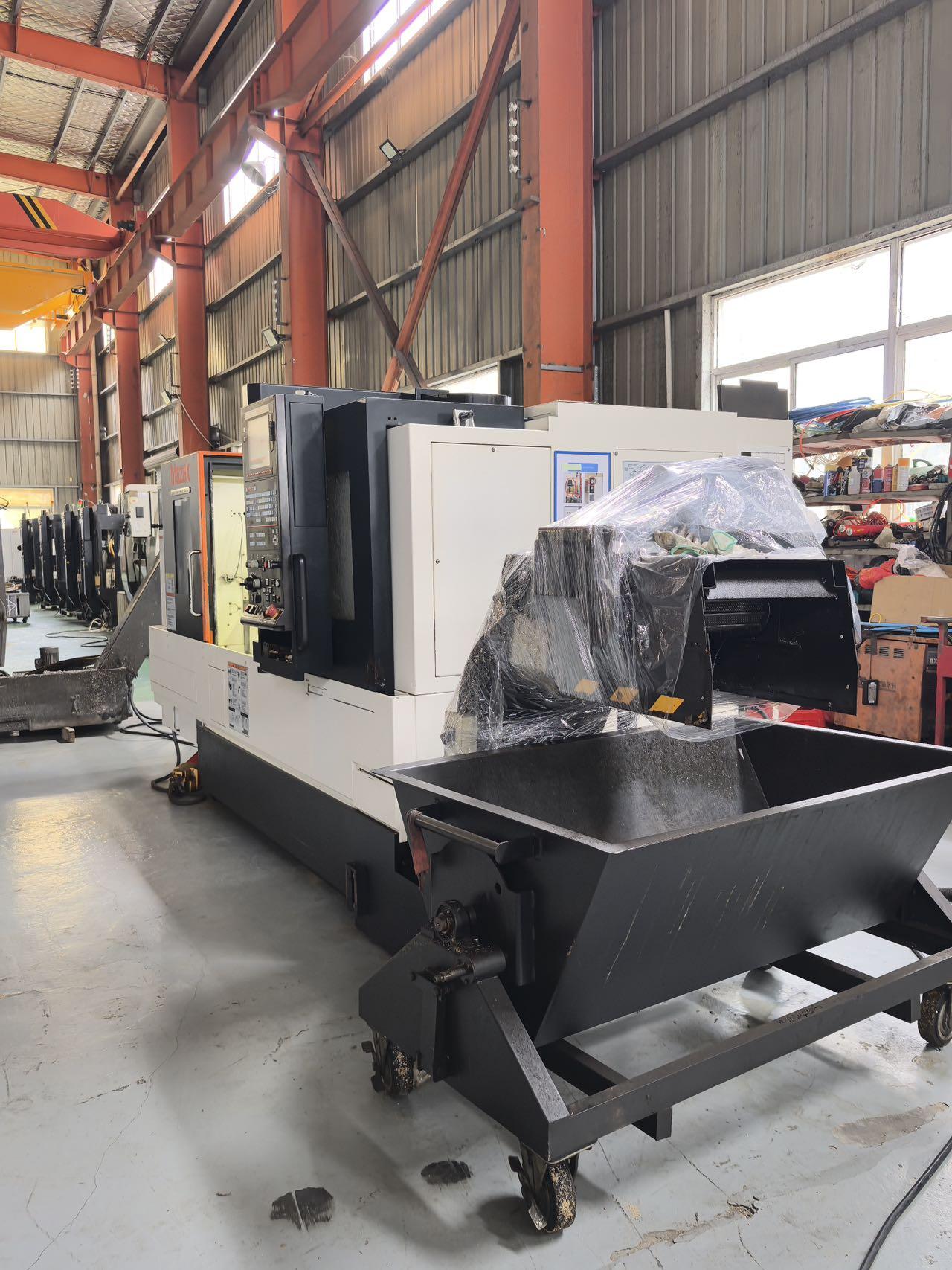

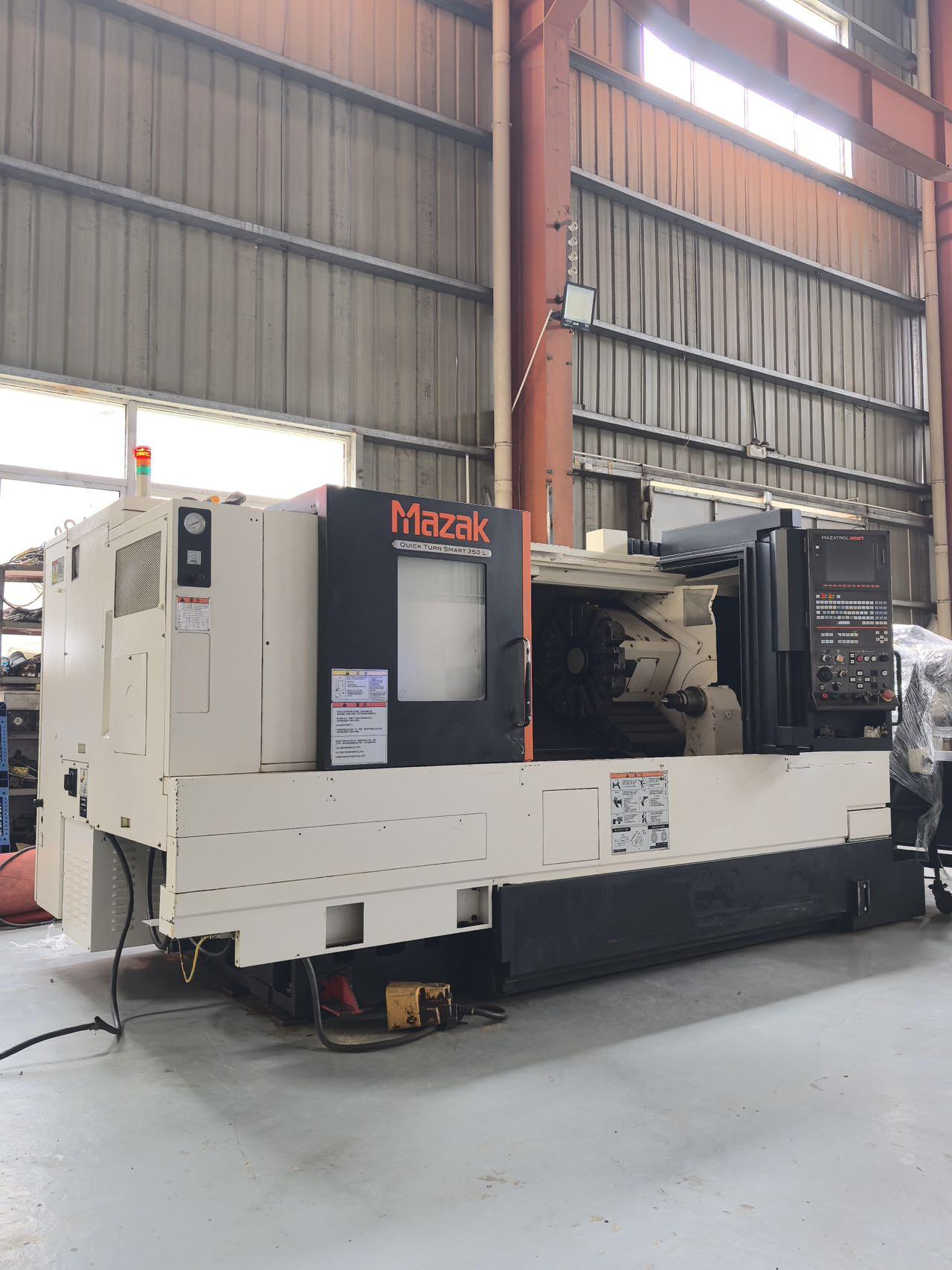

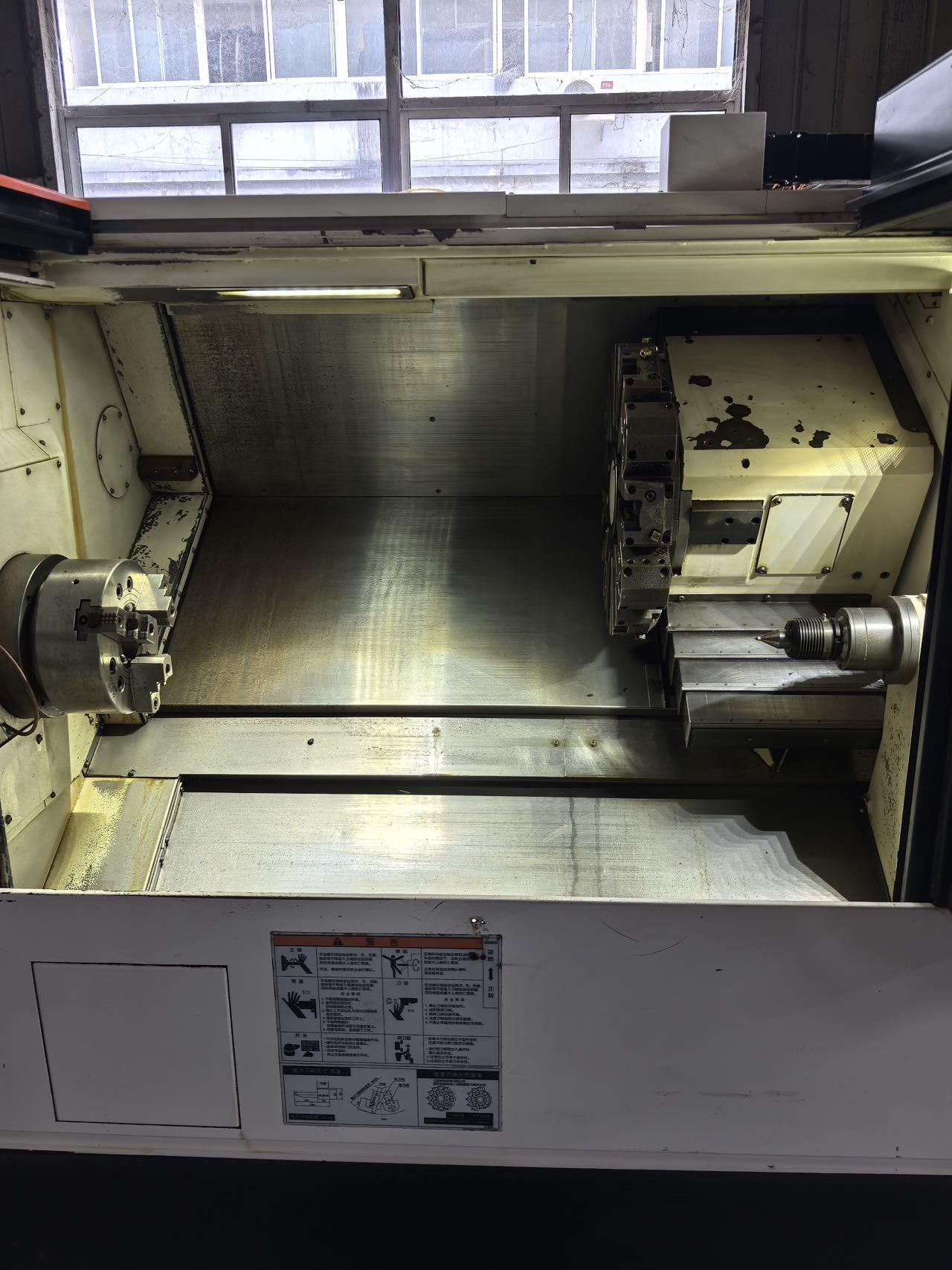

MAZAK QUICK TURN SMART 250L CNC turning lathe

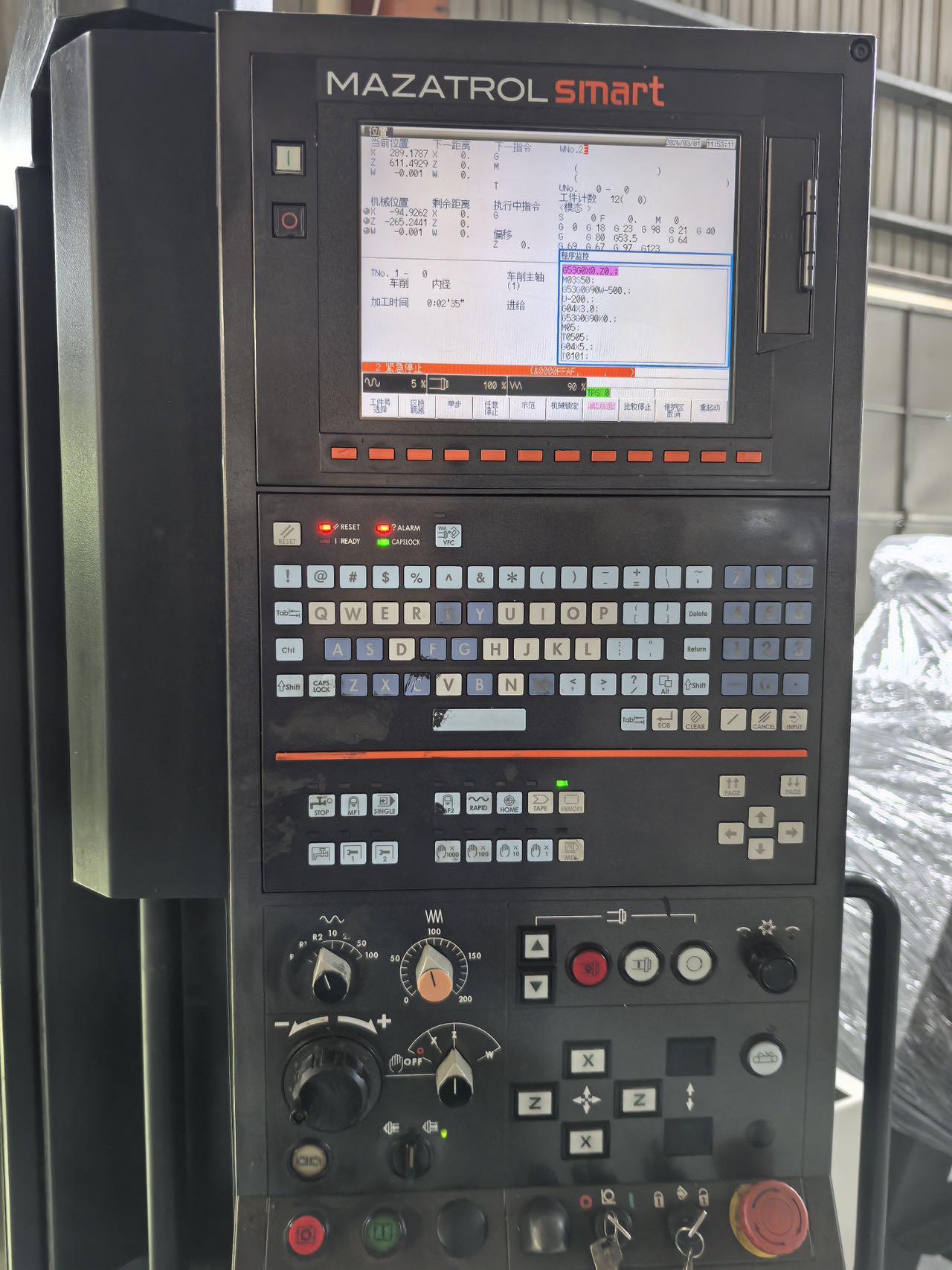

CNC System: MAZATROL Smooth C

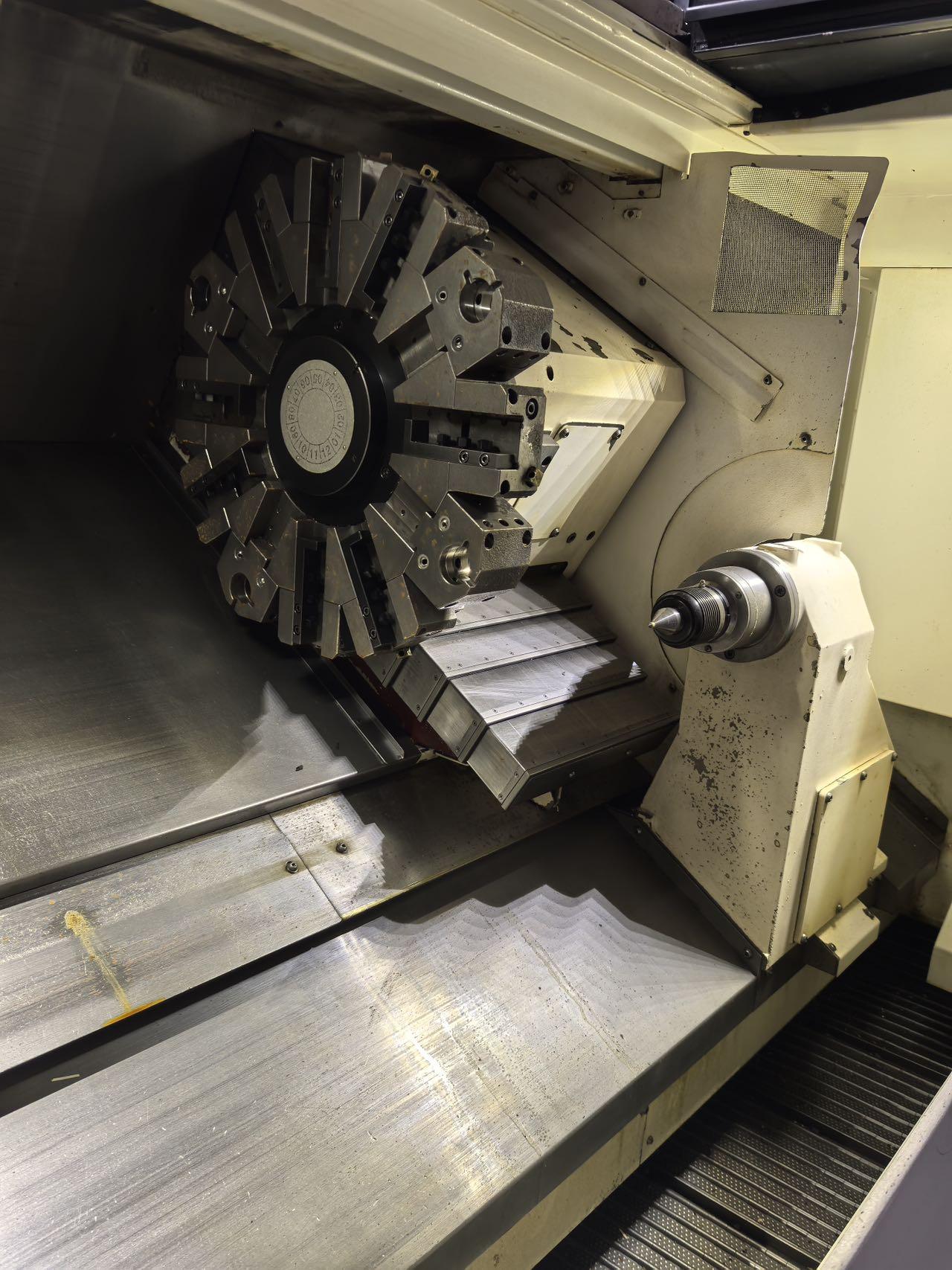

Tool Turret Type: 12-position drum turret (bolted type)

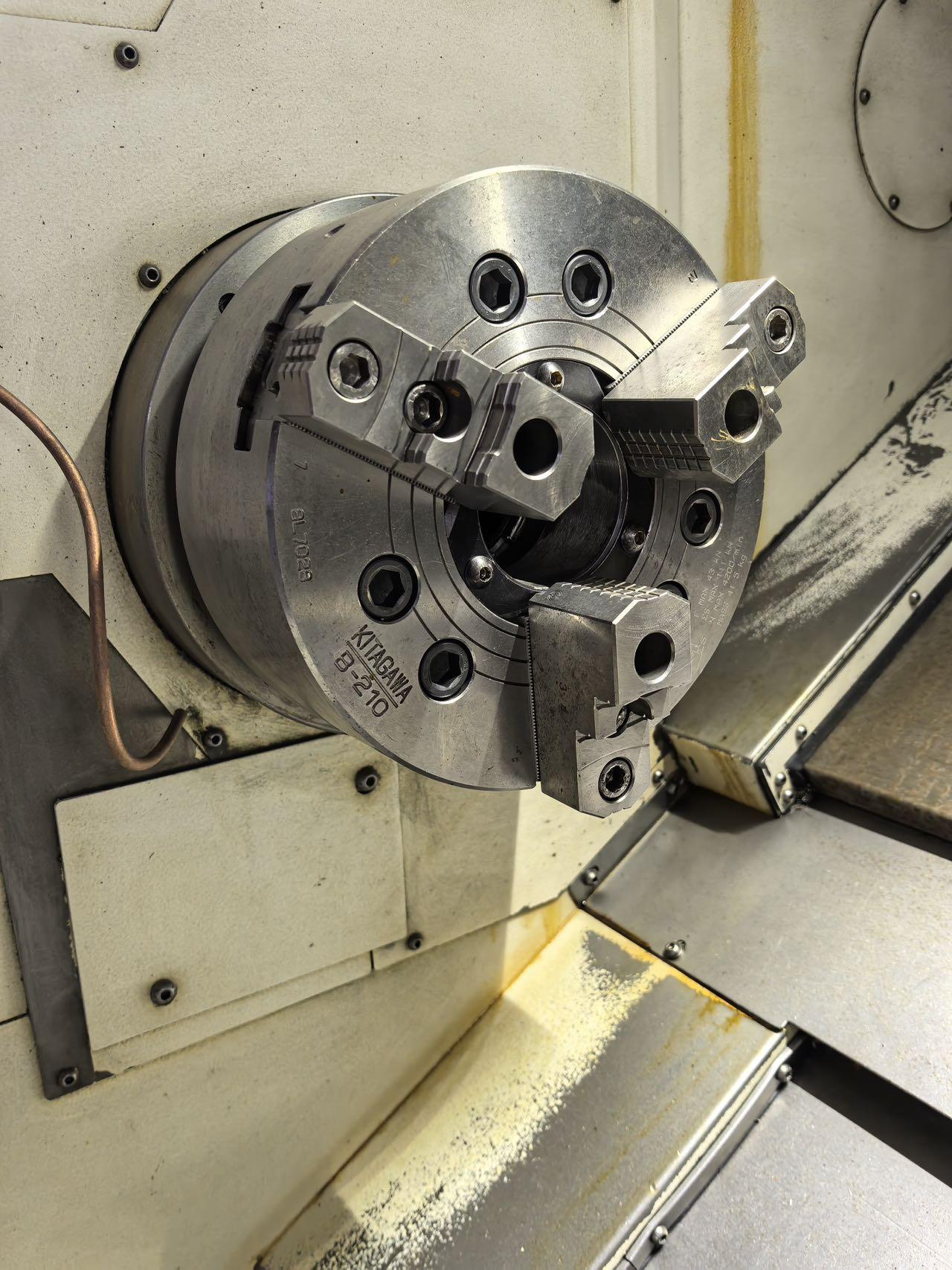

Chuck Size: 10 inches
Spindle Through-Hole Diameter: Ø91 mm
Spindle Speed Range: 45–4,000 rpm (stepless)
Spindle Motor Power: 18.5 kW
Maximum Spindle Torque: 358 N·m
Bar Machining Capacity: Ø80 mm
Maximum Swing Diameter on Bed: Ø660 mm
Maximum Machining Diameter: Ø380 mm
Maximum Machining Length: 1,033 mm
X-Axis Travel: 210 mm
Z-Axis Travel: 1,105 mm
X-Axis Rapid Traverse Rate: 30 m/min
Z-Axis Rapid Traverse Rate: 33 m/min
Tailstock Travel: 1,075 mm
Tailstock Taper: MT No.4
