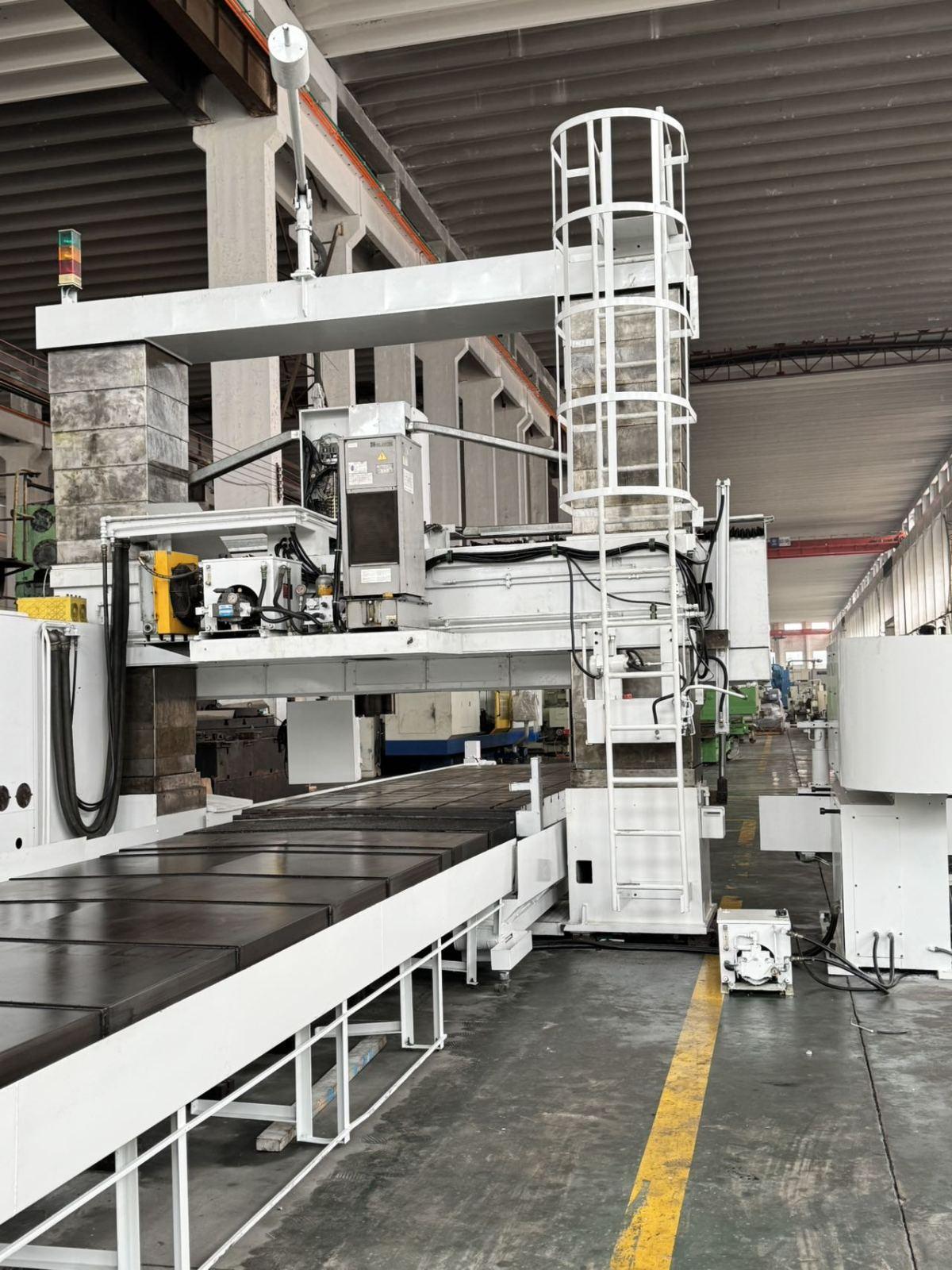

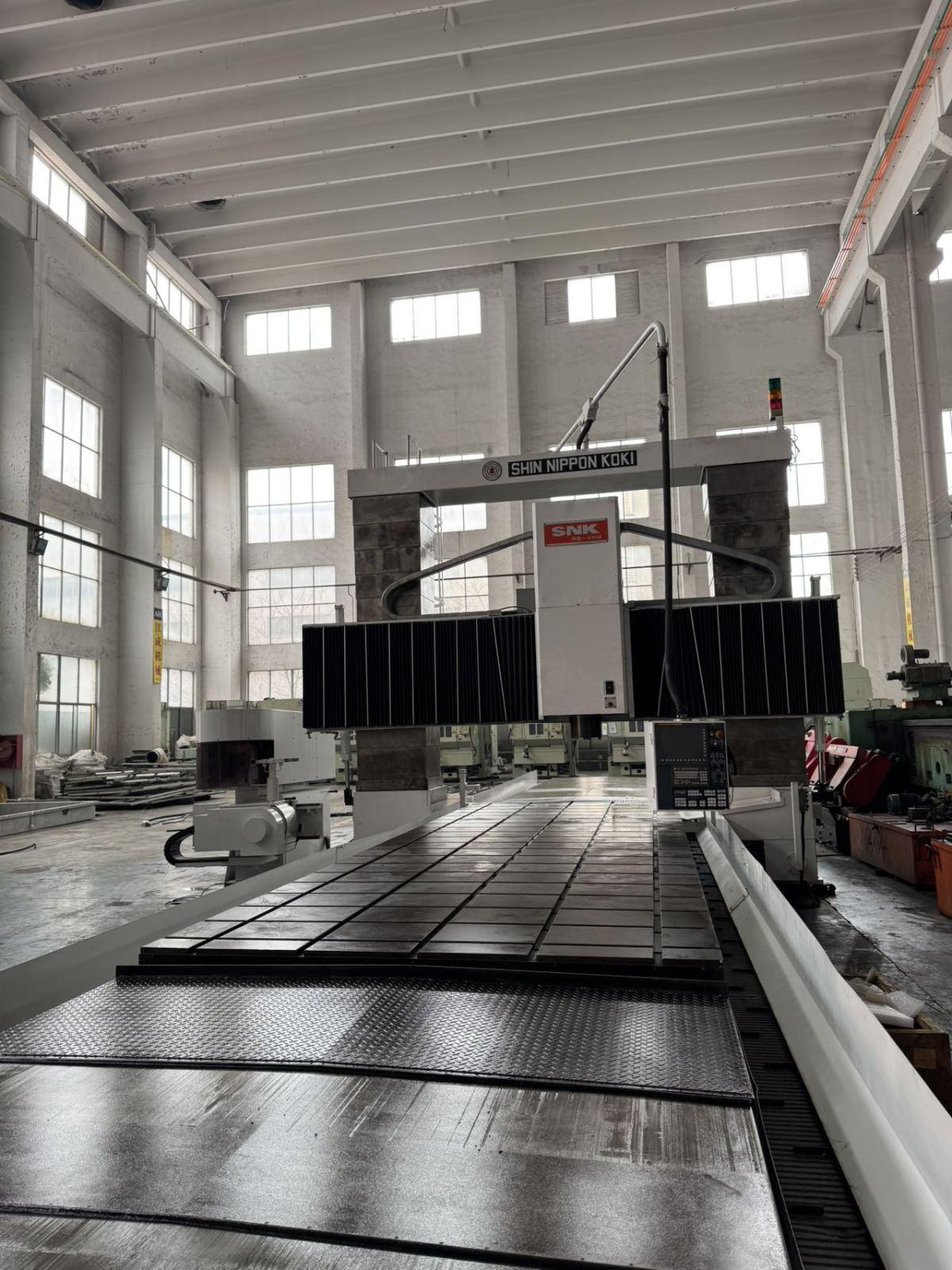

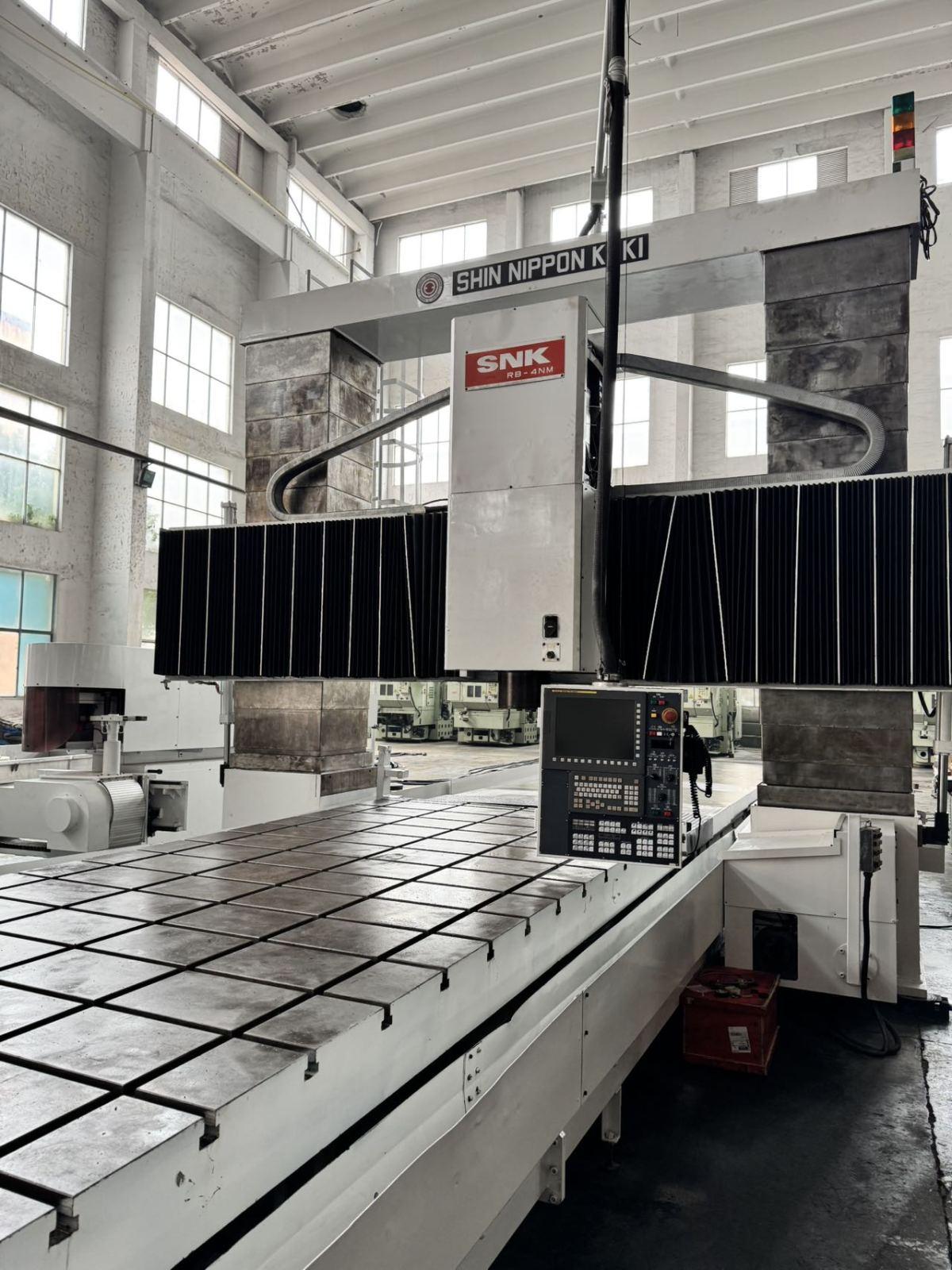

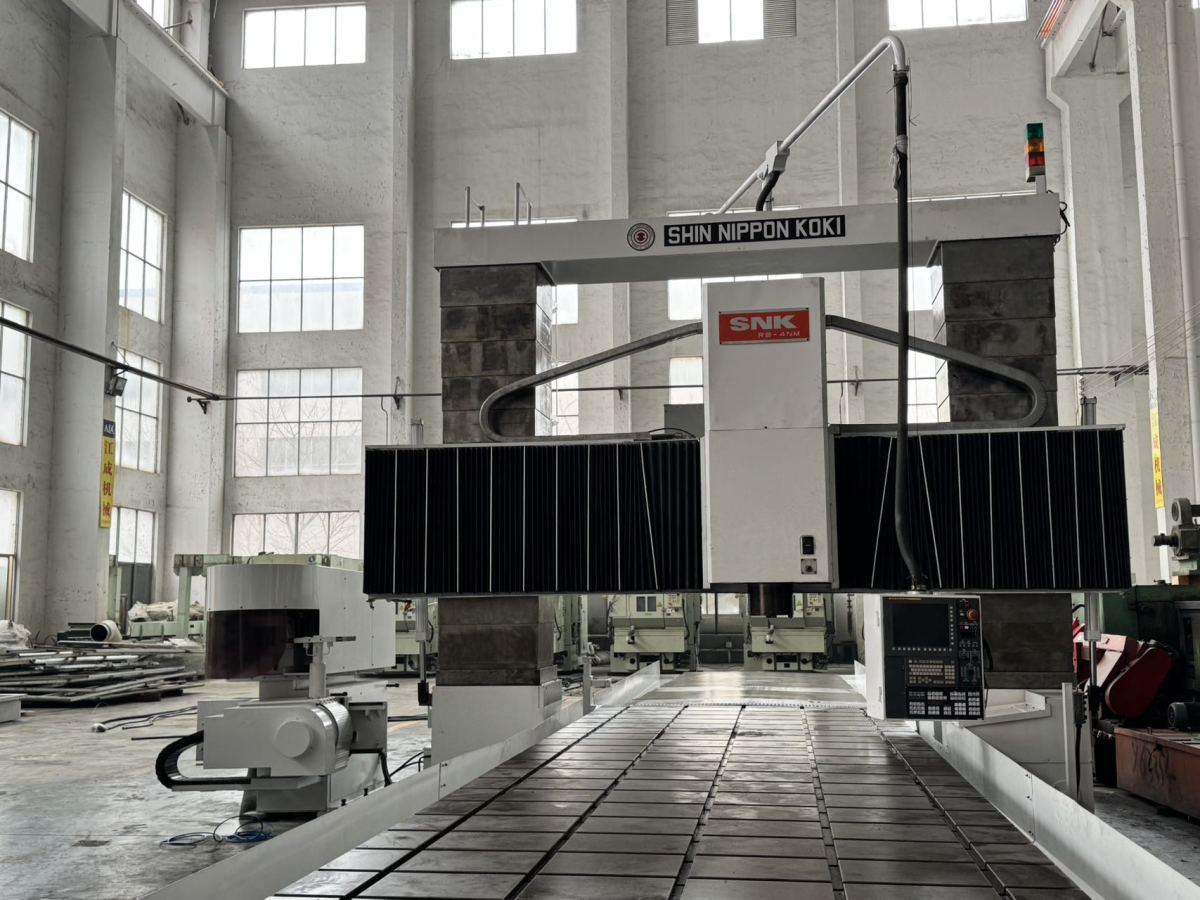

SNK RB-4NM Gantry machining centre

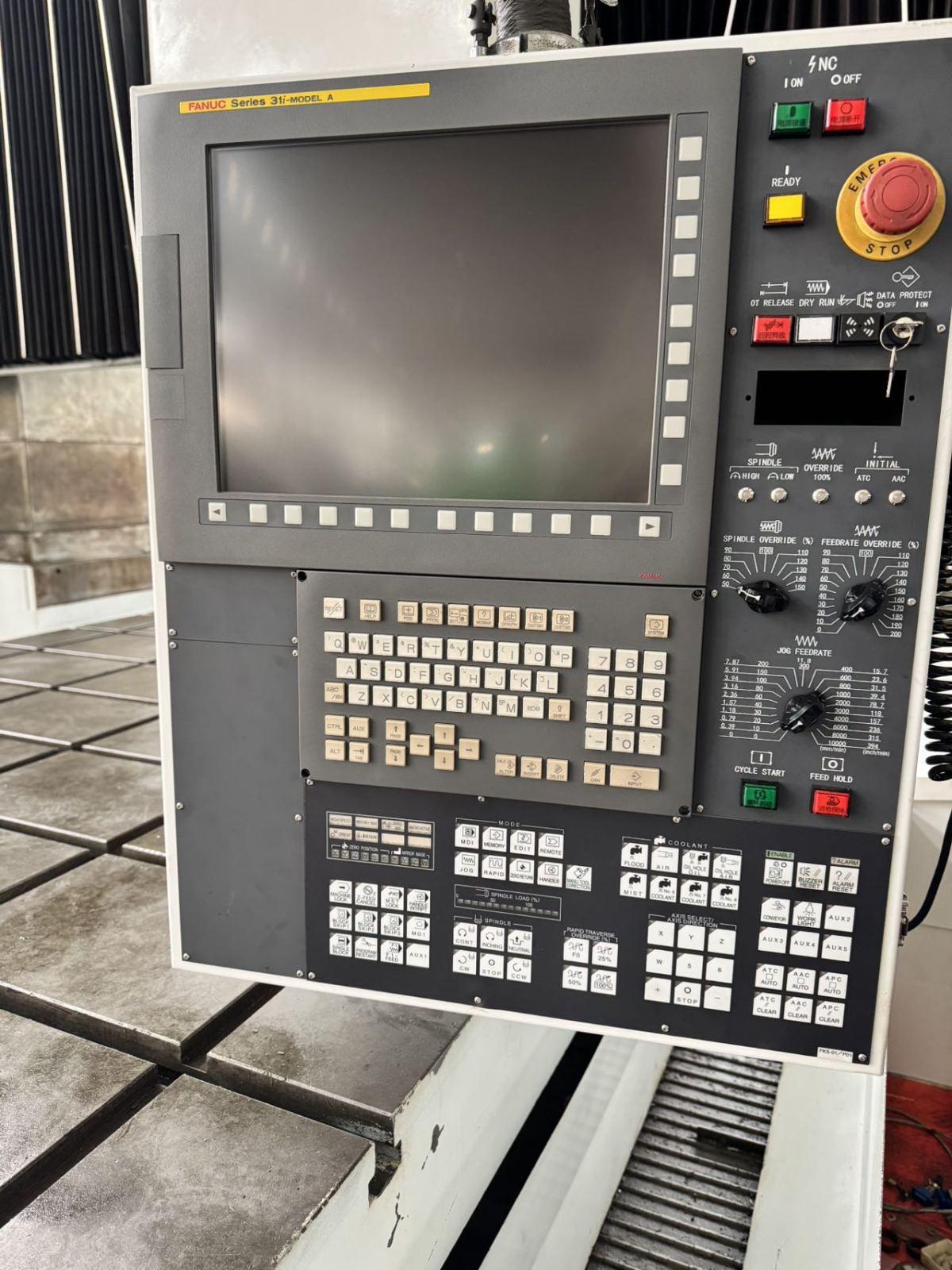

CNC System: FANUC 31i-MODEL A
Worktable size (L × W): 6000 × 2000 mm
Worktable load capacity: 15,000 kg
Three-axis travel (X / Y / Z): 6250 × 2900 × 600 mm
W-axis travel: 1400 mm
Gantry width: 2900 mm
Distance from spindle nose to worktable surface: 0–1800 mm
Spindle taper: BT50
Maximum spindle speed: 6000 rpm
Spindle drive type: Electric spindle
Indexing angle: 1°

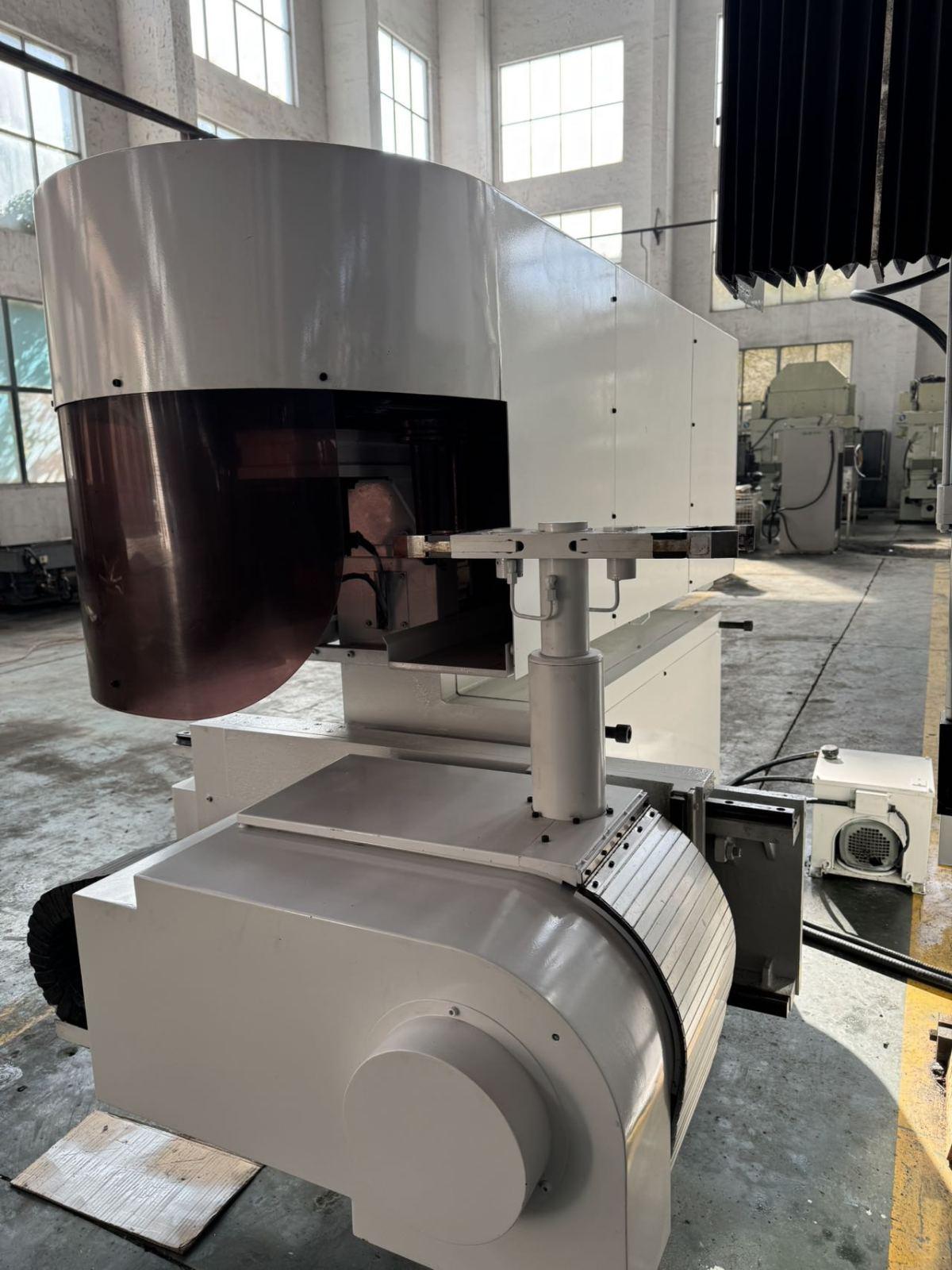

Angle milling head speed: 5000 rpm
Tool holder type: BT50

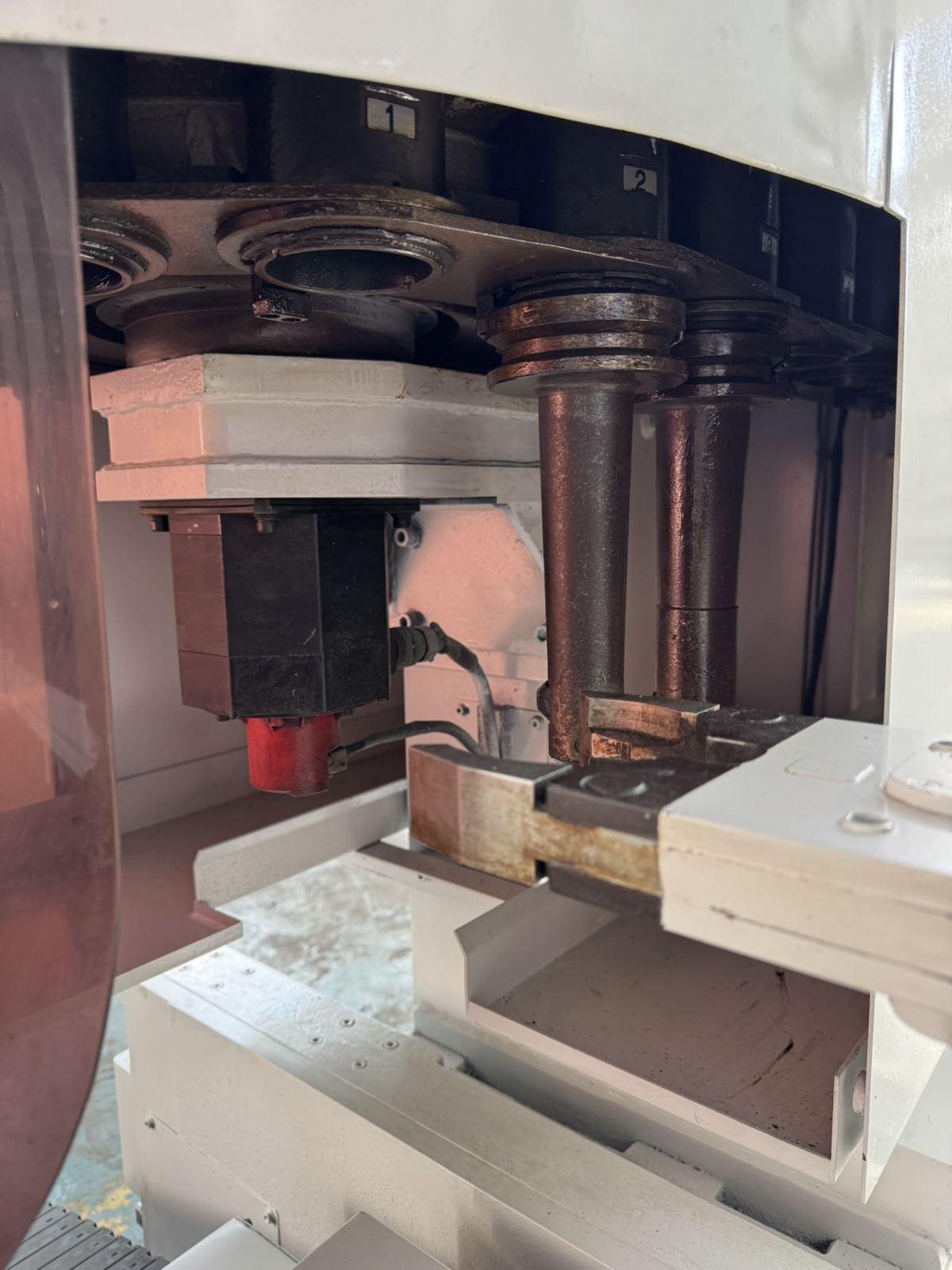

Tool magazine capacity: 40
