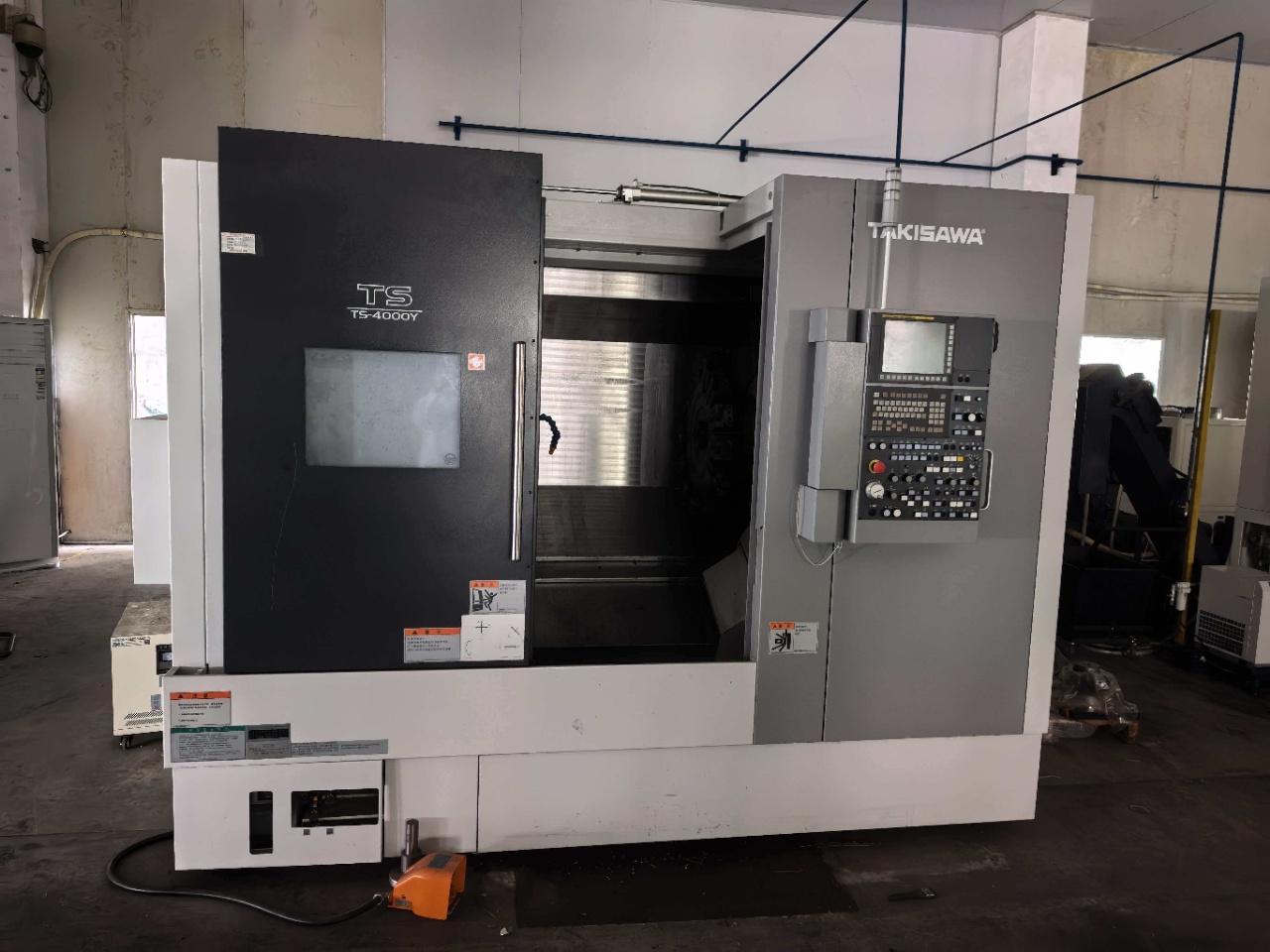

Takisawa TS-4000Y Turn Mill Machining Centre

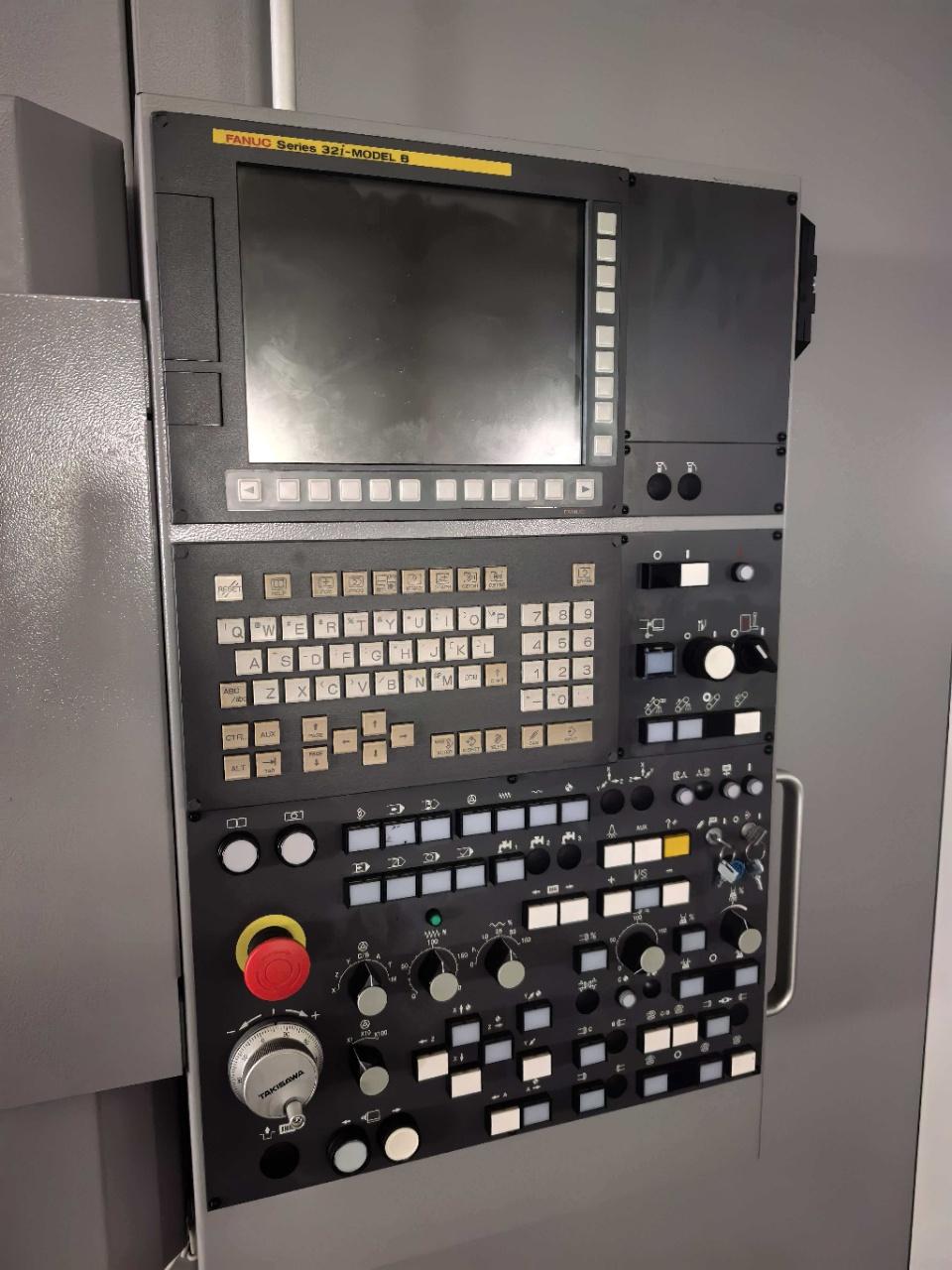

CNC System: FANUC Series 32i-MODEL B
Maximum Swing diameter: 600mm
Maximum machining diameter: 370mm
Maximum machining length: 750mm
Bar machining diameter: 82mm
Three-axis travel:
X-axis: 325mm
Y-axis: -50 to +70mm
Z-axis: 840mm
Spindle: A2-8
Maximum spindle speed: 4200rpm
Through hole diameter: 94mm
Tailstock:
Maximum thrust: 12kN
Tailstock travel: 780mm
Configuration:

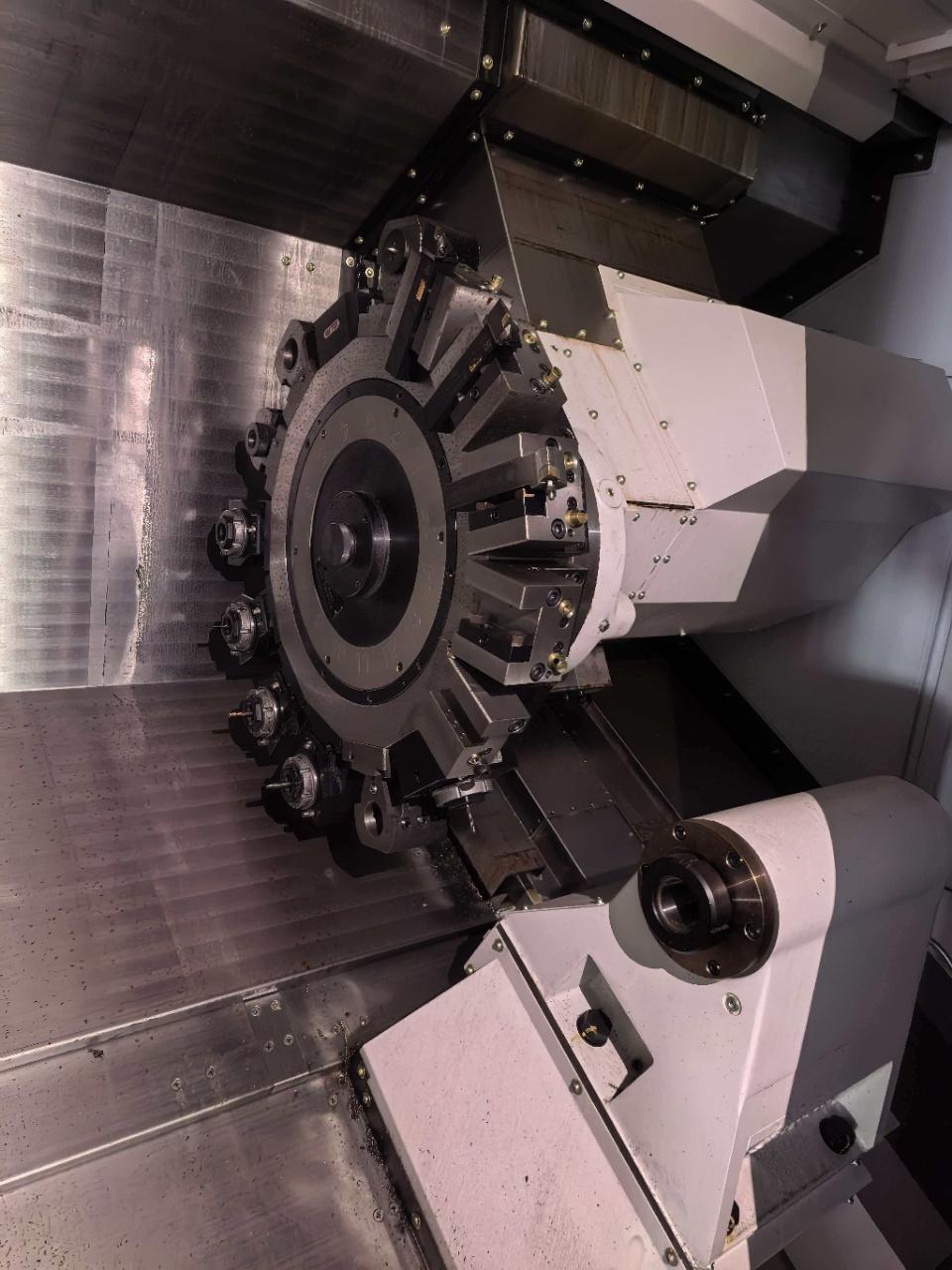

Tool turret positions: 12-position power tool turret
Servo tailstock
Capable of eccentric machining and complex contour milling
Equipped with a cooling spray system inside

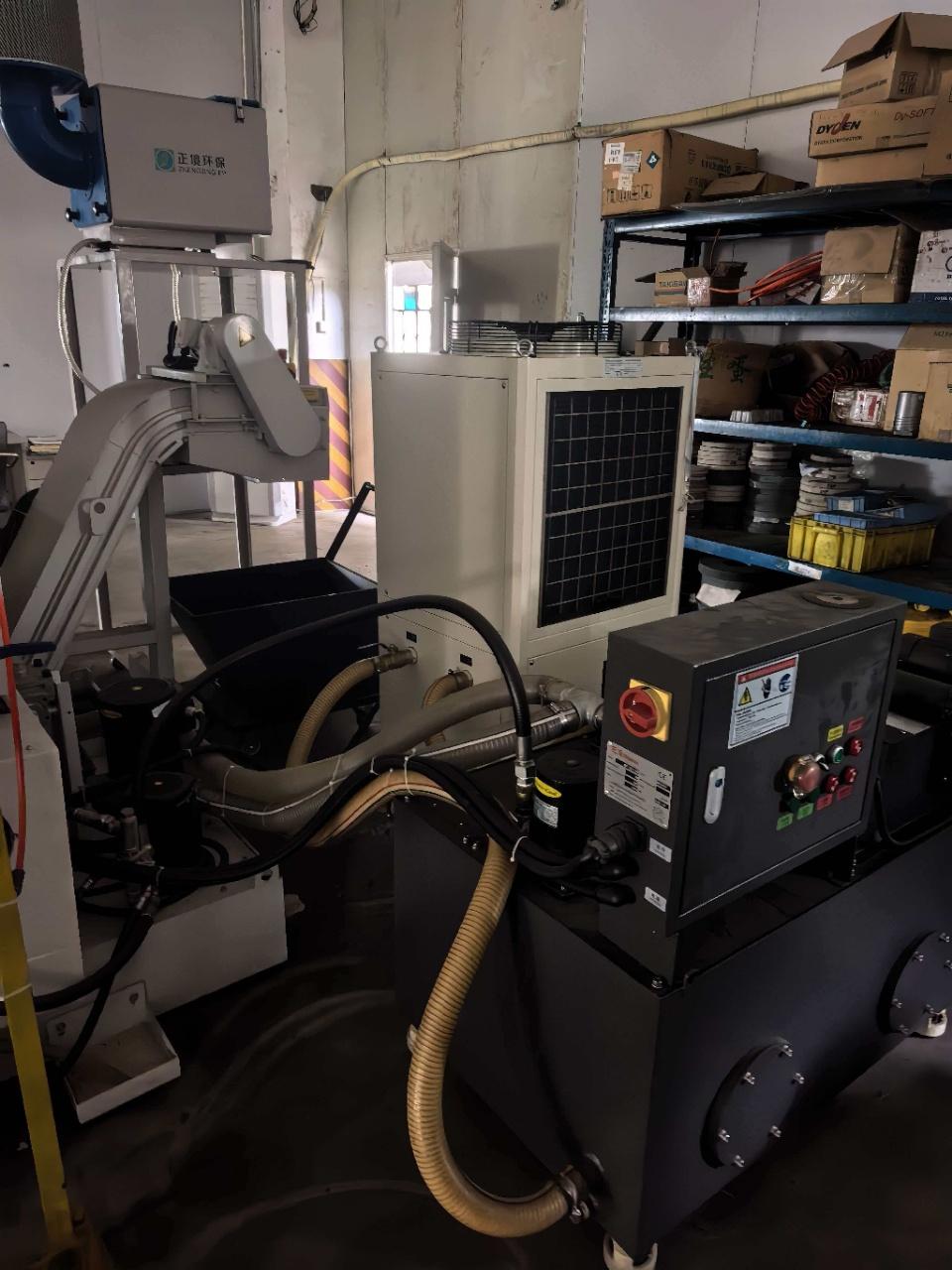

Chip conveyor

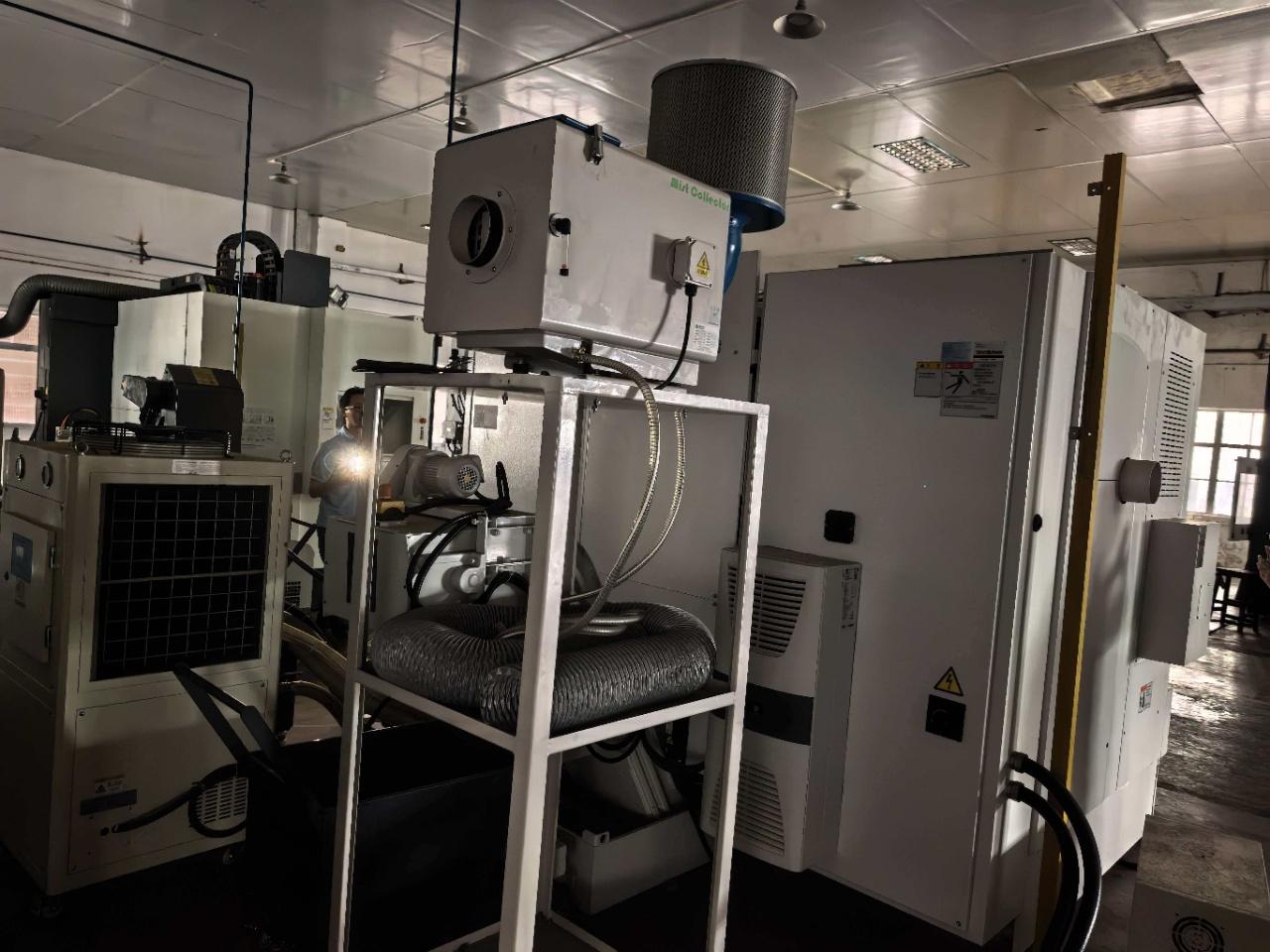

Oil mist collector
High-pressure cooling unit
