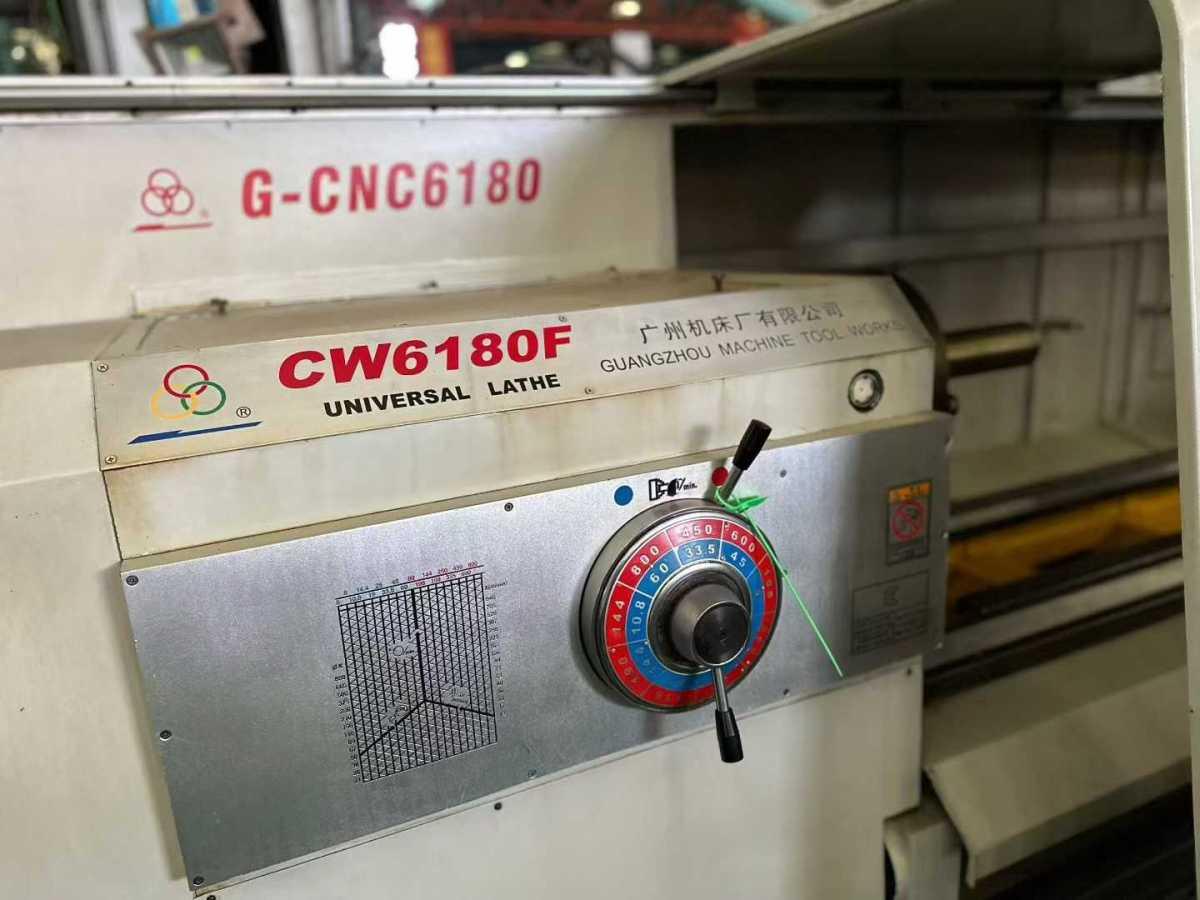

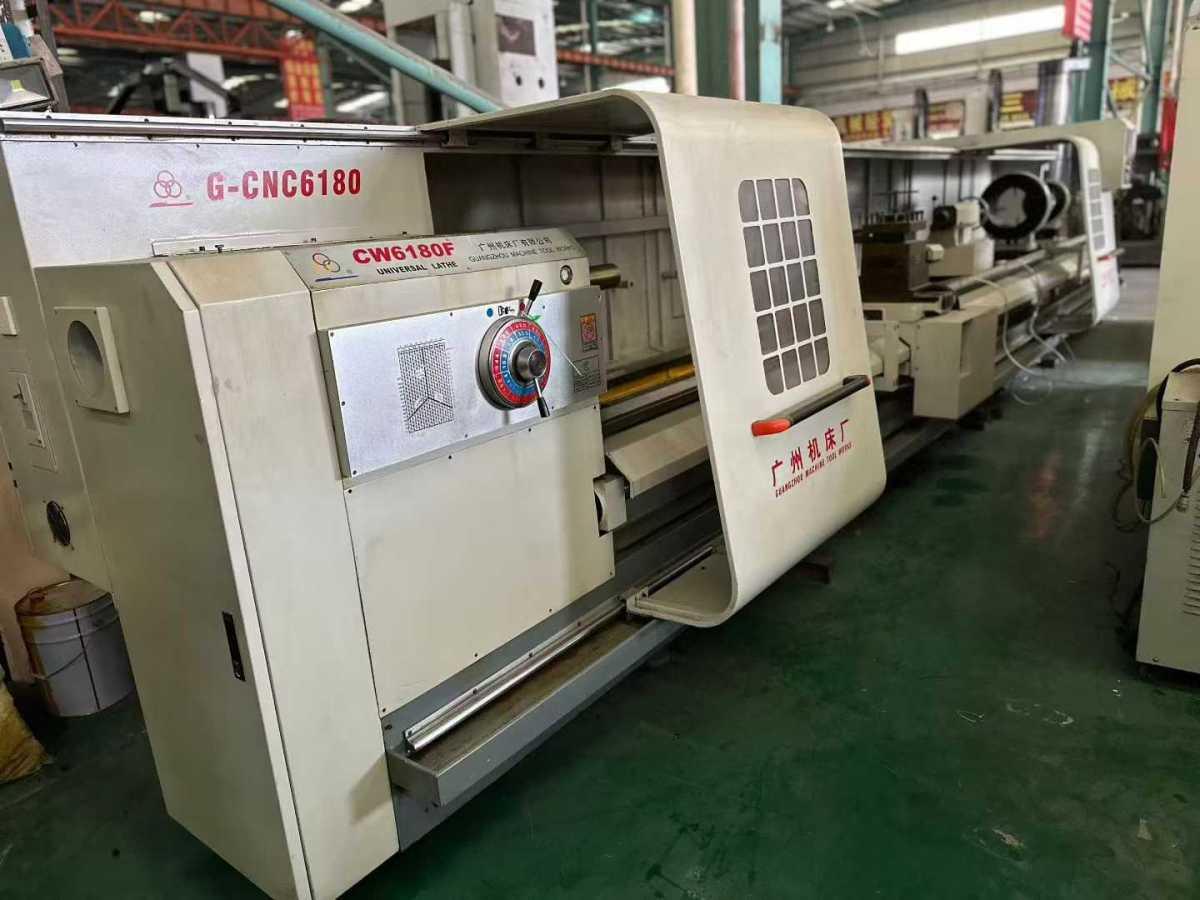

GMW G-CNC6180 CNC turning lathe

The maximum rotation diameter on the bed is 800 mm
The maximum rotational diameter on the tool holder is 520 mm
Maximum workpiece length: 8000 mm
The diameter of spindle through hole is 104 mm
Spindle speed range: 10-1000 rpm
Main motor power: 11 kW
X-axis: 500 mm
Z-axis: 8000 mm
The width of the bed guideway is 550 mm
tailstock quill shaft travel: 250mm
tailstock quill shaft taper: MT6

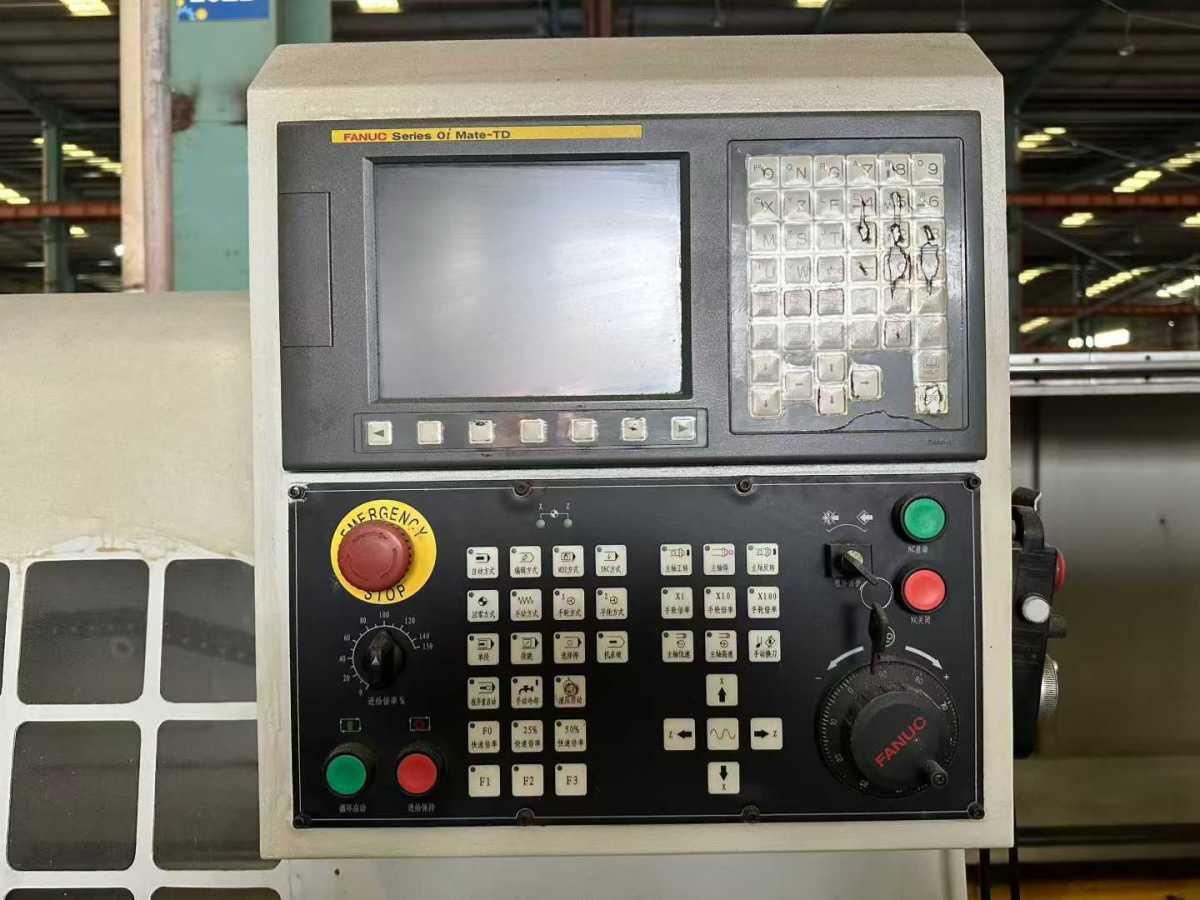

Control CNC System: FANUC 0i Mate-TD
