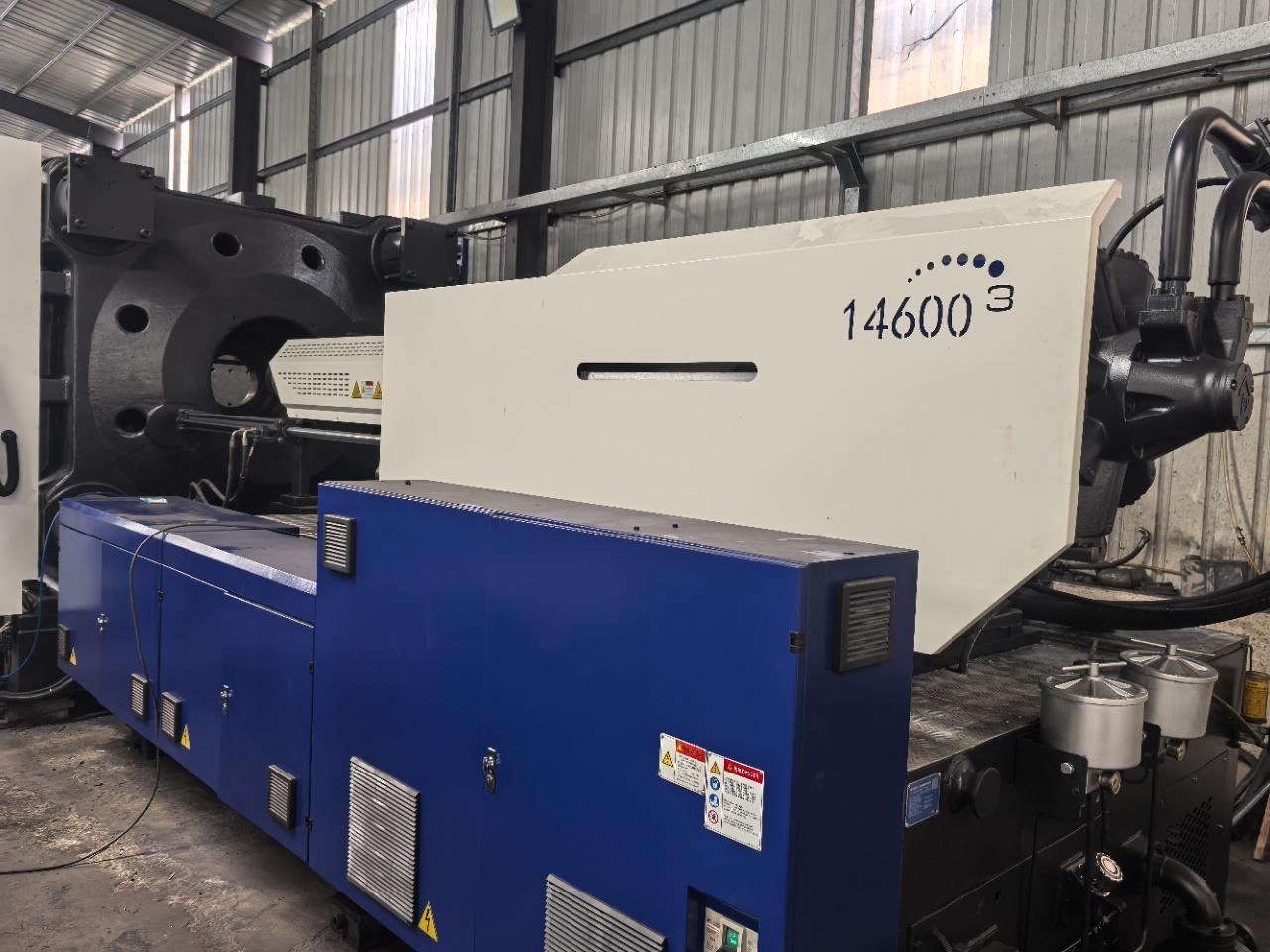

Haitian MA16000III/14600 injection molding machine

swing diameter: Φ 100mm
Theoretical injection volume: 4006 cm³
Theoretical injection weight (PS) : 4206 g
Screw length-to-diameter ratio: 20:1
Injection pressure (theoretical) : 160 MPa
Plasticizing capacity (GPPS) : 180 g/s
Screw speed range: 0-150 rpm
Clamping force: 16,000 kN
The inner spacing of the pull rod: 1580×1580 mm
Maximum template opening distance: 2800 mm
Mold thickness range: 800-1600 mm
Ejection travel: 350 mm
Top force: 300 kN
Power supply specification: AC380V 3P/N/PE 50Hz
Rated power: 165 kW
Full-load current: 292 A
actuating motor power: 75+45 kW
Electric heating power: 119 kW
Fuel Water tank capacity: 2500 liters
Equipment weight: 85 tons
