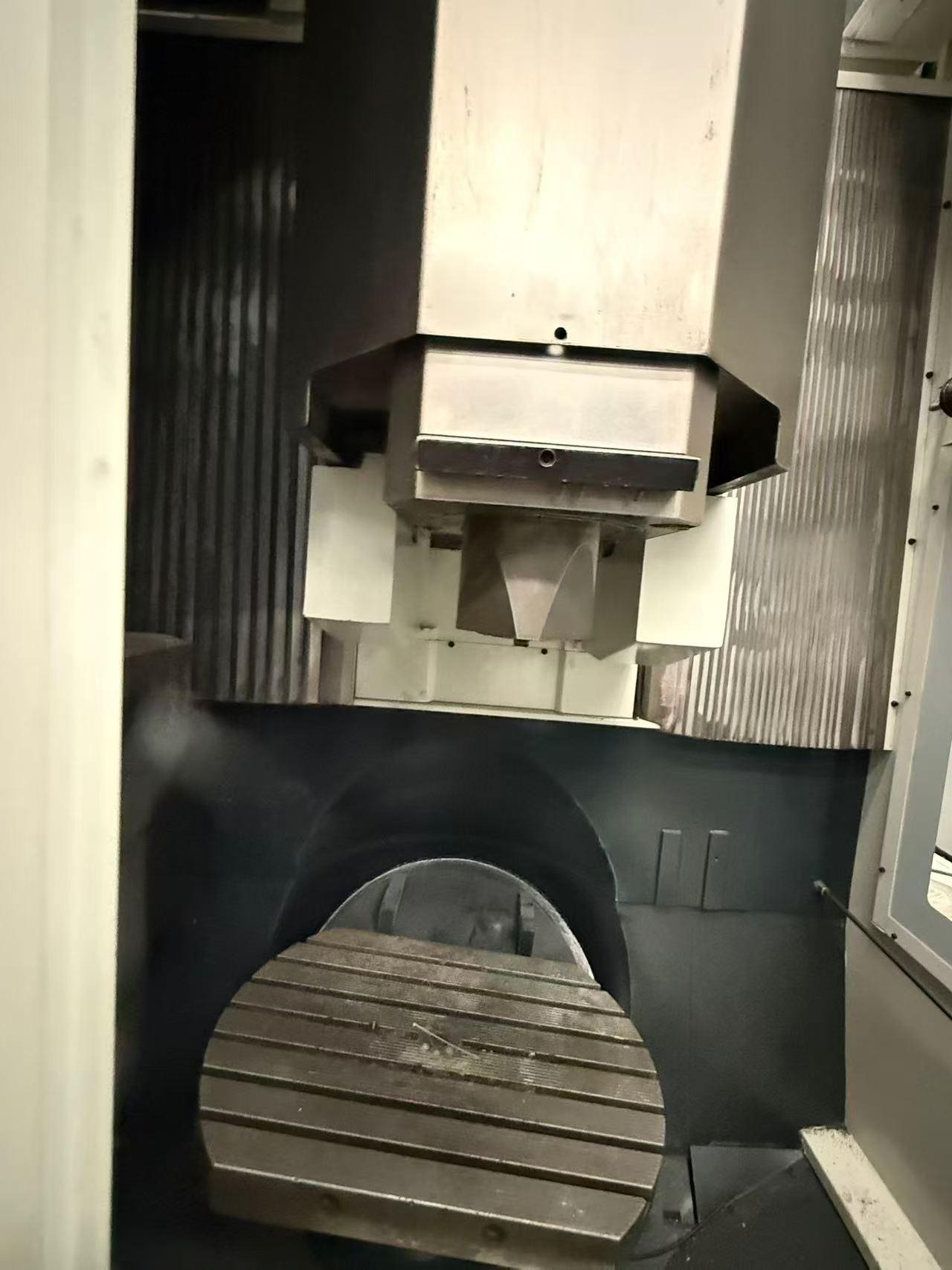

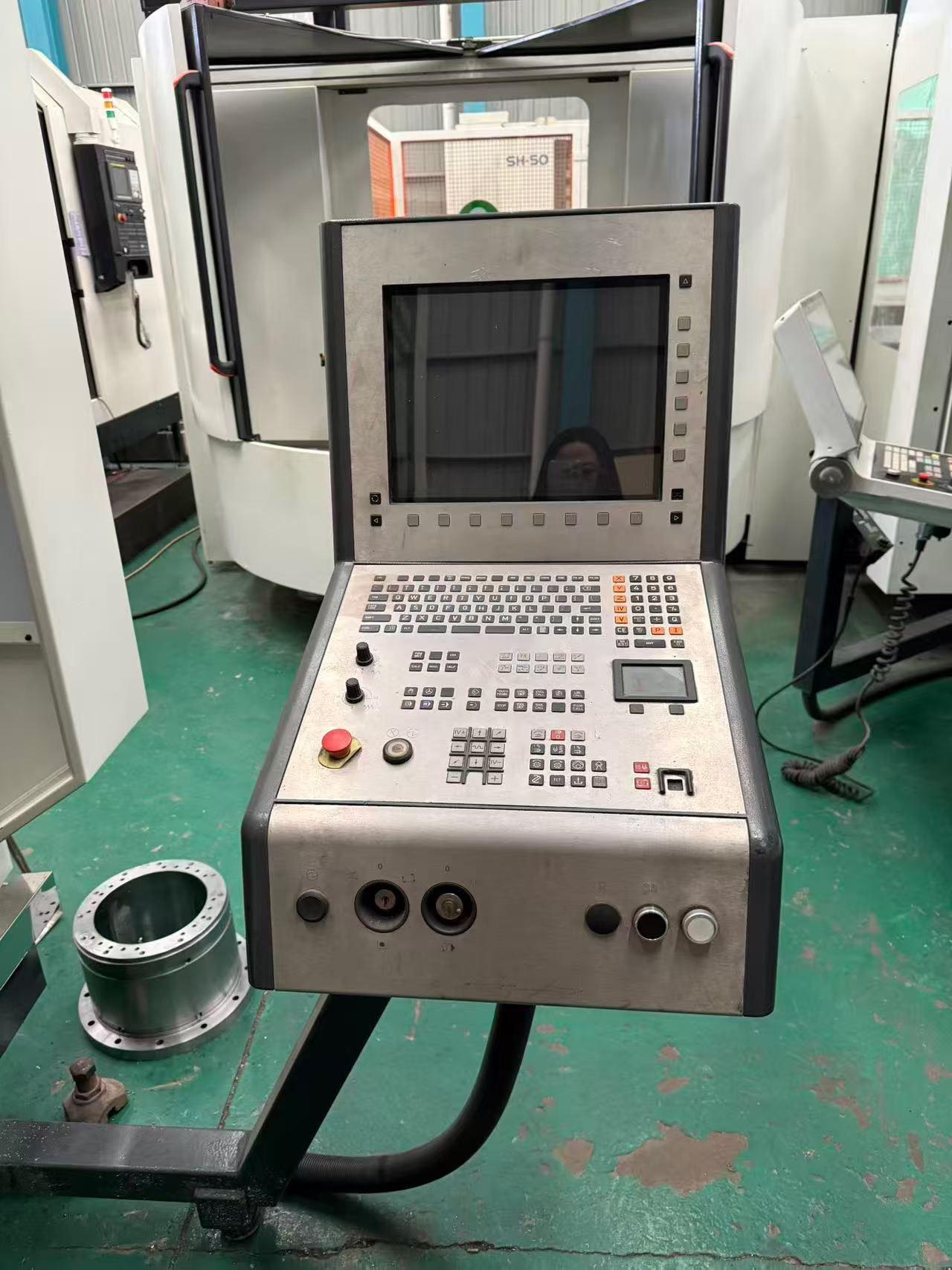

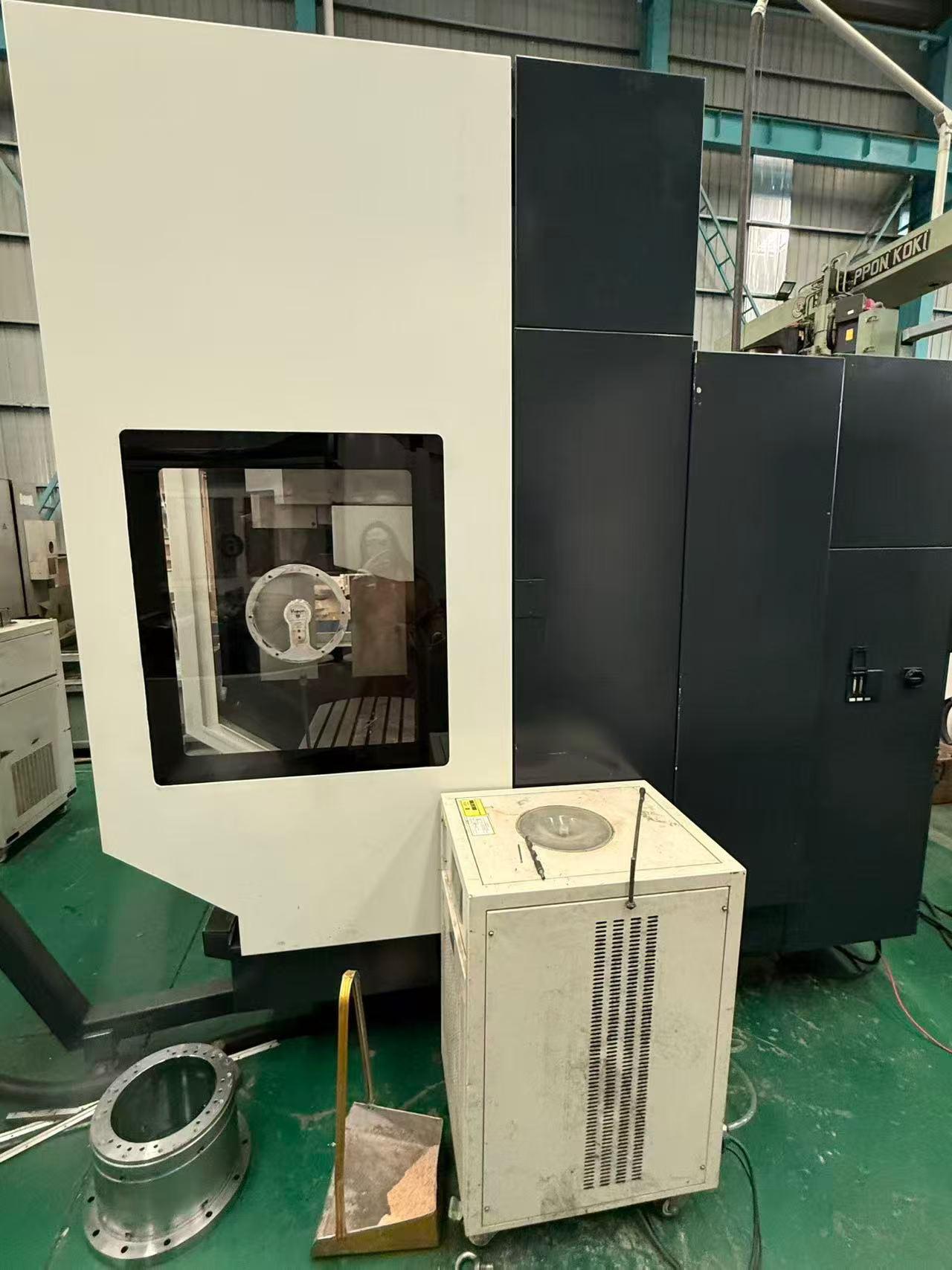

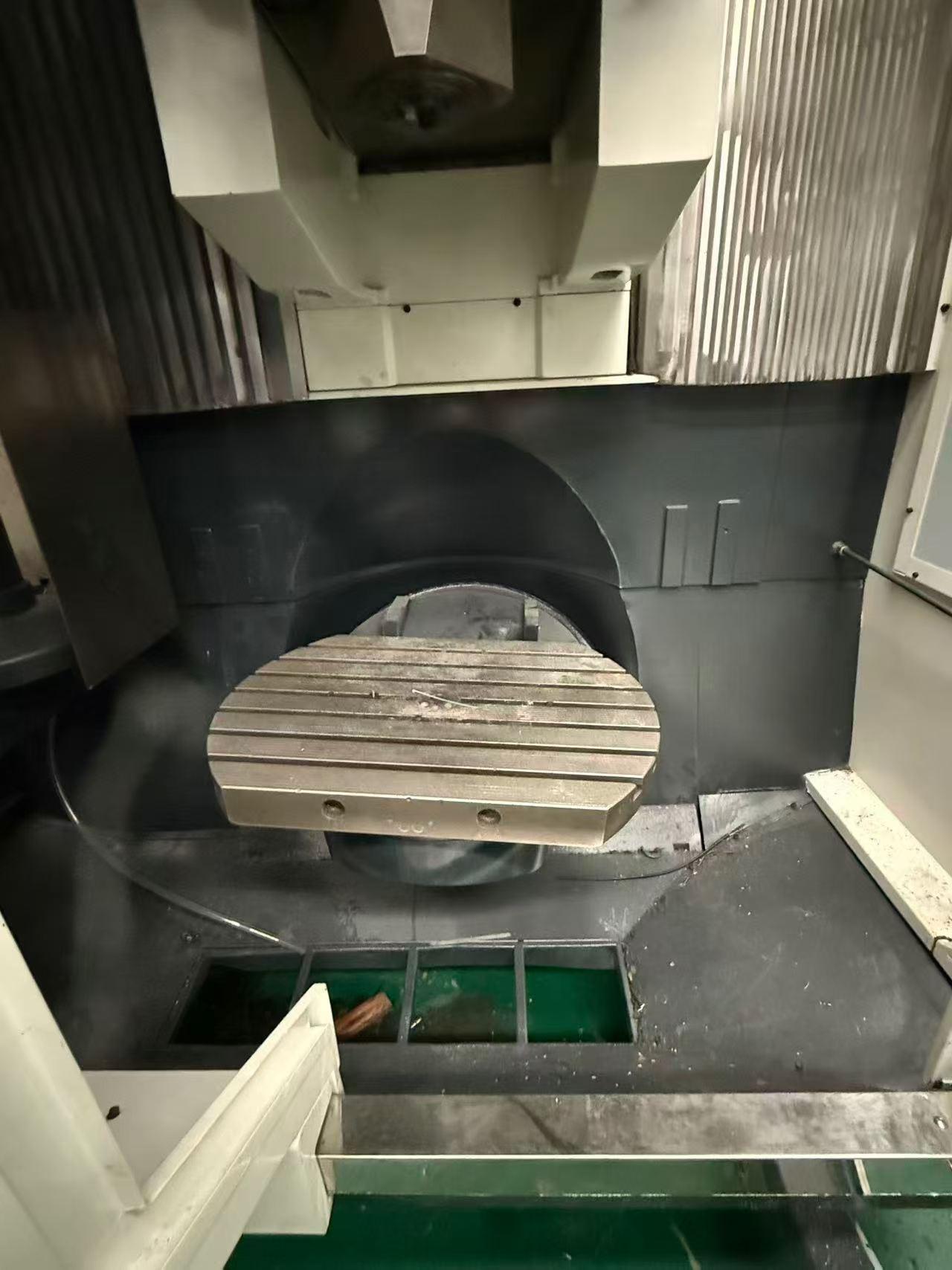

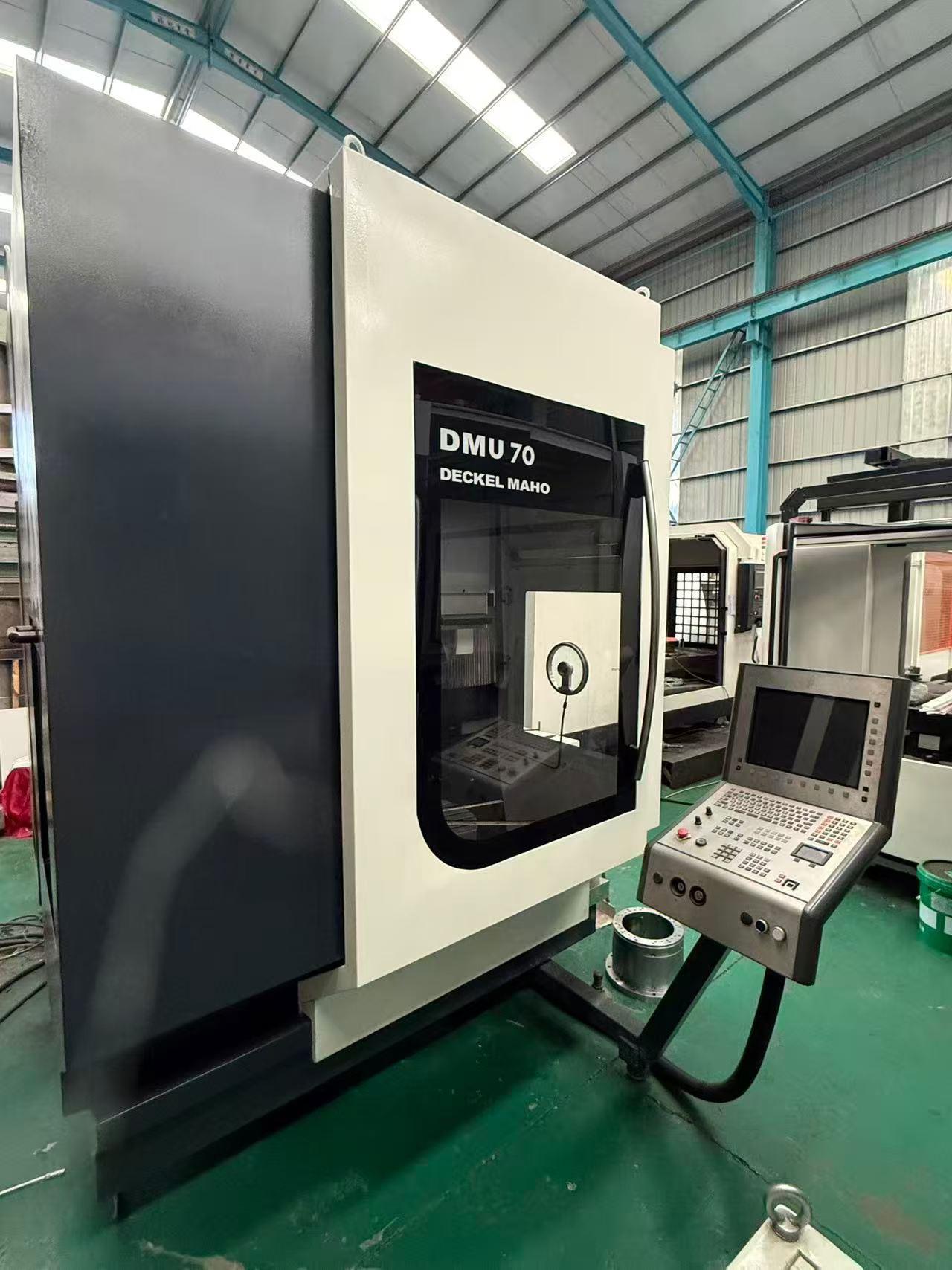

DMG DMU 70 DECKEL MAHO 5 axis machining centre

Three-axis travel: 750 × 600 × 520 mm
Worktable size: 700 × 500 mm
Maximum load: 350 kg
B-axis swing range: 0° to 102°
C-axis: 360° continuous rotation
Spindle system
Spindle taper: SK40
Spindle speed: 20–12,000 rpm
Spindle power: 9 / 13 kW (100% / 40% duty cycle)
Spindle torque: 83 Nm (40% duty cycle)
Tool magazine system
Magazine capacity: 24 tools (ATC)
Maximum tool weight: 6 kg
Maximum tool length: 300 mm
Maximum tool diameter:
Ø80 mm (without adjacent tools)
Ø130 mm (with adjacent tools clearance)
