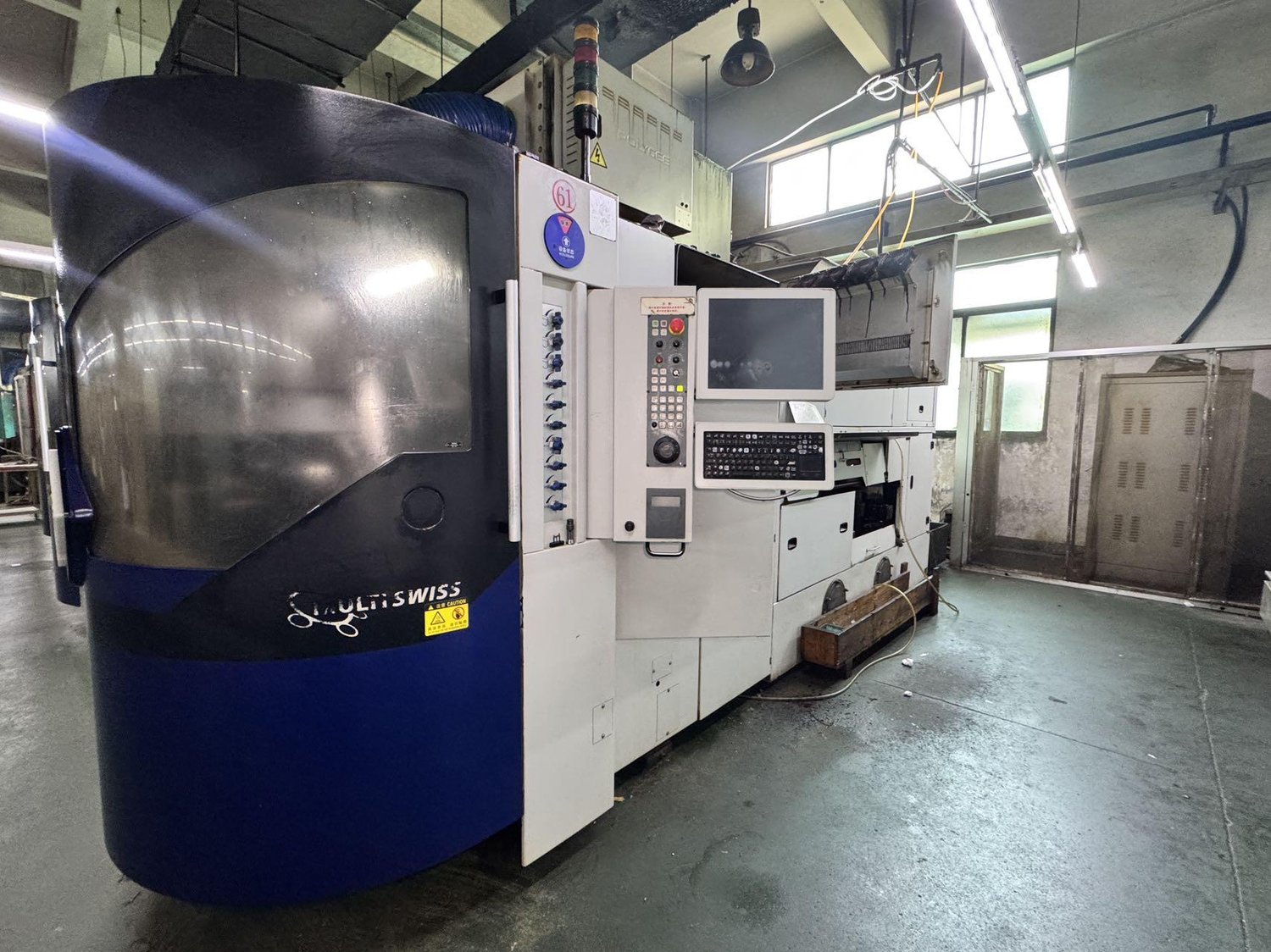

TORNOS MultiSwitzerland 6*14 CNC turning lathe

Bar Stock Diameter: 4–14 mm
Maximum Machining Length: 40 mm
Maximum Residual Length: 70 mm
Spindle
Maximum Spindle Speed: 8,000 rpm
Spindle Power: 5.6 kW
Spindle Torque: 7.5 Nm
Secondary Spindle
Maximum Rotational Speed: 8,000 rpm
Power: 5 kW
Torque: 6 Nm
Axis Configuration
Linear Axes: 14 + 1 (Y-axis, Black Edition)
Rotary Axes: 7 + 1 (optional)
Cutting Slide: 5 + 1
Back-Working Slide: 1
Axis Travels
Spindle Z-axis Travel: 50 mm
Sub-Spindle Z-axis Travel: 150 mm
Cutting Slide X-axis Travel: 40 mm
Cutting Slide Y-axis Travel: 30 mm
Back Machining X-axis Travel: 75 mm
Tooling
Maximum Tool Positions: 18
Back Machining Tool Positions: 2
Cooling & Oil System
Spindle Cooling: Oil cooling
Cutting Fluid Filtration: 50 μm
Coolant Tank Capacity: 900 L
Pumps
Standard Pump: 4 bar / 150 L/min
High-Pressure Pump (optional):
35 bar / 40 L/min
80 bar / 26 L/min
Others
Total Weight: 7,000 kg
Total Power: 59 kW
