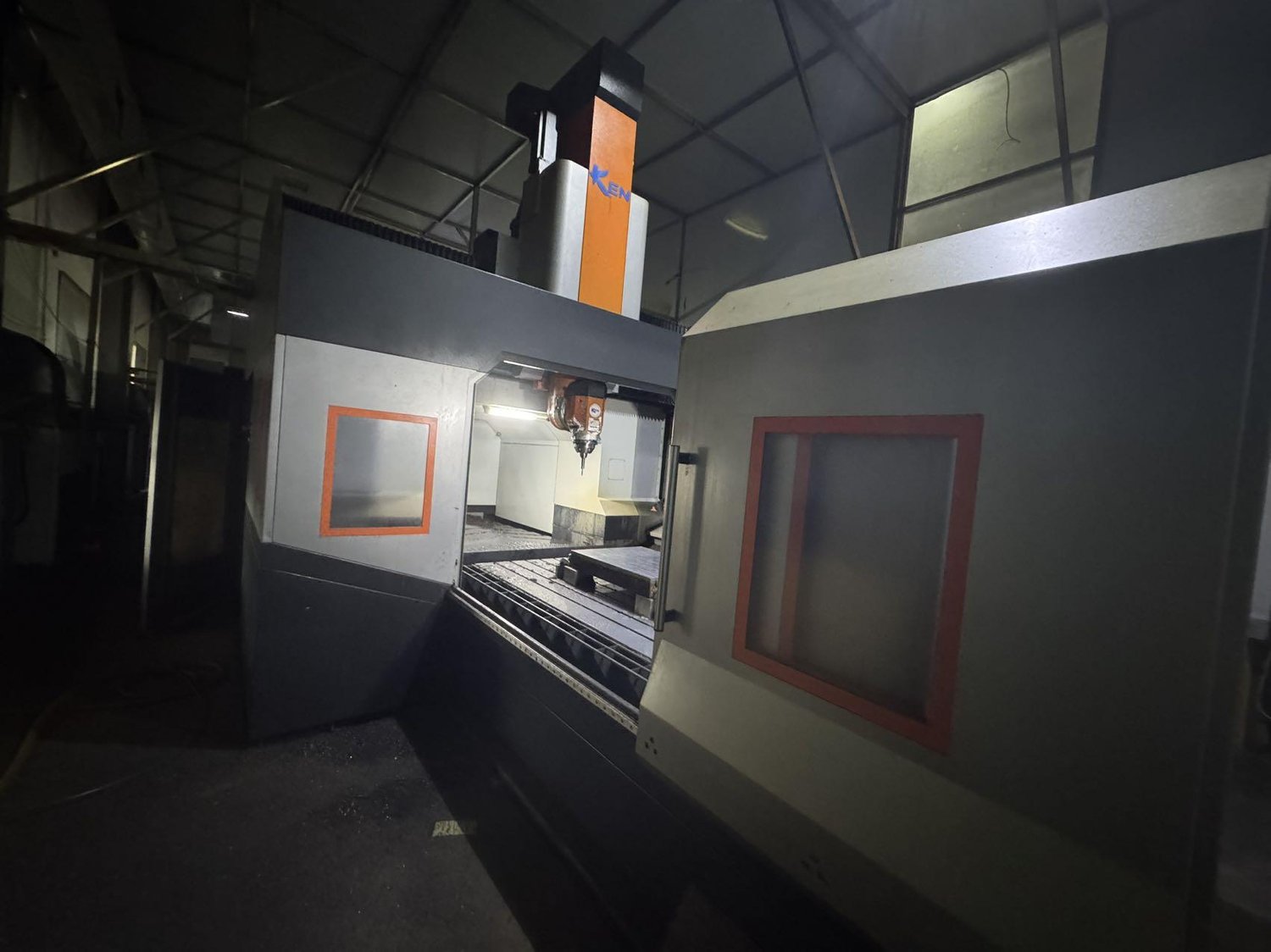

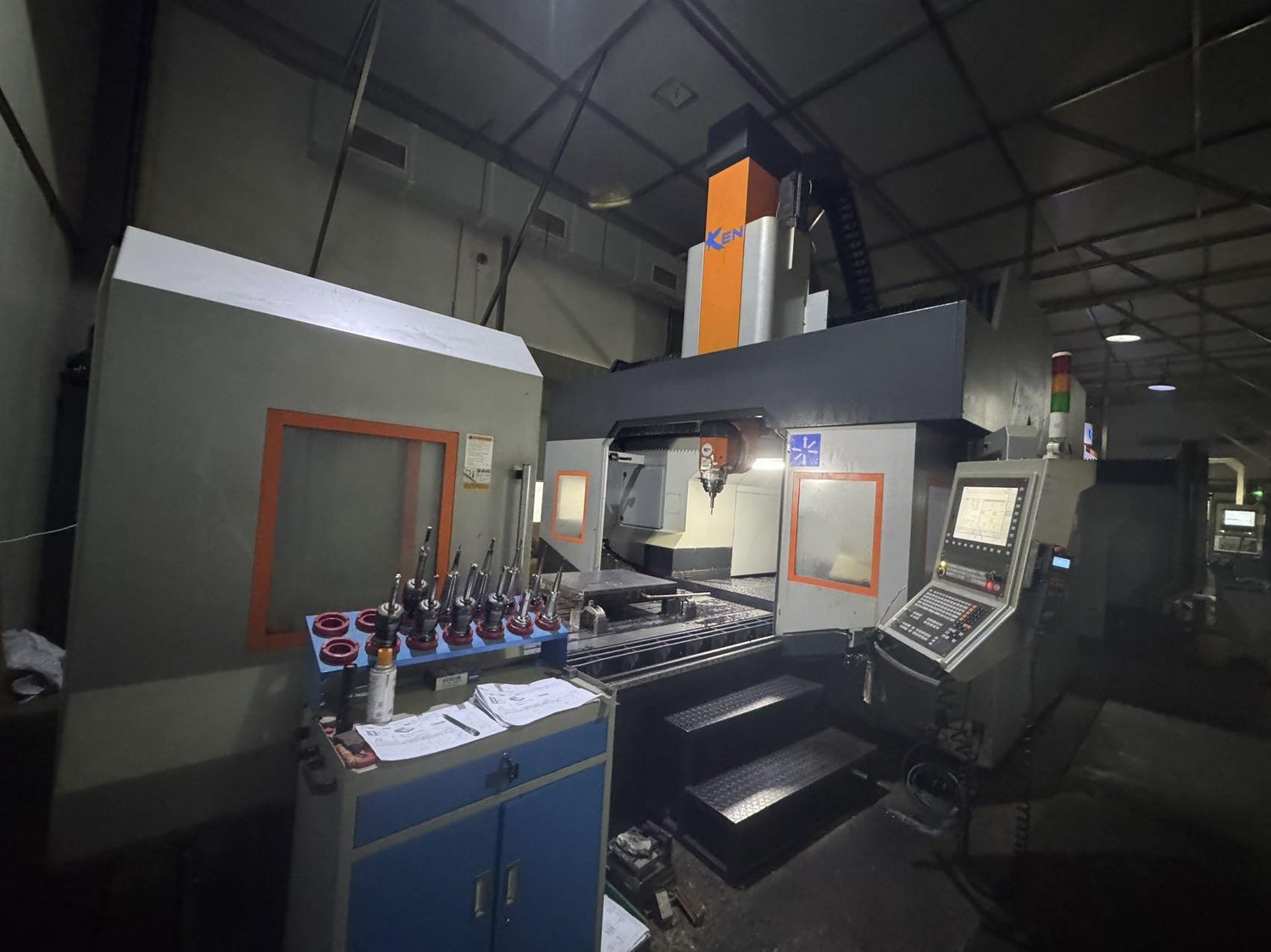

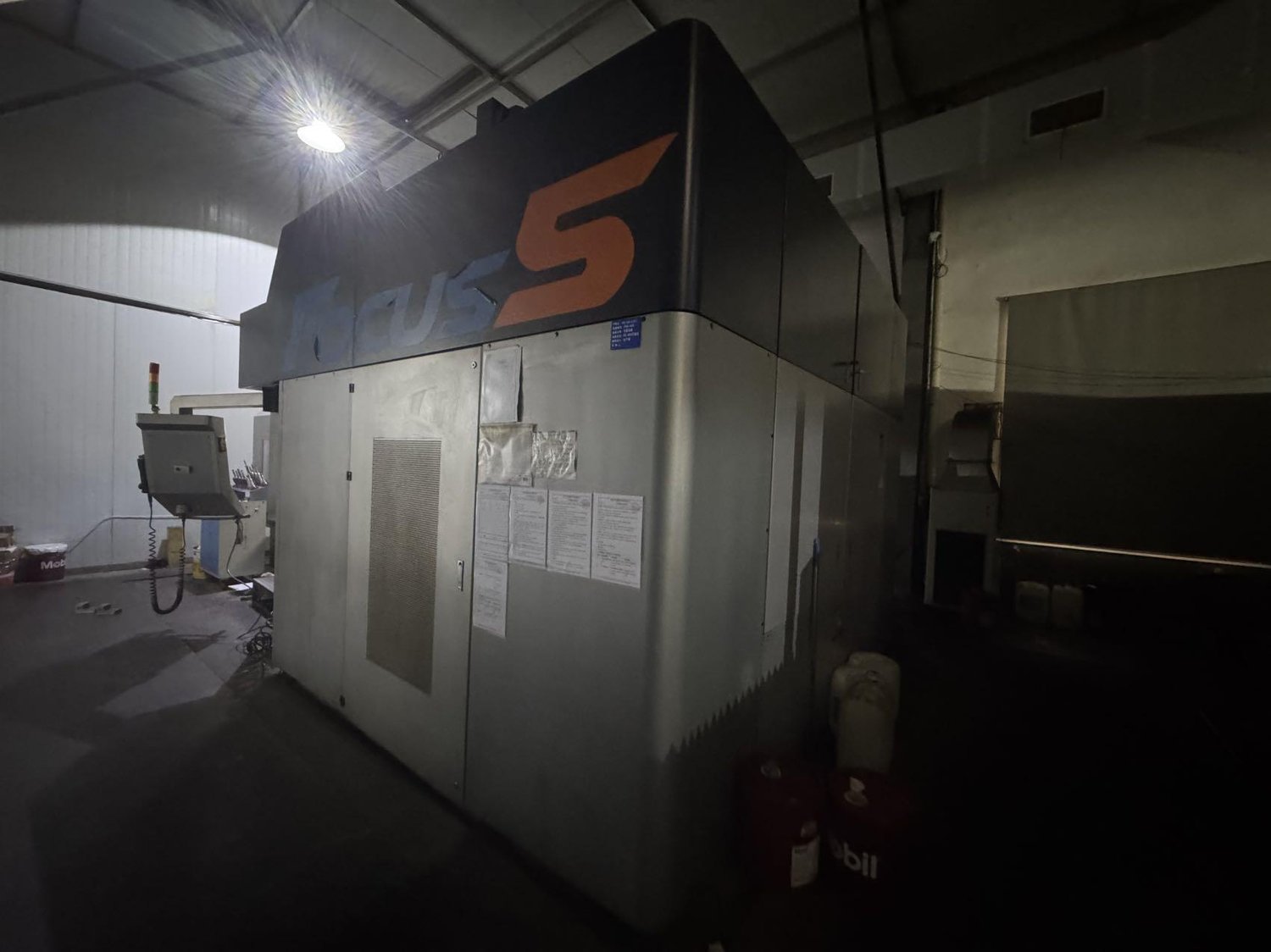

KEN ICHI Focus 5-2022 Gantry machining centre

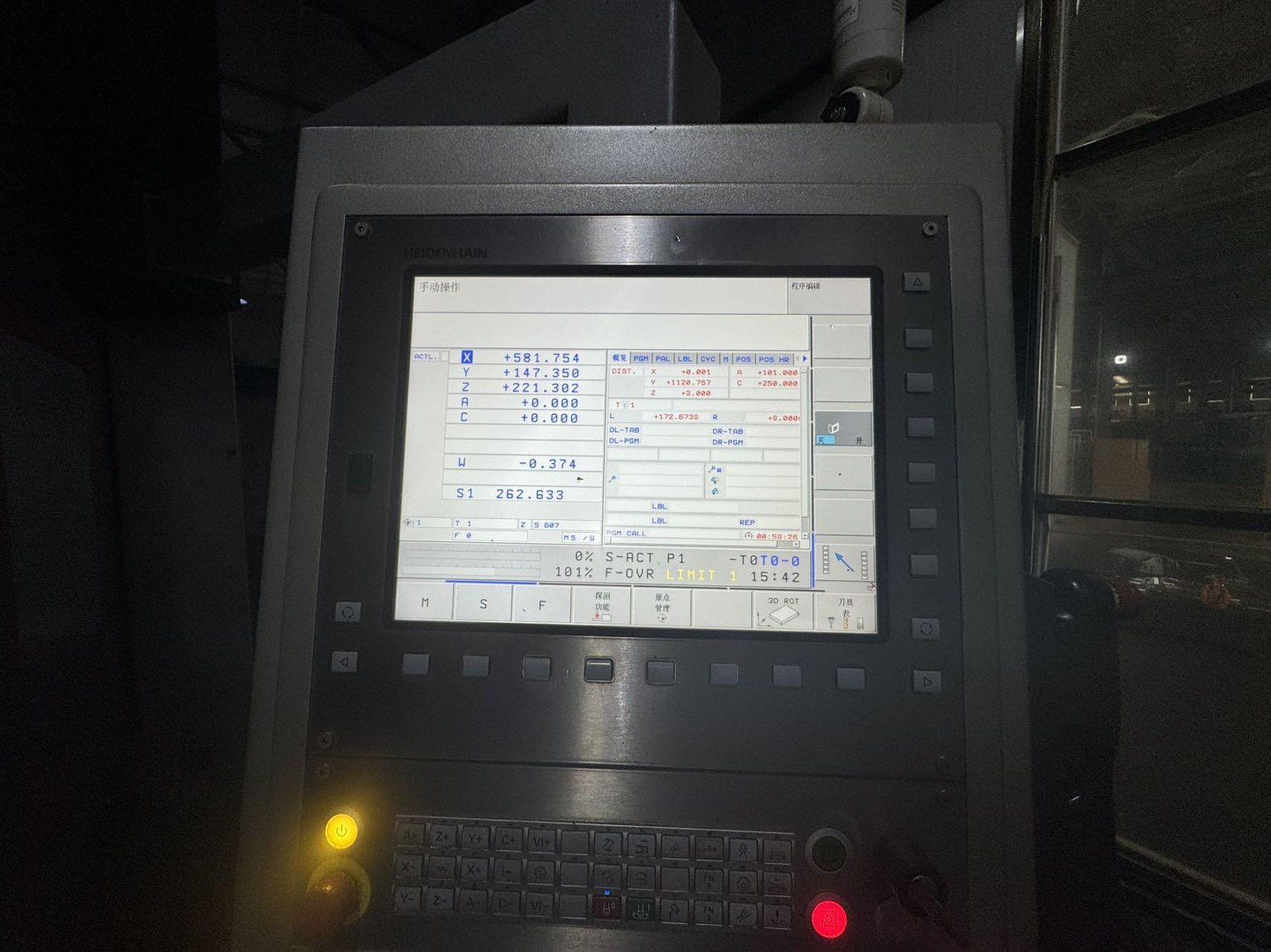

CNC System: Heidenhain TNC-640 (5-axis simultaneous control)
Three-axis travel (X × Y × Z): 2200 × 2000 × 1000 mm
Distance between the two columns: 1650 mm
Distance from spindle nose to worktable: -150 to 850 mm
Structural form: High-rigidity integrated gantry structure

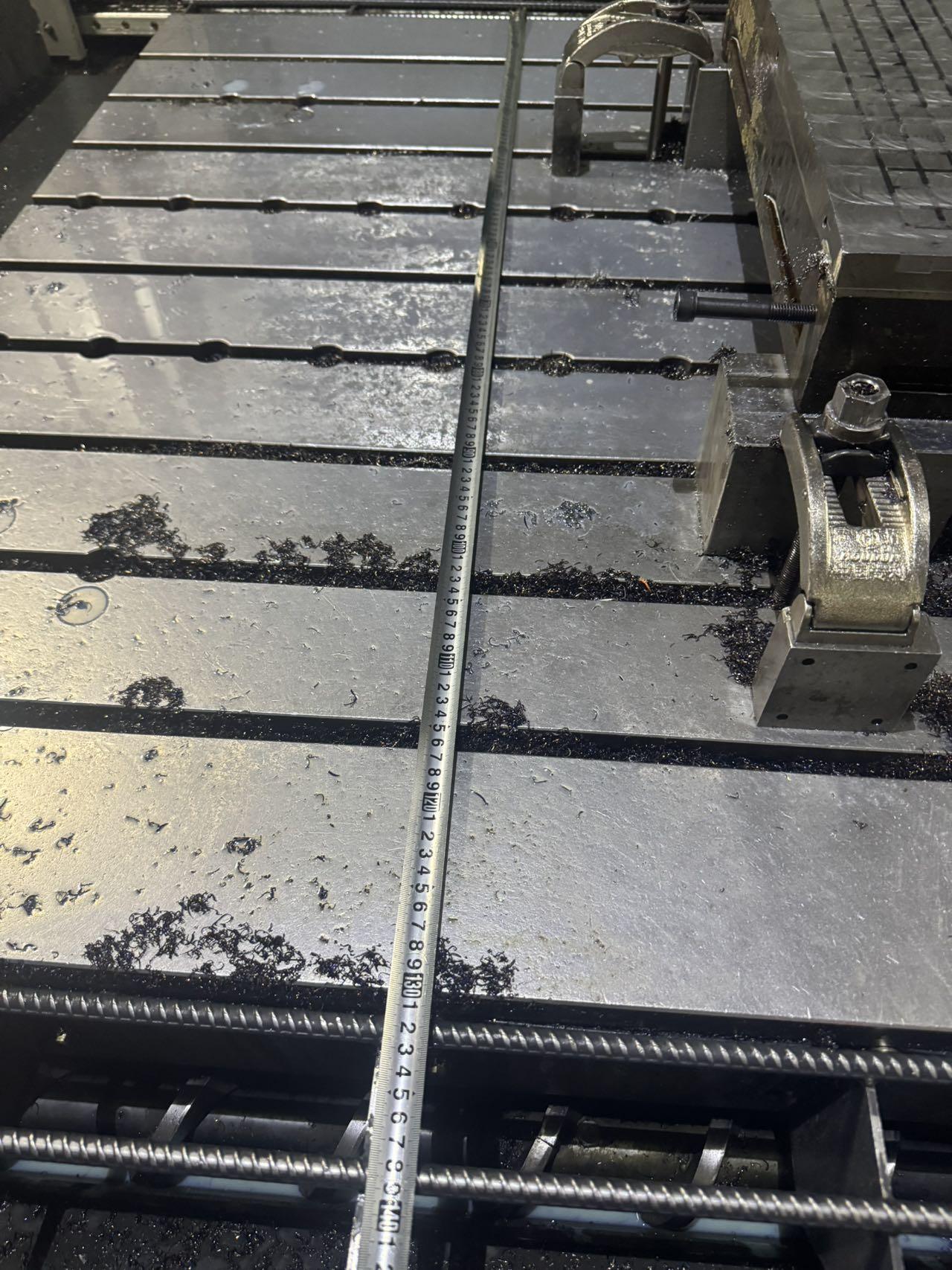

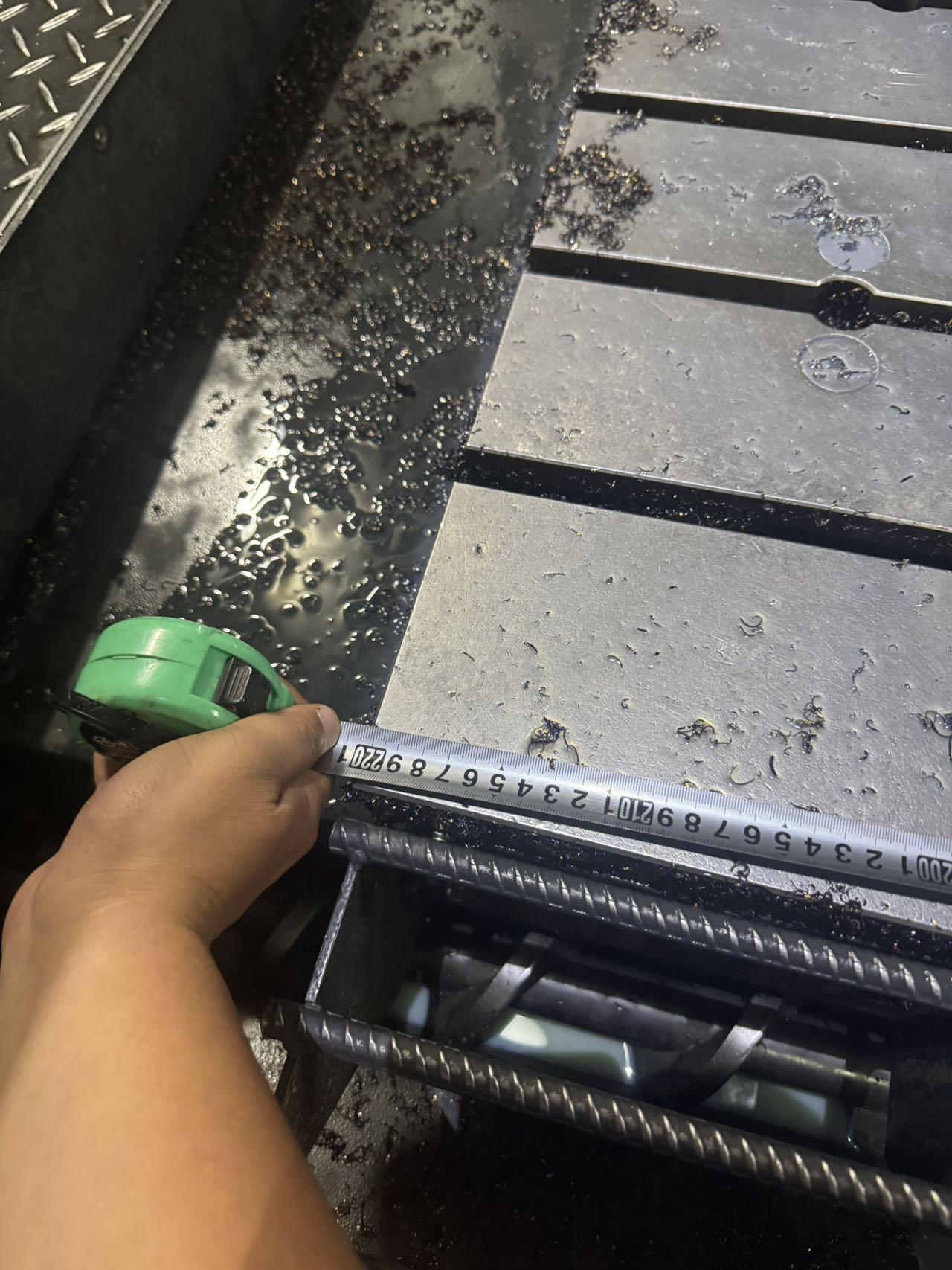

Worktable size: 2200 × 1300 mm
T-slot specification: 18 mm (pitch 180 mm)
Maximum load capacity: 4000 kg
Spindle taper: HSK-A63
Spindle speed: 24,000 rpm
Spindle power: 21 kW (S1)

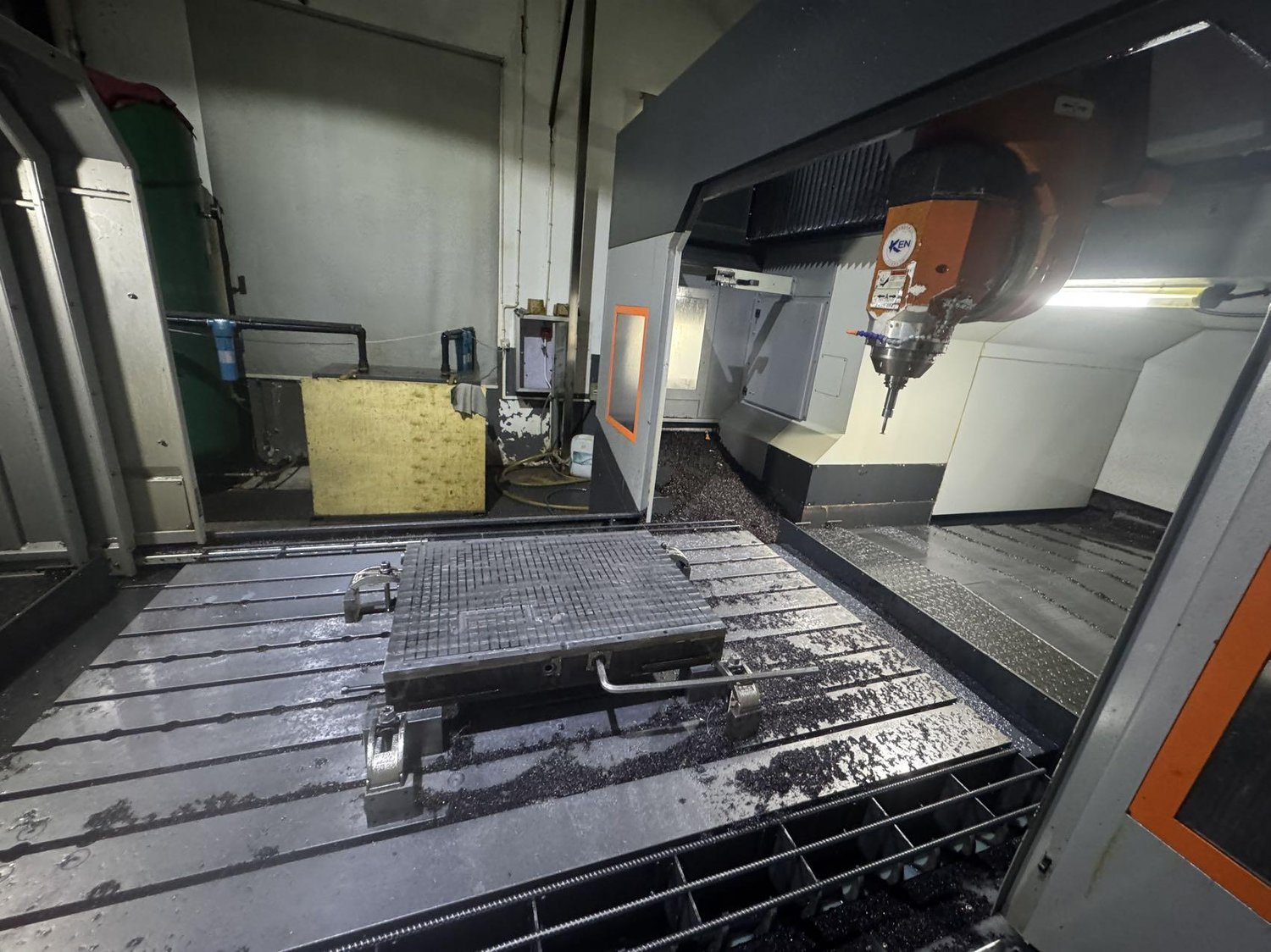

5-axis head: European-imported TCH-L13 (EVO), direct drive by torque motor
A-axis travel: ±110°
C-axis travel: 360° continuous

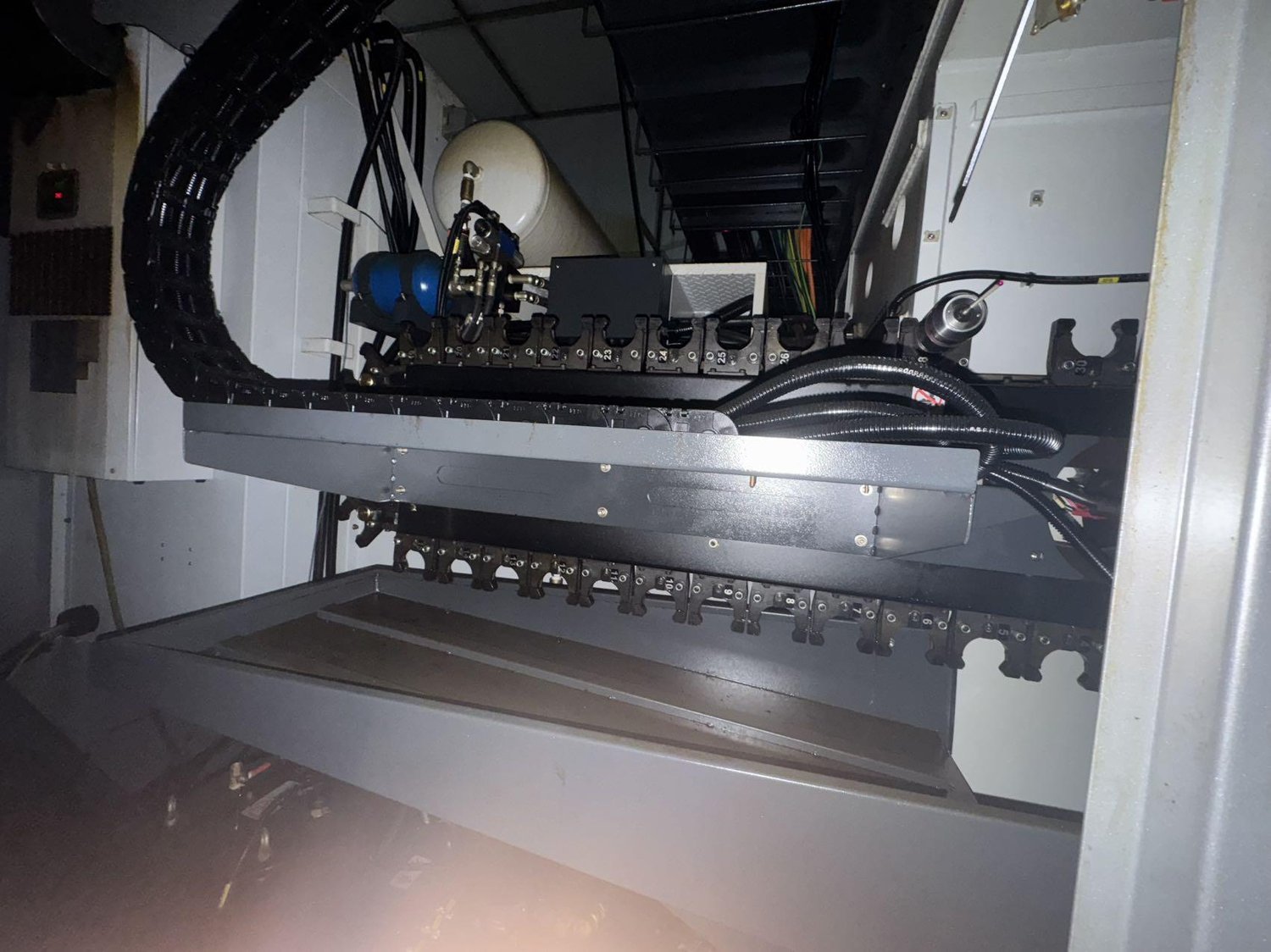

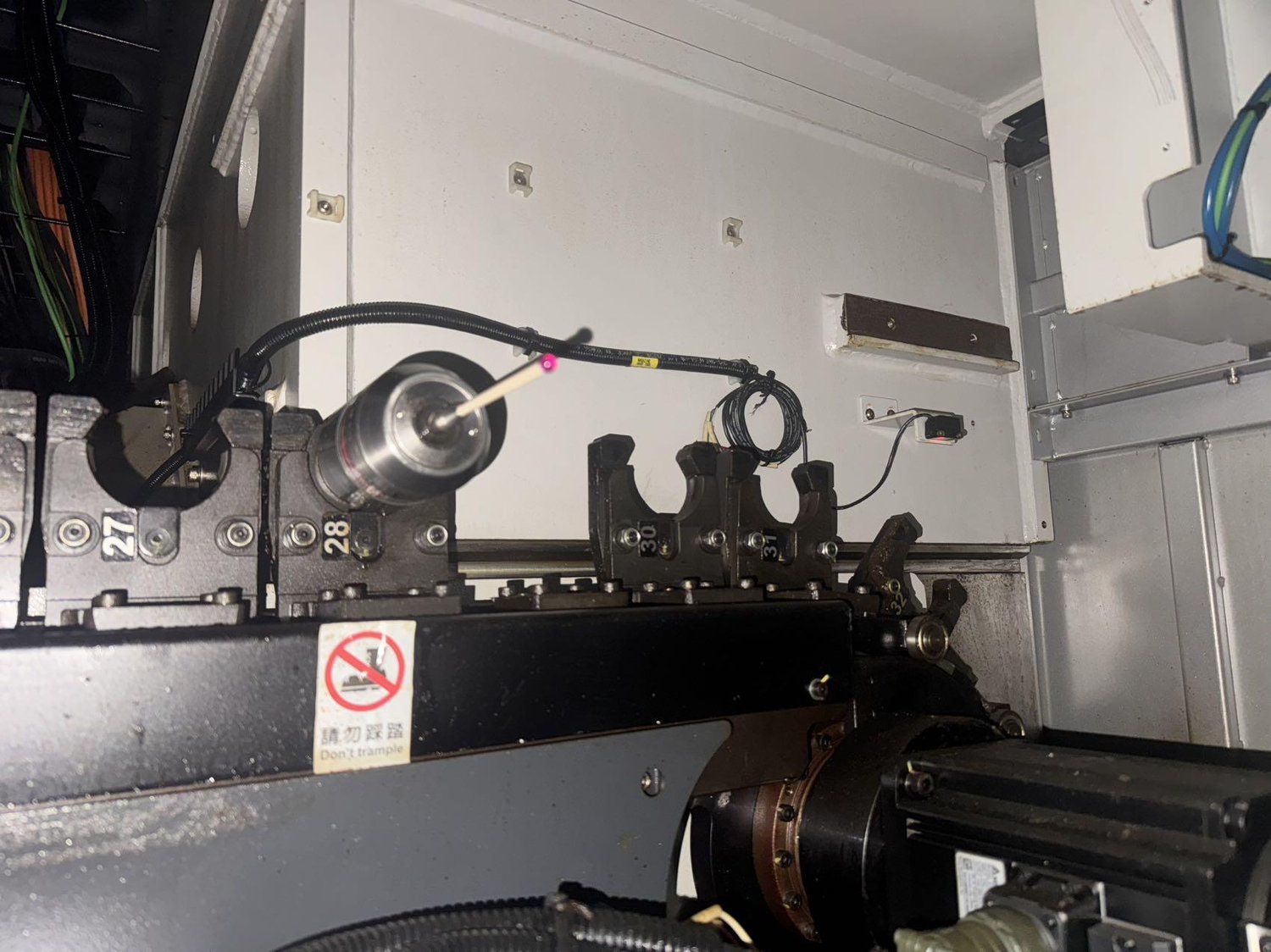

Tool magazine capacity: 36
Tool holder type: HSK-A63
Maximum tool weight: 8 kg
Tool changing time (tool-to-tool): approximately 6 seconds
Position feedback: X / Y / Z full closed-loop Heidenhain linear scales
Guideway type: 6 roller linear guideways (2 for X, 2 for Y, 2 for Z)
Chip removal method: Spiral + scraper chip conveyor
Mahine dimensions (L × W × H): approximately 8500 × 4500 × 4200 mm
Overall weight: approximately 52 tons
