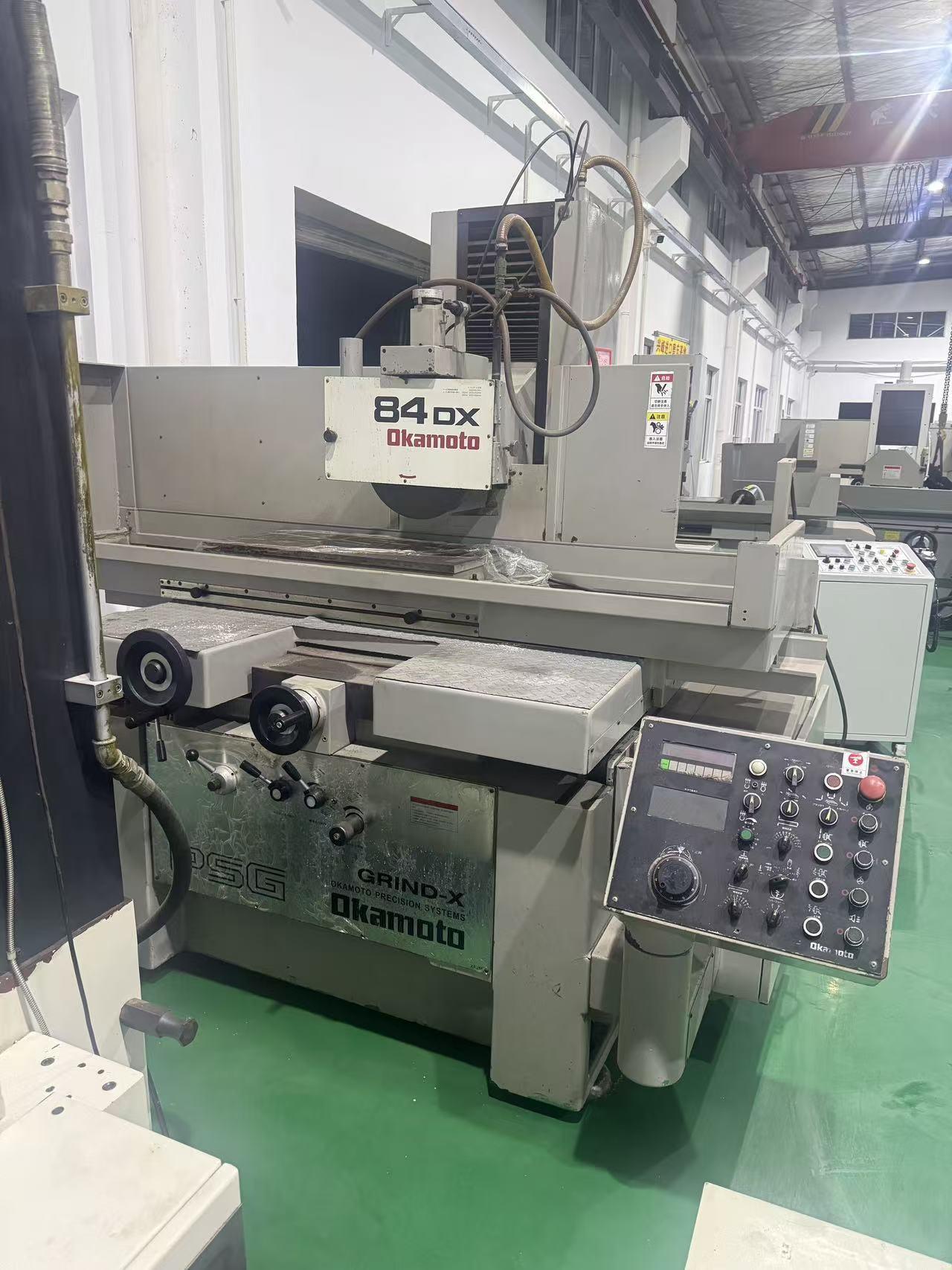

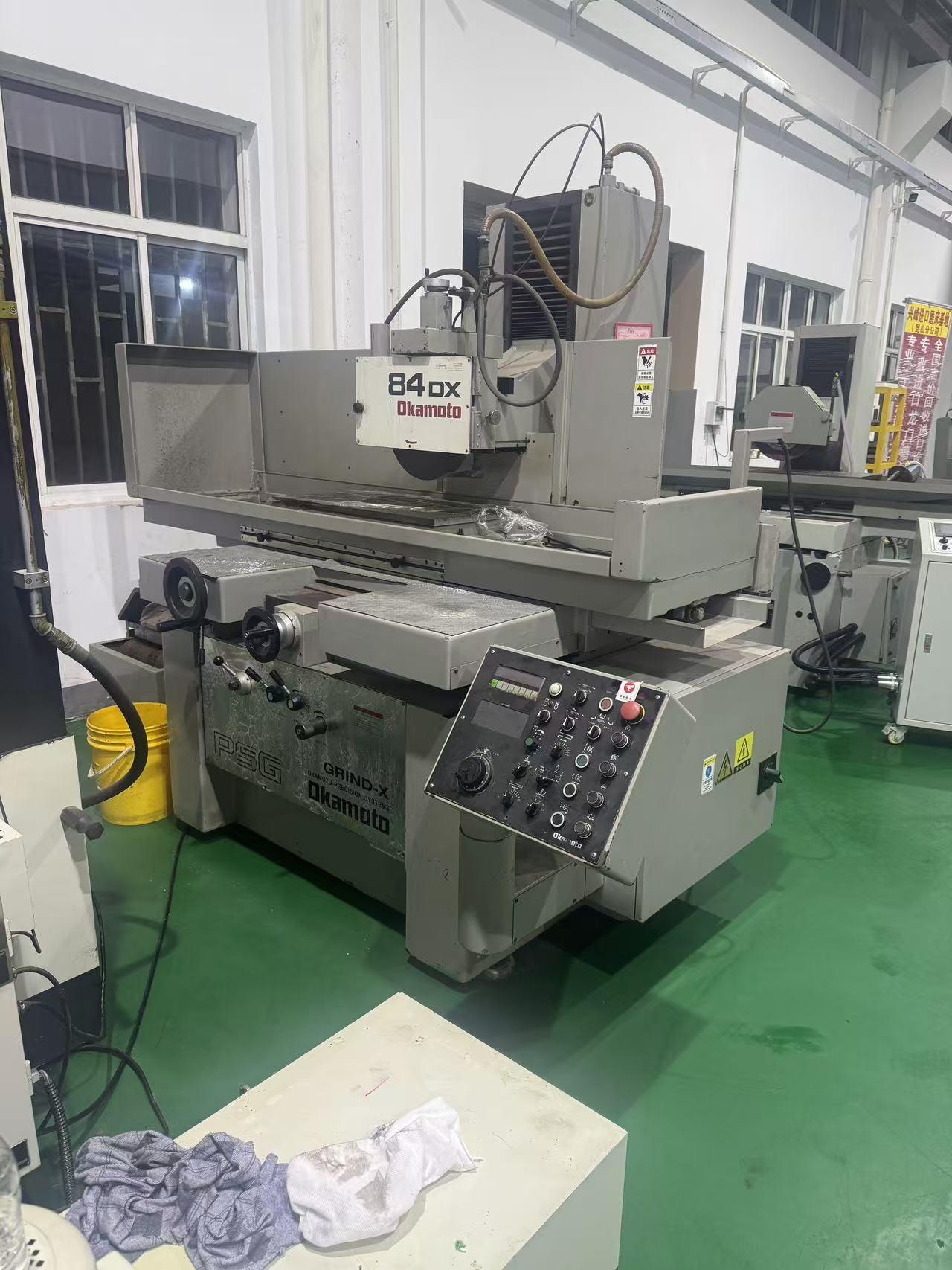

Okamoto PSG-84DX Surface grinder

Worktable machining Area：850*400mm
Standard Chuck Size：800*400*85mm
Worktable load (including magnetic Worktable) ：700KG
T-slot (number * width) ：17*3mm
Longitudinal feed：950mm(max)
Average longitudinal feed：3~25mm/min
Manual feed per revolution：47mm
Transverse feed: Maximum feed：440mm
Manual feed: Feed per change of hand：5.0mm
remote jog handle Scale：0.02mm
Automatic feed: intermittent feed：0.5-20mm
Continuous feed：0.2-1.0m/min
Vertical feed：Automatic feed and cross cut feed：0.0001-0.03mm(15 stages)
Manual feed rate：Manual microfeed device：0.0001/0.001/0.01mm
Feed rate per hand：0.01/0.1/1.0mm
Number of empty grinding：0~5 times
Vertical fast feed rate：600mm/min
Speed (50/60HZ)：1500/1800rpm
Motor: spindle motor power：3.7/4kw/p
Hydraulic pump：2.2/4kw/p
Vertical fast feed and downward feed：0.4kw(AC servo)
Power consumption (electromagnetic chuck  + Cooling  System)：11.0KVA
Dimension：3322*2211*2115mm
Weight：5000KG
