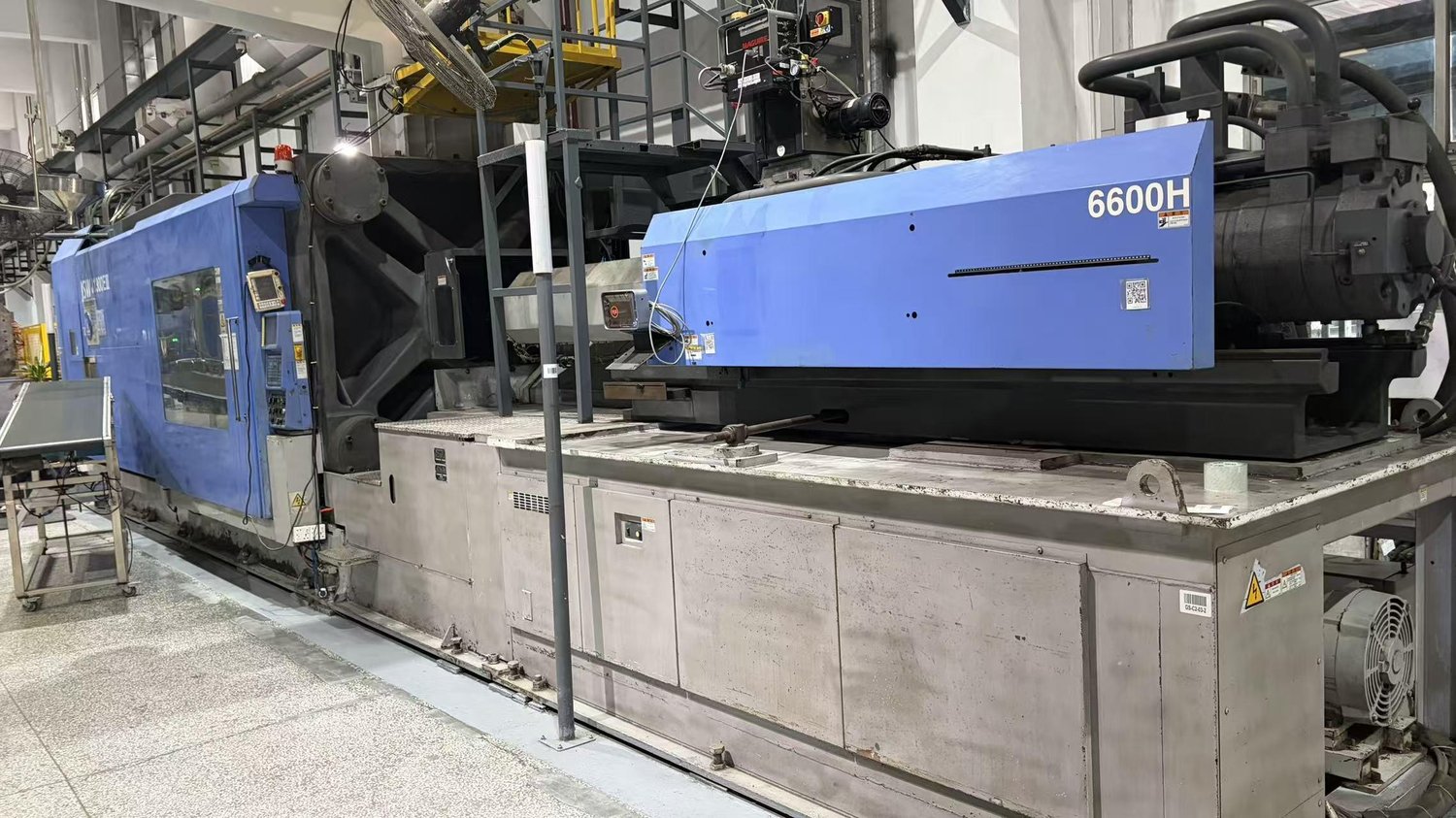

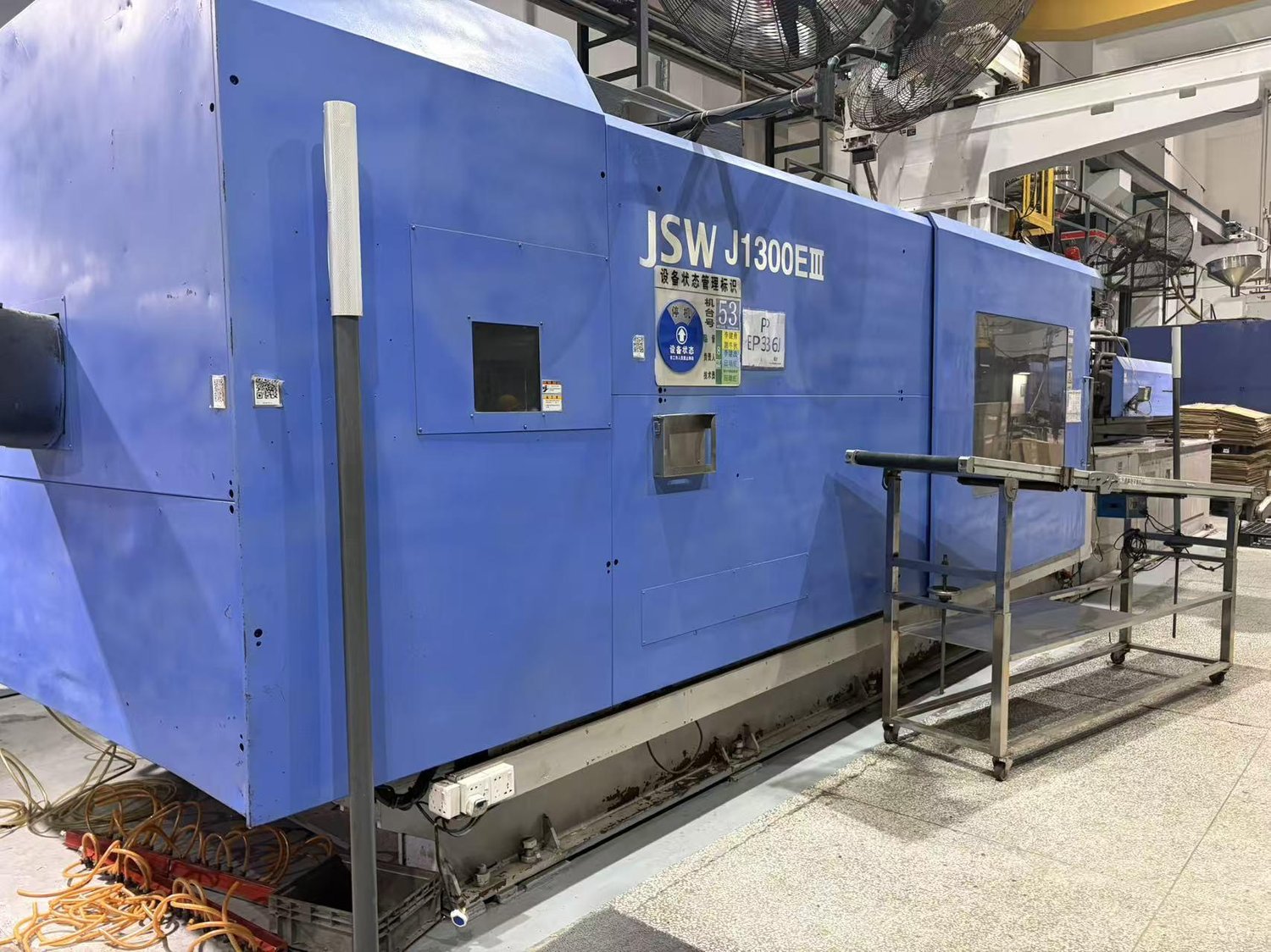

JSW J1300E III-6600H injection molding machine

Clamping force: 12,800 kN
Clamping stroke: 1,500 mm
Tie bar spacing (H): 1,315 mm
Tie bar spacing (V): 1,270 mm
Mold thickness: 650–1,300 mm
Max daylight (open stroke): 2,800 mm
Screw diameter:
A: 120 mm
B: 130 mm
Injection pressure:
A: 167 MPa
B: 143 MPa
Theoretical shot volume (injection volume):
A: 6,556 cm³
B: 7,694 cm³
