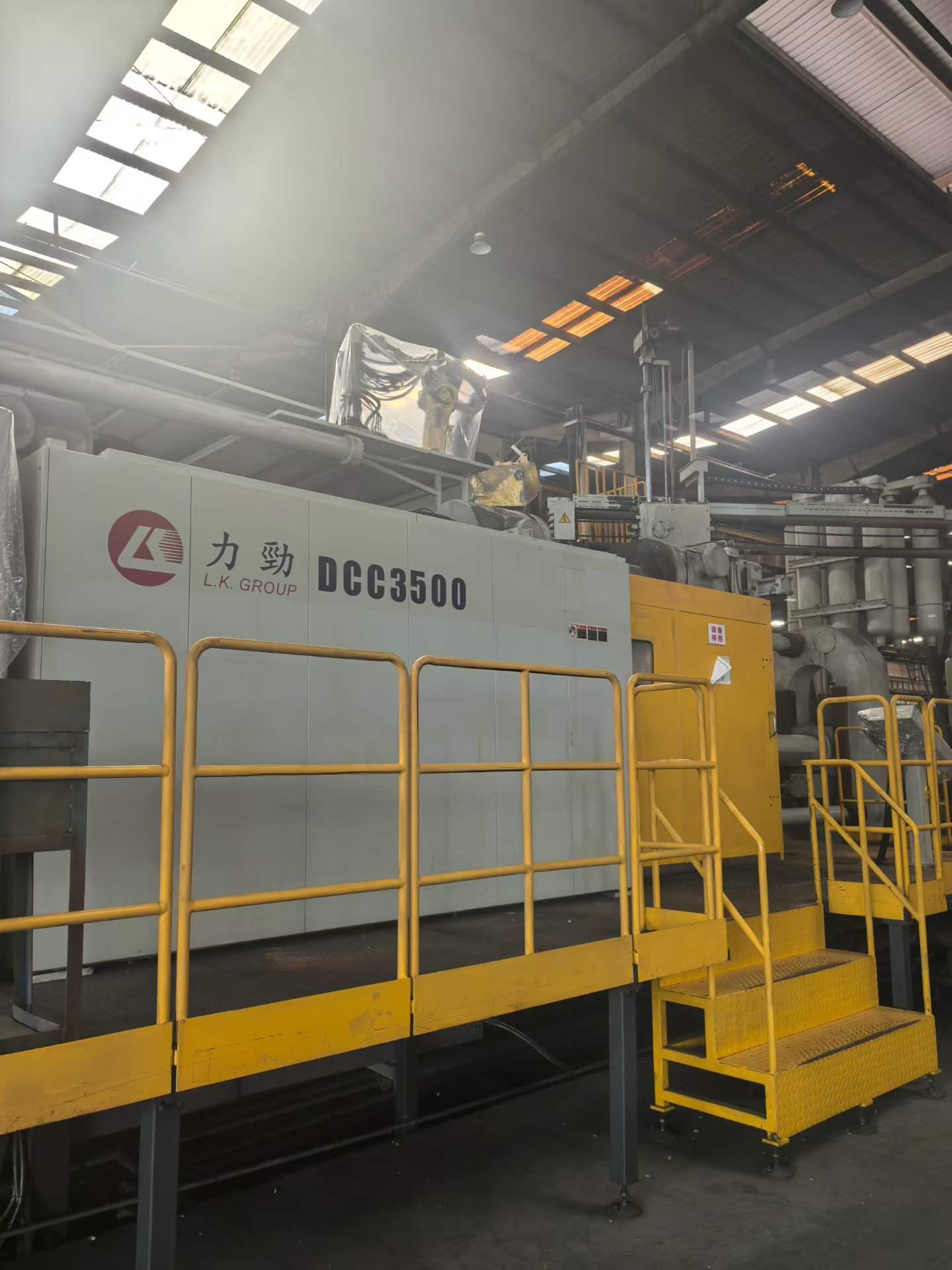

LK IMPRESS-III DC3500 other

Maximum clamping force: 35,000 kN
Injection force: Approx. 390–420 kN
Plunger diameter: Ø130 mm
Plunger stroke: 950 mm
Casting weight (Al): 6.5–8.5 kg
Projected area (at 400 bar): 8,750–9,000 cm²
Platen size (H × W): 3100 × 3100 mm
Tie bar spacing (H × W): 1950 × 1950 mm
Die height (min/max): 900/1350 mm
Die opening stroke: 1200 mm
