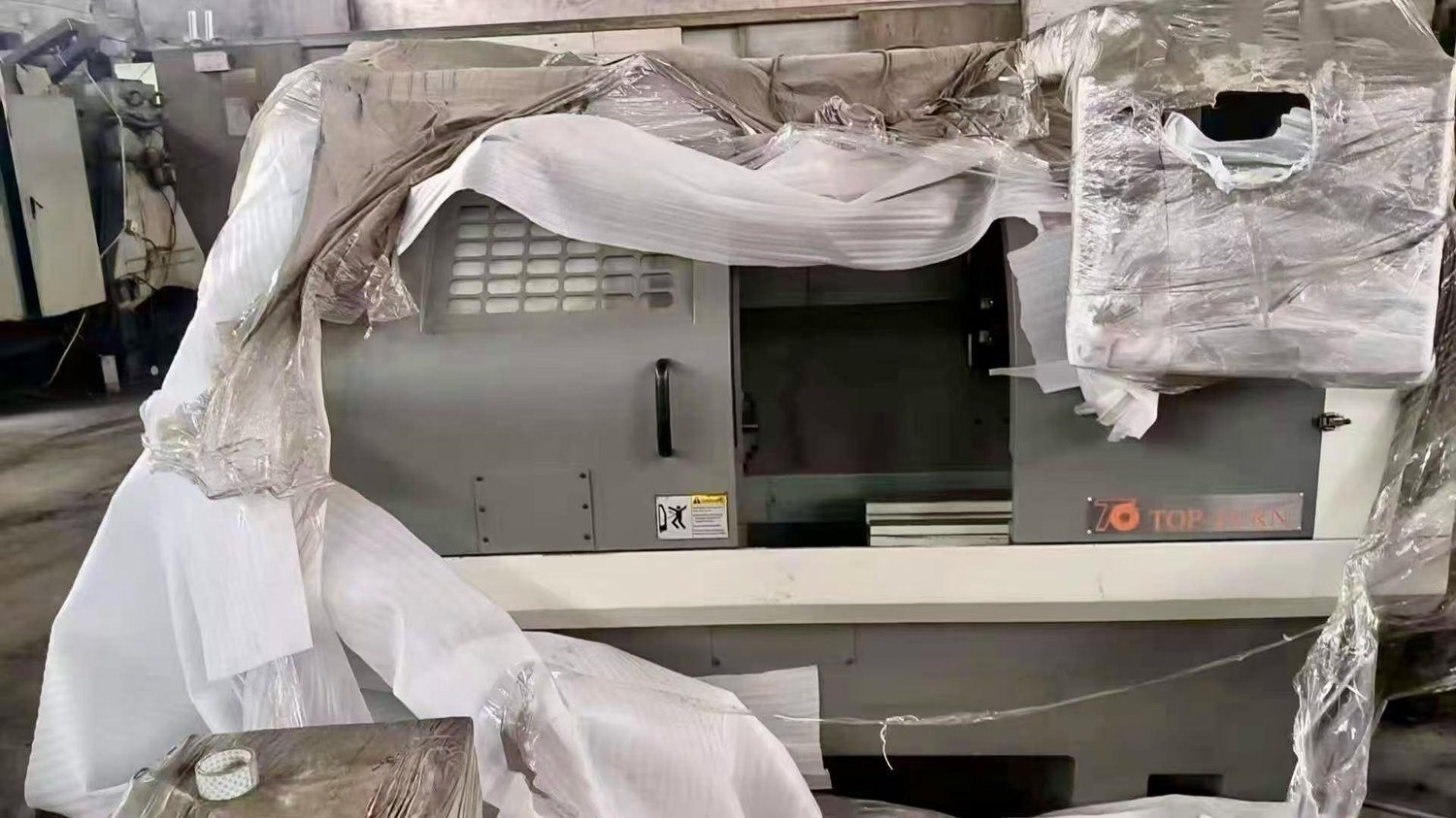

TOP-TURN CNC-S20 CNC turning lathe

[Product Information]:

Inventory number：67506

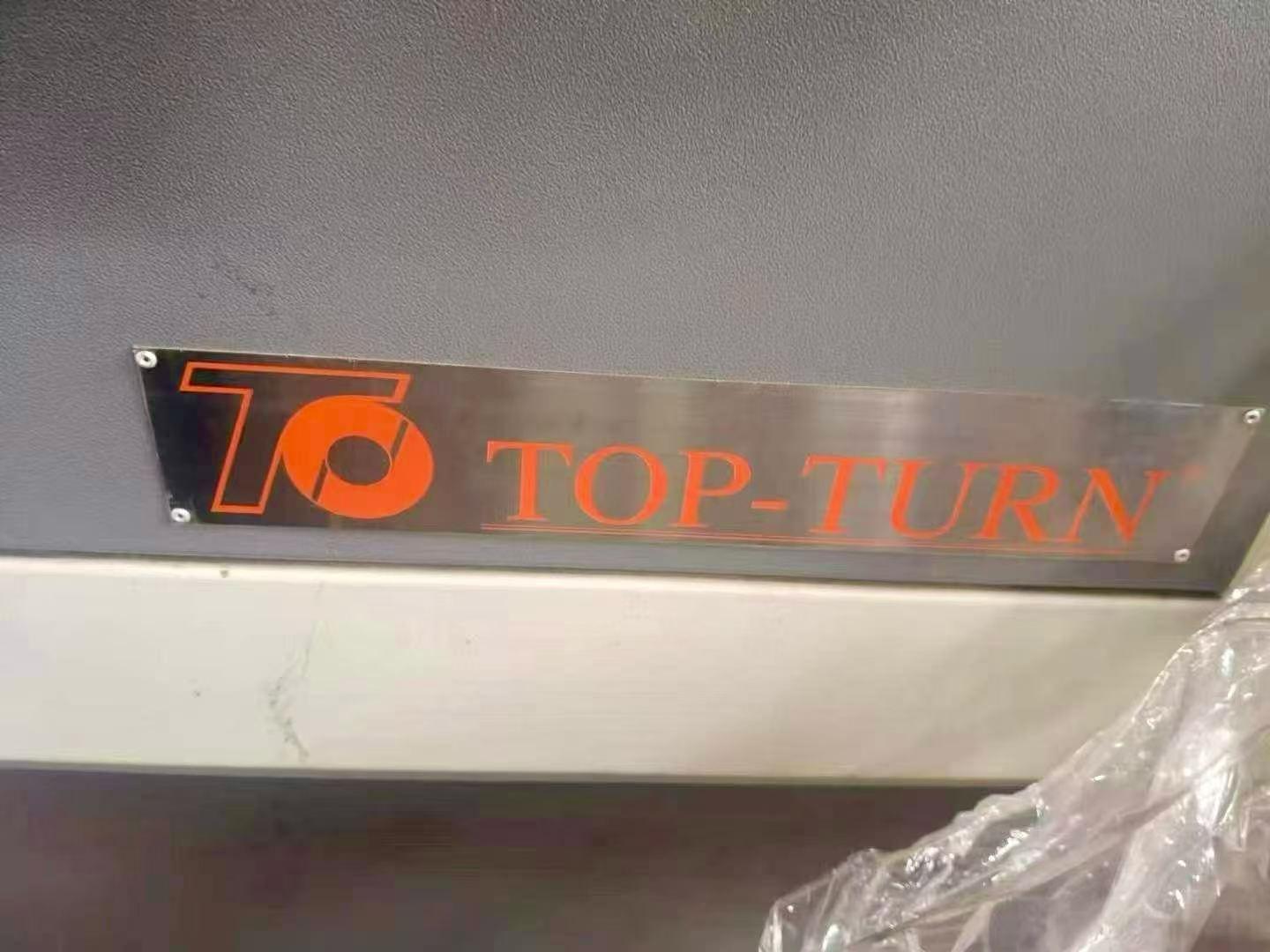

Brand：TOP-TURN

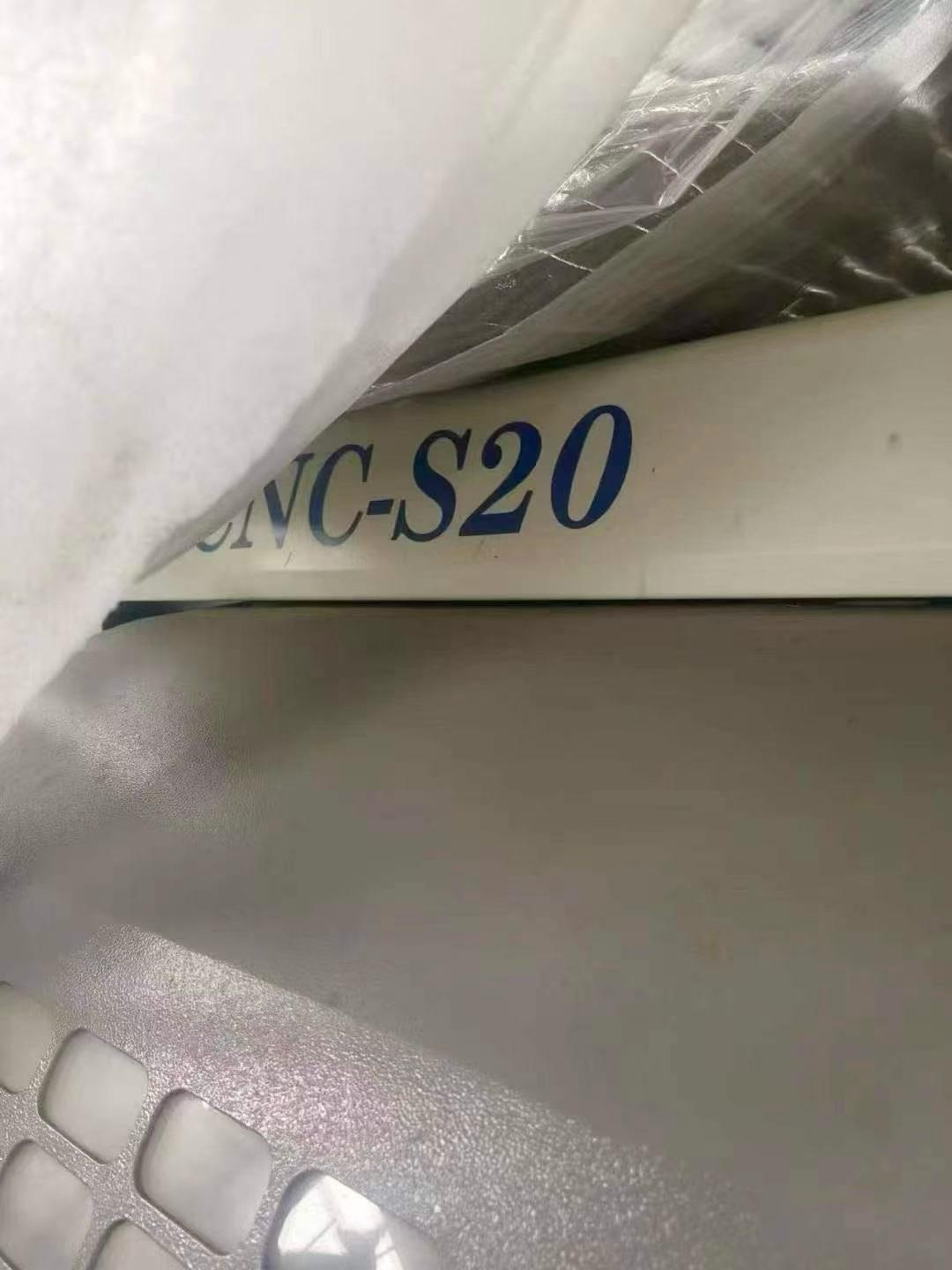

Model：CNC-S20
Origin：Taiwan, China
Location：China
Year：2012
Create Time：2026-04-16

Specifications:

The maximum rotation diameter on the bed is Ø560 mm
Maximum cutting diameter: Ø 280mm
The maximum machining length between the two centers: 800 mm
Maximum spindle speed: 4200 r/min
Spindle through hole diameter: Ø 75mm
spindle nose specification: A2-6
spindle motor power: 11/15 kW

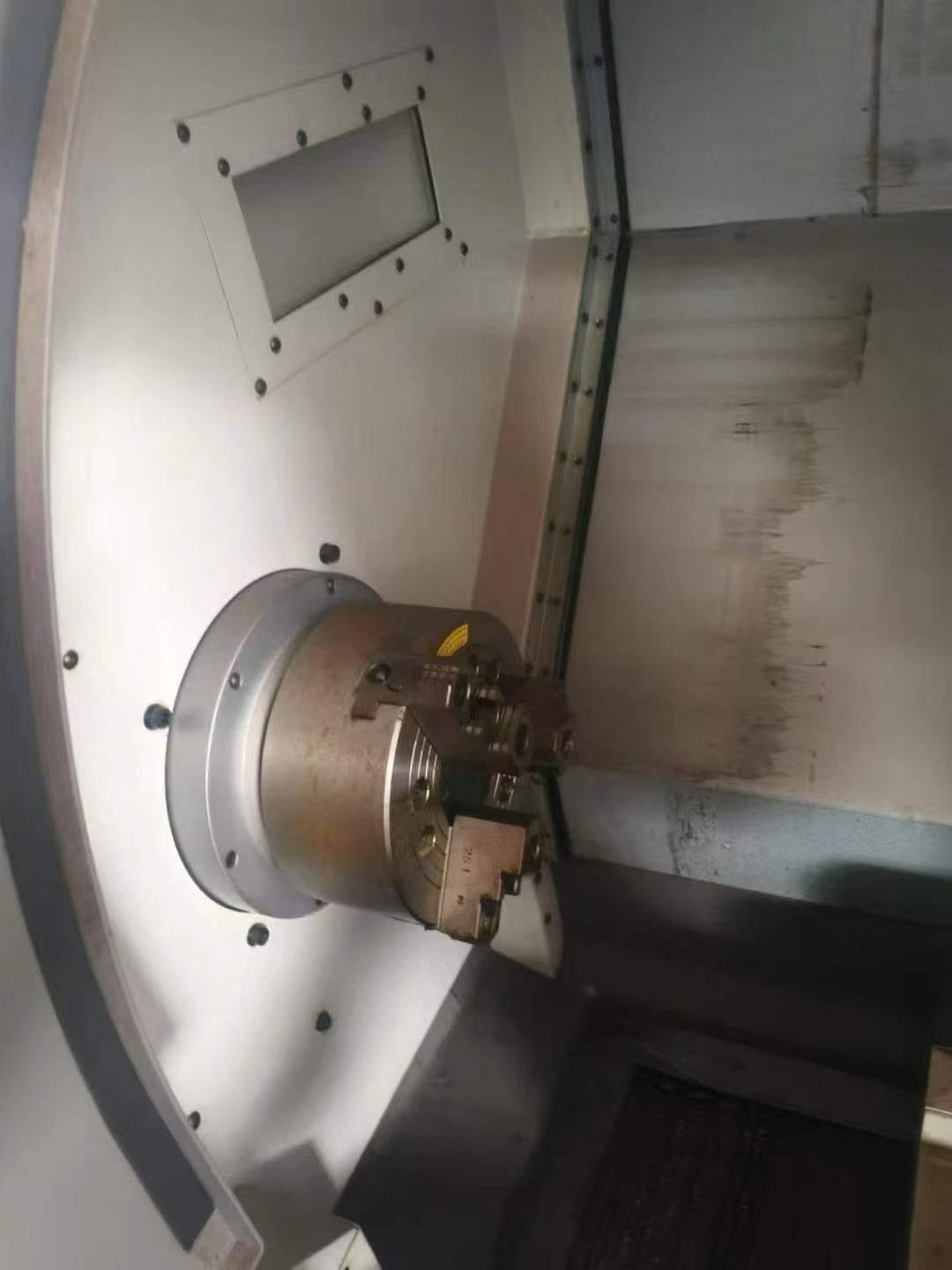

Standard chuck : 8 inches

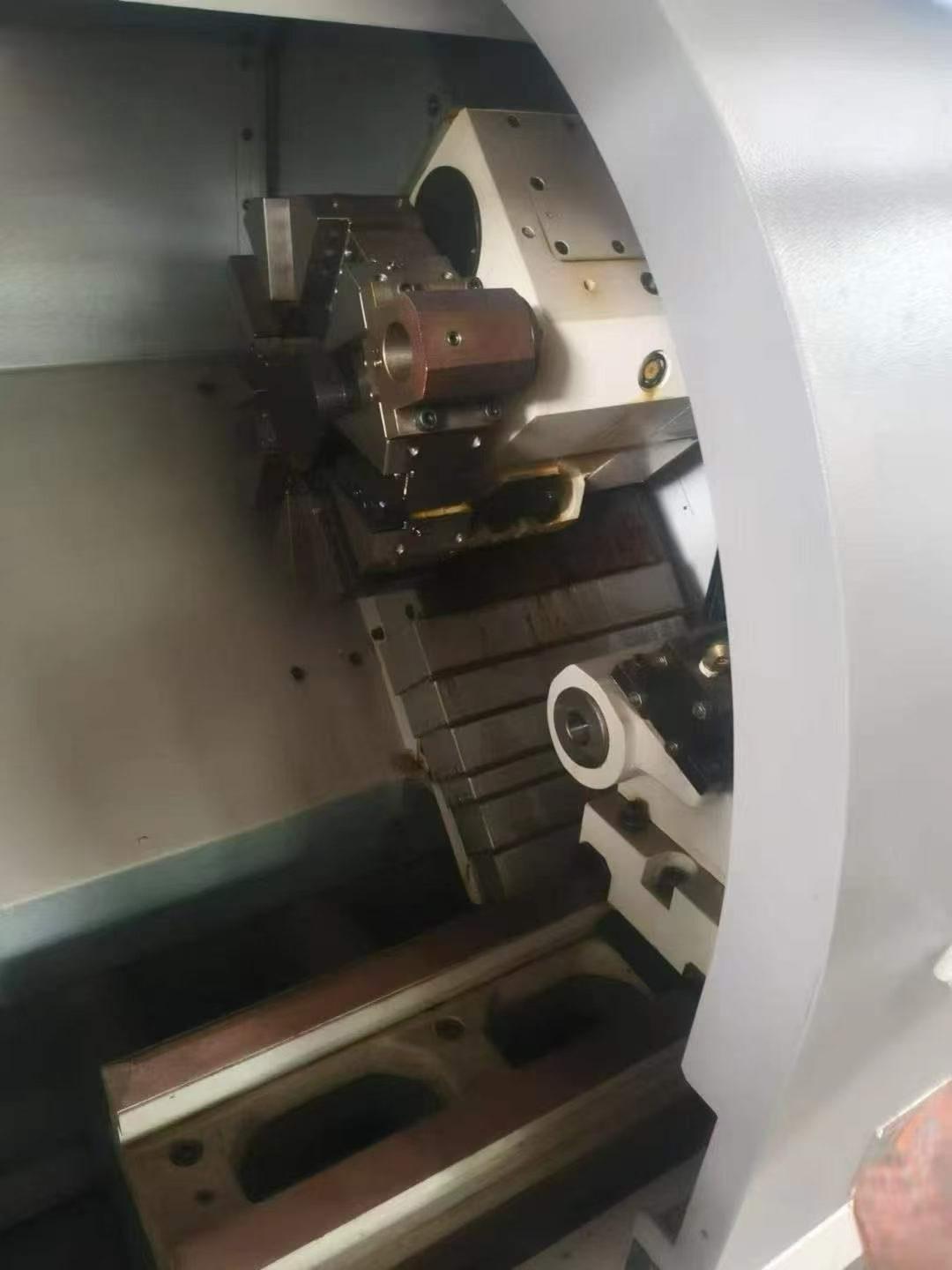

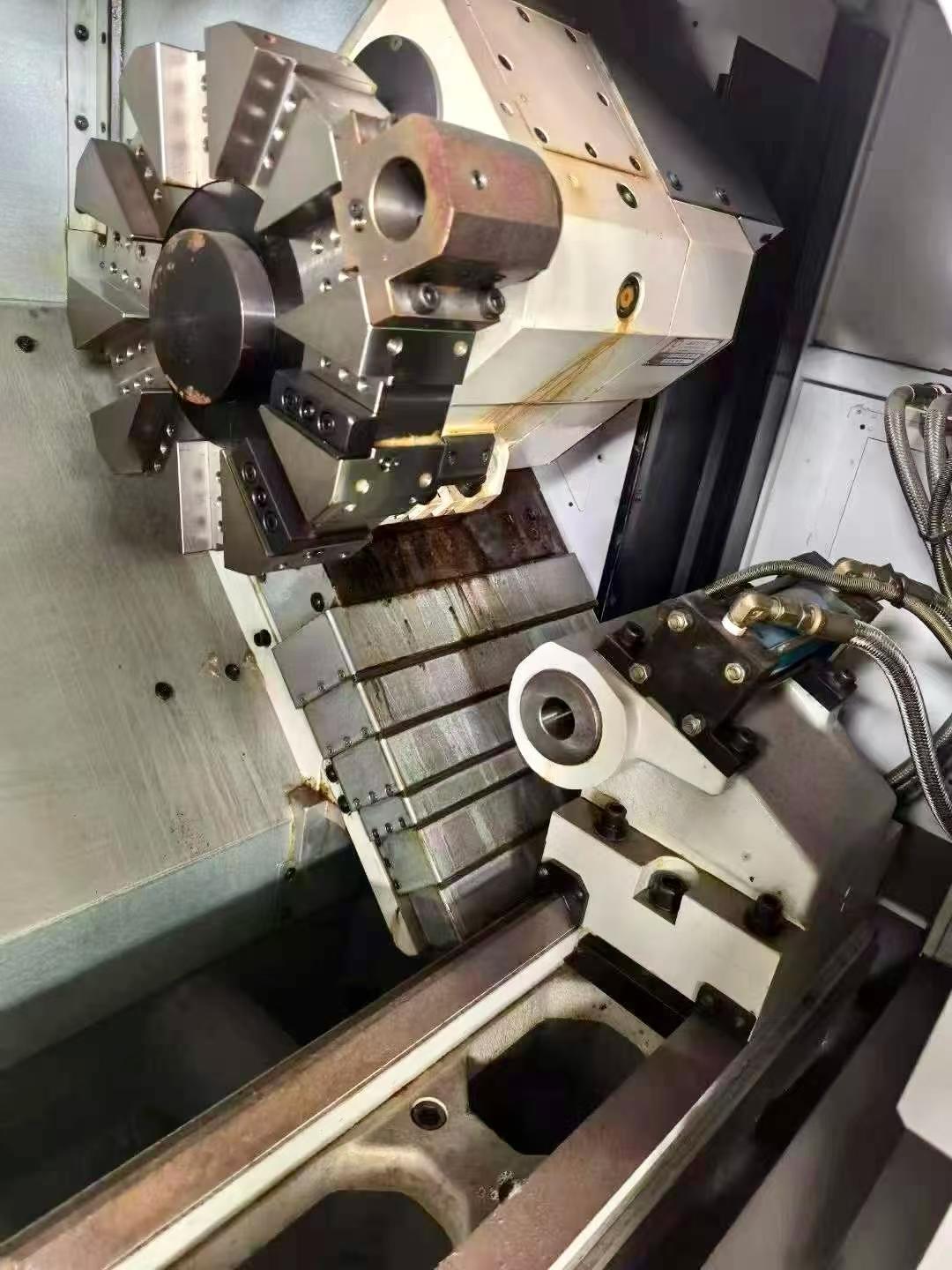

Tool turret Accessories: 10-station hydraulic tool turret
