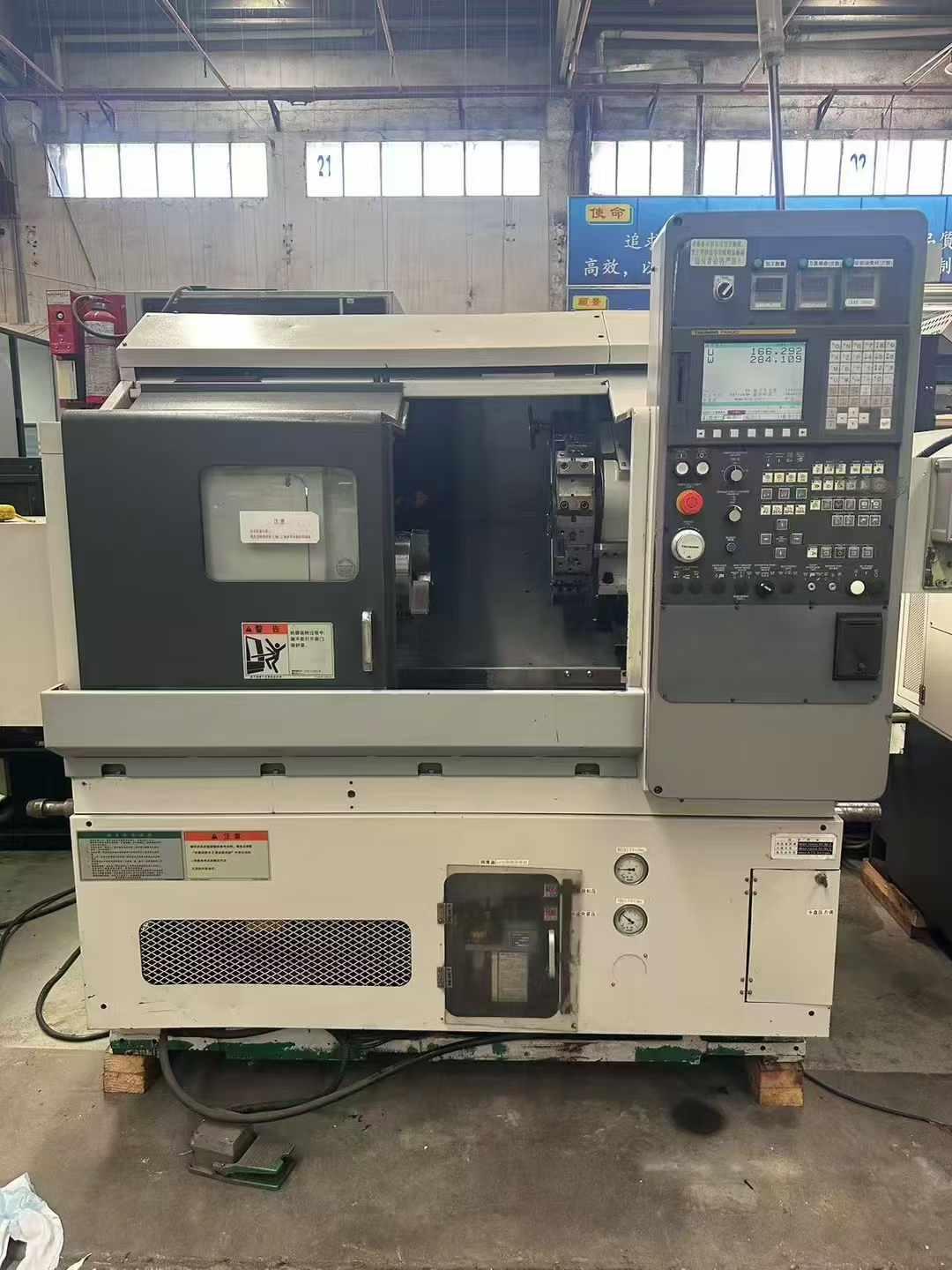

Taikan HPT-206L CNC inclined lathe
[Product Information]:
- Inventory number：67487
- Brand：Taikan
- Model：HPT-206L
- Origin：Taiwan, China
- Location：China
- Year：2020
- Create Time：2026-04-15
Specifications:
Maximum rotational diameter: φ 260mm
Maximum machining length: 500mm
spindle through hole diameter: φ 52mm
Spindle speed: 4500 rpm
spindle motor power: 7.5/11 kW
X-axis travel: φ 260mm
Z-axis travel: 500 mm
Turret form: 8 workstations
Bed structure: 45°inclined bed
Chuck size: 6 inches
tailstock form: hydraulic tailstock
Overall weight: 4500 kg
Overall Footage: 2800x1600x1800mm
