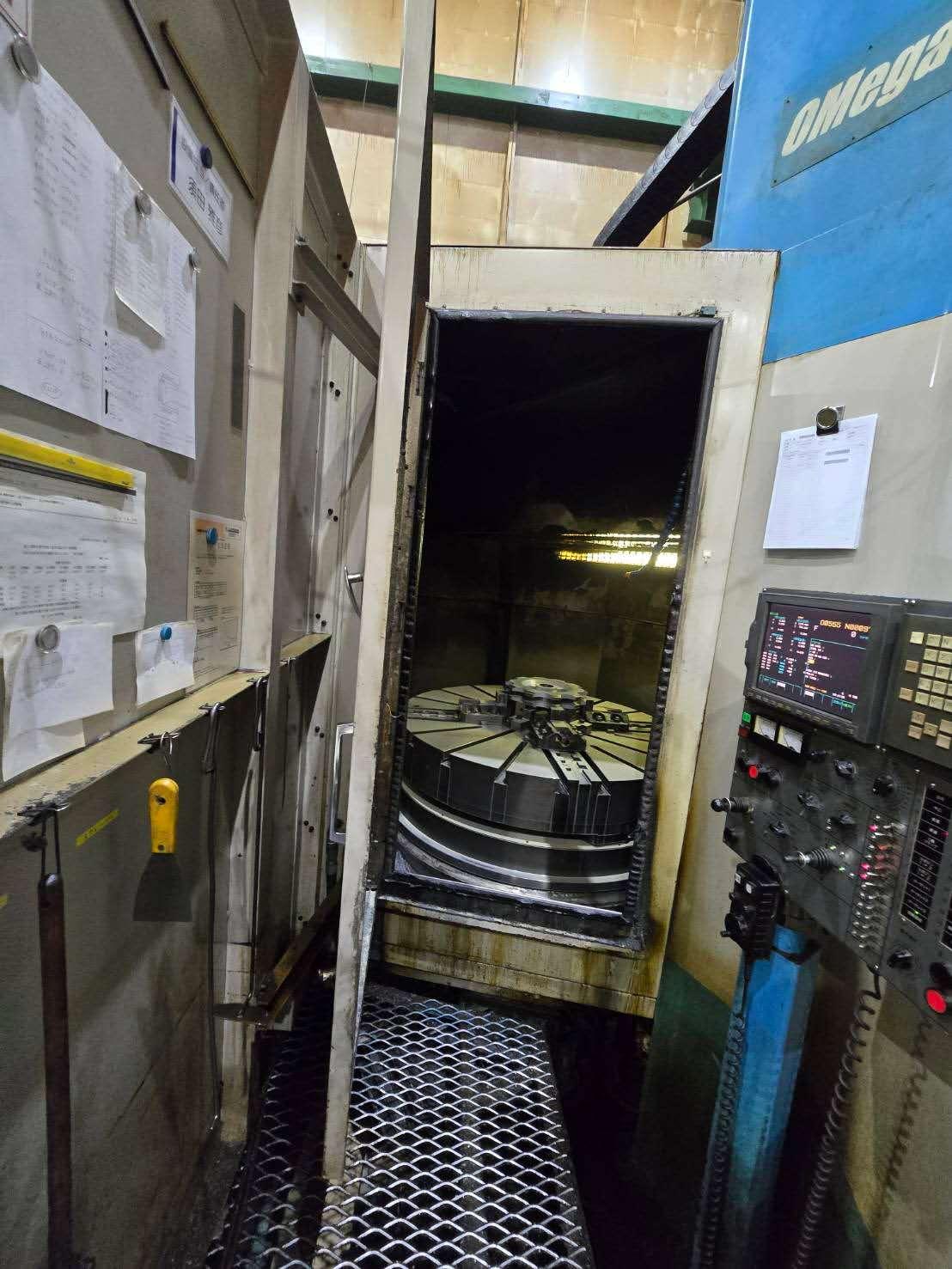

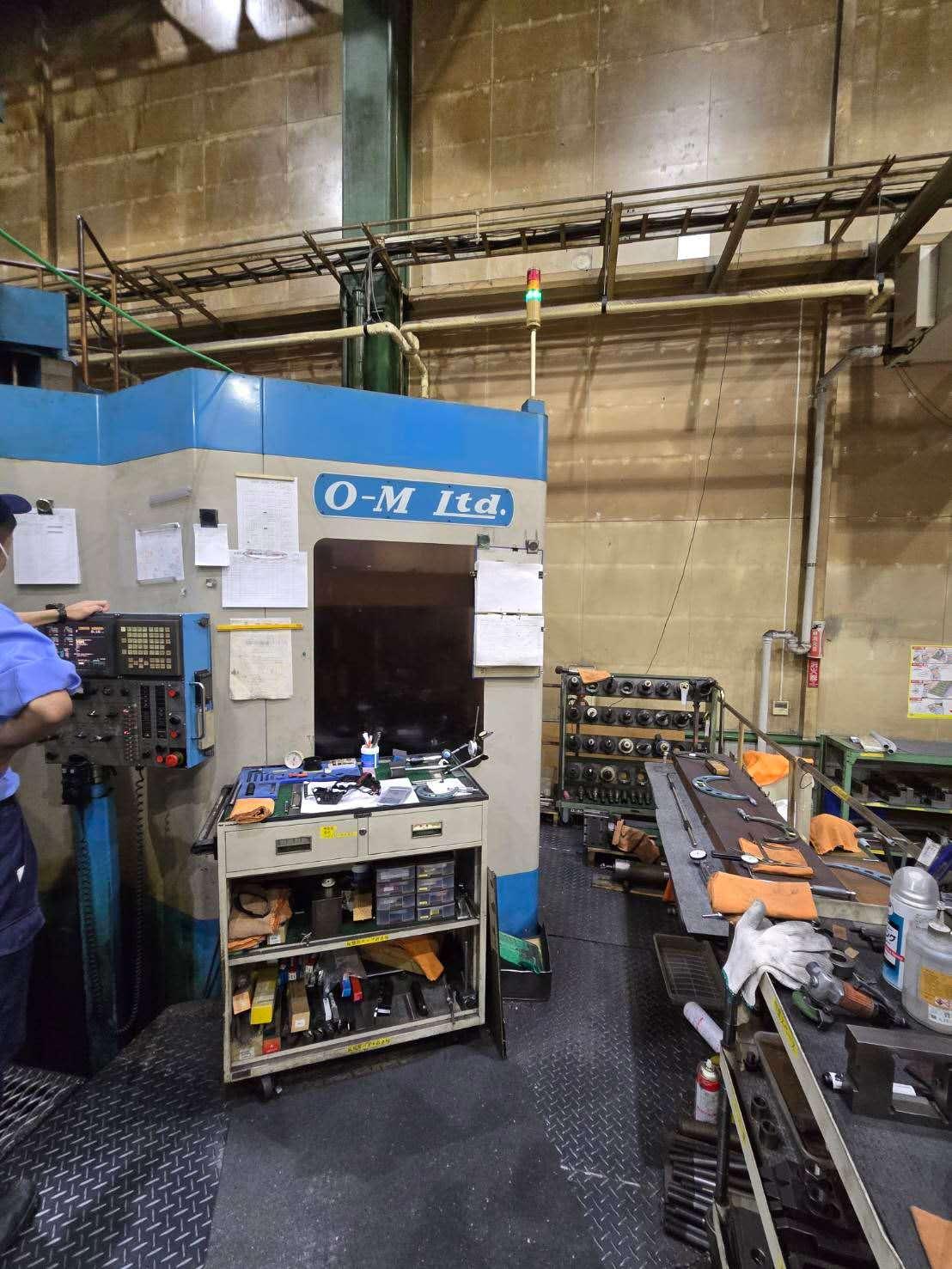

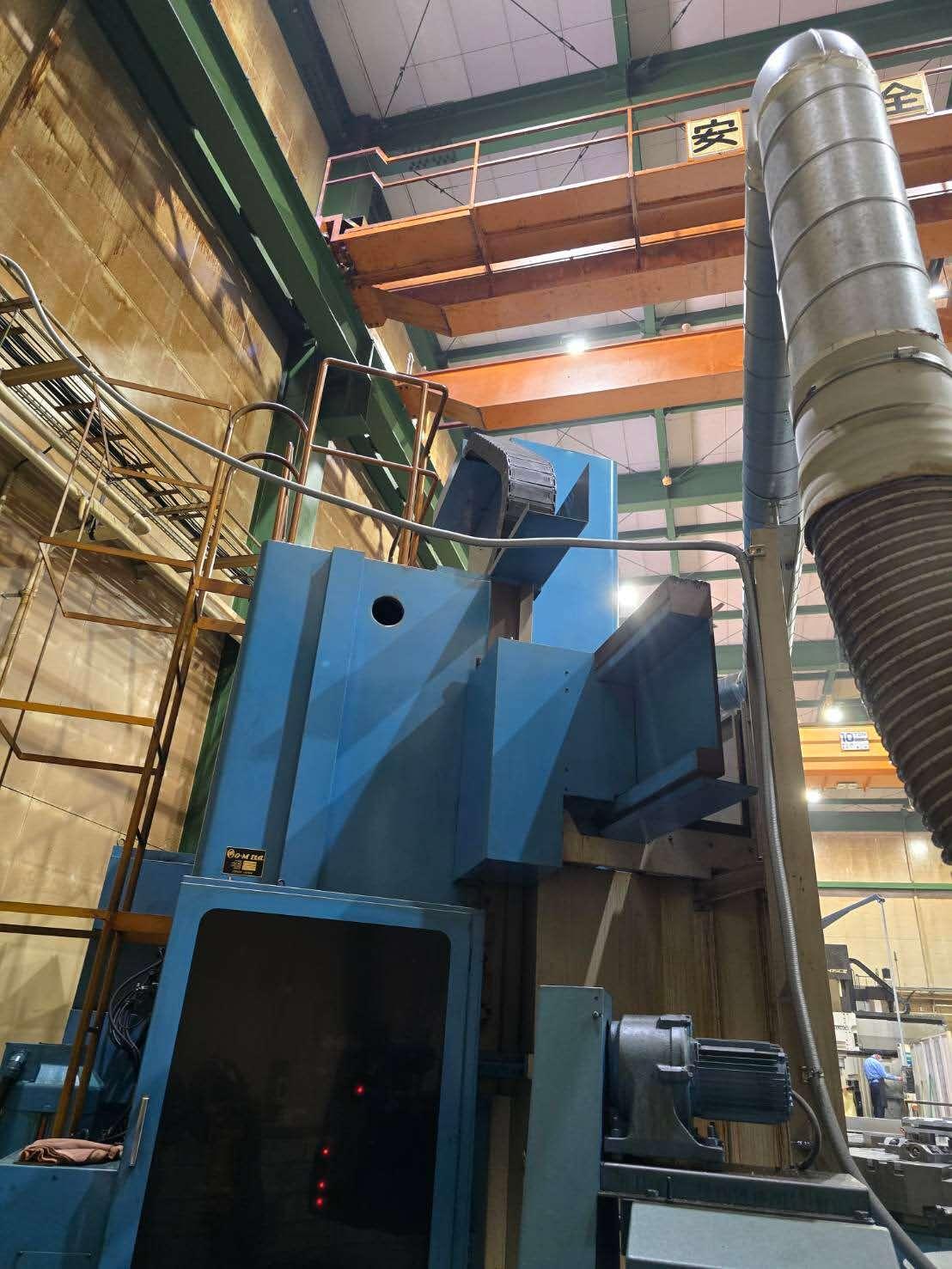

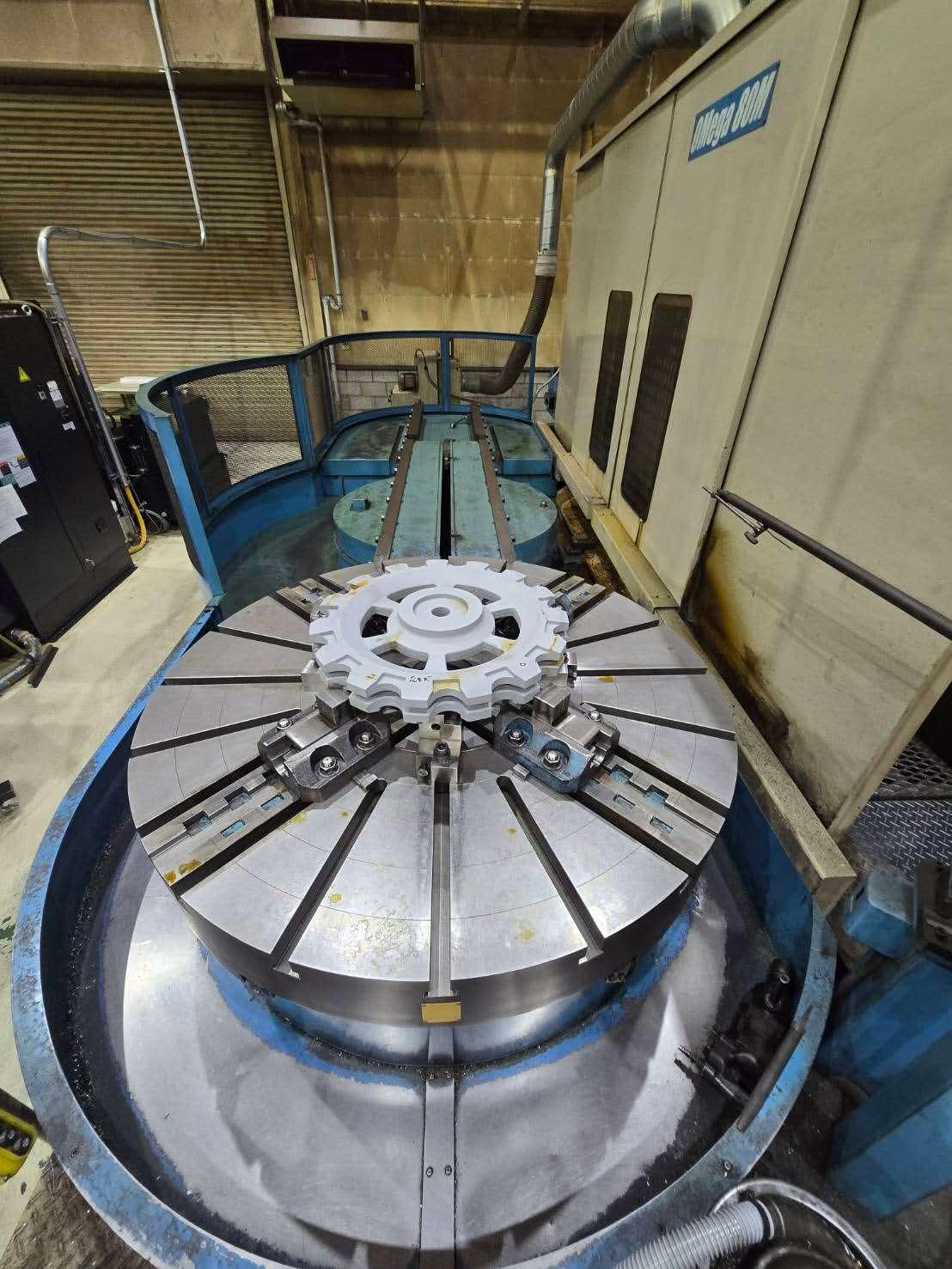

O-M OMEGA 80M CNC vertical lathe

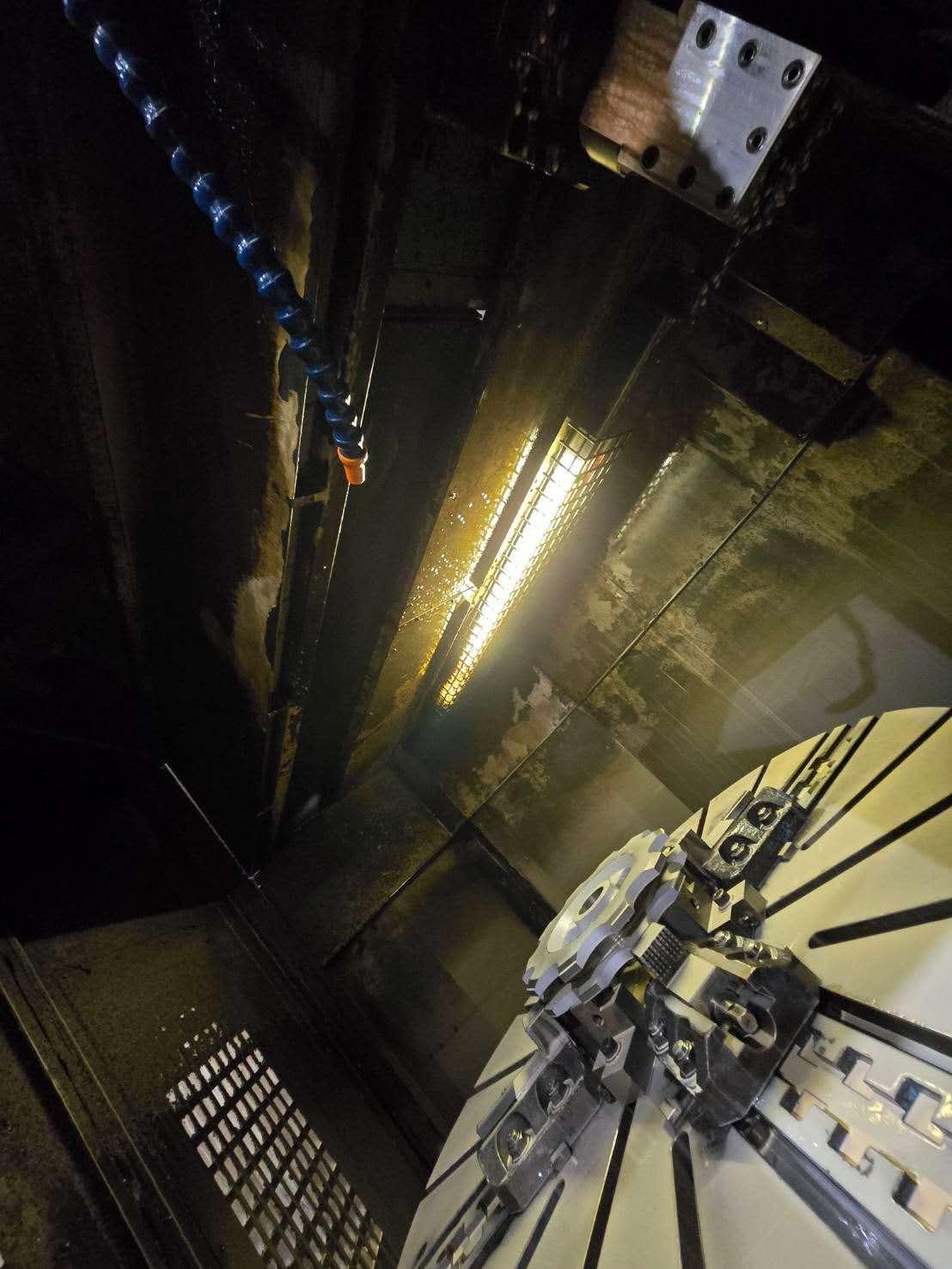

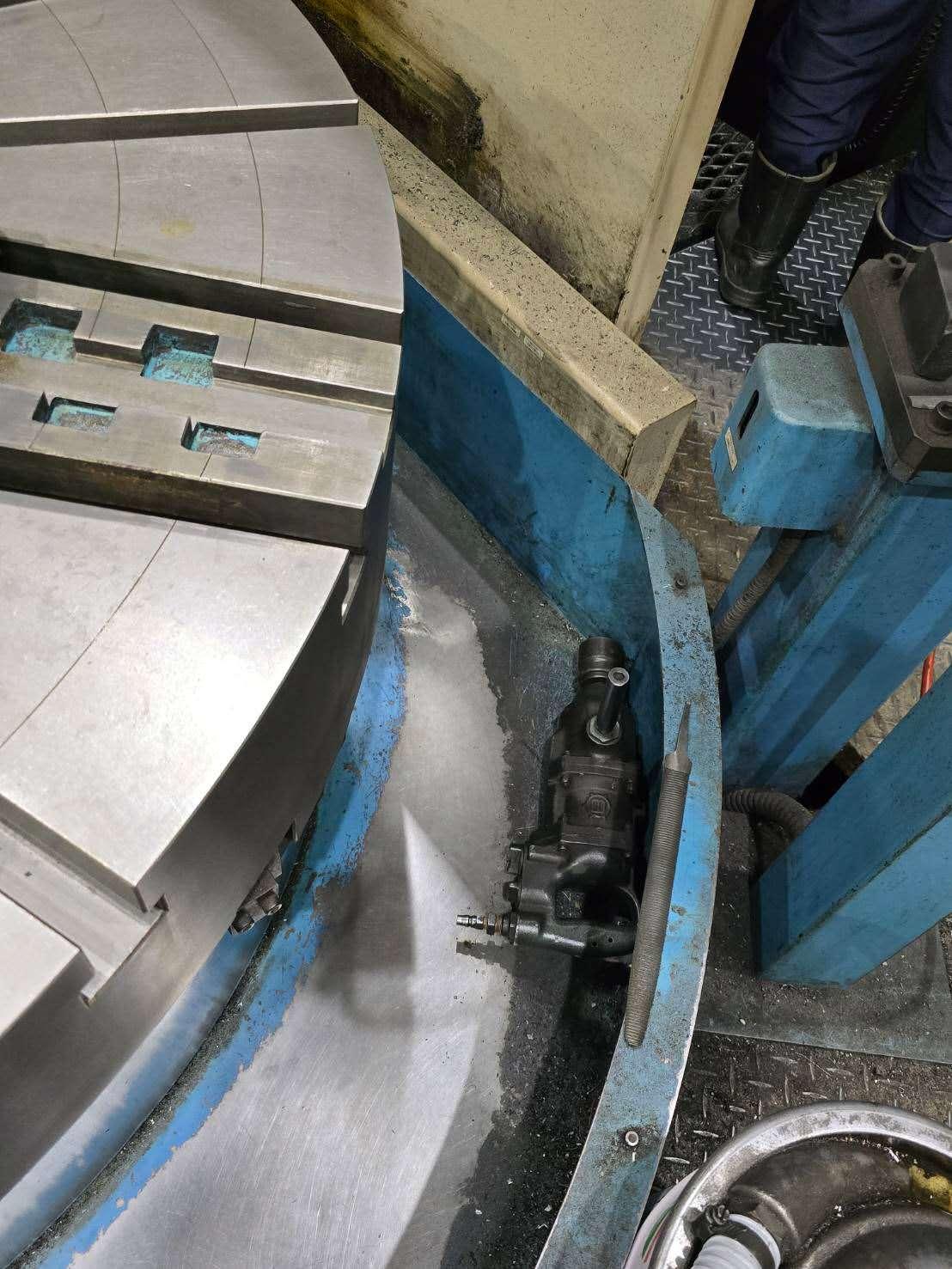

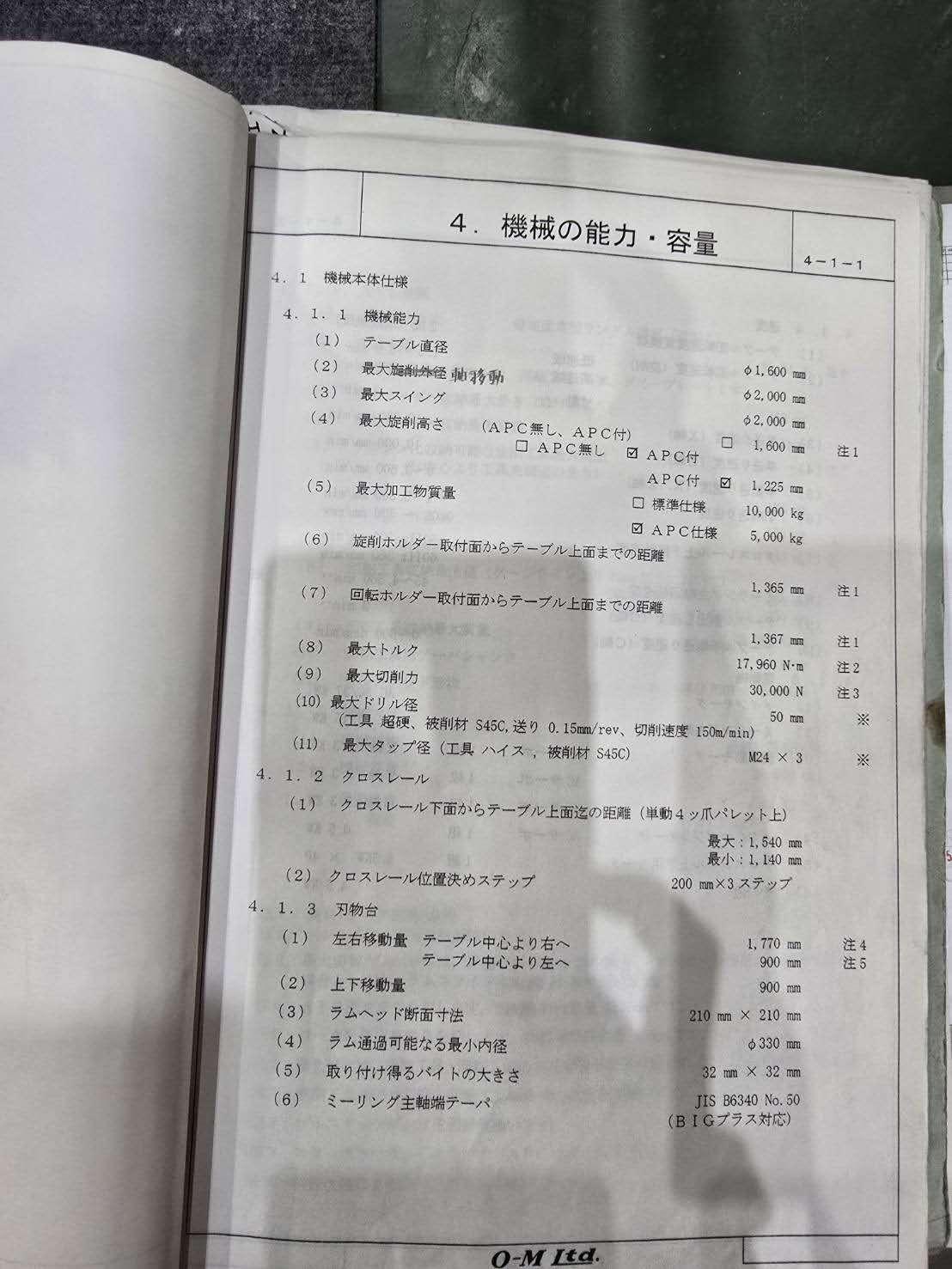

Worktable Diameter: Φ1,600 mm
Maximum Machining Diameter: Φ2,000 mm
Maximum Swing Diameter: Φ2,000 mm
Maximum Gantry Height: 1,225–1,600 mm
Maximum Workpiece Weight: 5,000–10,000 kg
Distance from Rotary Tool Holder to Worktable (Rotary Tool Holder): 1,365 mm
Distance from Rotary Tool Holder to Worktable (Rotary Tool Holder): 1,367 mm
Maximum Torque: 17,960 N·m
Maximum Cutting Force: 30,000 N
Maximum Drilling Diameter: 50 mm
Maximum Tapping Diameter: M24 × 3
Cross Slide Rail Distance: 1,140–1,540 mm
Worktable Left-Right Travel: 900–1,770 mm
Worktable Up-Down Travel: 900 mm
Ram Head Cross-Section: 210 × 210 mm
Minimum Ram Internal Diameter: Φ330 mm
Maximum Tool Blade Size: 32 × 32 mm
Spindle Nose Taper: JIS B6340 No.50 (BIG Plus Compatible)
