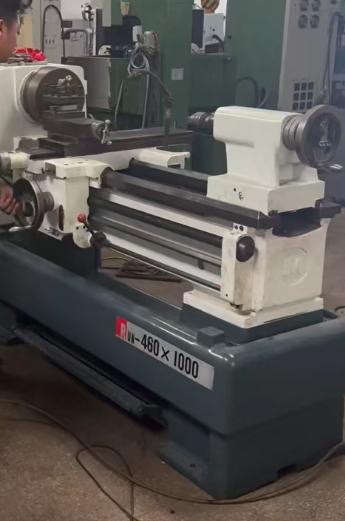

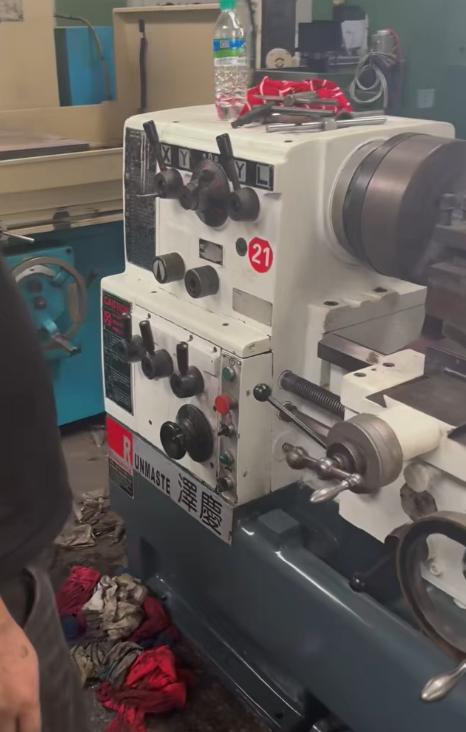

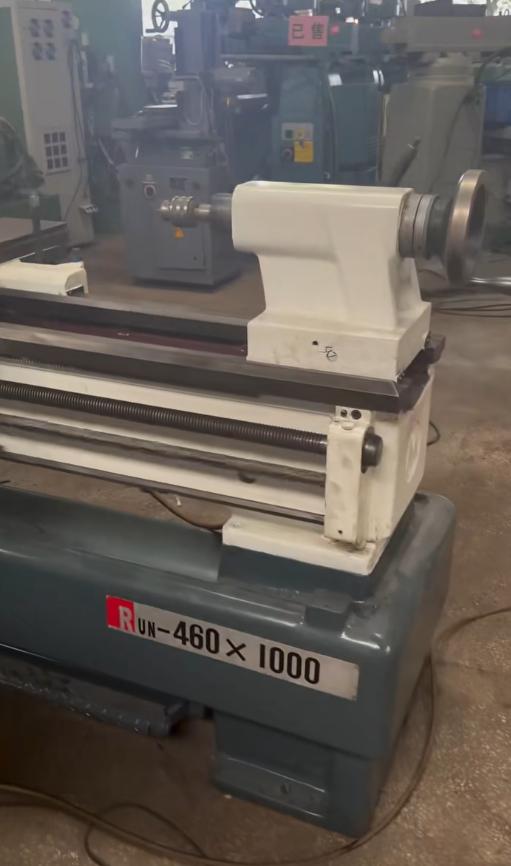

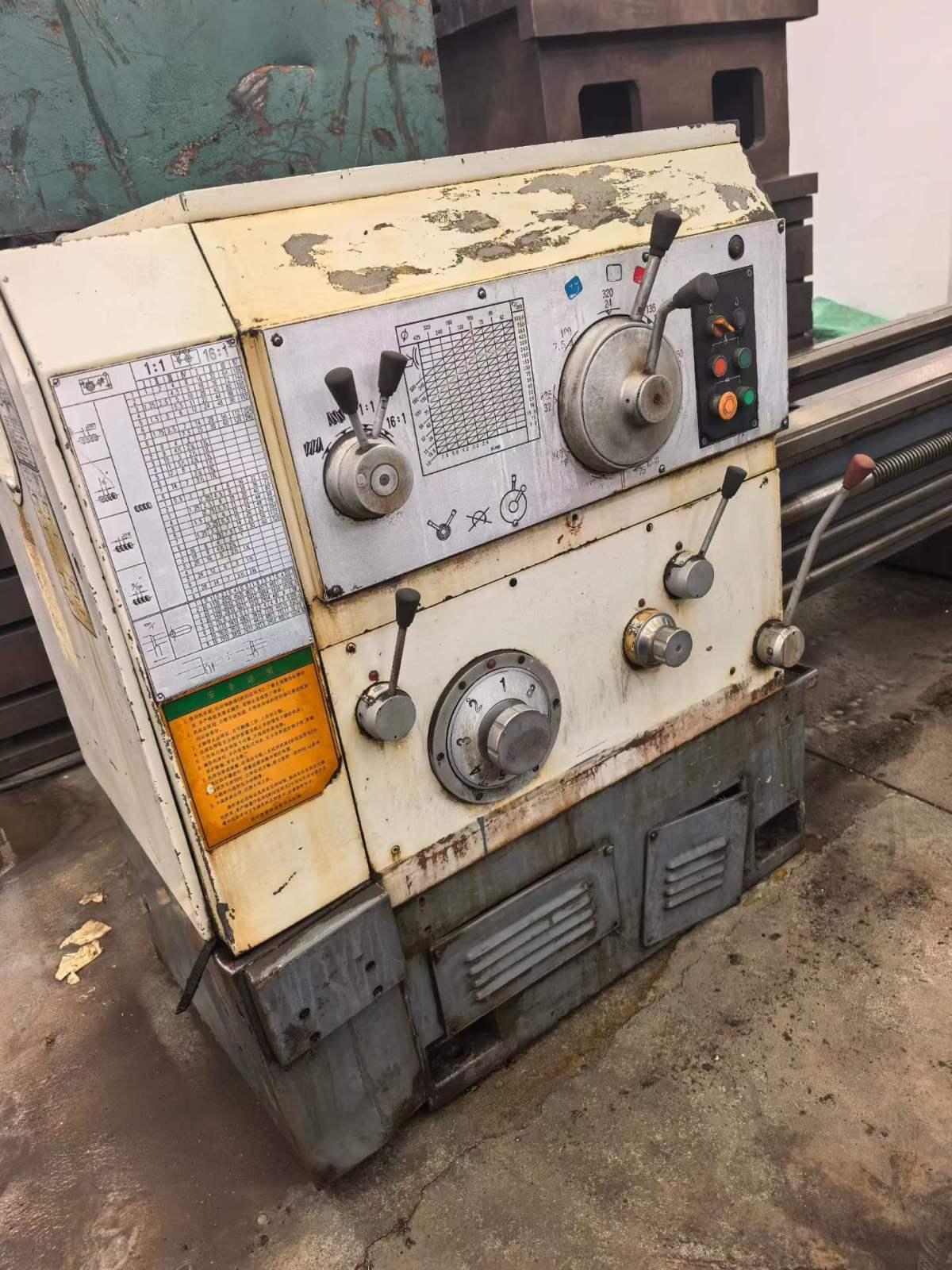

UNMASTE CU-460x1000 Lathe

The maximum rotational diameter on the bed: Φ 460mm
The maximum rotational diameter on the tool holder: Φ 260mm
Maximum machining length: 1000mm
The diameter of spindle through hole: Φ 52mm
spindle taper: MT5
Overall Footage: 2300x1050x1350mm
Net weight of machine tool: 2800 kg
The width of the bed guideway is 350 mm
spindle center height: 230 mm
Spindle speed range: 45 to 1800 rpm
Metric thread range: M0.5 to M52
Imperial thread range: 4 to 80 TPI
Module thread range: 0.5 to 10 MOD
tailstock quill shaft diameter: Φ 75mm
tailstock quill shaft travel: 150mm
tailstock quill shaft taper: MT4
