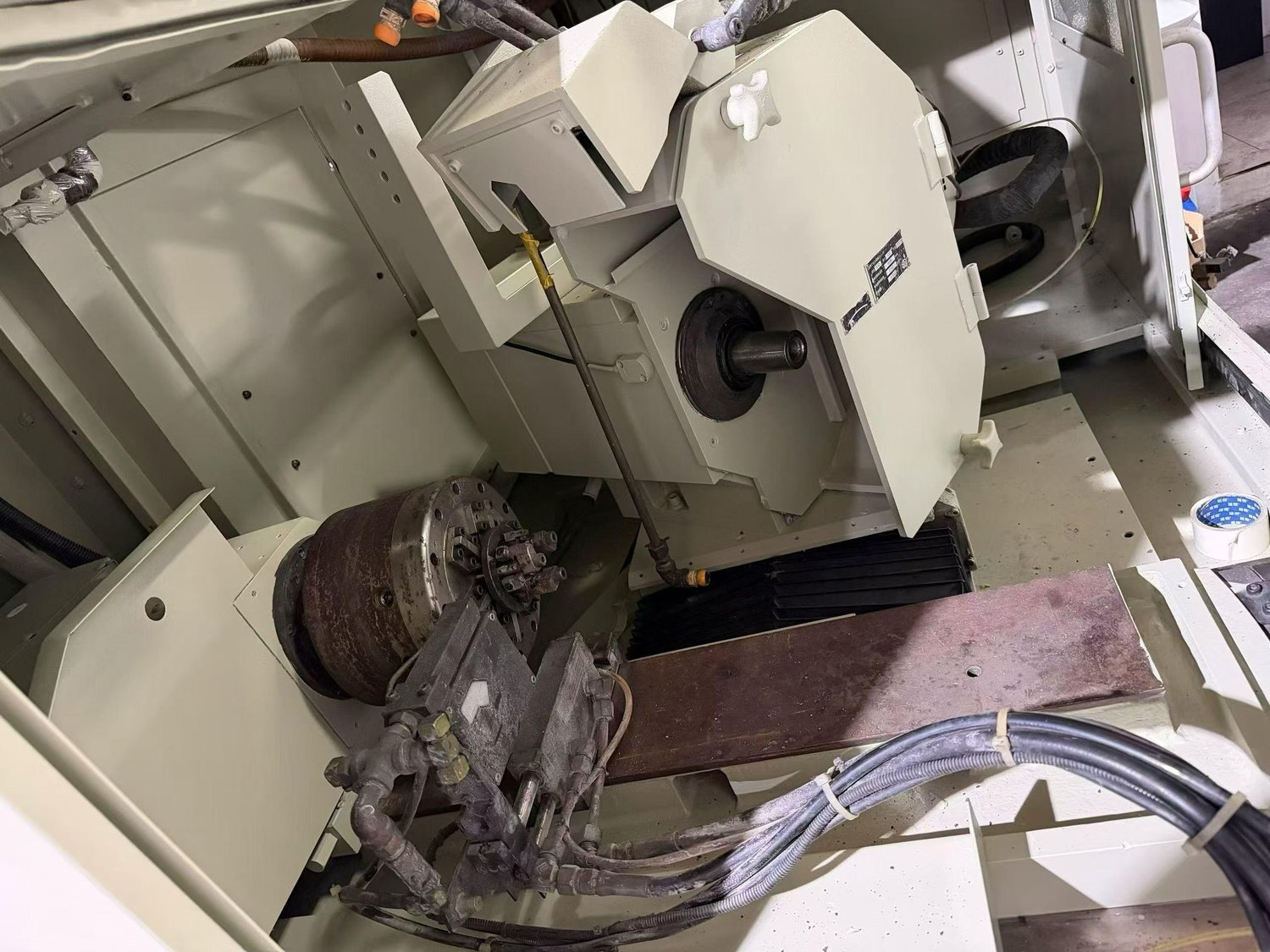

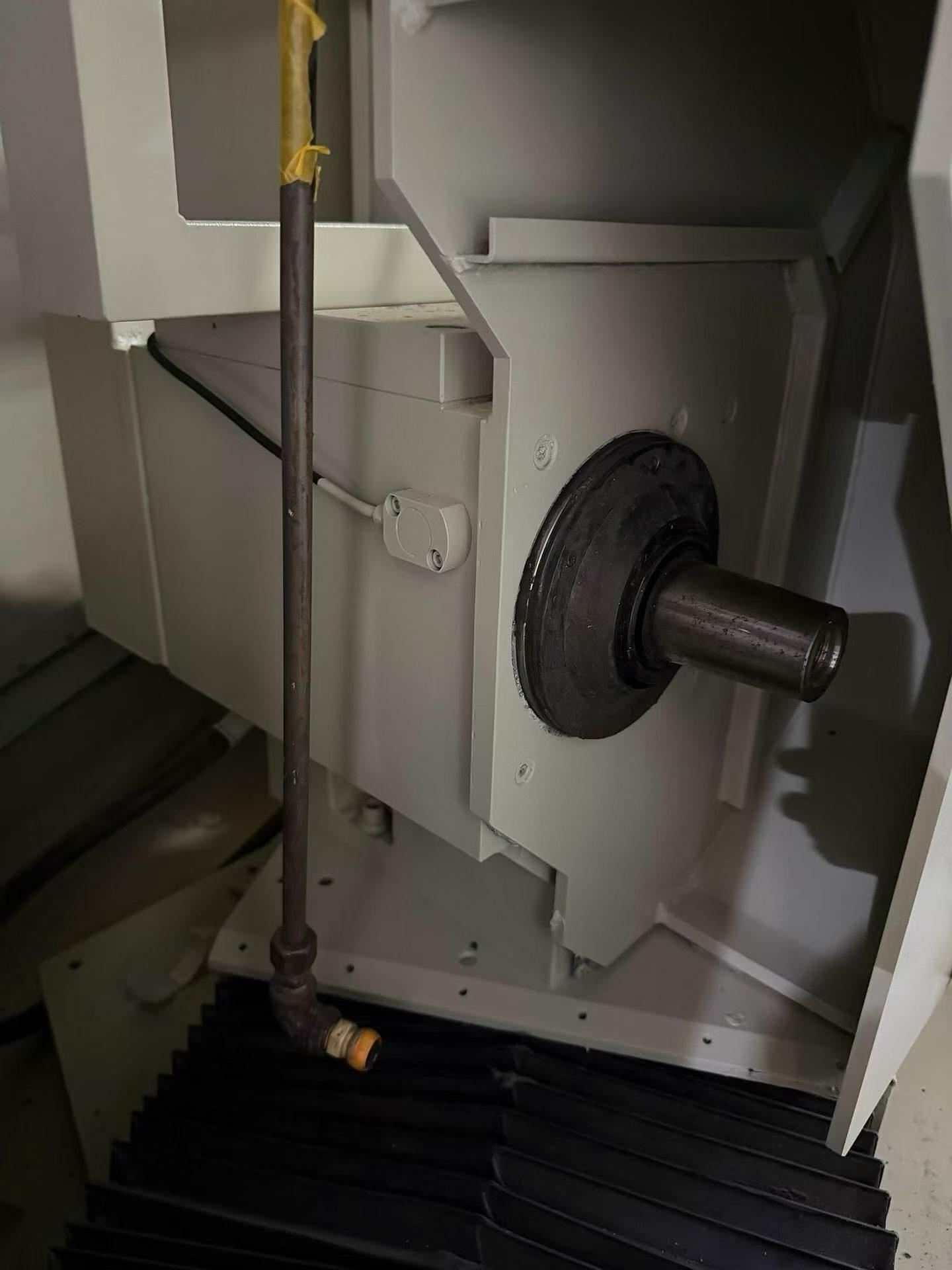

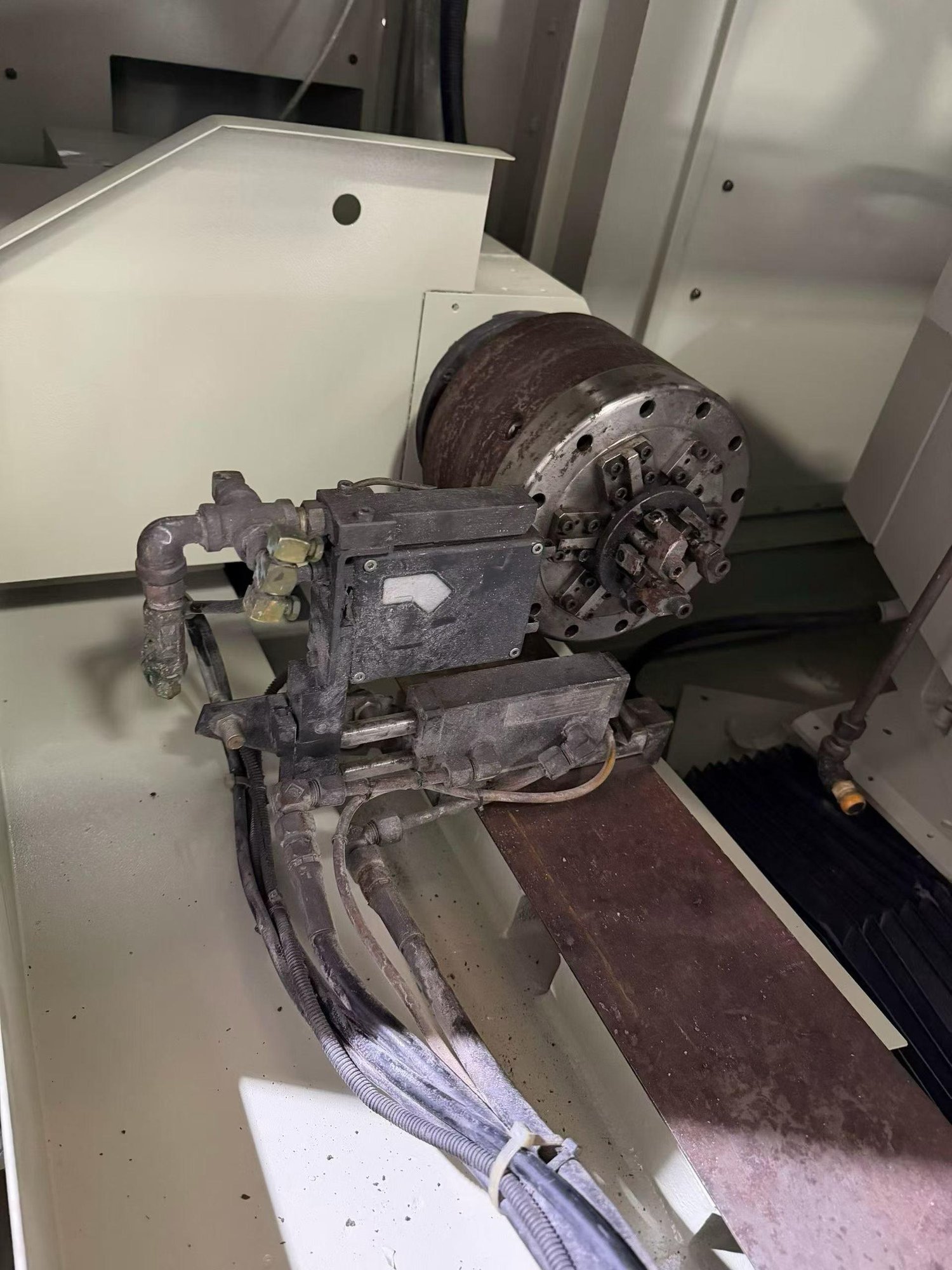

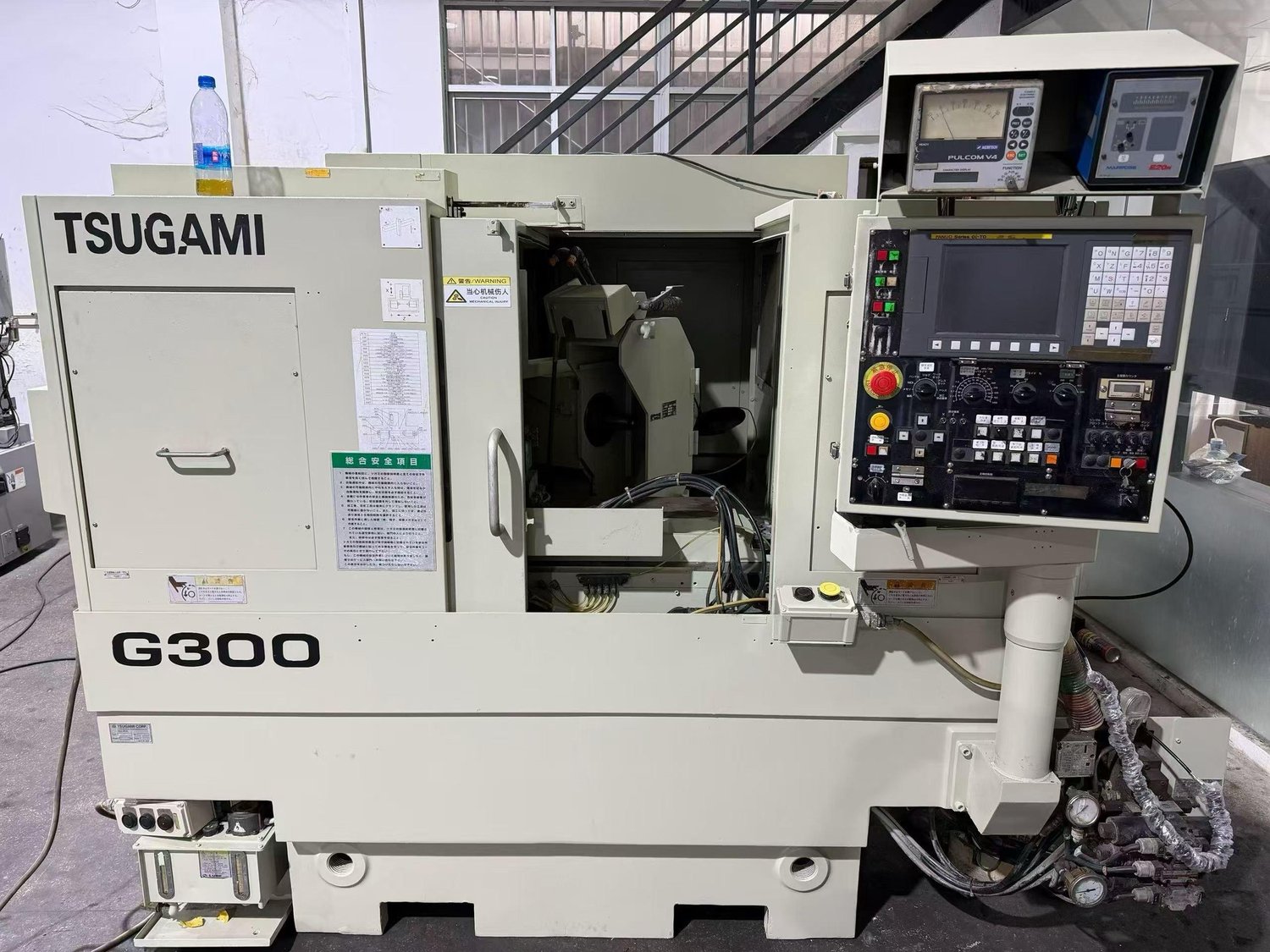

Tsugami G300A-300 CNC Cylindrical grinder

[Product Information]:

Inventory number：67393
Brand：Tsugami
Model：G300A-300
Origin："Japan
Location：China
Year：2011
Create Time：2026-04-08

Specifications:

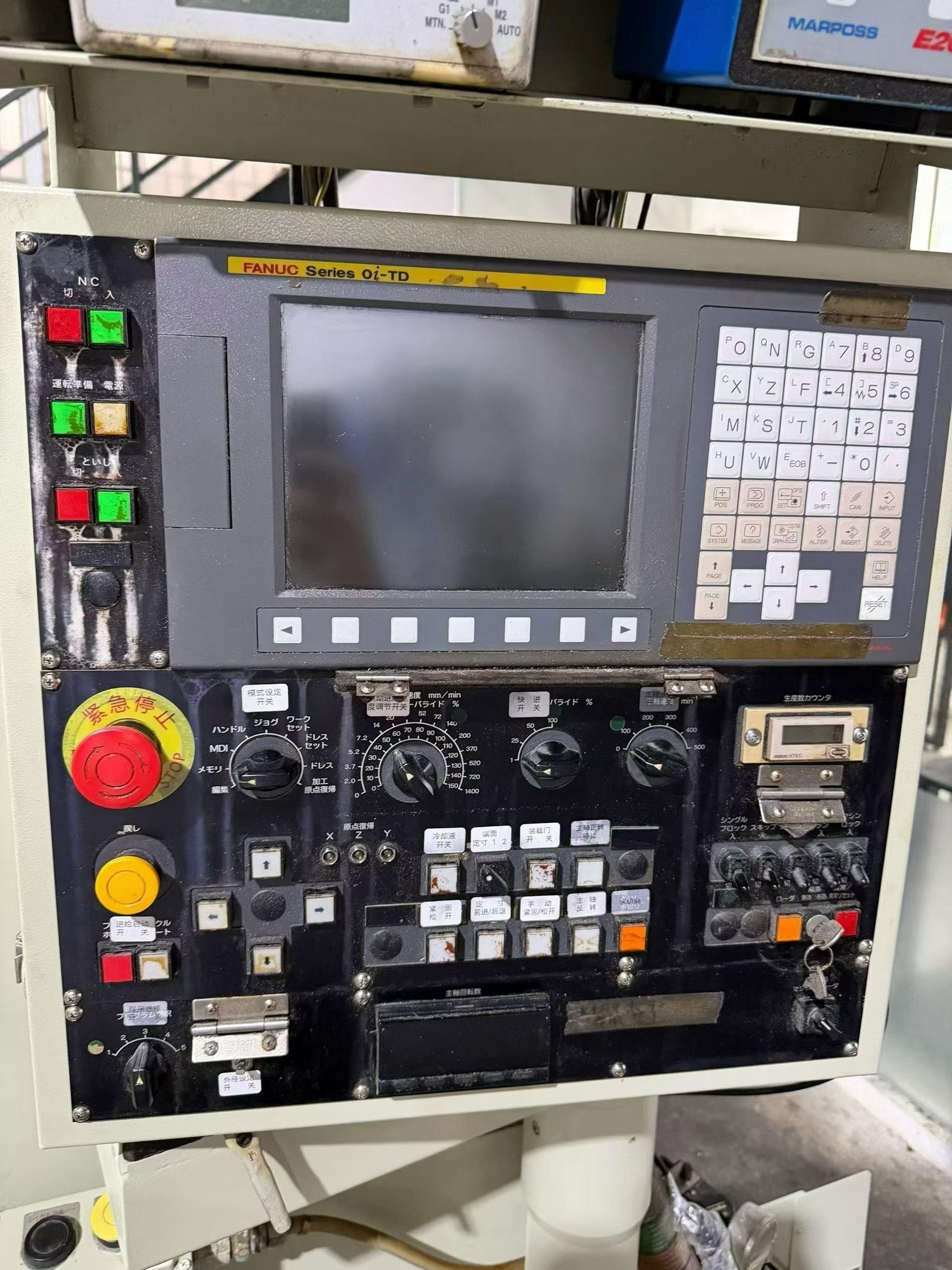

CNC System: FANUC 0i-TD
Maximum grinding diameter: Ø 300mm
Maximum grinding length: 300mm
Distance between centers: 300mm
Center height: 150mm
workpiece weight: 50 kg
grinding wheel size: Ø 405x50x127mm
spindle speed of the grinding wheel is 1800 rpm
Longitudinal travel of Worktable: 350 mm
The lateral travel of the grinding wheel frame: 150mm
Overall Footage: 3200x2000x1800mm
