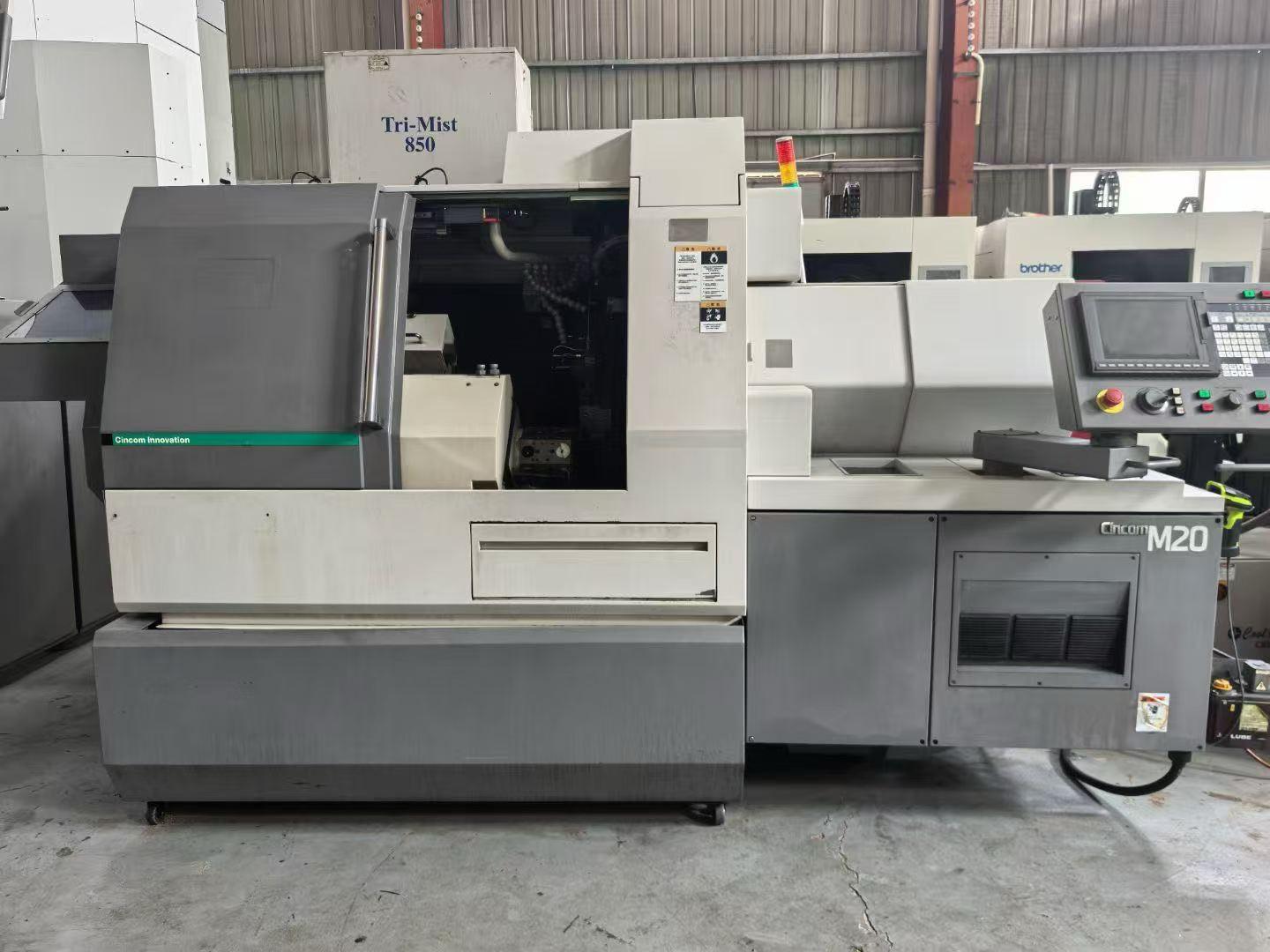

Citizen M20-4M5 Automatic lathe

Maximum machining diameter: ø20mm
Maximum machining length: 320mm
Diameter of spindle through hole: ø24mm
Spindle speed: 10,000 Rpm
Headstock indexing resolution : 1°
Spindle C-axis: 0.001°
Maximum clamping diameter of the back spindle: ø20mm
Maximum drilling diameter for back machining: ø12mm
Maximum tapping diameter for backside machining: M12
The maximum protrusion of the workpiece on the back spindle: 145mm
Back-spindle speed: 8,000 Rpm
Indexing resolution of the back headstock: 1°
Back spindle C-axis: 0.001°
Maximum drilling diameter of the rotary Tool：ø8mm
Maximum tapping diameter of the rotary Tool: M8
Spindle speed of the Tool：9000 Rpm
Maximum drilling diameter of the rotating Tool：ø12mm
Naximum tapping diameter of the rotating Tool：M12
Spindle speed of the tool Turret: 6,000 Rpm
Maximum drilling diameter of the back-rotating Tool: ø8mm
Maximum tapping diameter of the back-rotating Tool: M6
Speed of spindle of the back-rotating Tool: 6,000 Rpm
Dimension: 2,770 * 1,370 * 1,820mm
Machine tool weigh: 3,500kg
