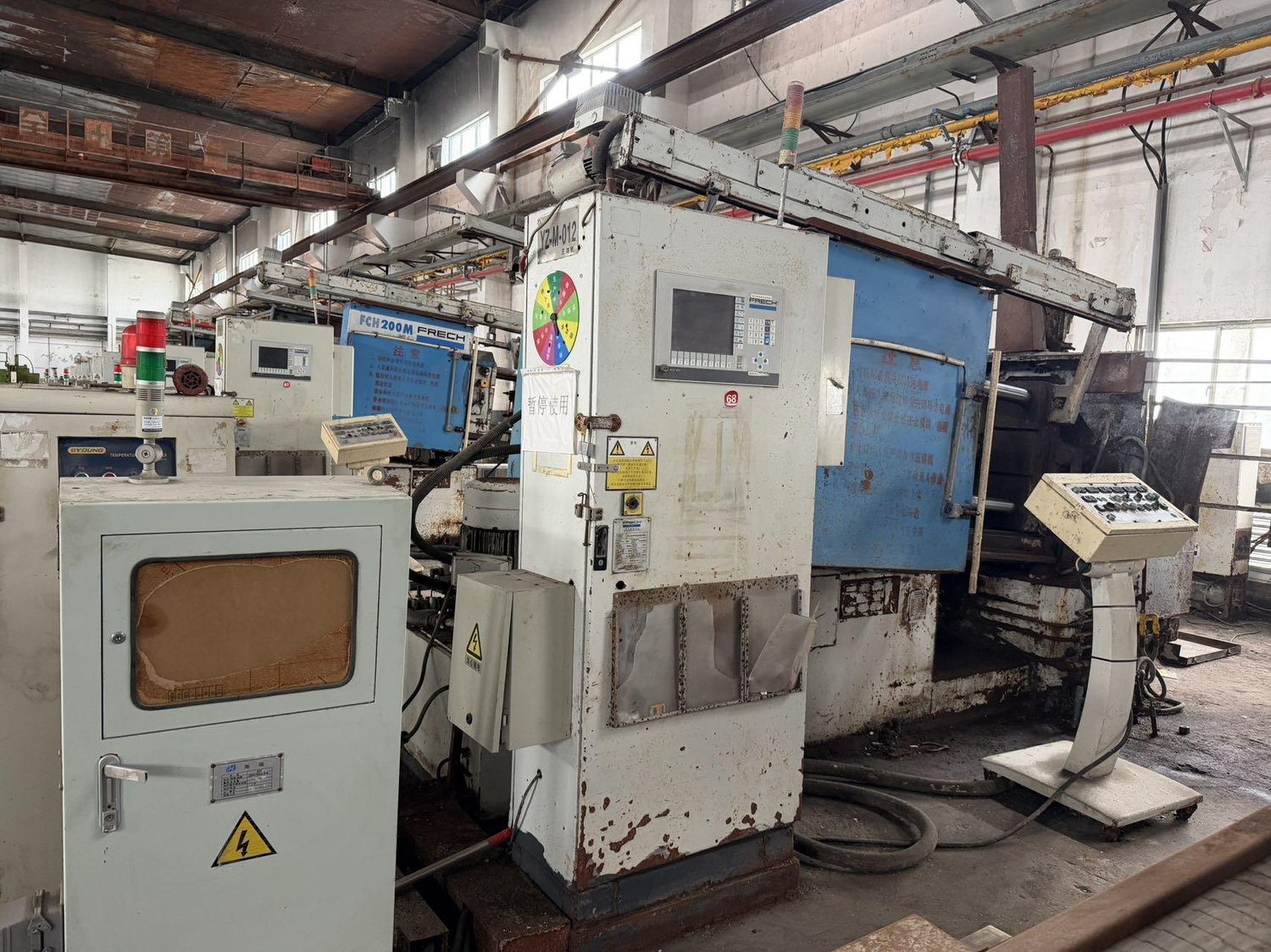

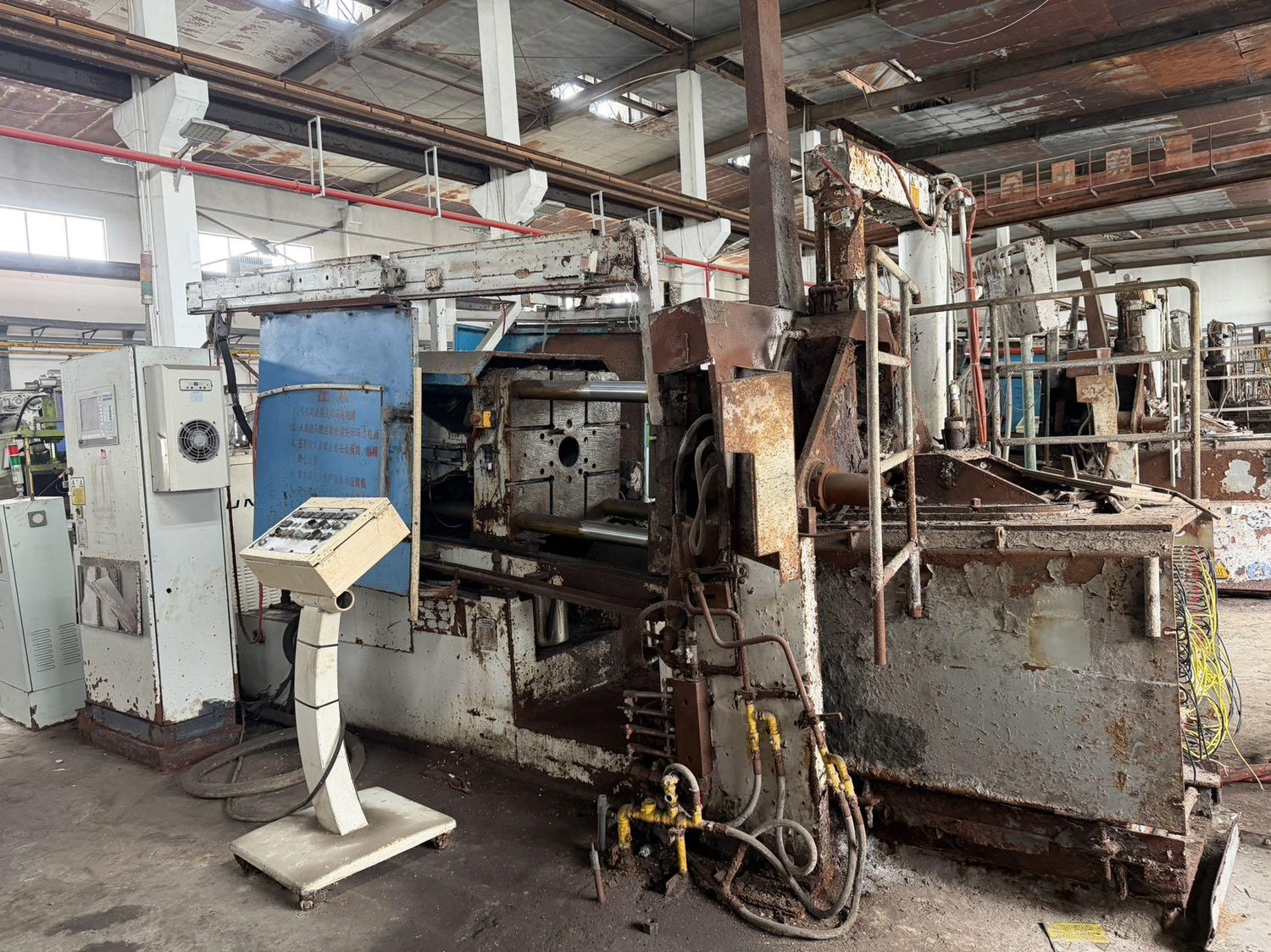

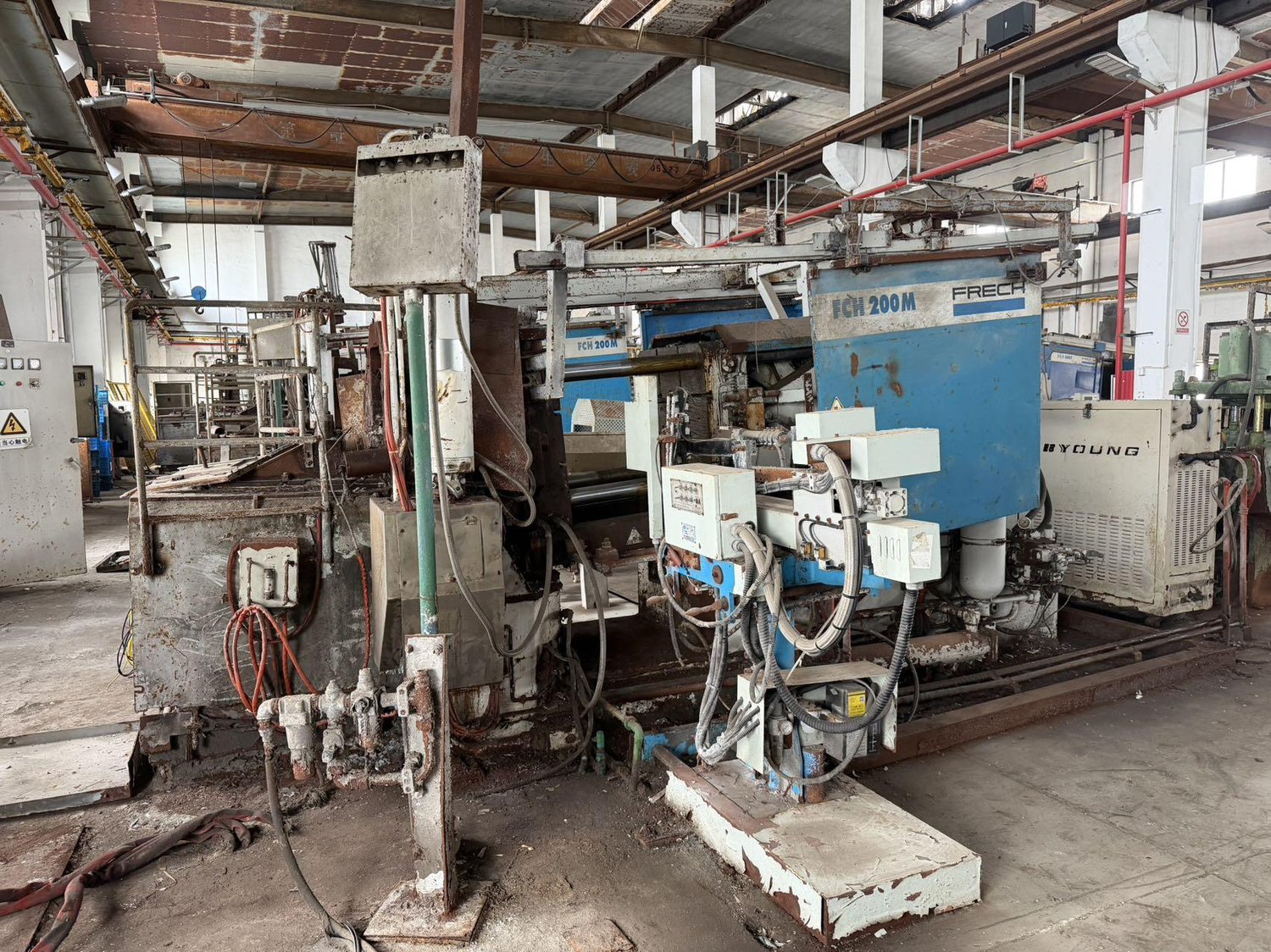

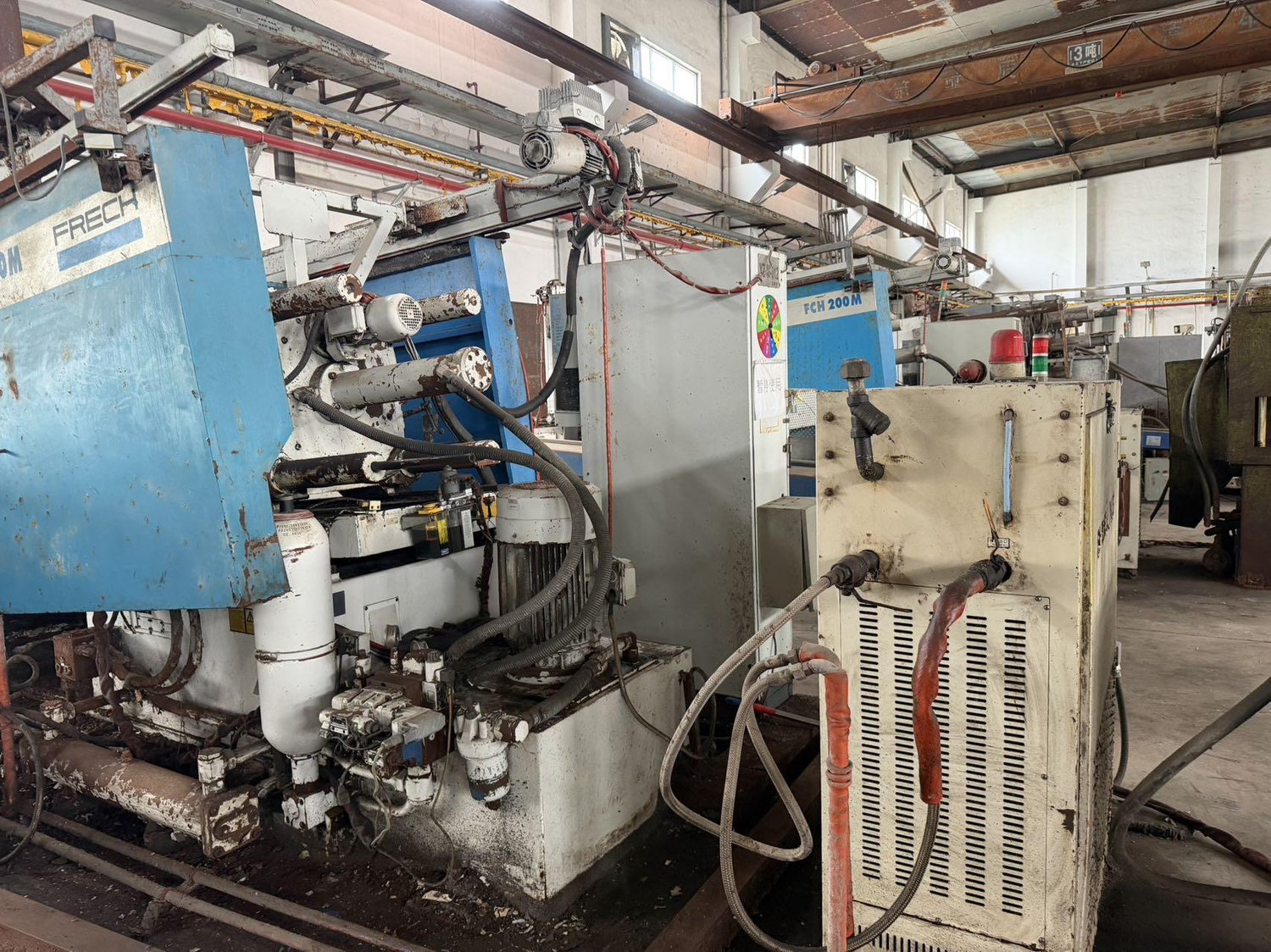

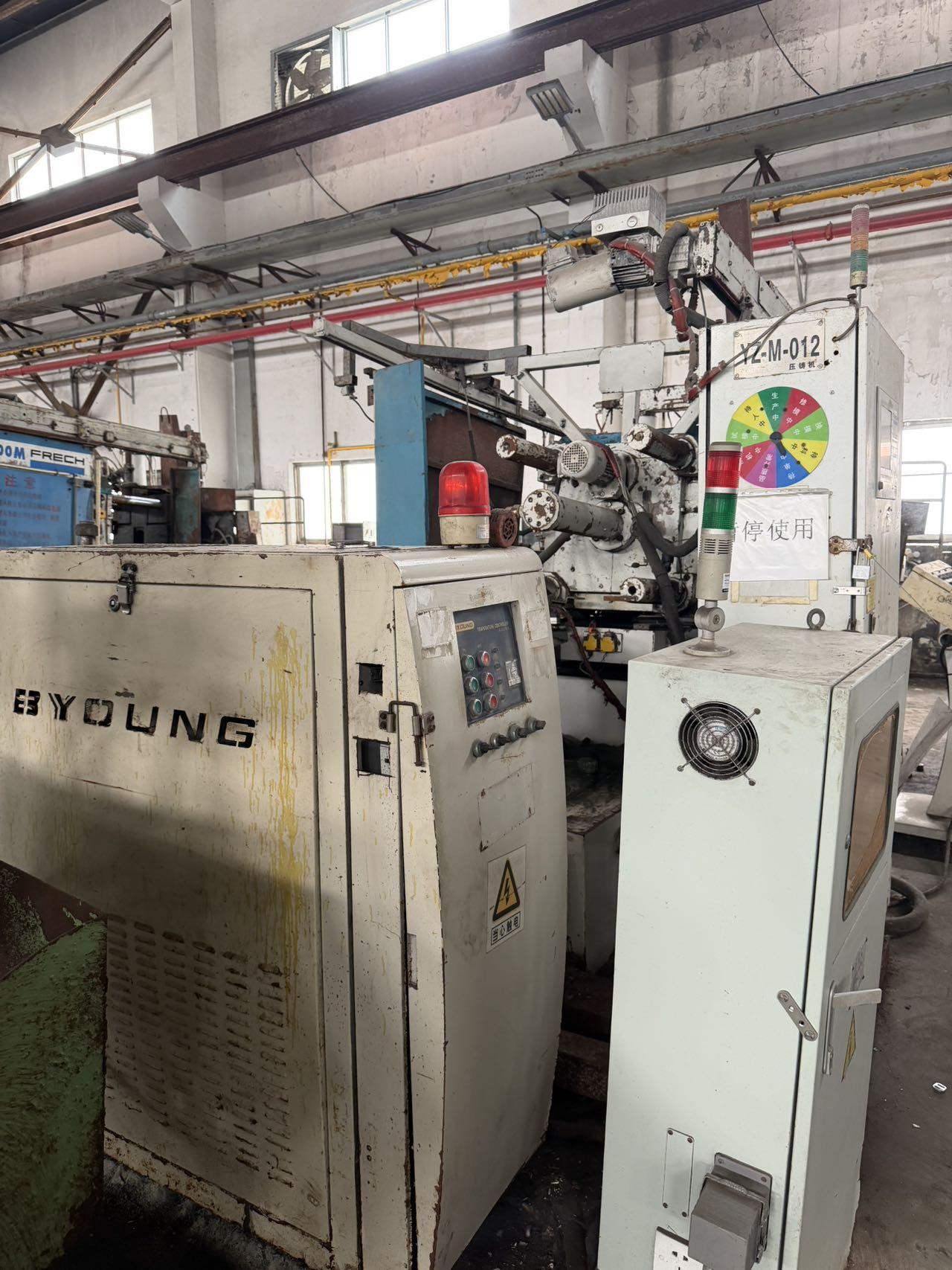

FRECH FCH200 M other

Clamping force: 2200 kN
Clamping stroke: 430 mm
Ejector force: 110 / 70 kN
Ejector stroke: 100 mm
Die height: 250–600 mm
Platen size: 755 × 755 mm
Space between tie bars: 500 × 500 mm
Tie bar diameter: 85 mm
Shot position: 0–100 mm
Maximum injection force: 130 kN
Injection stroke: 175 mm
Injection plunger diameter: 70 / 80 / 90 mm
Shot capacity: 450 / 636 / 856 cm³
Specific injection pressure: 335 / 260 / 204 daN/cm²
Maximum projected area: 1375 cm²
Carriage retraction stroke: 330 mm
Crucible capacity: 170 dm³ (approx. 300 kg Mg)
Melting capacity: 150 kg/h
Machine weight: approx. 8,000 kg
Overall dimensions (L × W × H): 5900 × 1800 × 2250 mm
