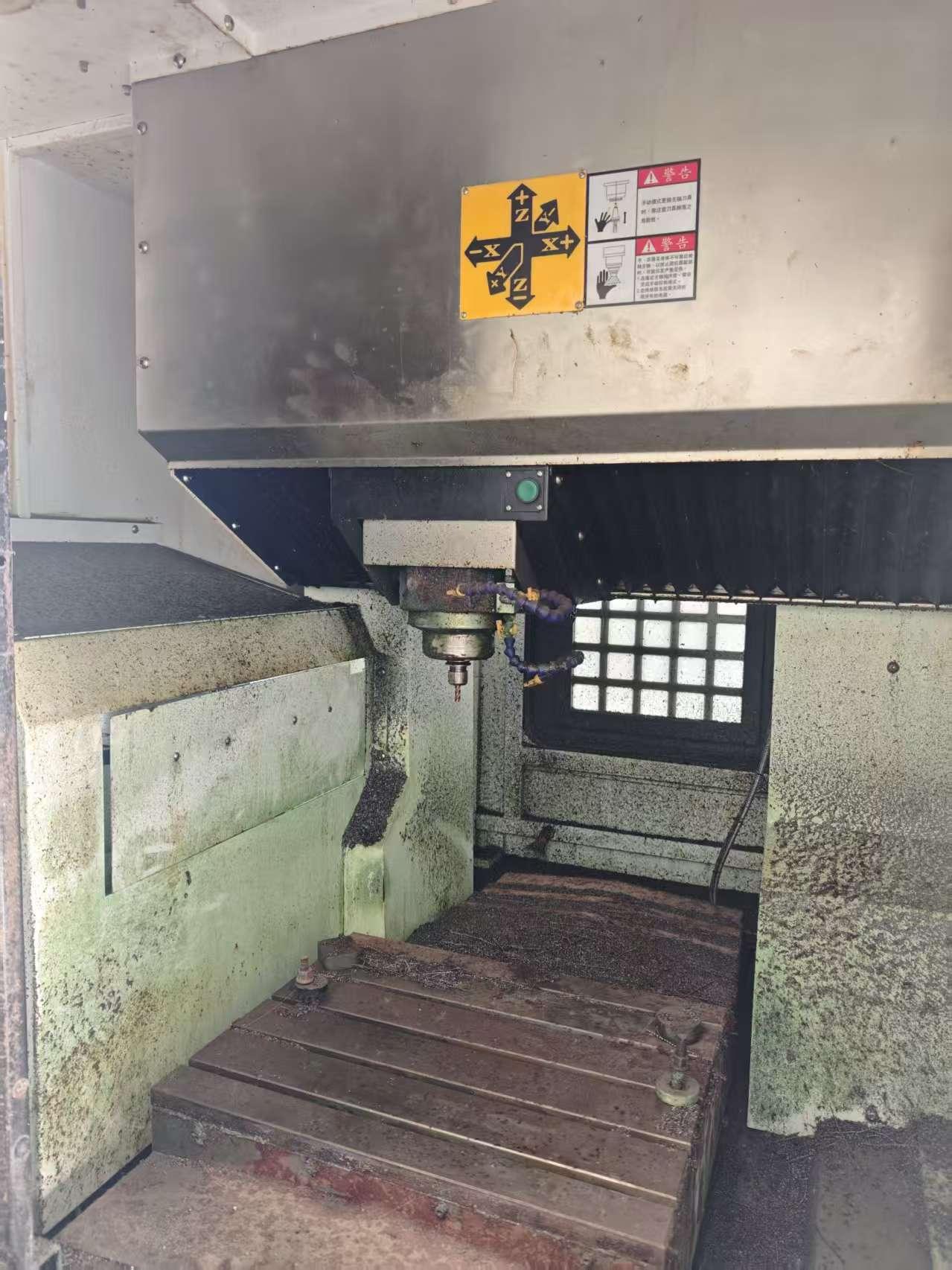

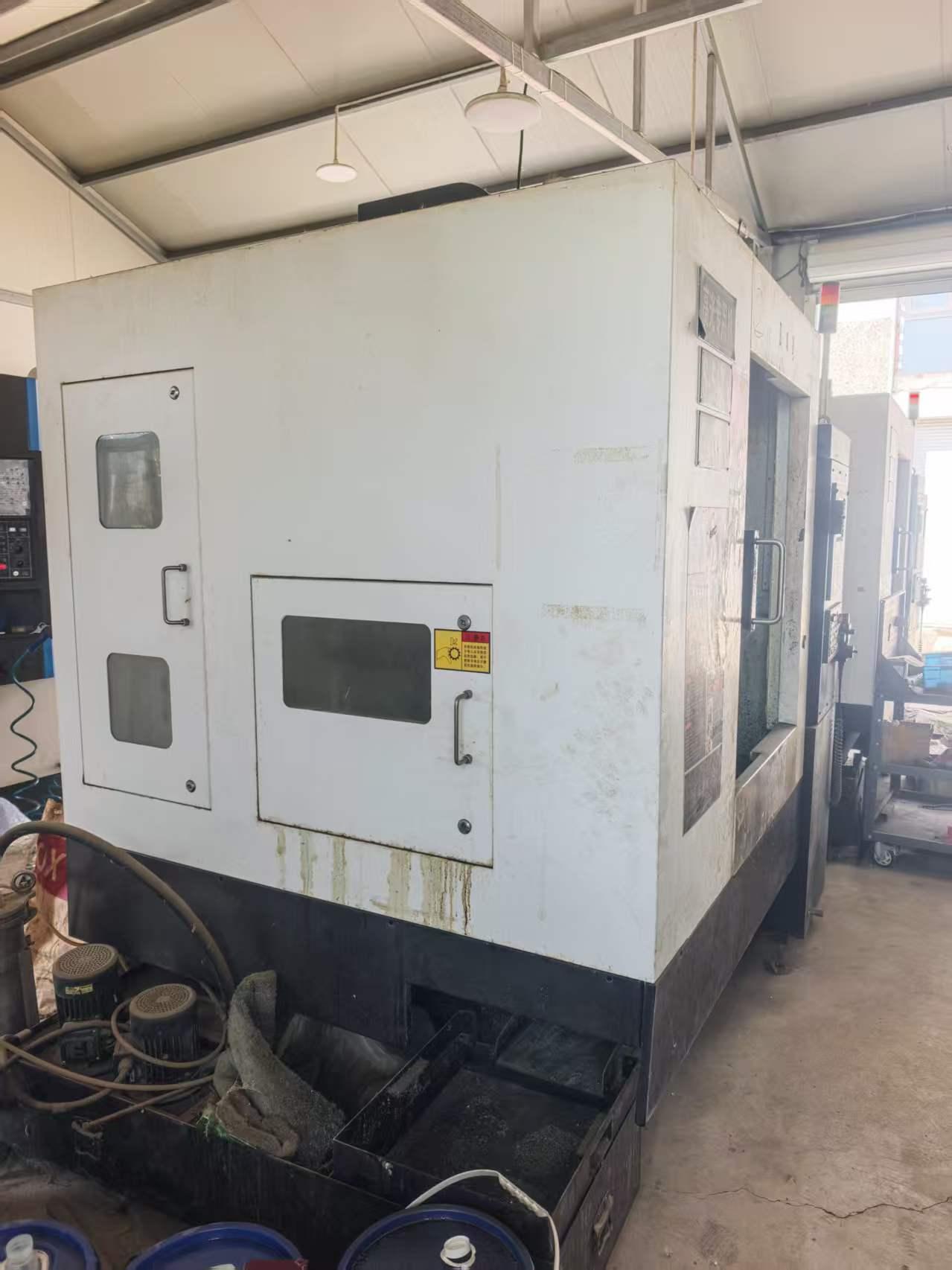

Taikan S-540A other

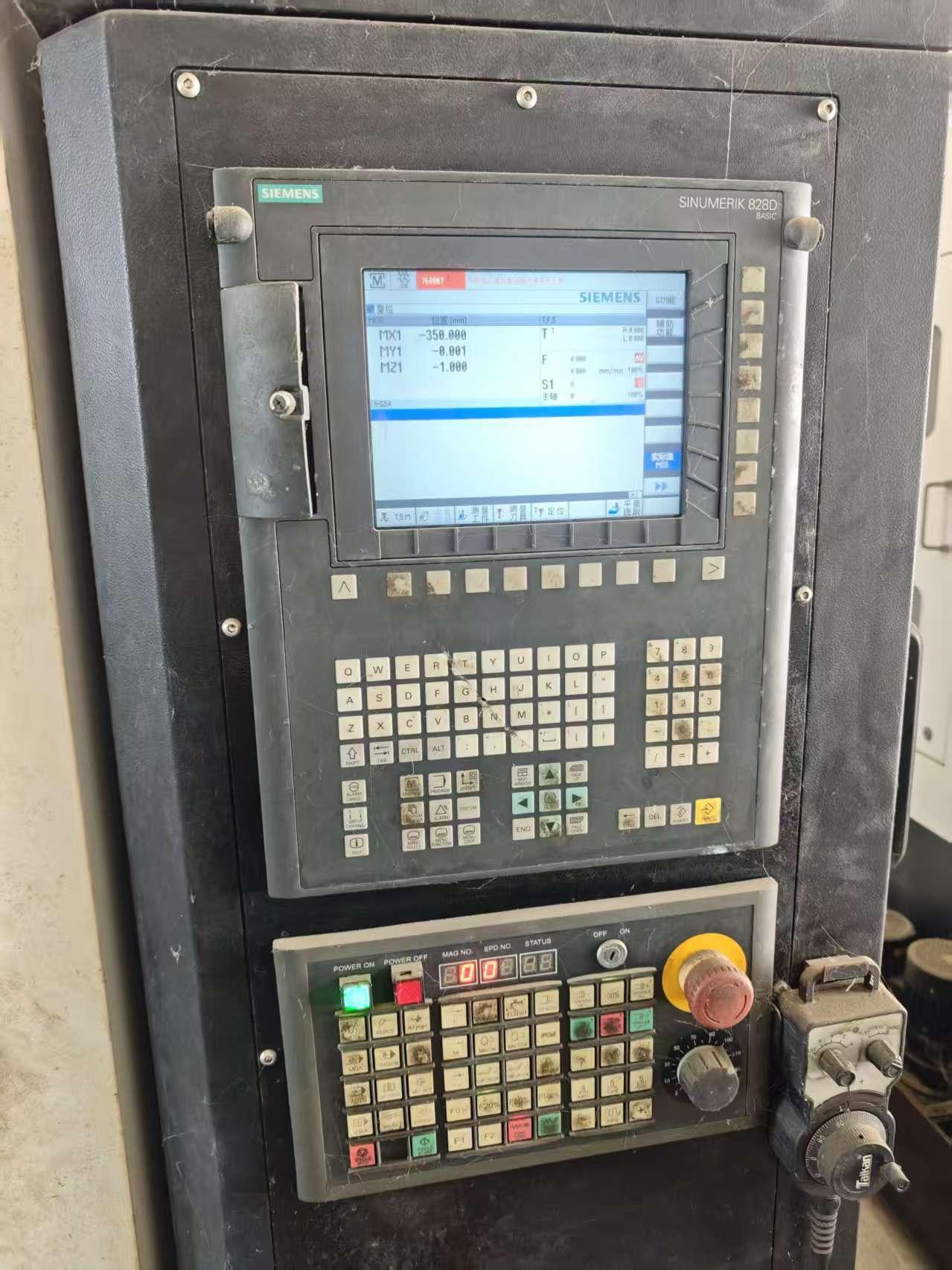

CNC System: Siemens 828D
Three-Axis Travel (X × Y × Z): 500 × 400 × 238 mm
Worktable Size: 520 × 400 mm
Maximum Worktable Load: 200 kg
Repeat Positioning Accuracy (X, Y, Z): 0.005 × 0.005 × 0.005 mm
Spindle Speed: Up to 36,000 rpm
Spindle Interface: ISO 25

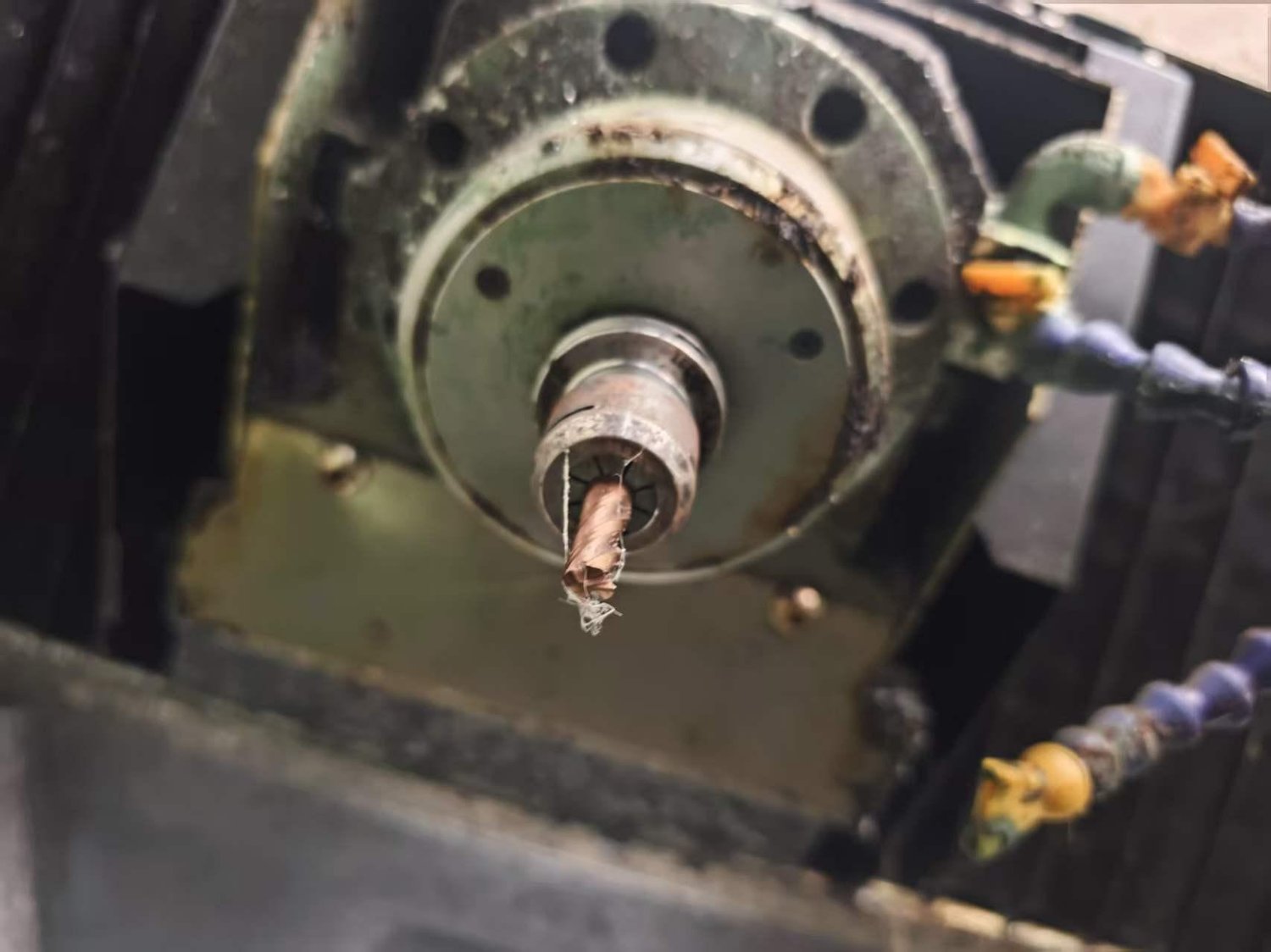

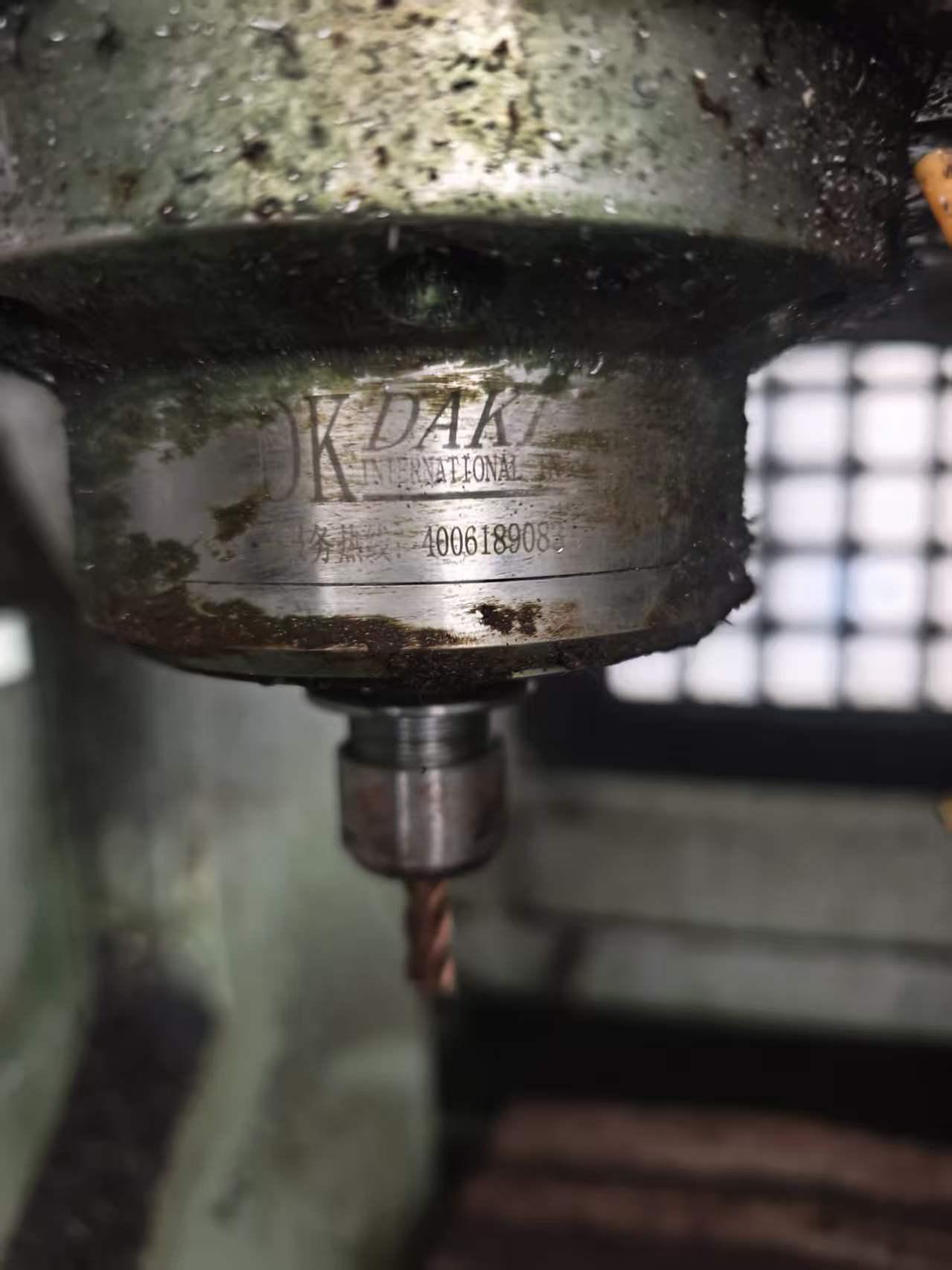

Spindle Type: Electric Spindle
Tool Magazine: Inline Servo-Type, 13 positions
Machine Dimensions (L × W × H): 1800 × 1500 × 2200 mm
Weight: 2800 kg
