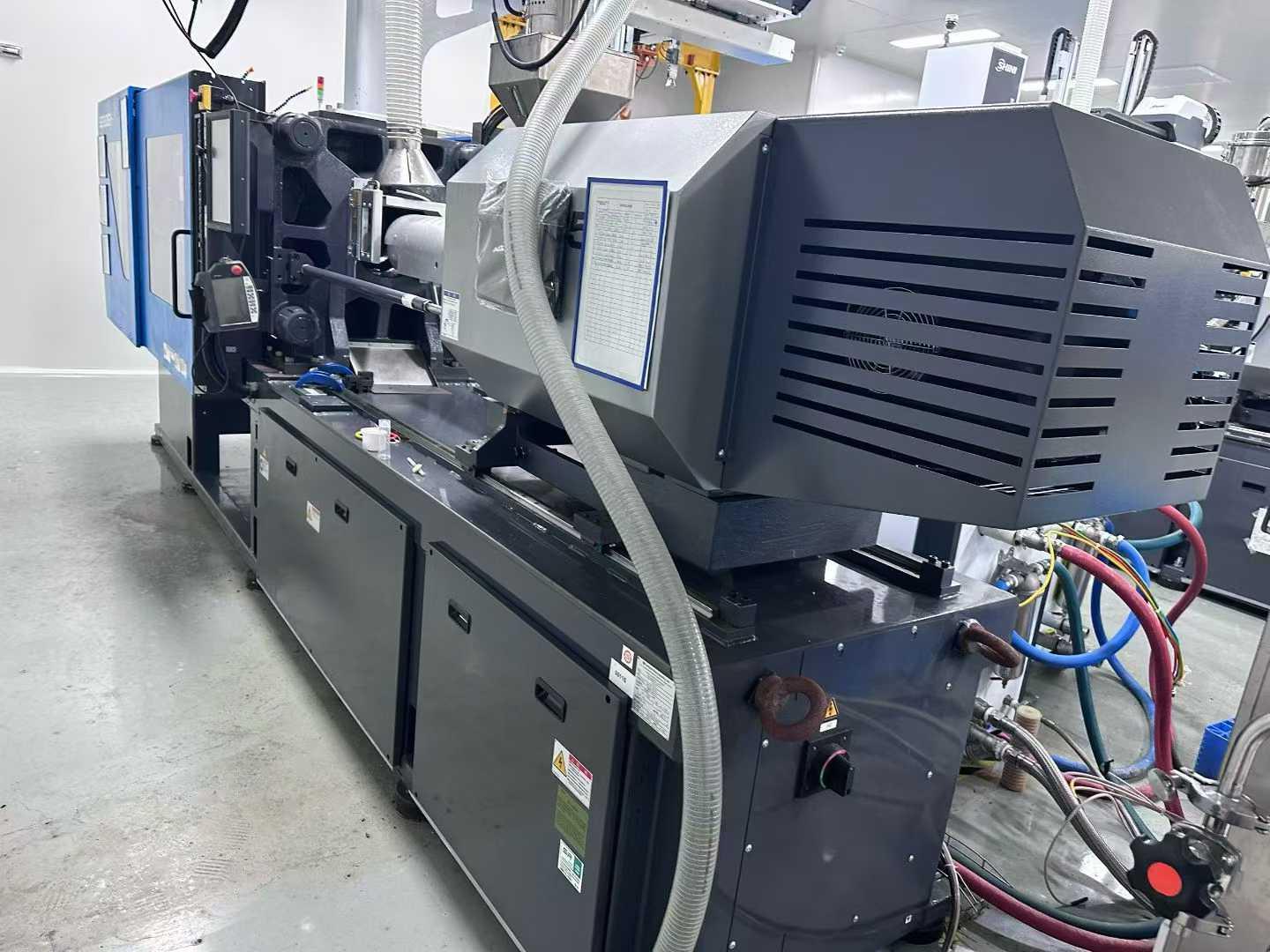

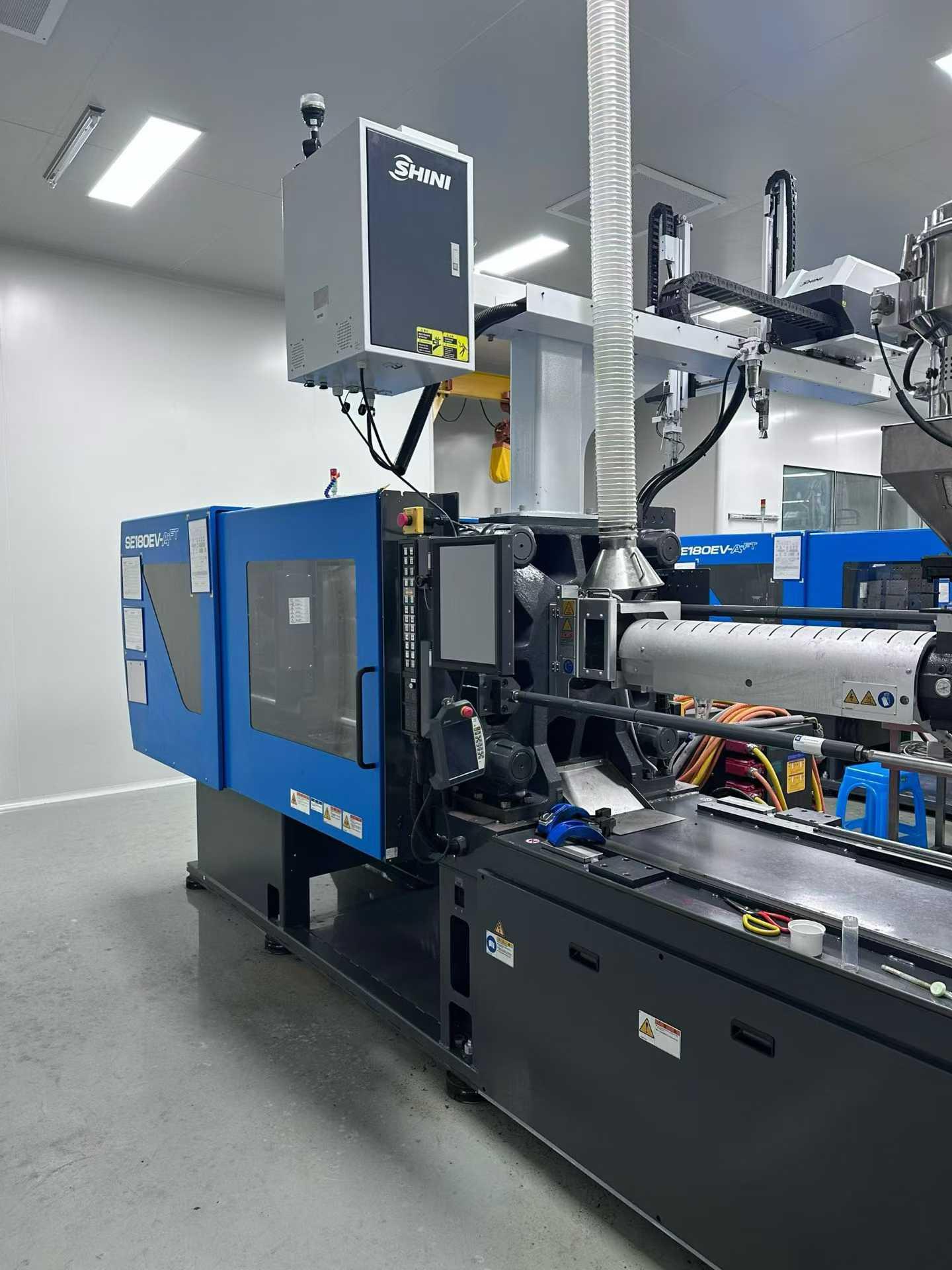

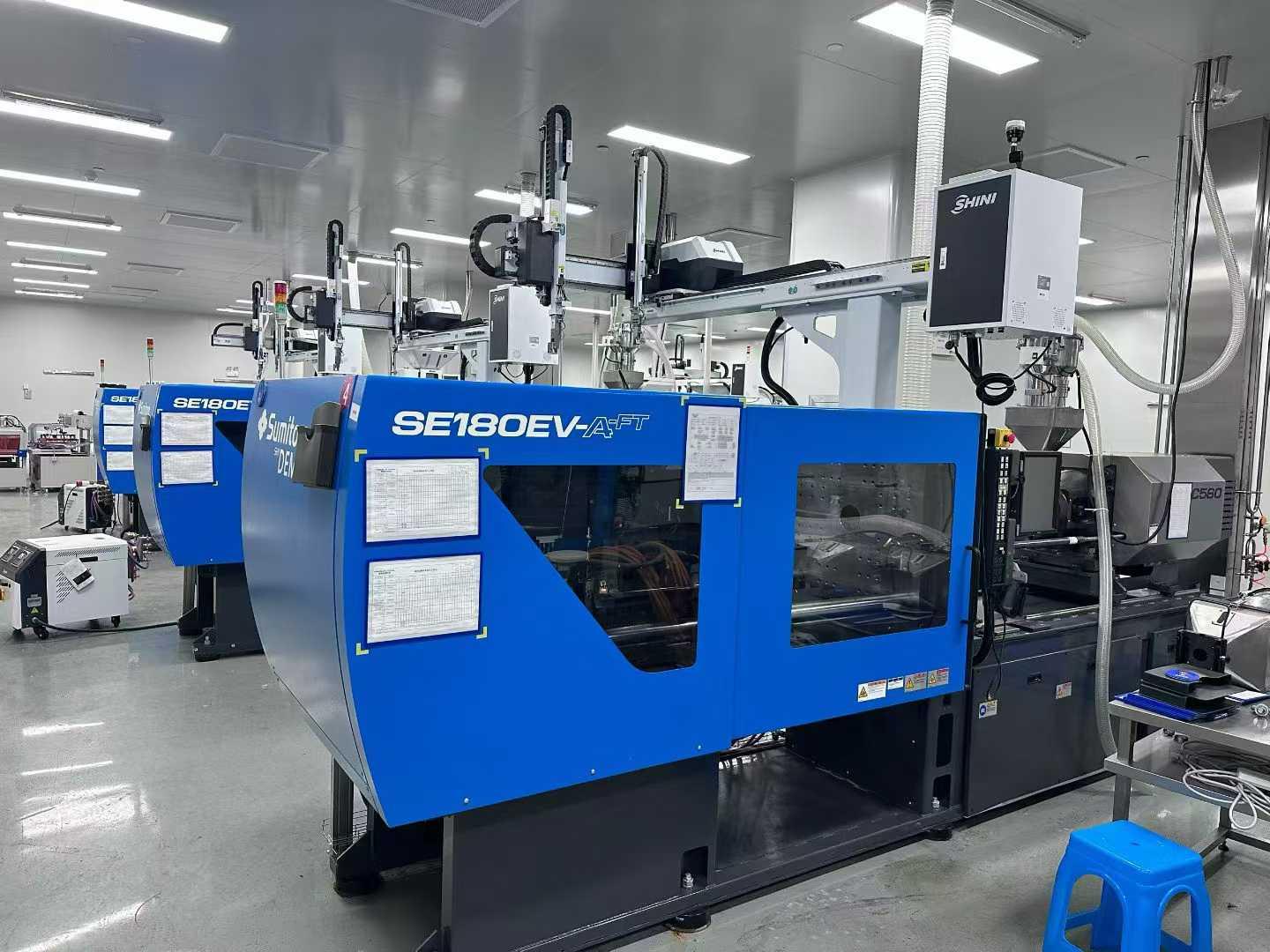

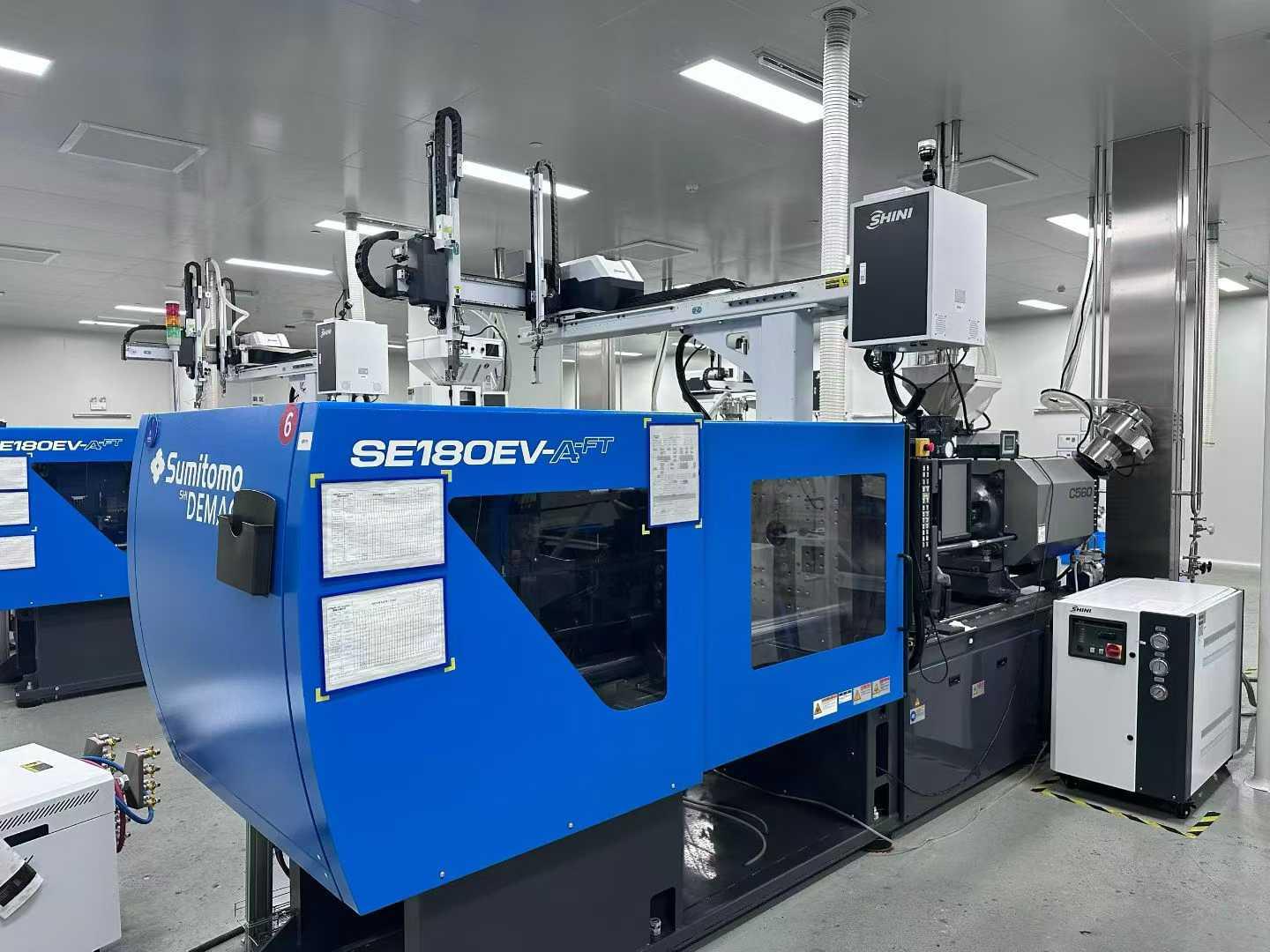

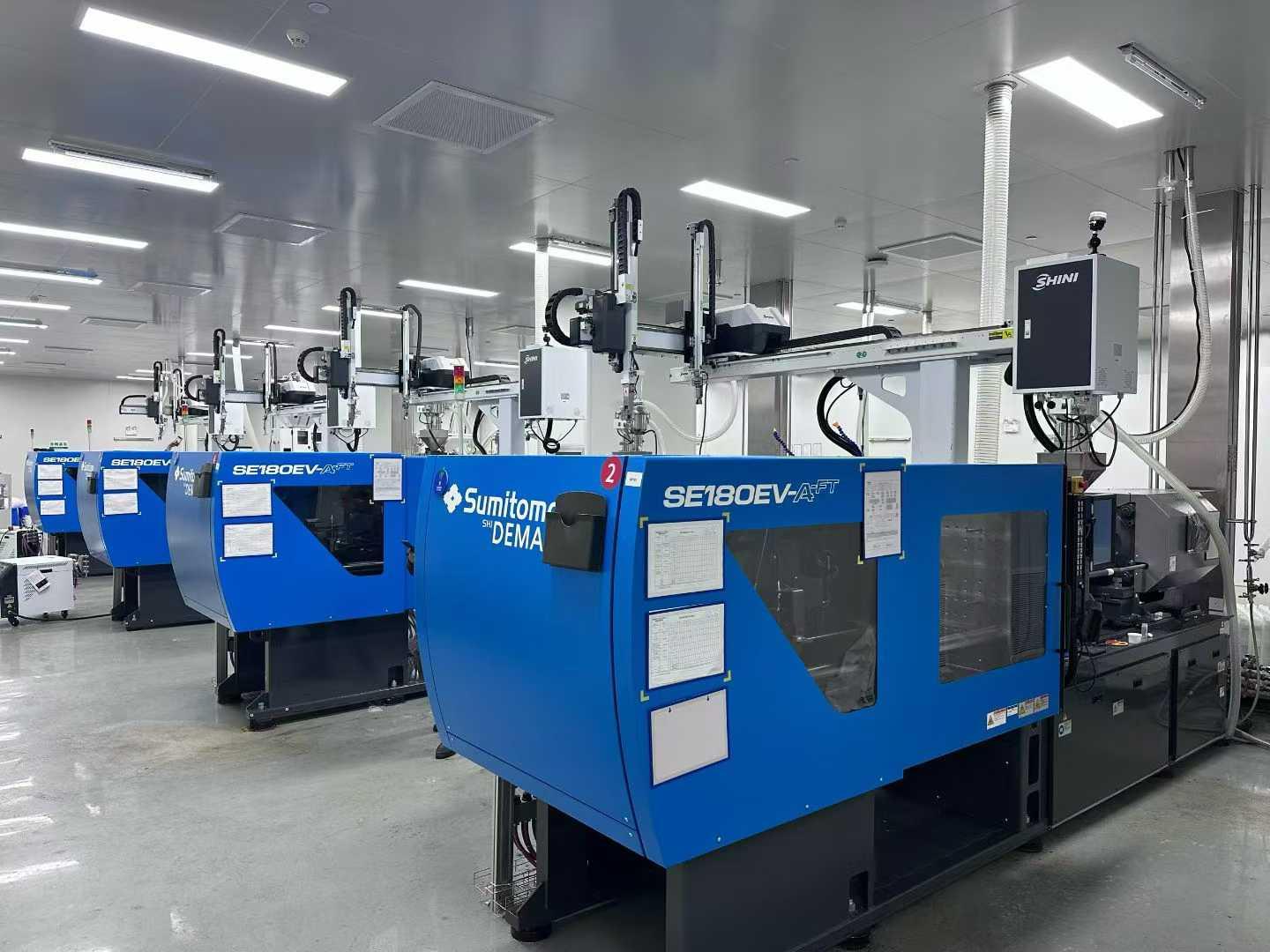

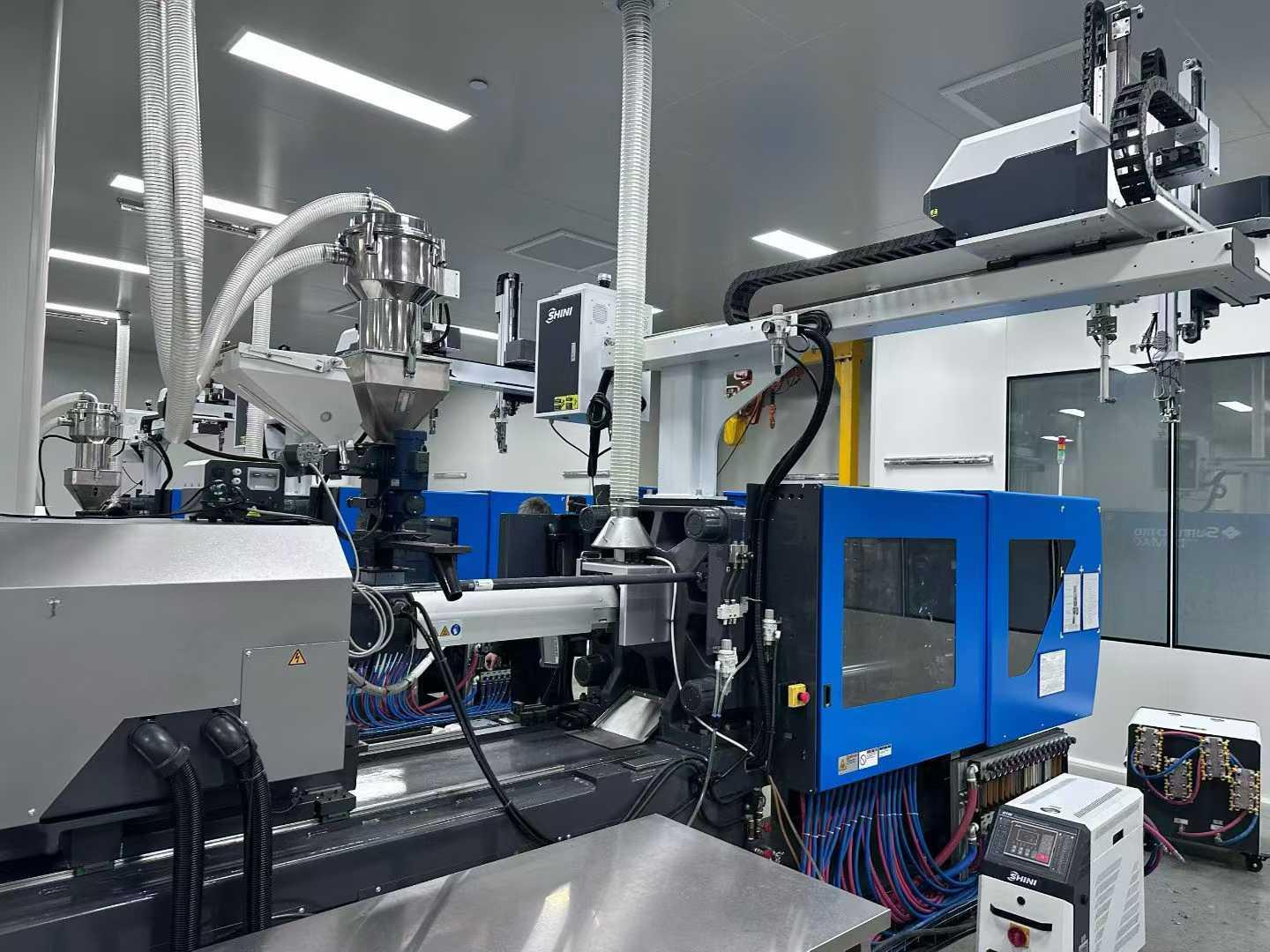

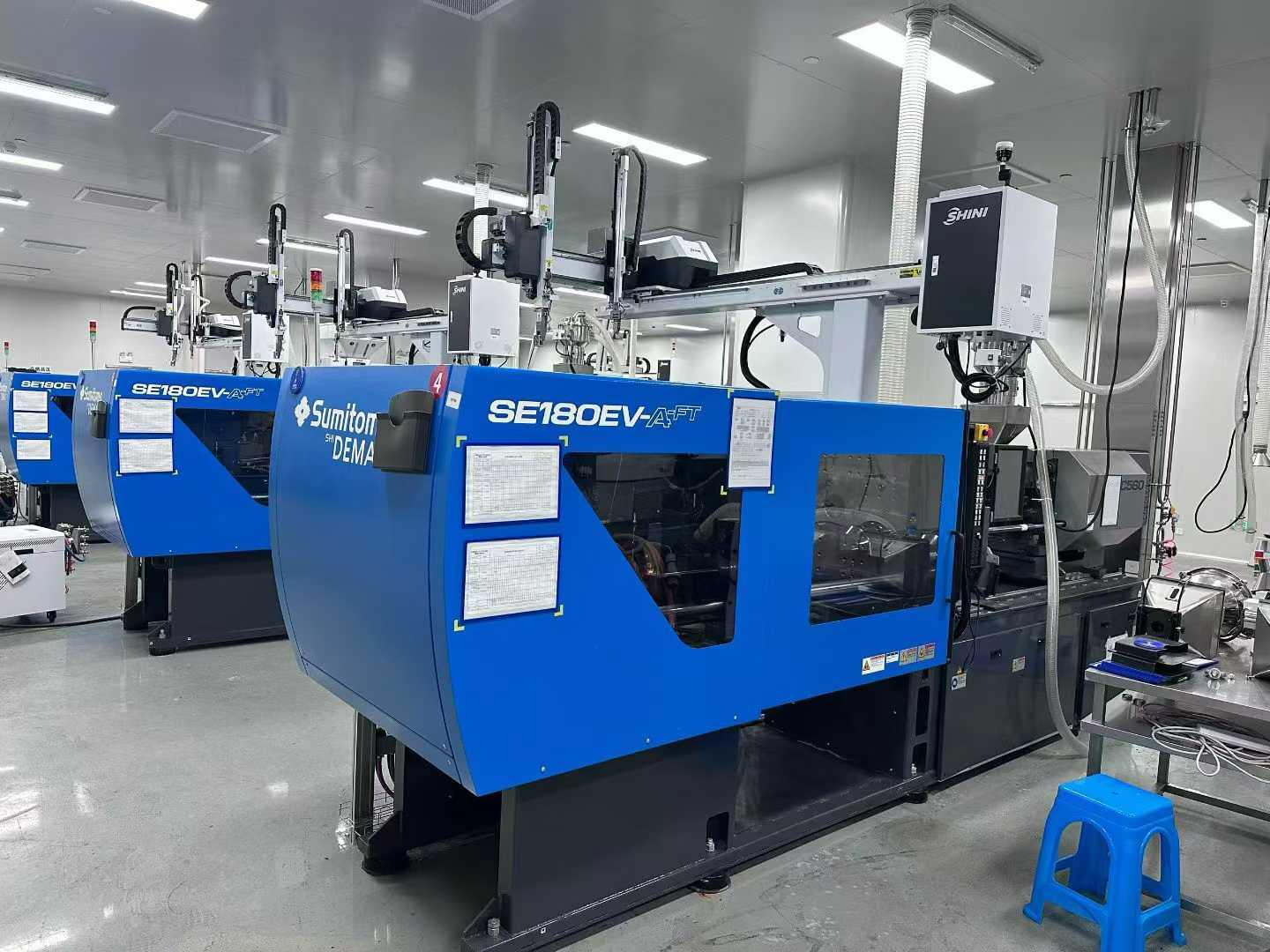

SUMITOMO SE180EV-AT injection molding machine

Clamping Force: 1800 kN / 184 tonf
Distance Between Tie-bars: 560 × 560 mm
Overall Size of Platens (H × V): 800 × 795 mm
Open Daylight (Max.): 950 mm
Mold Space (Min.–Max.): 200 – 500 mm
Opening Stroke (Max.): 450 mm
Mold Open/Close Speed (Max.): 1200 mm/sec
Locating Ring Diameter: 101.6 mm
Ejector Pattern: 7 × 7 center and 4 × 16 vertical (9 points total)
Ejector Stroke: 120 mm
Ejector Force: 45 kN
