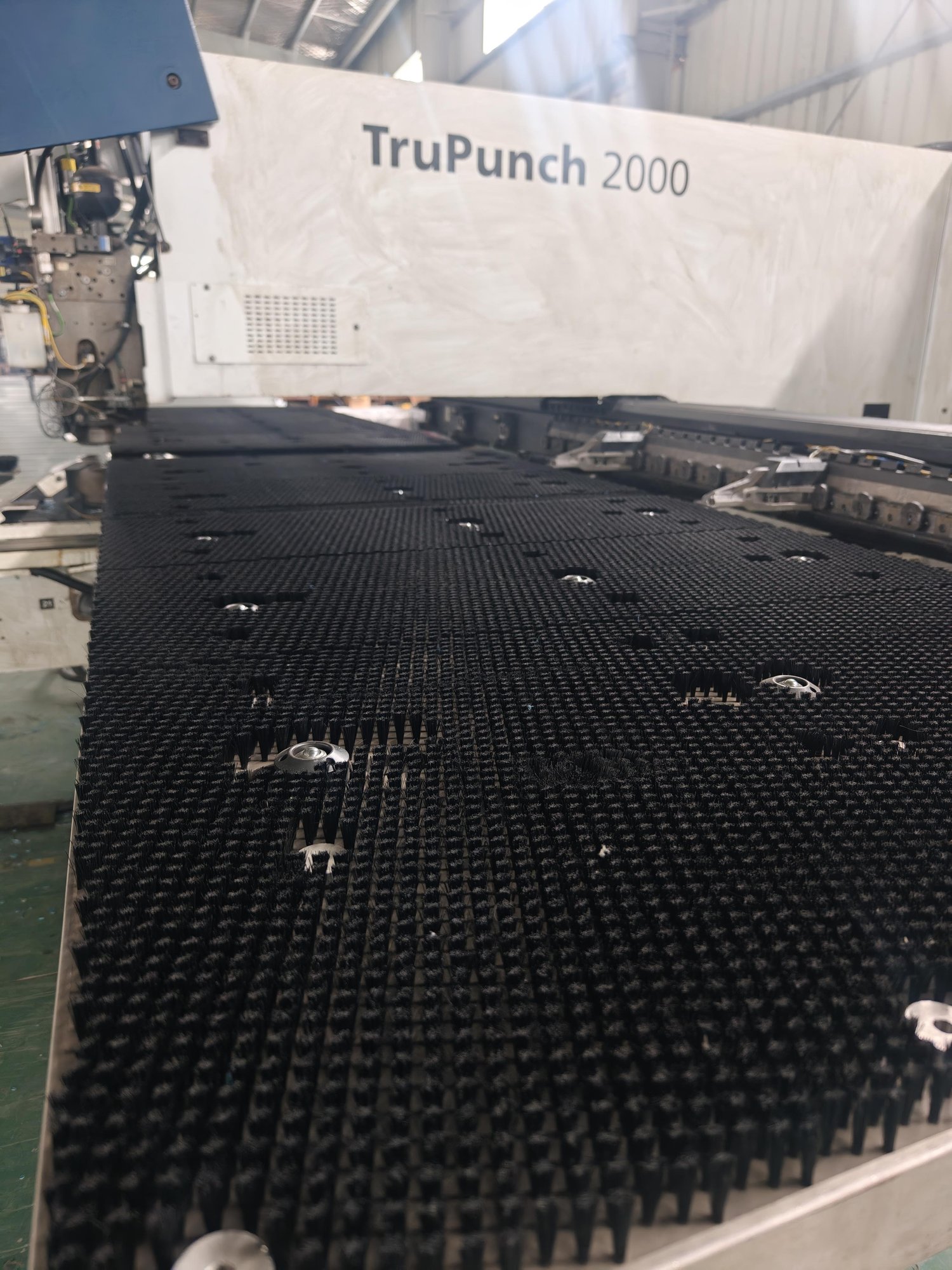

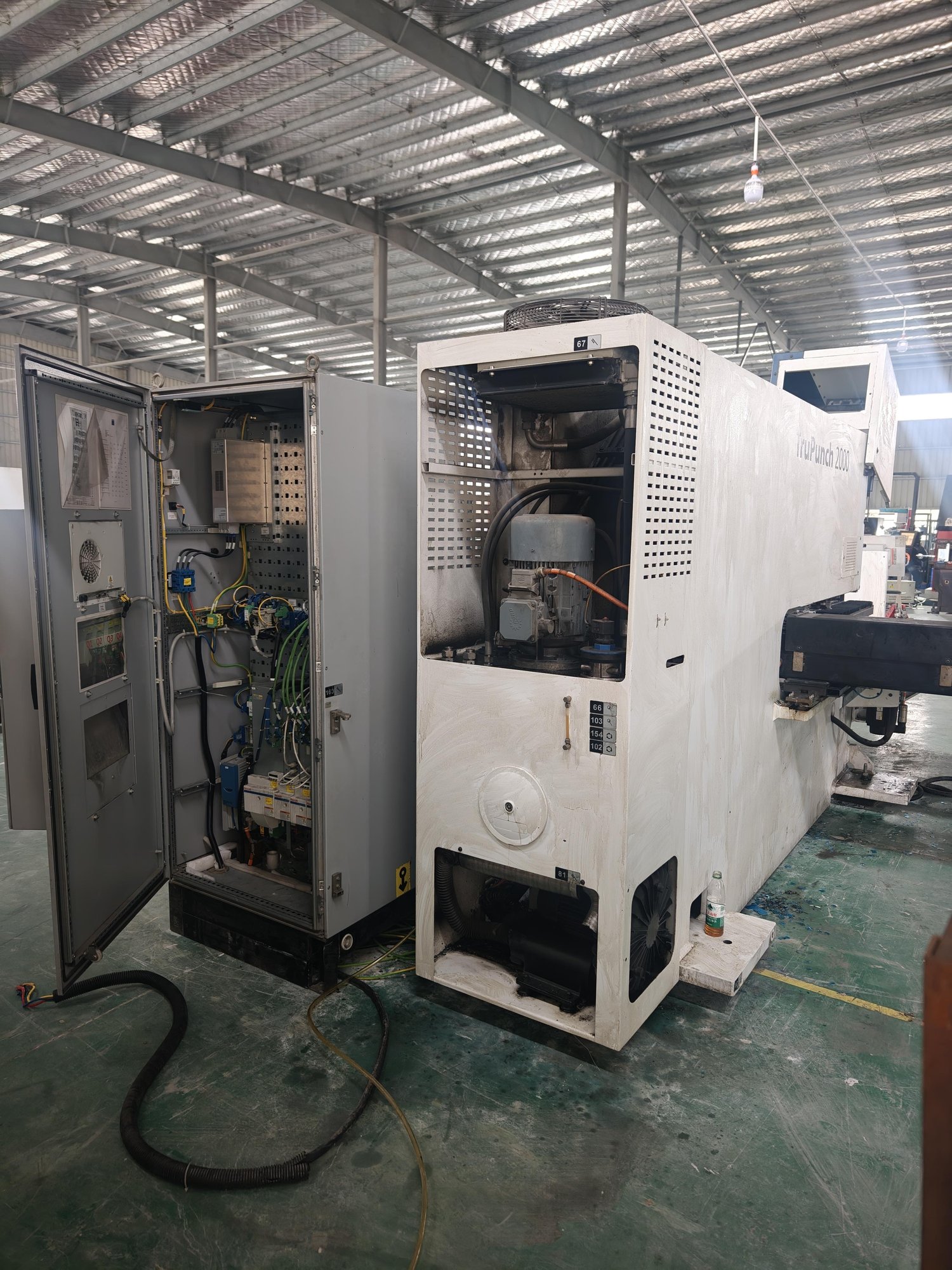

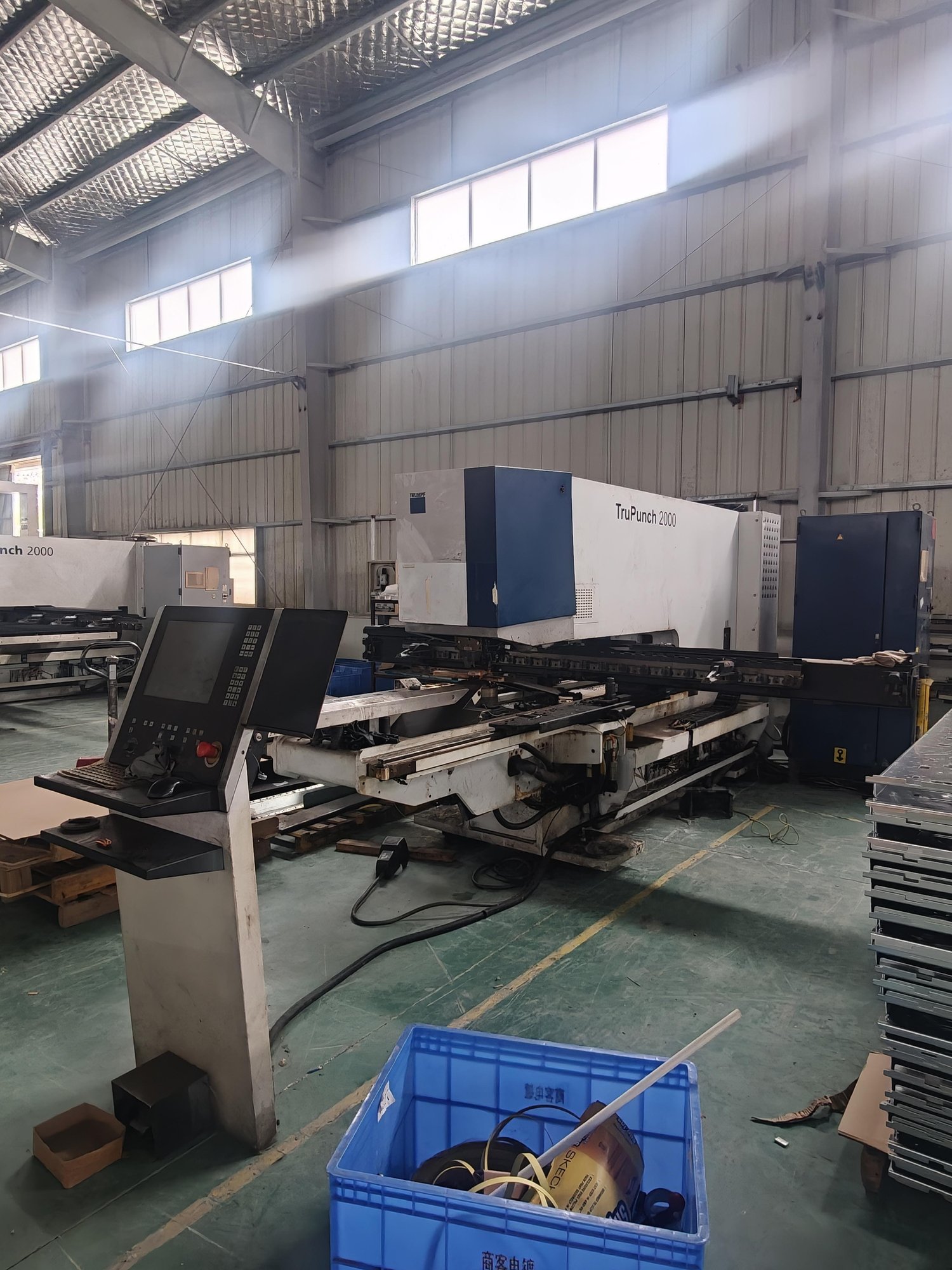

TRUMPF TruPunch 2000 Punch / press

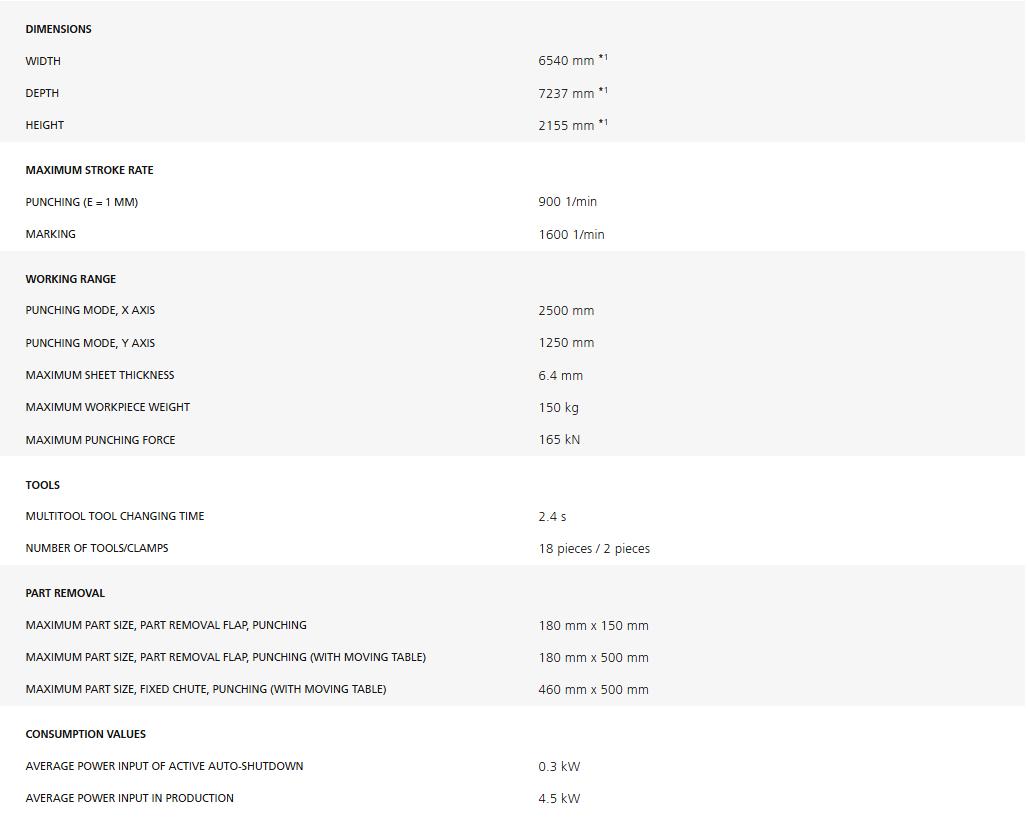

Overall Dimensions：
Width: 6540 mm
Depth: 7237 mm
Height: 2155 mm
Maximum Travel Speed：
Punching (E = 1 mm): 900 cycles/min
Marking: 1600 cycles/min
Working Range：
Punching mode, X-axis: 2500 mm
Punching mode, Y-axis: 1250 mm
Maximum sheet thickness: 6.4 mm
Maximum workpiece weight: 150 kg
Maximum punching force: 165 kN
Tools：
MultiTool changing time: 2.4 s
Number of tools/fixtures: 18 / 2
Part Removal：
Maximum part size (part removal baffle, punching): 180 × 150 mm
Maximum part size (part removal baffle, punching with moving worktable): 180 × 500 mm
Maximum part size (fixed chute with moving worktable): 460 × 500 mm
Official website data for reference only.
