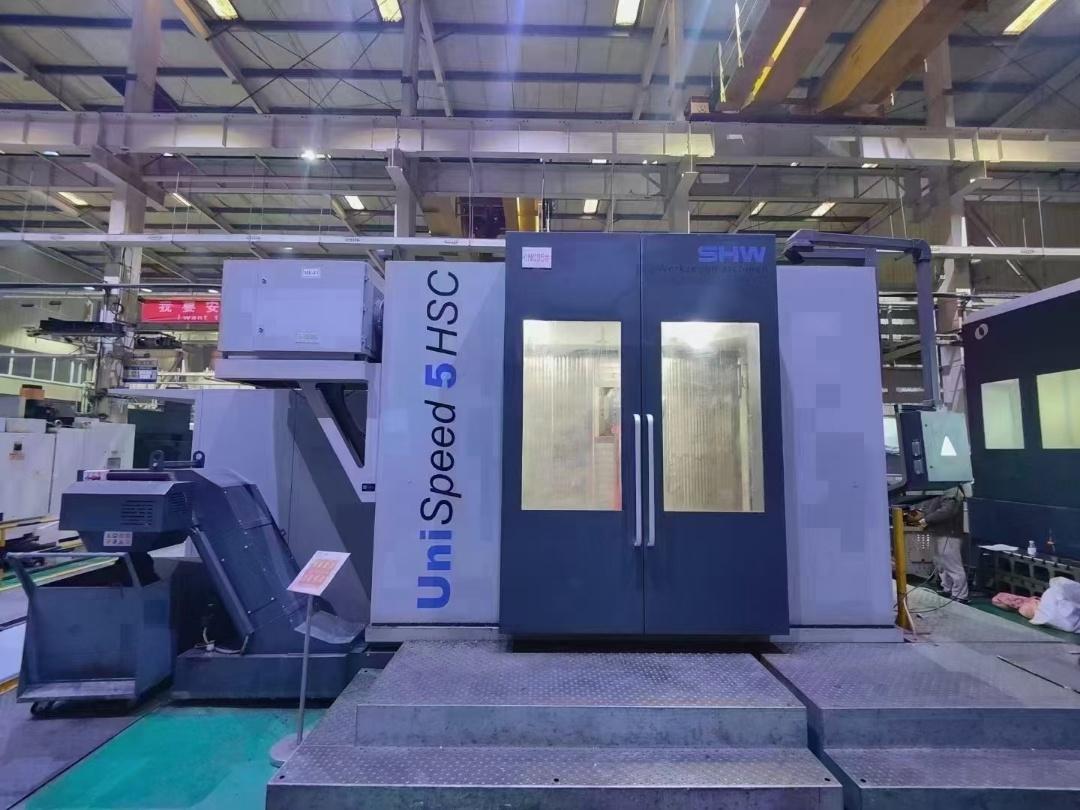

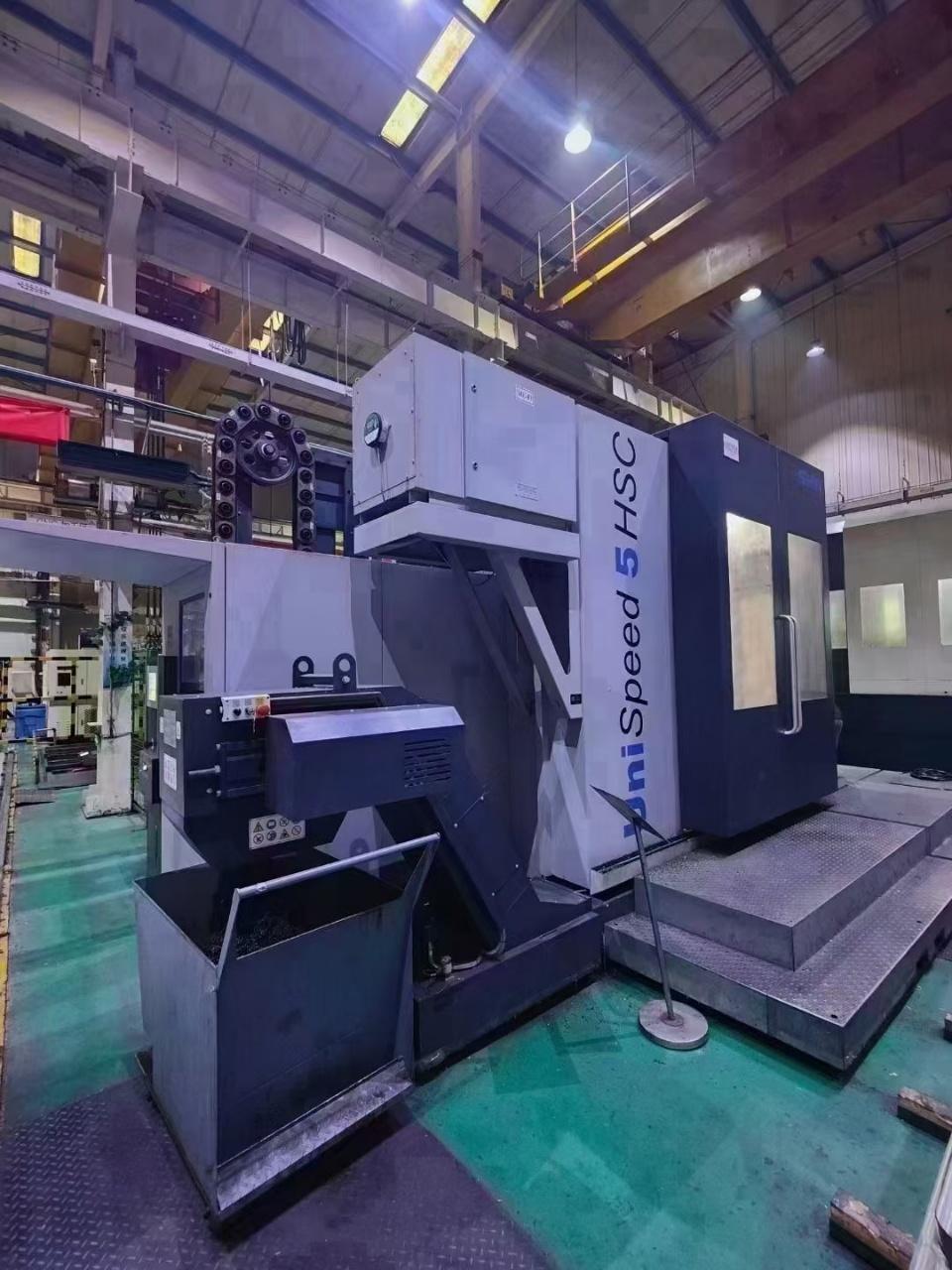

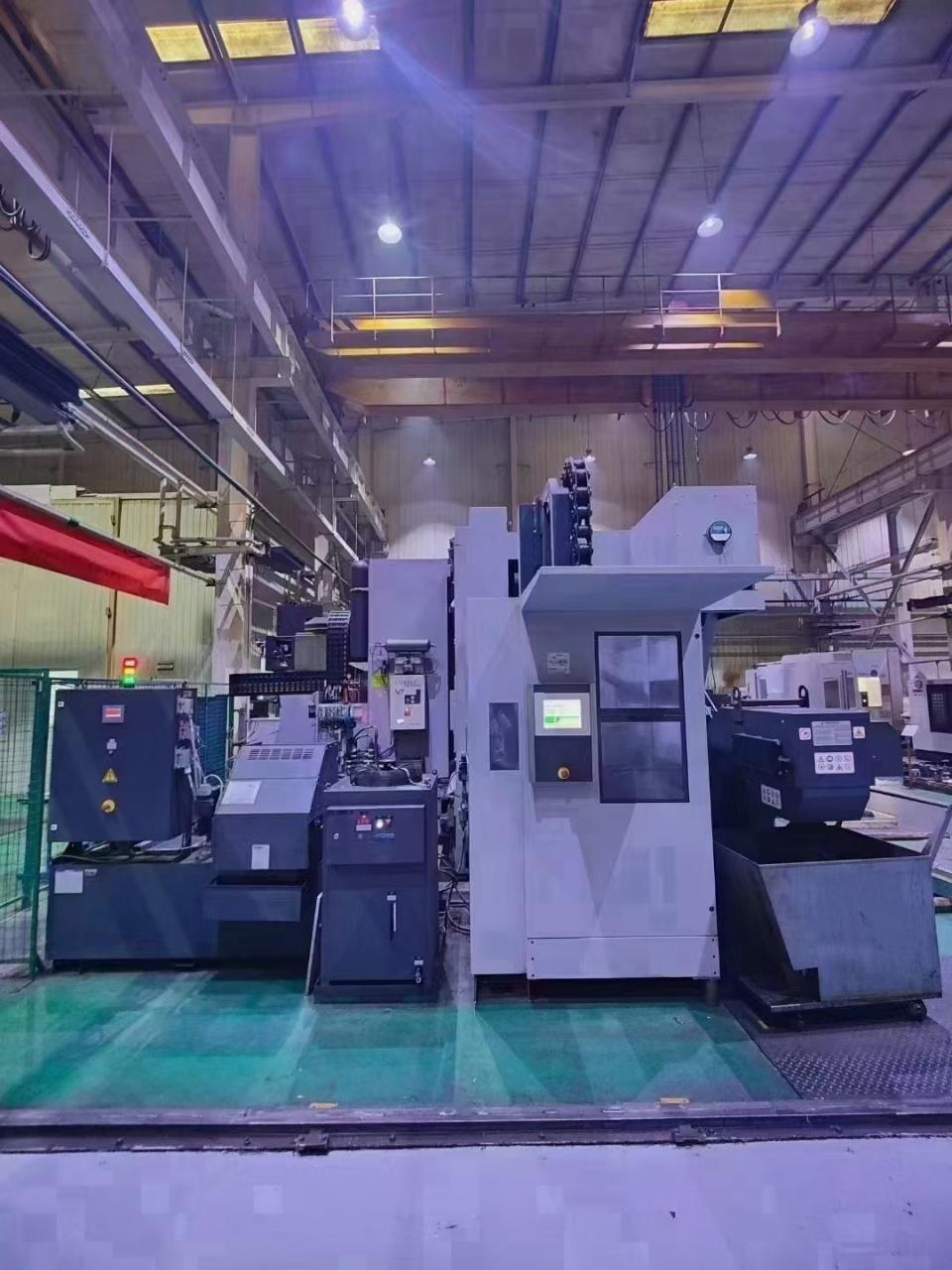

SHW US-5 5 axis machining centre

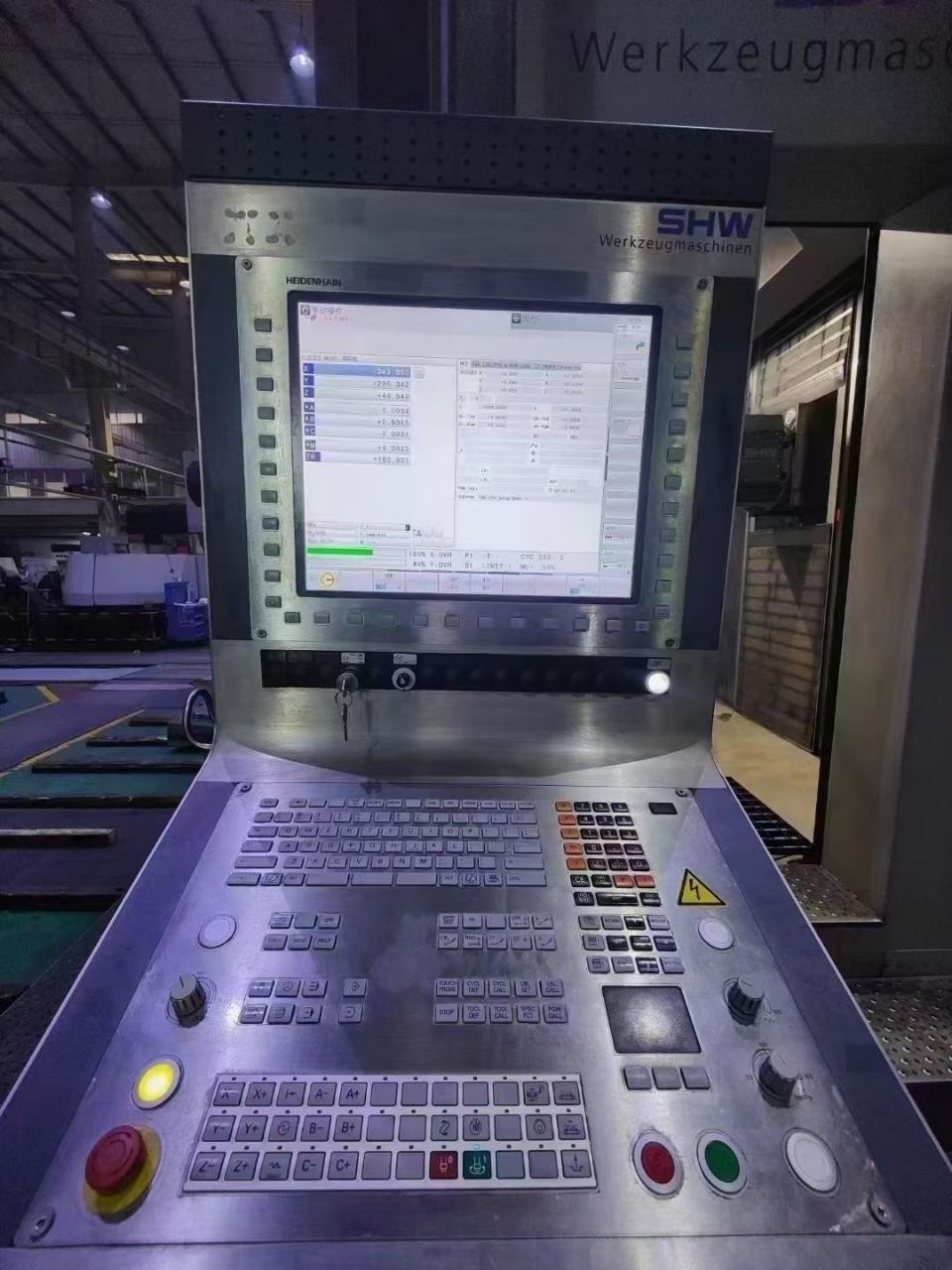

CNC System: Heidenhain TNC640
Three-axis travel (X/Y/Z): 2000 × 1300 × 1300 mm
A-axis travel: ±105°
C-axis travel: ±200°

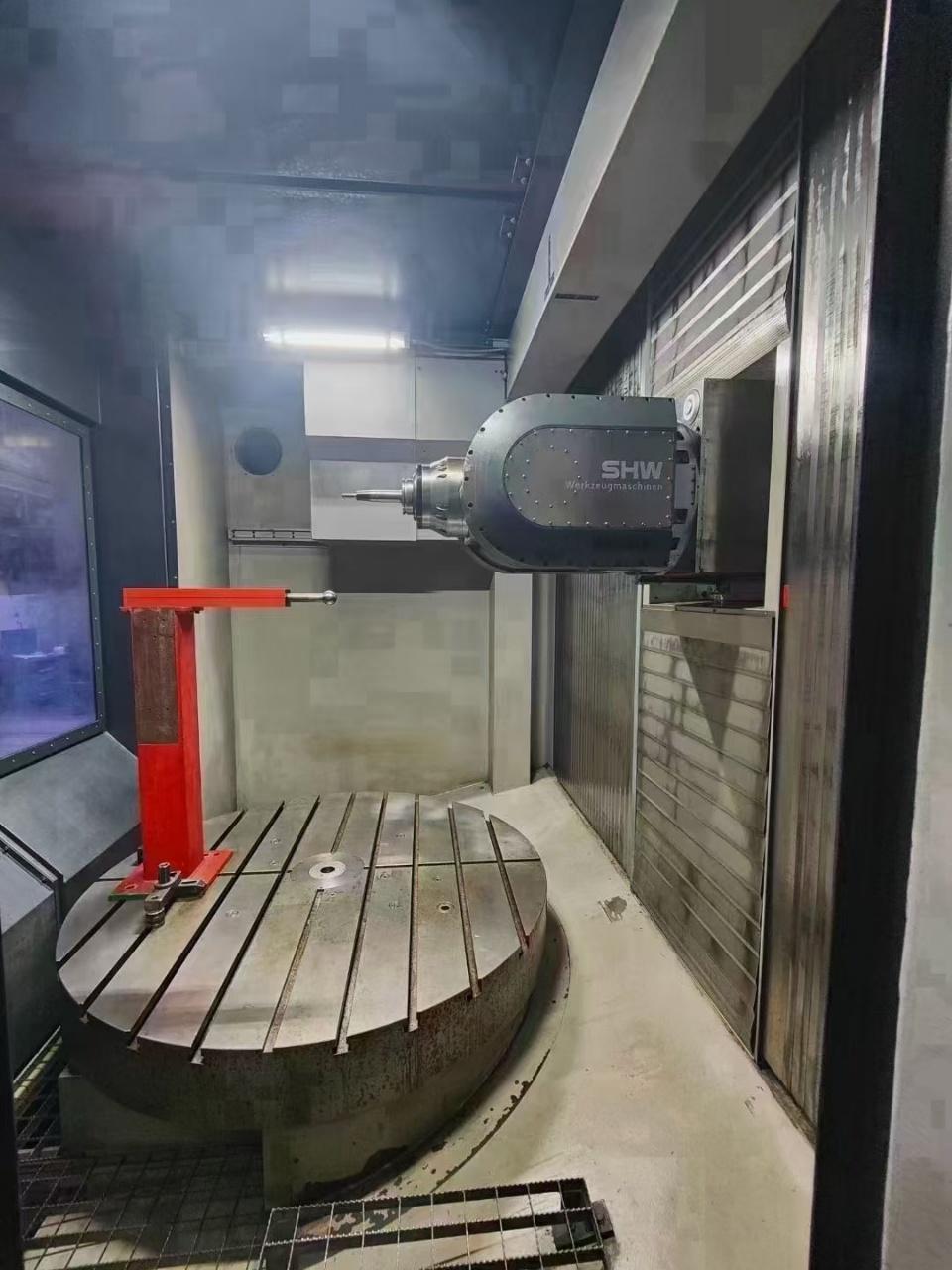

Worktable diameter: 1600 mm
Worktable load capacity: 6000 kg

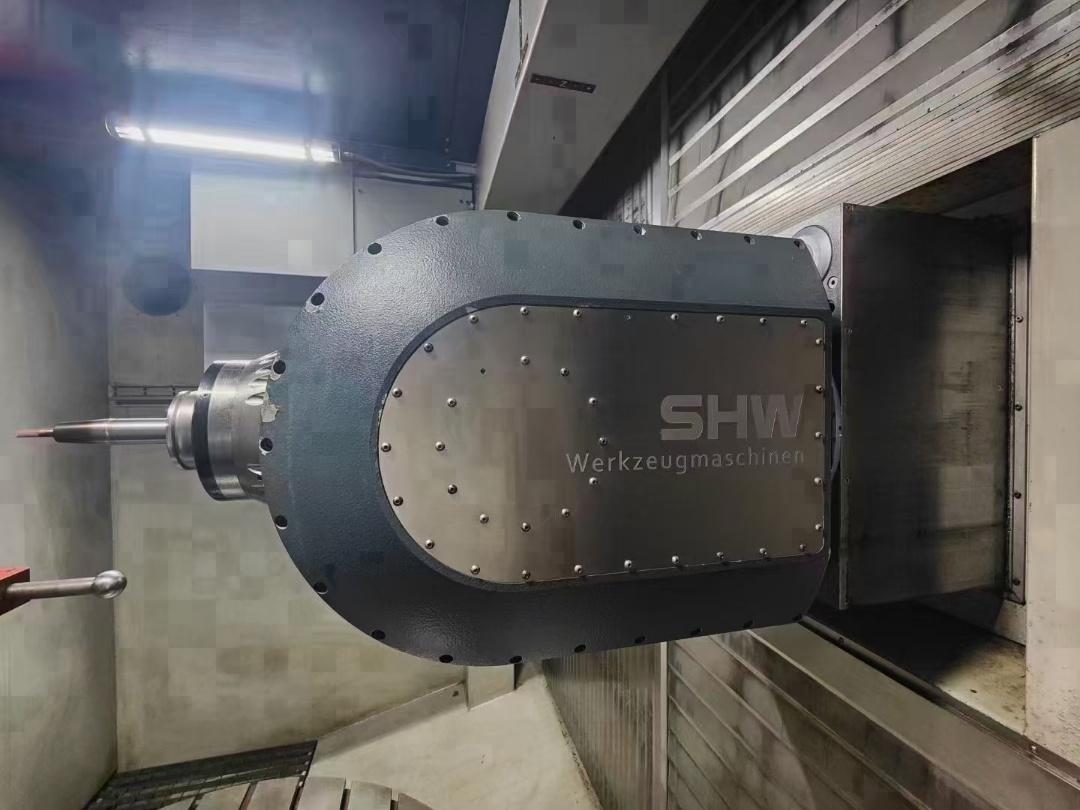

Spindle type: Built-in motorized spindle
Spindle speed: 15,000 rpm
Spindle taper: HSK-A100
Measuring system: Full closed-loop linear scales

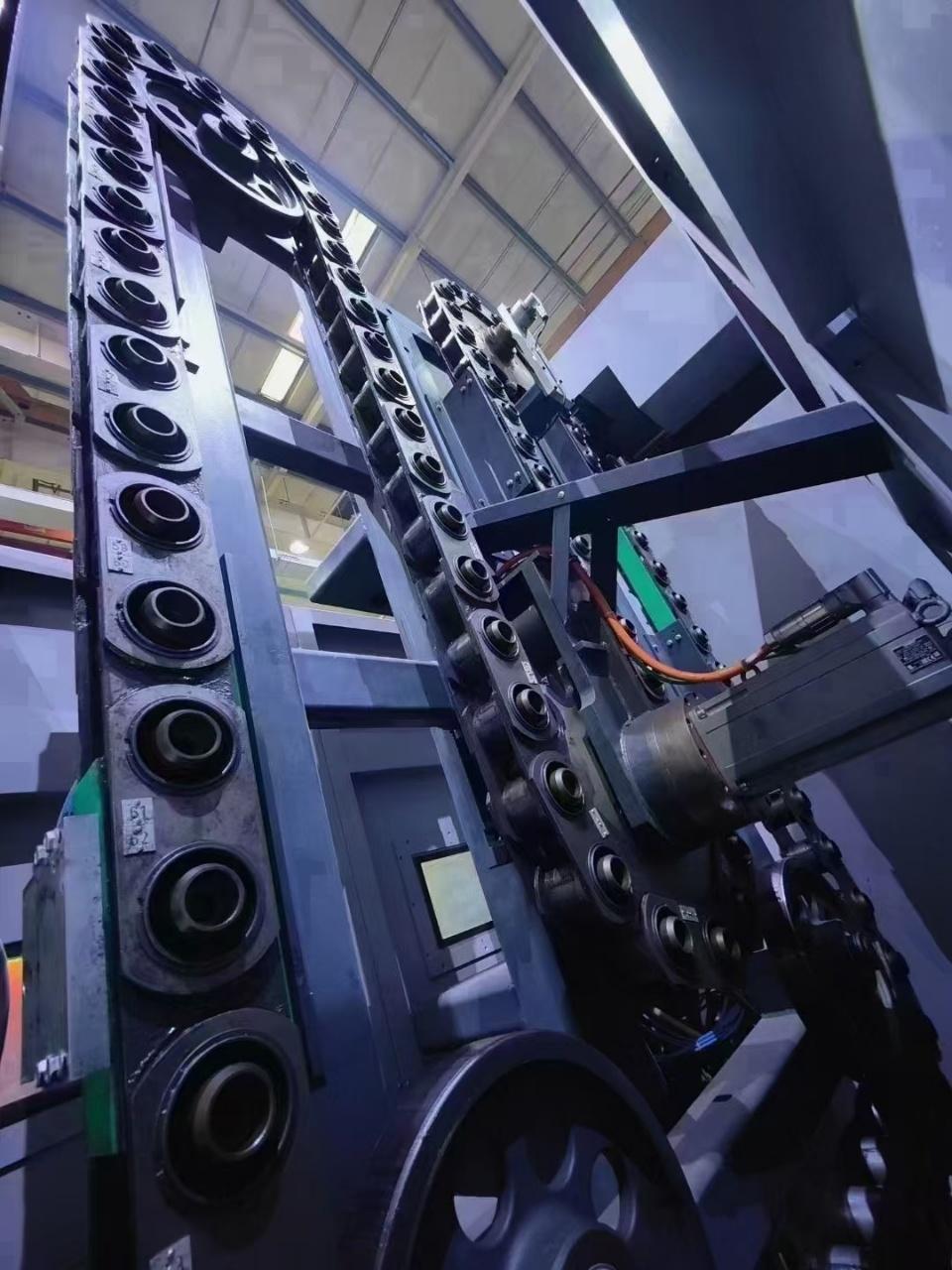

Tool magazine capacity: 90
Additional configuration:
70 bar through-spindle coolant
Renishaw probe
Laser tool breakage detection system
Collision avoidance system
5-axis optimization package
Oil-water separator
