DMG GTX Gamma 1250TC Turn Mill Machining Centre

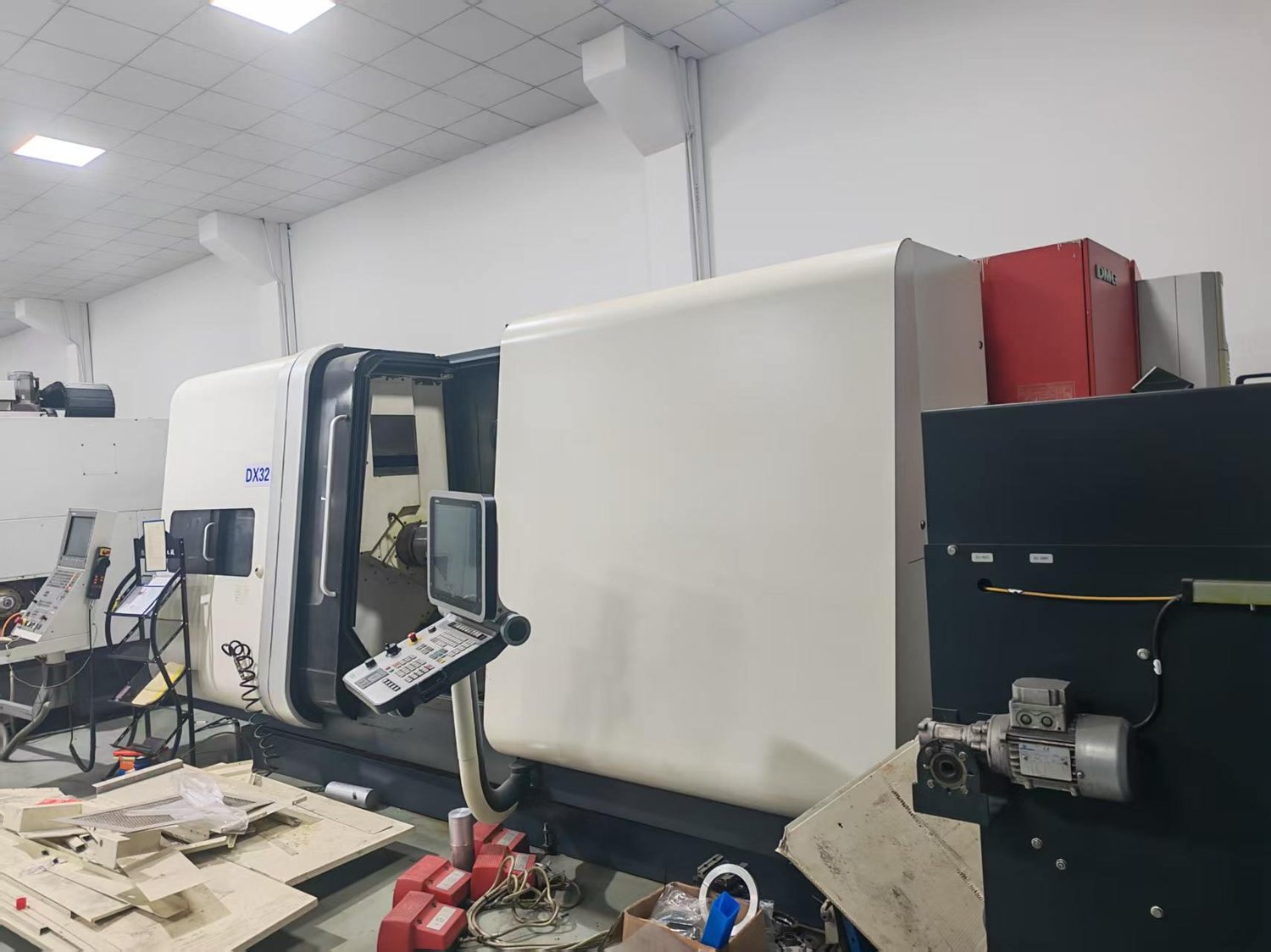

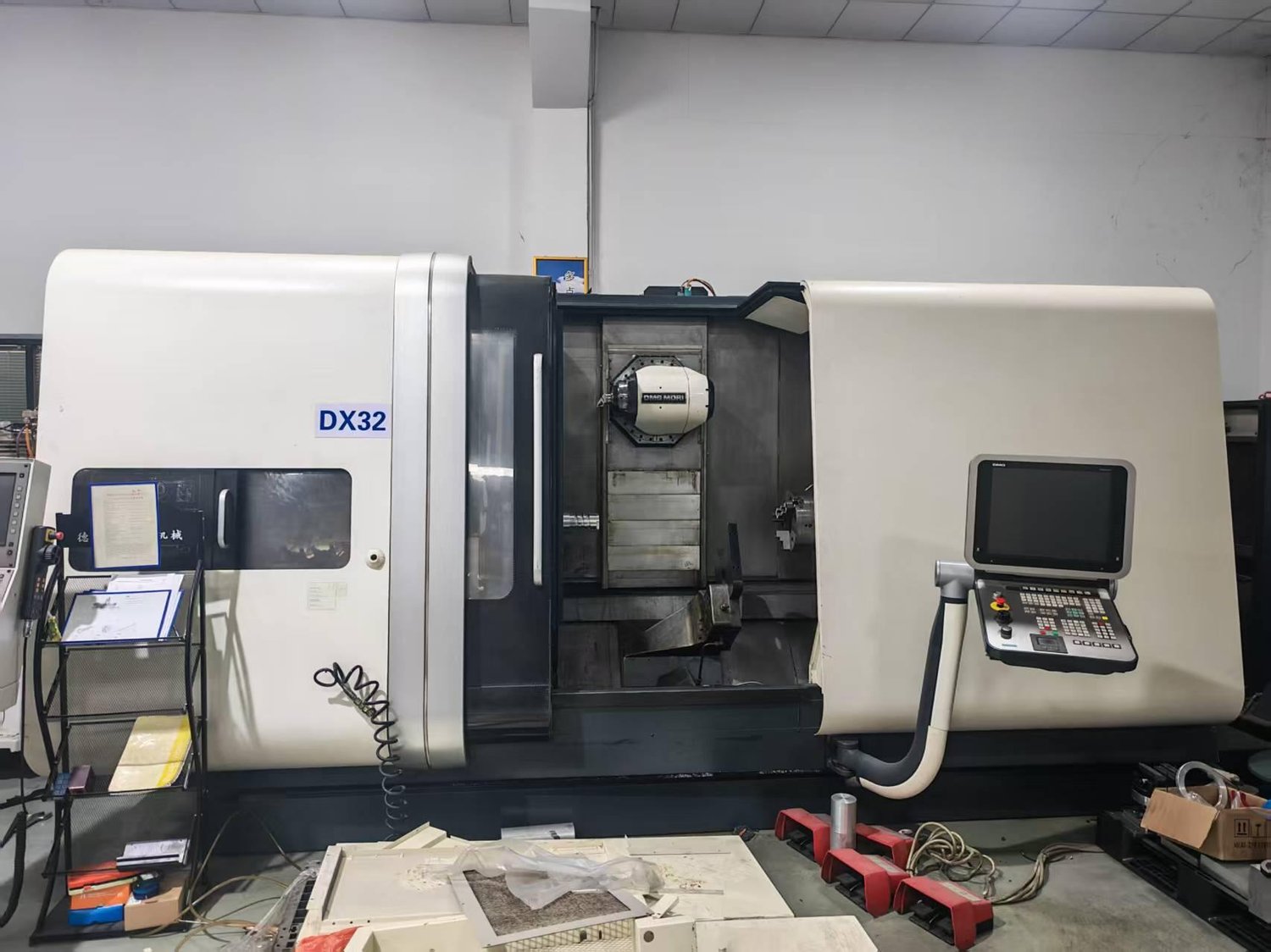

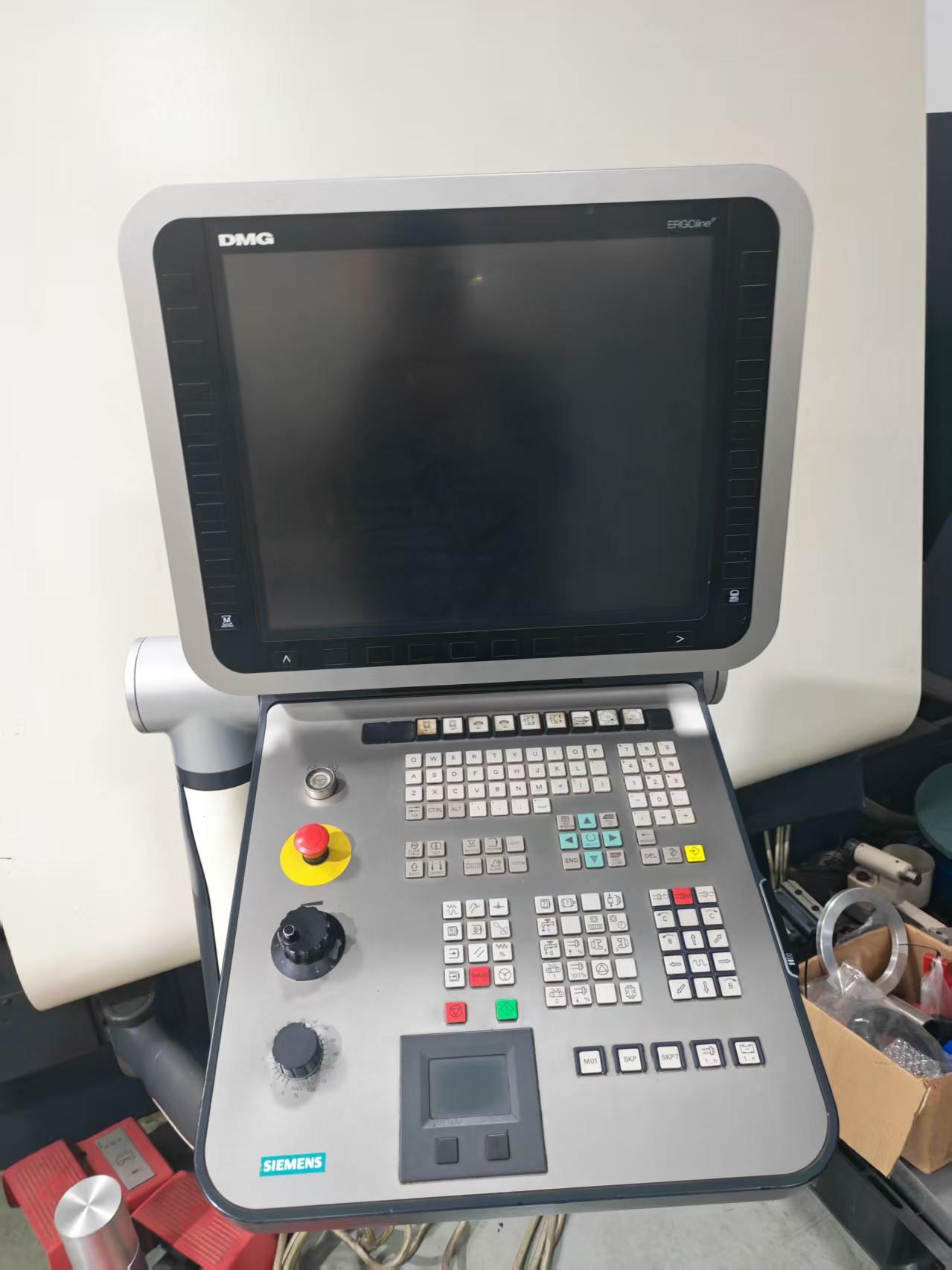

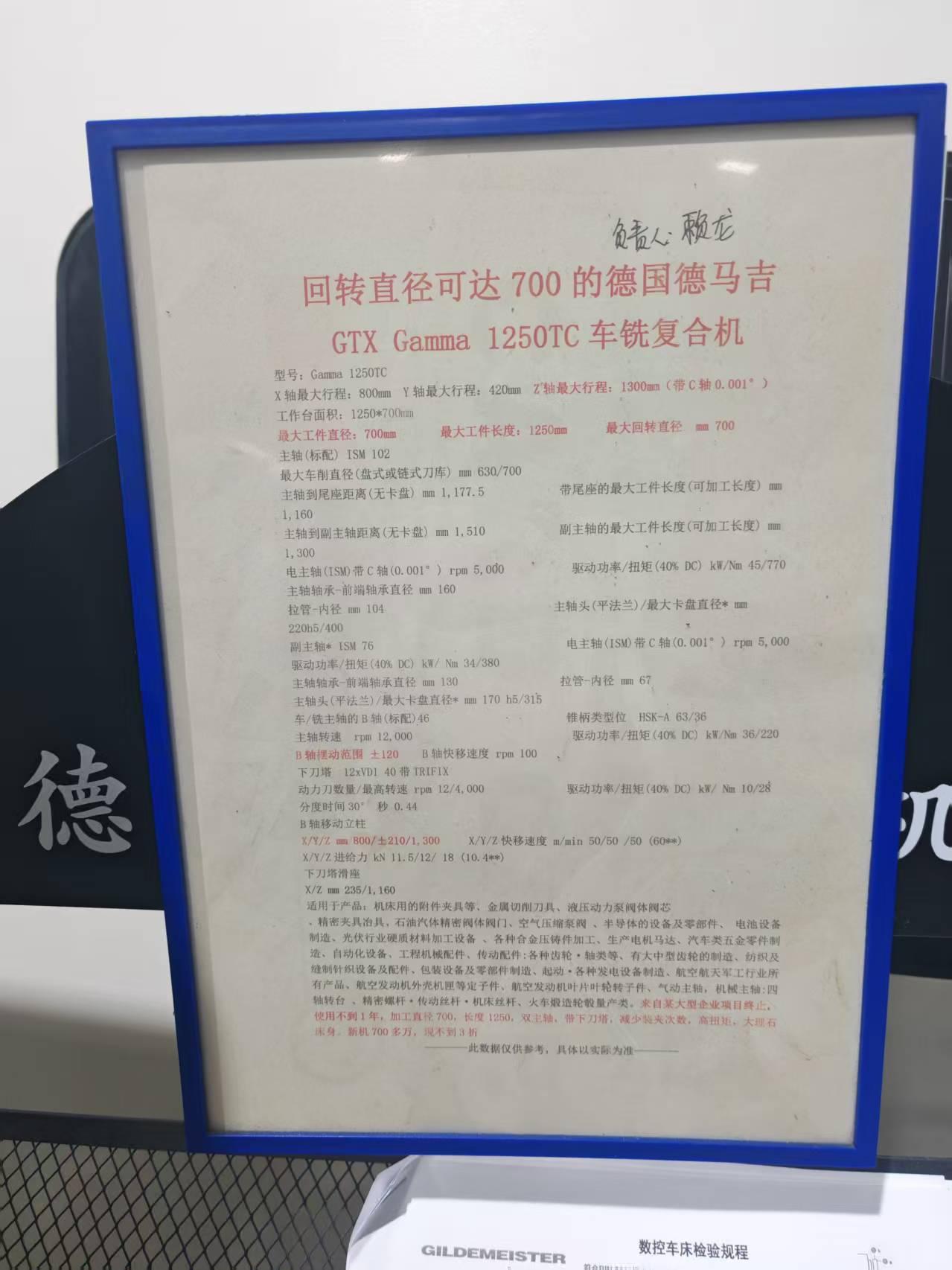

CNC System: Siemens
Maximum X-axis travel: 800 mm
Maximum Y-axis travel: 420 mm
Maximum Z-axis travel: 1,300 mm (with C-axis 0.001°)
Worktable size: 1,250 × 700 mm
Maximum workpiece diameter: 700 mm
Maximum workpiece length: 1,250 mm
Maximum swing diameter: 700 mm

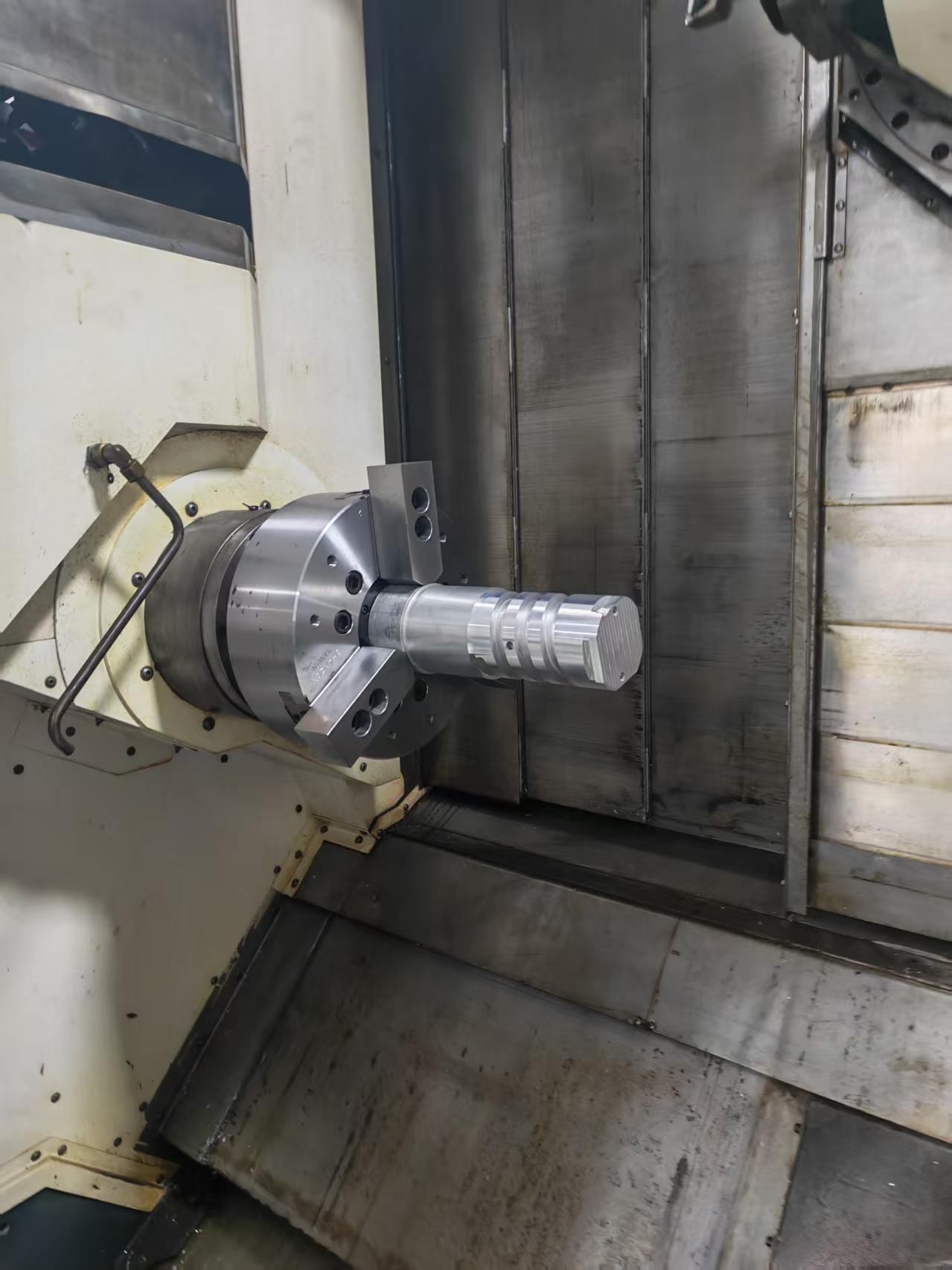

Main spindle model: ISM 102
Main spindle speed: 12,000 rpm
Built-in motor spindle (ISM, with C-axis 0.001°) speed: 5,000 rpm
Drive power/torque (40% DC): 45 kW / 770 Nm
Front bearing diameter: 160 mm
Draw tube inner diameter: 104 mm
Spindle nose (flat flange) max. chuck diameter: 220 h5 / 400 mm

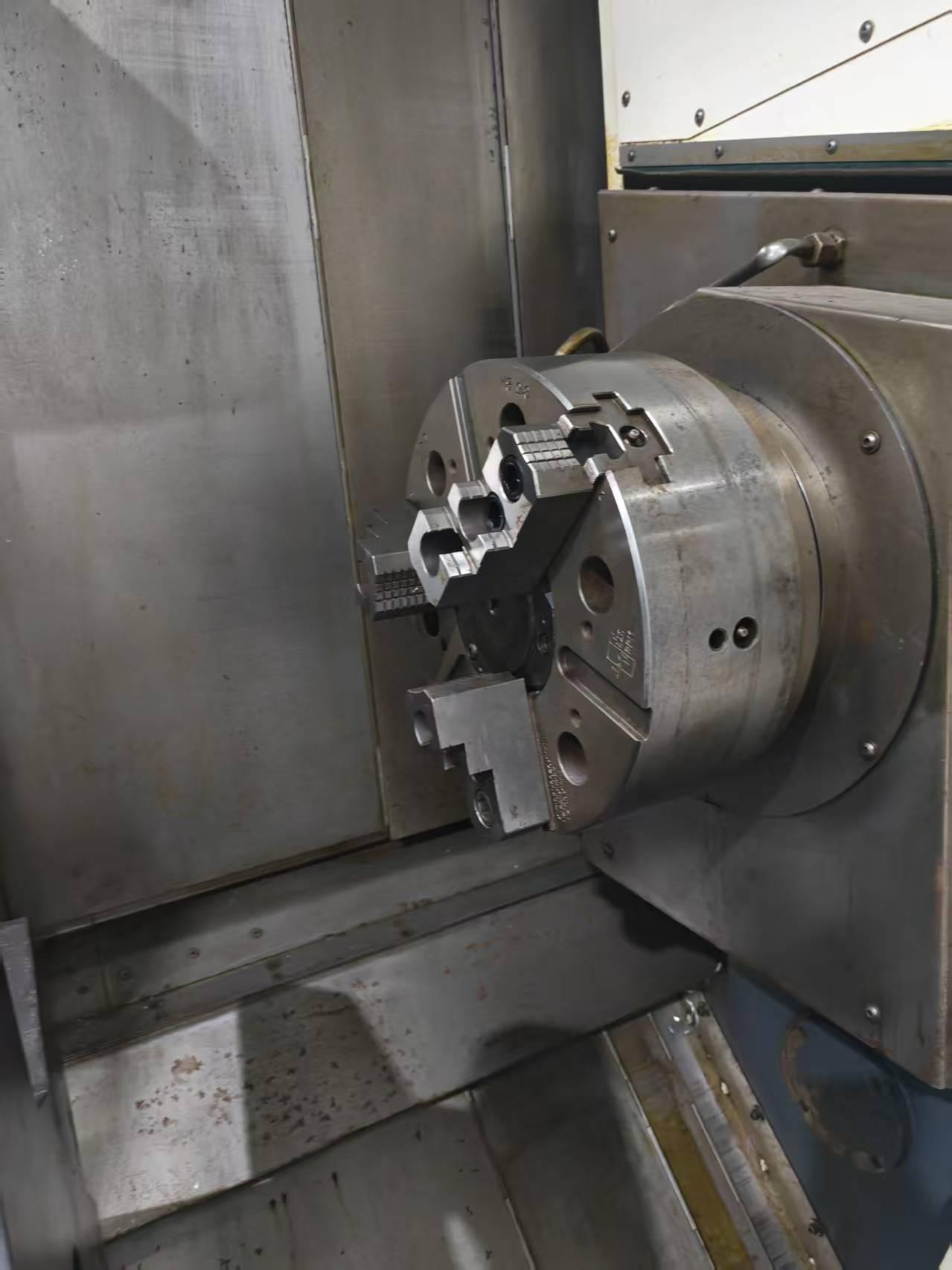

Secondary spindle model: ISM 76
Built-in motor spindle (ISM, with C-axis 0.001°) speed: 5,000 rpm
Drive power/torque (40% DC): 36 kW / 220 Nm
Front bearing diameter: 130 mm
Draw tube inner diameter: 67 mm
Spindle nose (flat flange) max. chuck diameter: 170 h5 / 315 mm
Distance from main spindle to tailstock (without chuck): 1,177.5 mm
Distance between main and sub-spindles (without chuck): 1,510 mm
Maximum workpiece length on sub-spindle (extendable): 1,300 mm

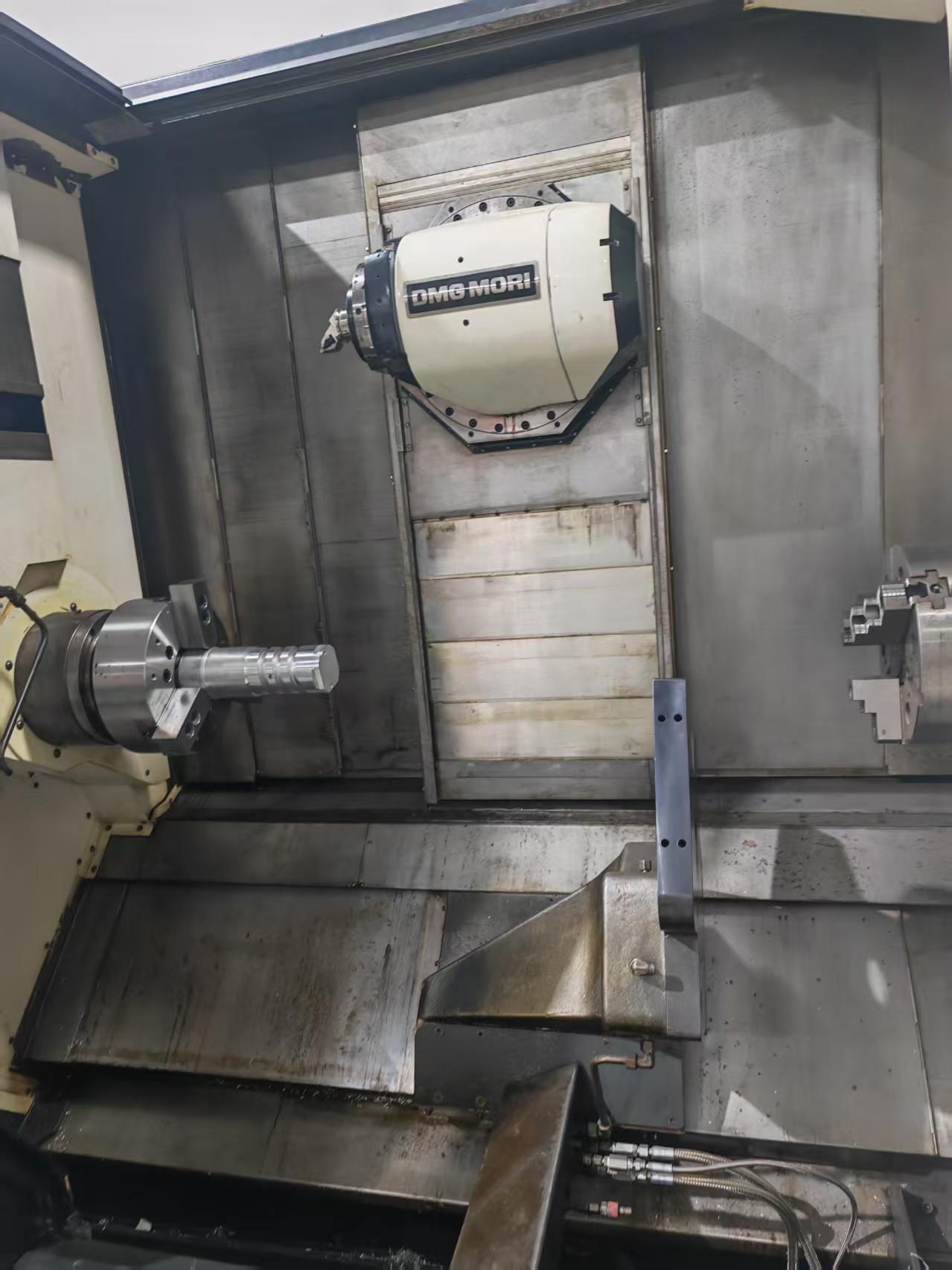

B-axis swivel range: ±120°
B-axis rapid traverse speed: 100 rpm
B-axis drive power/torque (40% DC): 10 kW / 28 Nm
Indexing time (30°): 0.44 s
B-axis moving column structure
Turret: 12-position VDI 40 with TRIFIX
Driven tools: 12 tools / 4,000 rpm
X / Y / Z travel: 800 / ±210 / 1,300 mm
X / Y / Z rapid traverse: 50 / 50 / 50 m/min (60**)
X / Y / Z feed force: 11.5 / 12 / 18 kN (10.4**)
Tool interface: HSK-A63 / 36
Application:
Machine tool fixtures and accessories
Metal cutting tools
Hydraulic power system valve bodies and related components
