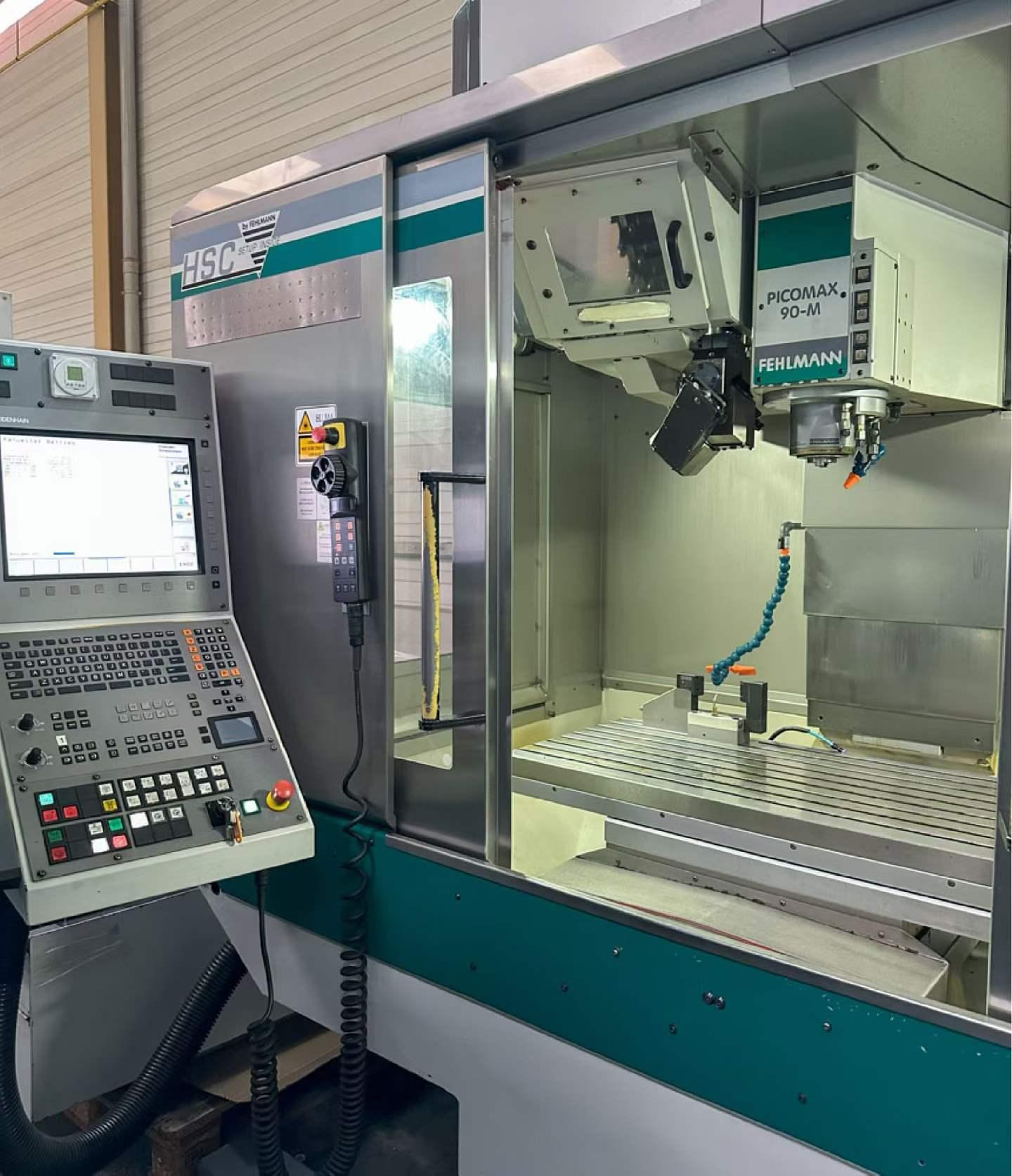

FEHLMANN PICOMAUUUUX 90-M Vertical Machining centre

CNC System: Heidenhain iTNC 530
Three-axis travel (X / Y / Z): 700 × 420 × 610 mm
Worktable size: 1260 × 490 mm
Maximum table load: 250 kg
Spindle tool holder: SK30
Spindle speed: 50 – 20,000 rpm
Spindle power: 6.3 kW (100% ED)
Spindle torque: approximately 90 Nm
Distance from spindle nose to worktable: approximately 84 – 694 mm
Feed rate (X / Y / Z): 1 – 20,000 mm/min
Tool magazine capacity: 32 tools
Tool changing time: approximately 6 seconds
Maximum tool diameter: 100 mm
Maximum tool length: 175 mm
Maximum tool weight: 1.5 kg
Positioning accuracy: ≤ 0.005 mm
Resolution: 0.001 mm
Machine weight: approximately 5000 kg
Overall dimensions (L × W × H): approximately 2200 × 1700 × 3000 mm
