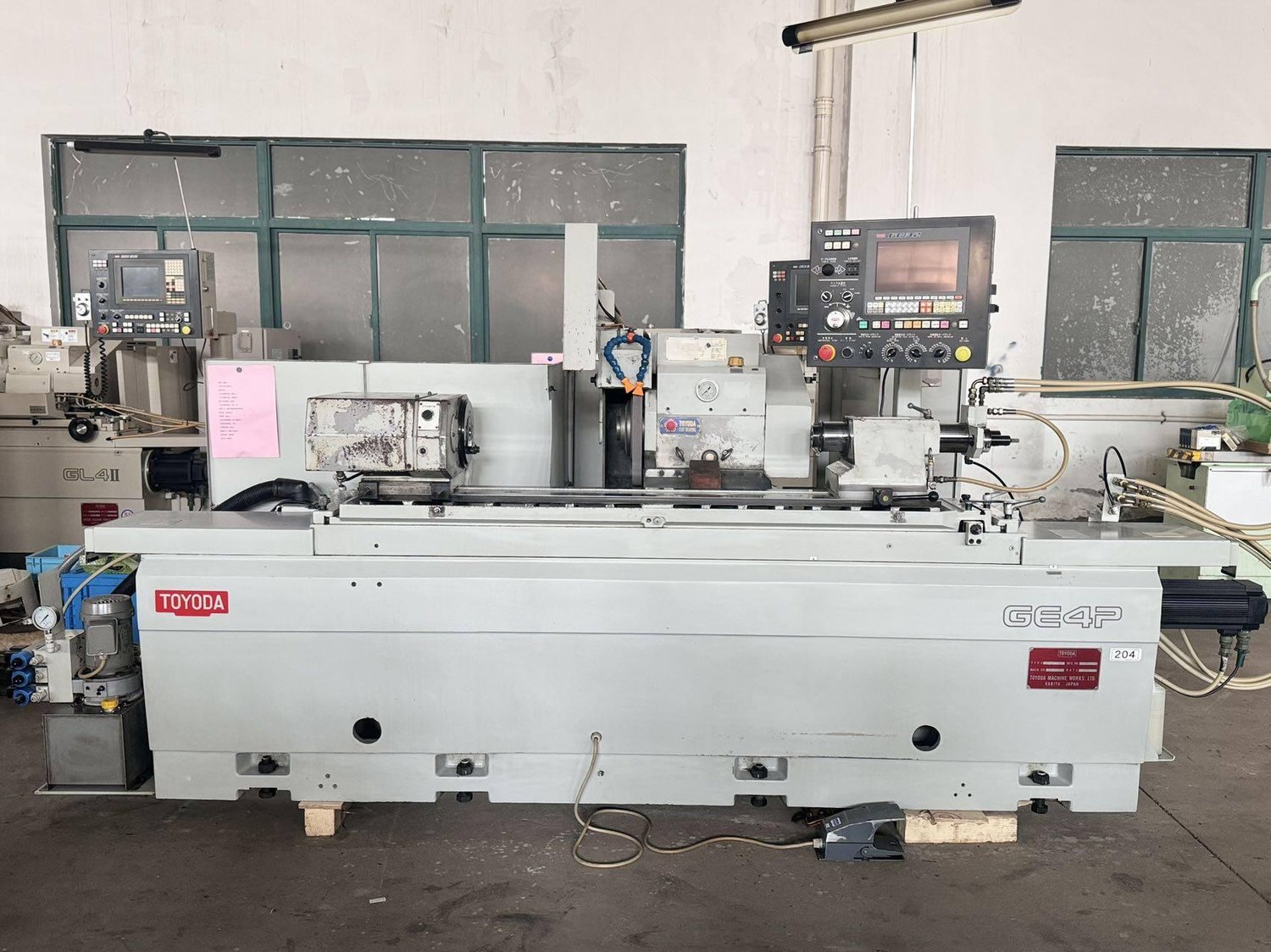

Toyota GE4P-100 Cylindrical grinder
[Product Information]:
- Inventory number：811453
- Brand：Toyota
- Model：GE4P-100
- Origin："Japan
- Location：China
- Year：2016
- Create Time：2026-03-31
Specifications:
Worktable rotation diameter: 320 mm
Worktable grinding length: 1000 mm
Maximum load capacity: 150 kg
Worktable rotation angle: 0 – 10°
Grinding wheel size: 405 × 75 (max. 100) × 127 mm
Grinding wheel speed: 1550 r/min
Workpiece spindle speed: 10 – 500 r/min
Spindle and tailstock taper: Morse No. 4
Machine dimensions: 4520 × 1850 mm
Machine weight: 5000 kg
Power supply: Three-phase 200 V
Total power capacity: 20 kVA
Manual swivel angle: 0 – 10°
