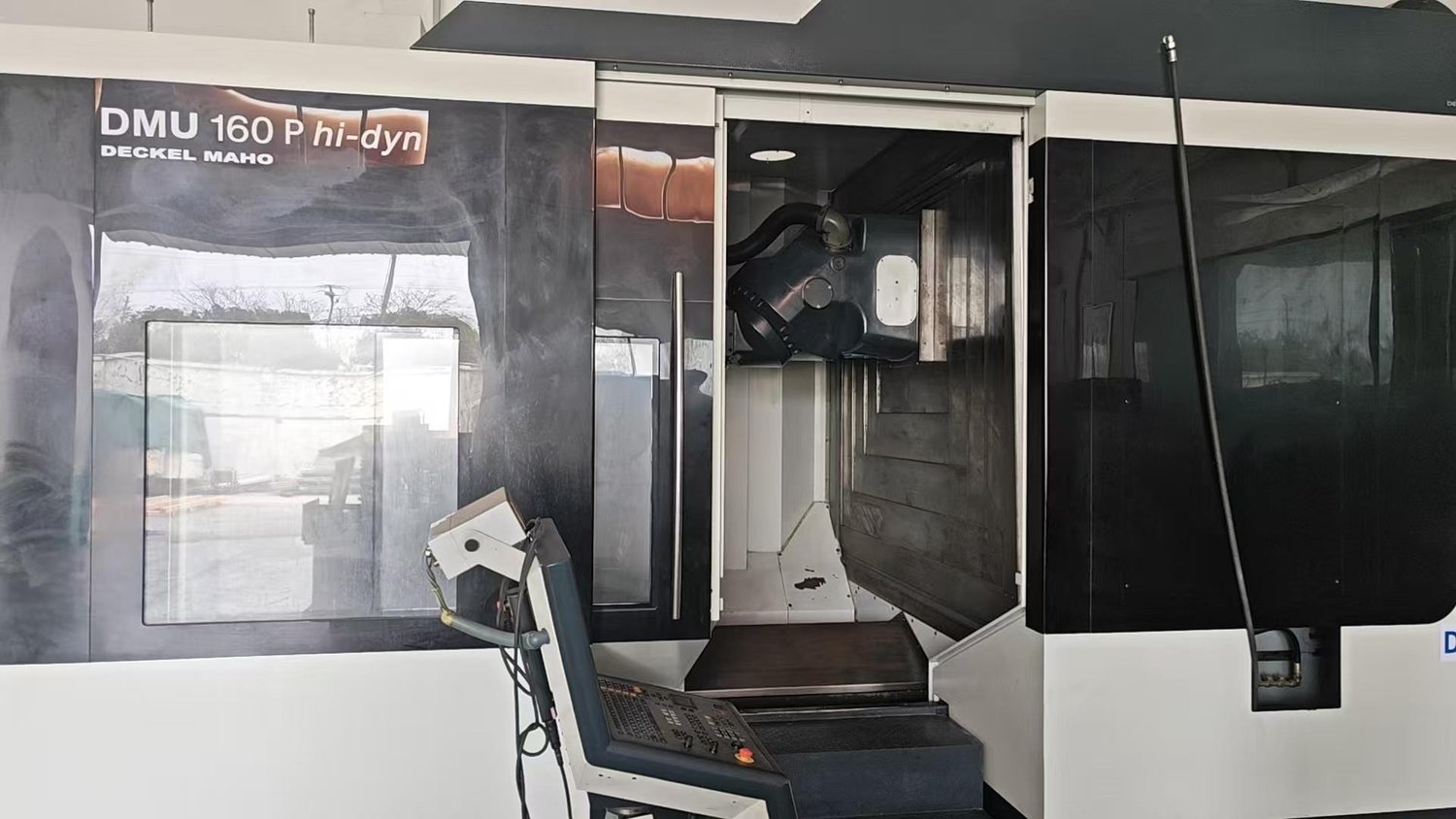

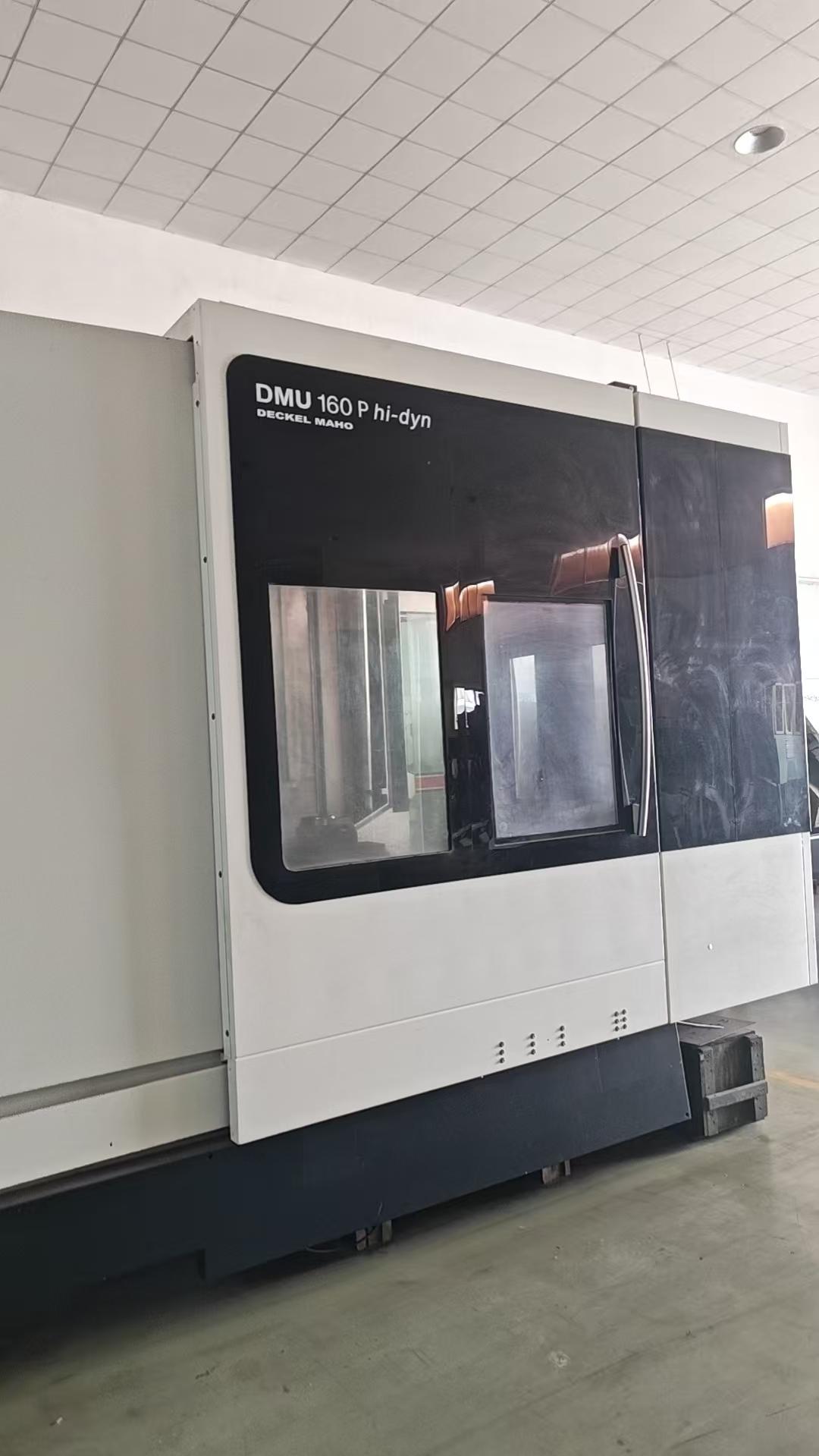

DMG DMU 160 P hi-dyn Machining centre

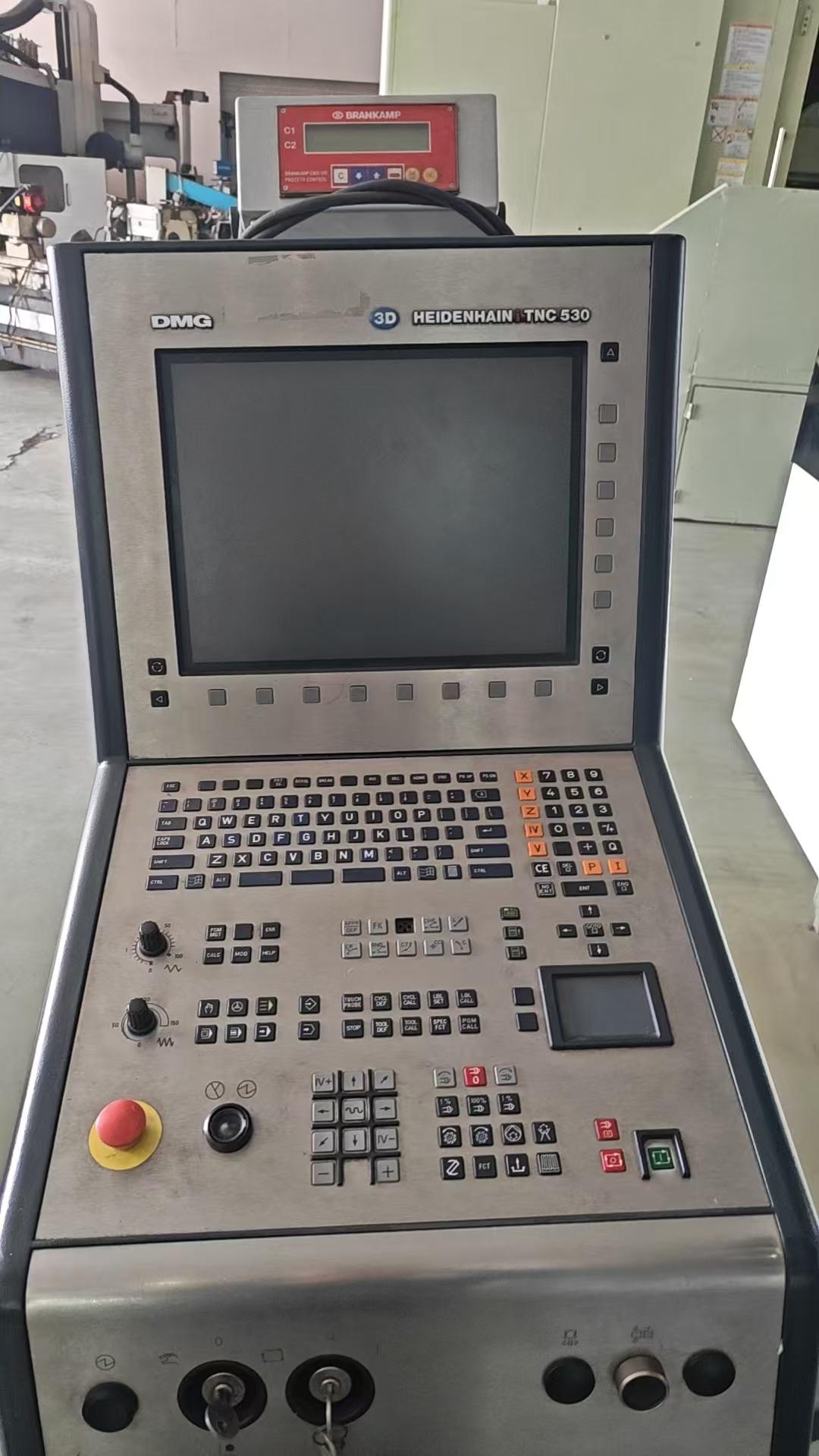

CNC System: Heidenhain 530
spindle Running time: 8,000 hours
three-axis travel: 1600x1400x1200

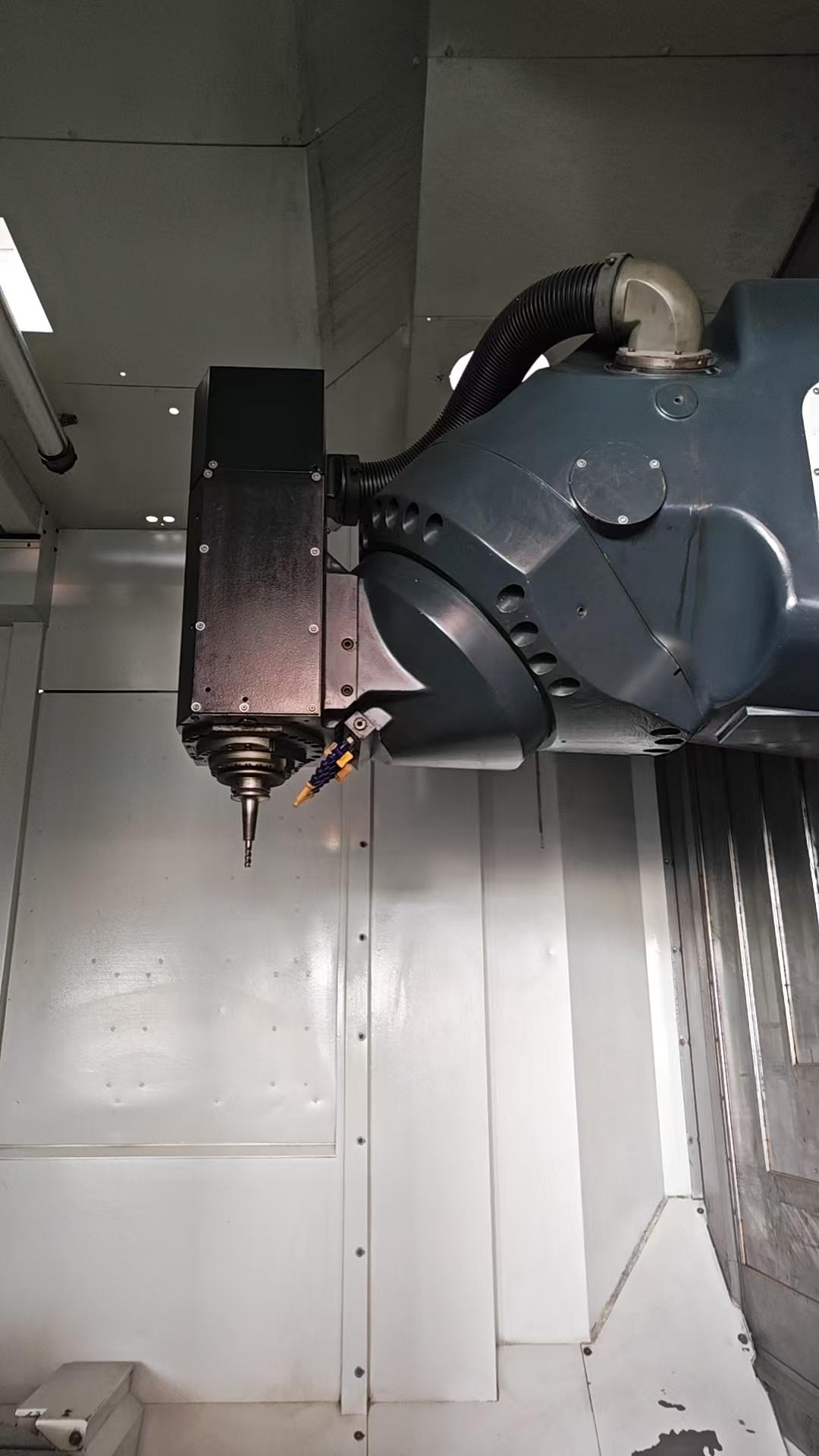

Spindle speed: 18,000 RPM
Main motor power: 28kw
Tool holder model: HSK63
tools magazine: 60
spindle is equipped with a center flushing outlet

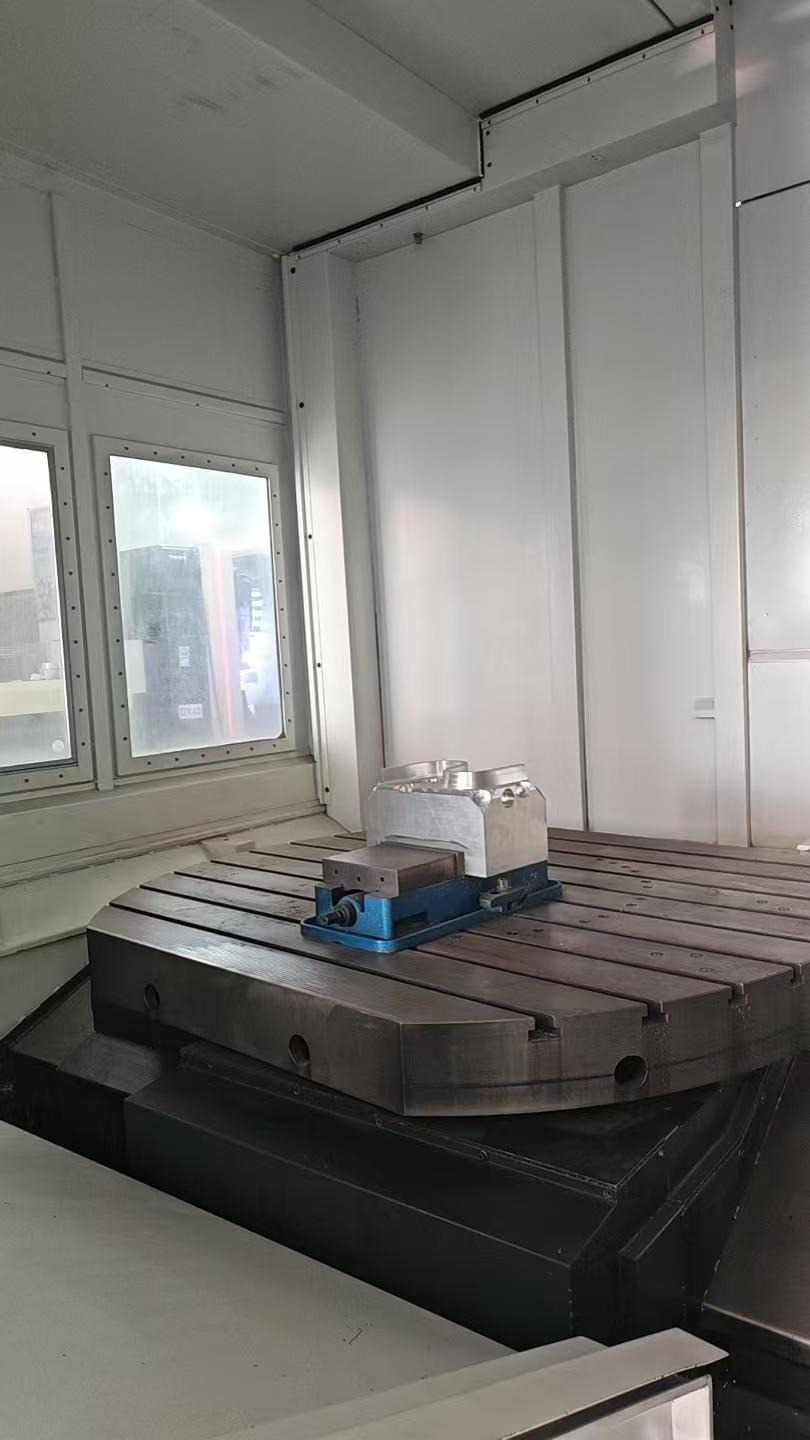

WorkWorktable size: 1600 × 1400 mm
The external Footage of machine tool are approximately 6000 × 5000 × 3500 mm
machine tool weight: approximately 35,000 kg
Configuration
It can perform Five axes control machining  and supports the RTCP nose of tool following function
3D measurement CNC System: Hexagon M&H IRP 25.10 receiving unit
Heidenhain HR410 electronic handwheel
German BLUM Laser Tool aligner aligner Aligner
Configure Heidenhain glass scale
The second operation panel on the tools magazine
Roller linear guideway
Filter water Water tank
Shaving machine
oil mist collector
