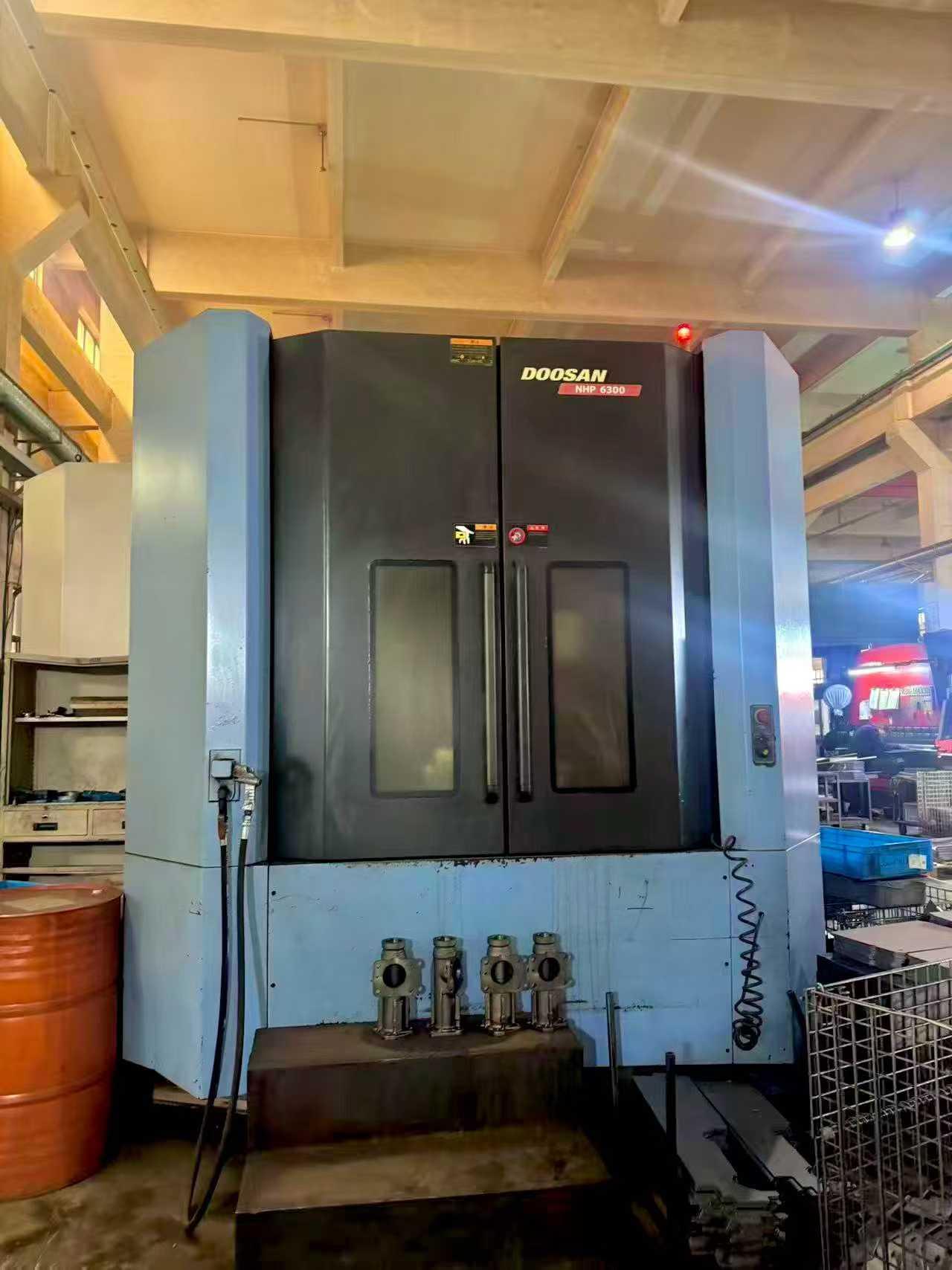

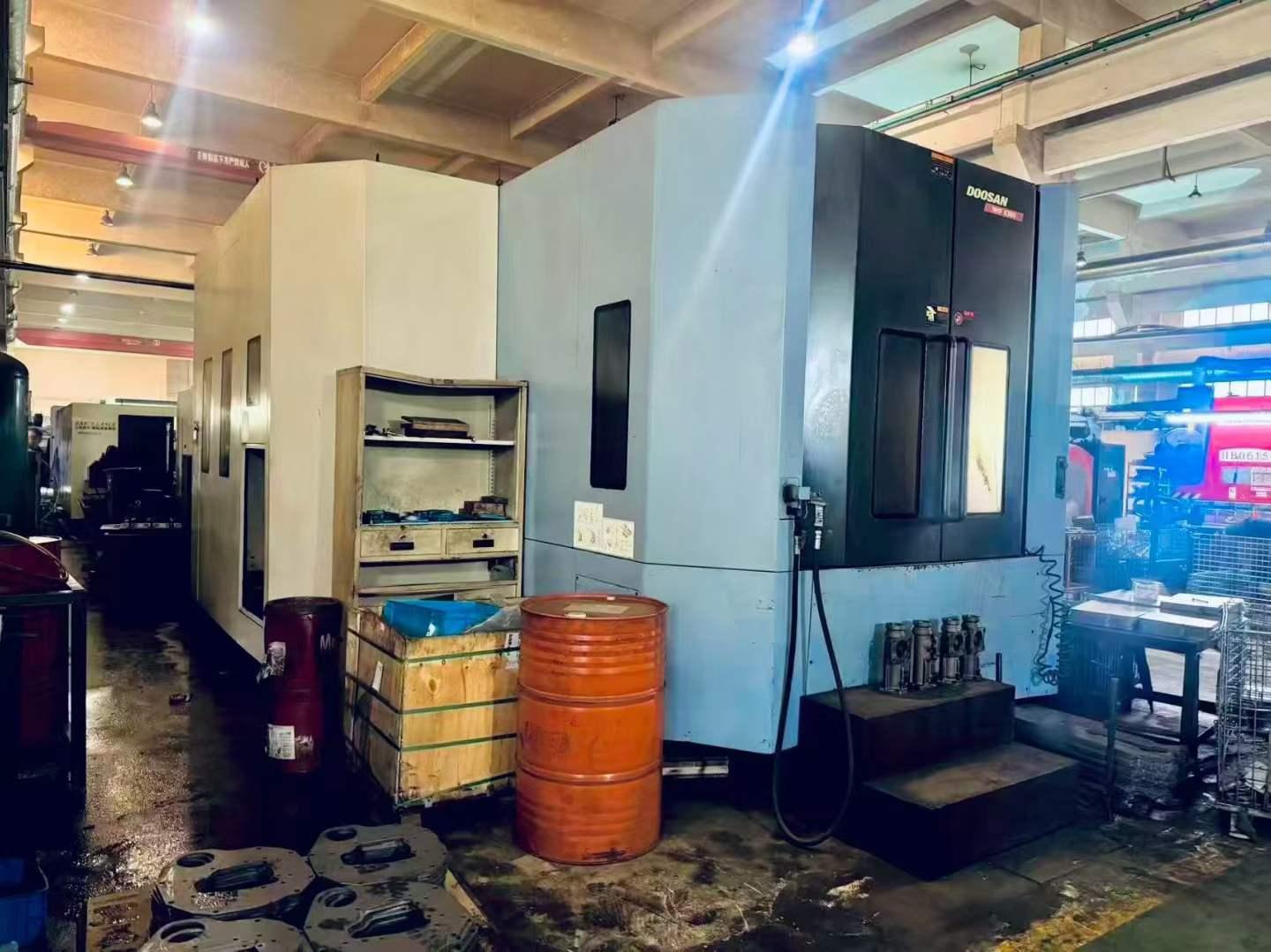

DOOSAN NHP 6300 Horizontal Machining centre

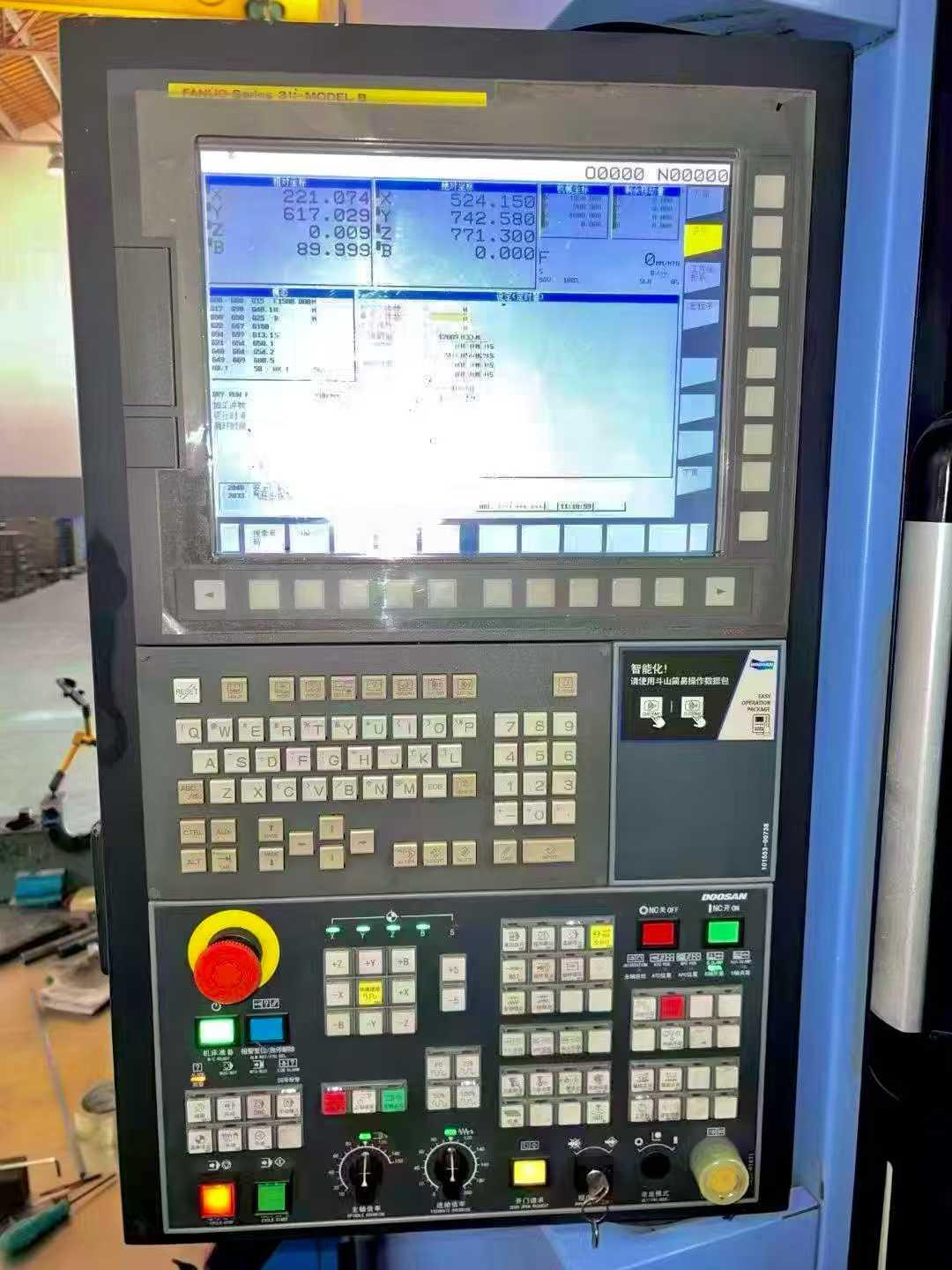

CNC System: FANUC 31i Model B
Worktable Size: 630 × 630 mm
Three-Axis Travel (X/Y/Z): 1050 × 900 × 1000 mm

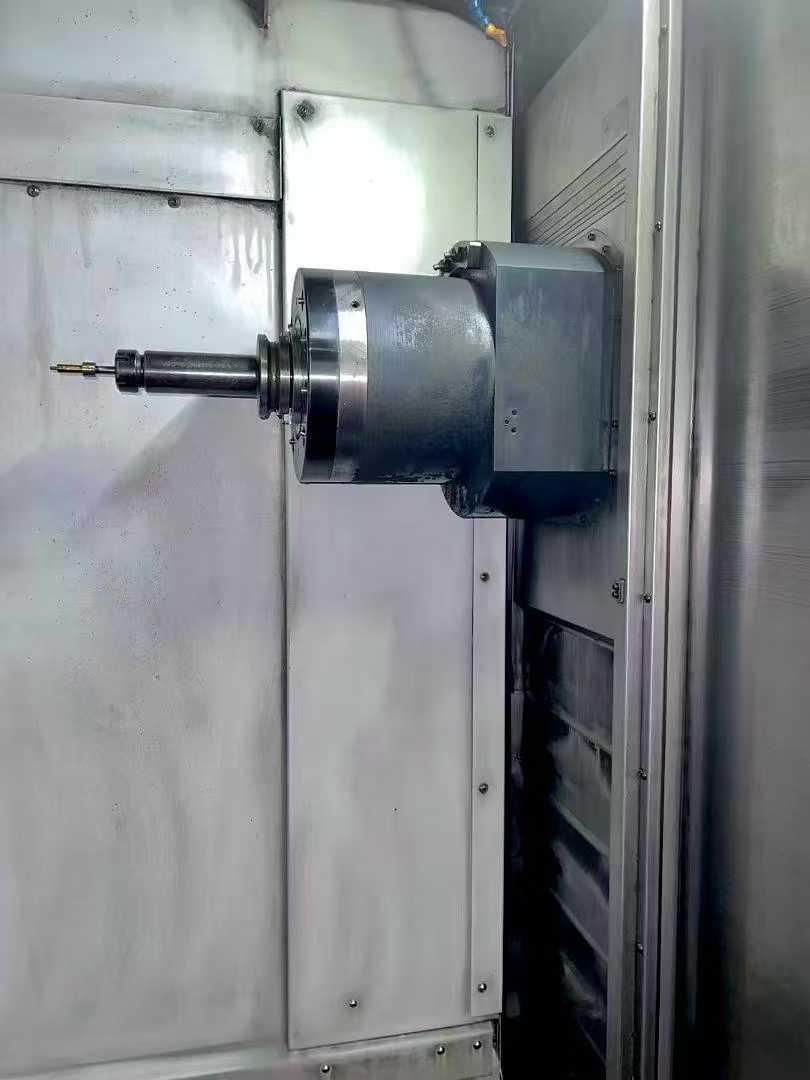

Spindle Type: BT50
Spindle Speed: 10,000 rpm
Motor Power: 45/25 kW
Center Through Spindle Coolant: 70 kg (pressure)

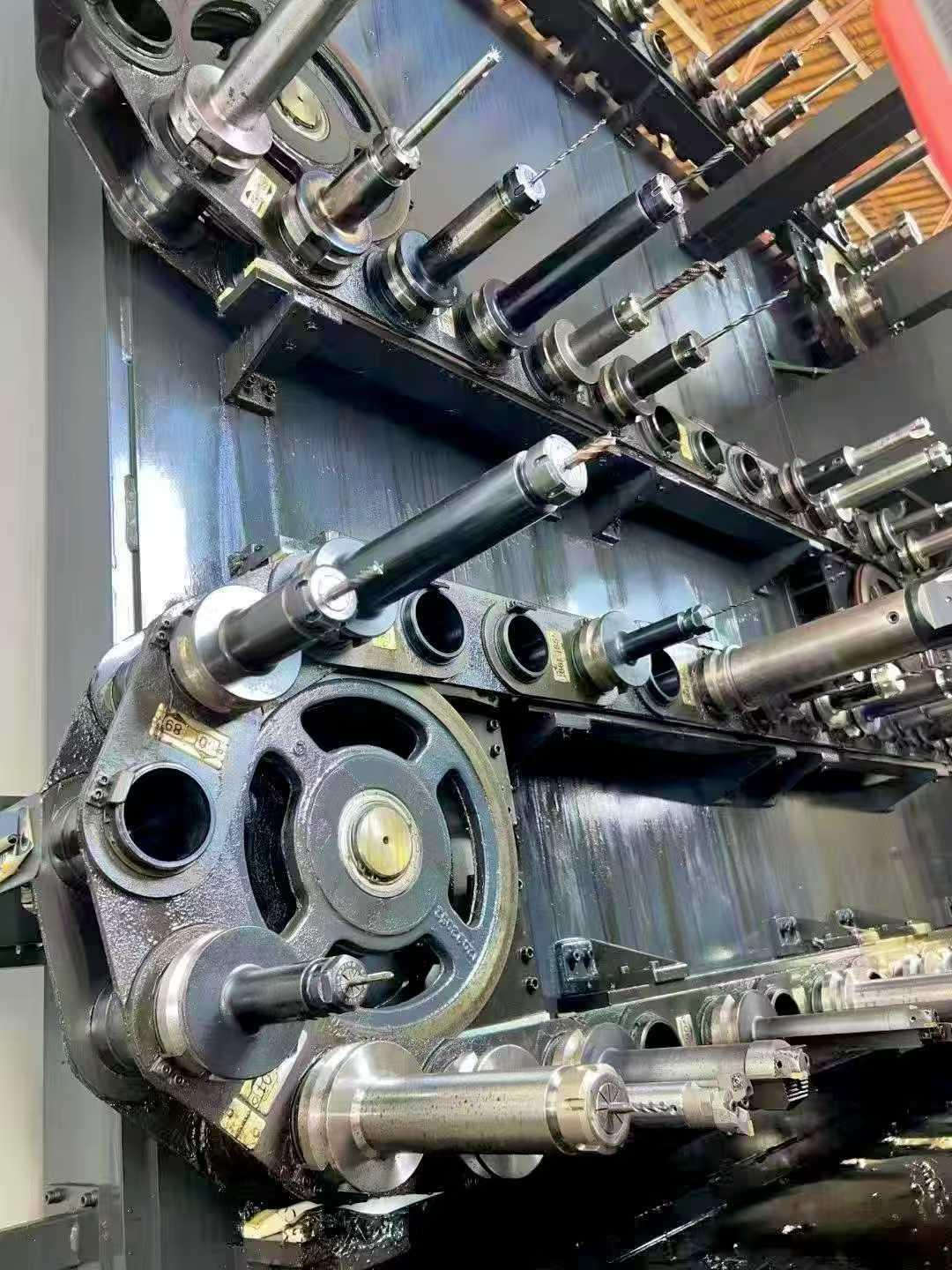

Tool Magazine Capacity: 60 tools
Type: Chain type
B-Axis: 1° indexing / 0.001° continuous
Guideway: Three-axis linear guide, German Schneeberger 55 heavy-duty roller linear guide
Fast Traverse Speed (X/Y/Z): 60 × 60 × 60 m/min
Configuration:
Spindle oil chiller
Chip conveyor
