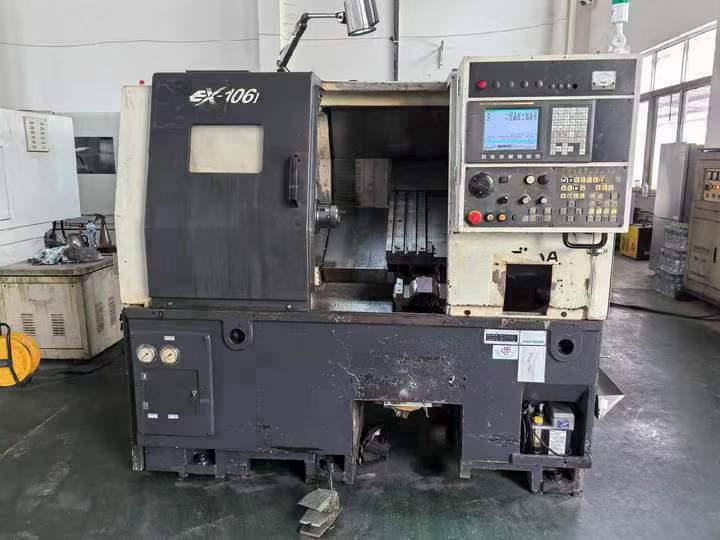

Takisawa EX-106K Line cutter machine

[Product Information]:

Inventory number：811314
Brand：Takisawa
Model：EX-106K
Origin："Japan
Location：China
Year：2010
Create Time：2026-03-20

Specifications:

Maximum Rotational Diameter: 240 mm
Maximum machining Length: 350 mm
Maximum Bar Diameter: 43 mm
Lateral Slide Swing: 280 mm
X-Axis Travel: 280 mm
Z-Axis Travel: 325 mm
Rapid Traverse (X/Z Axes): 24 m/min
Spindle Nose: A2-6
Spindle Bore Diameter: 56 mm
Spindle Speed: 0–5,000 RPM
Spindle Motor Power: 7.5 kW
