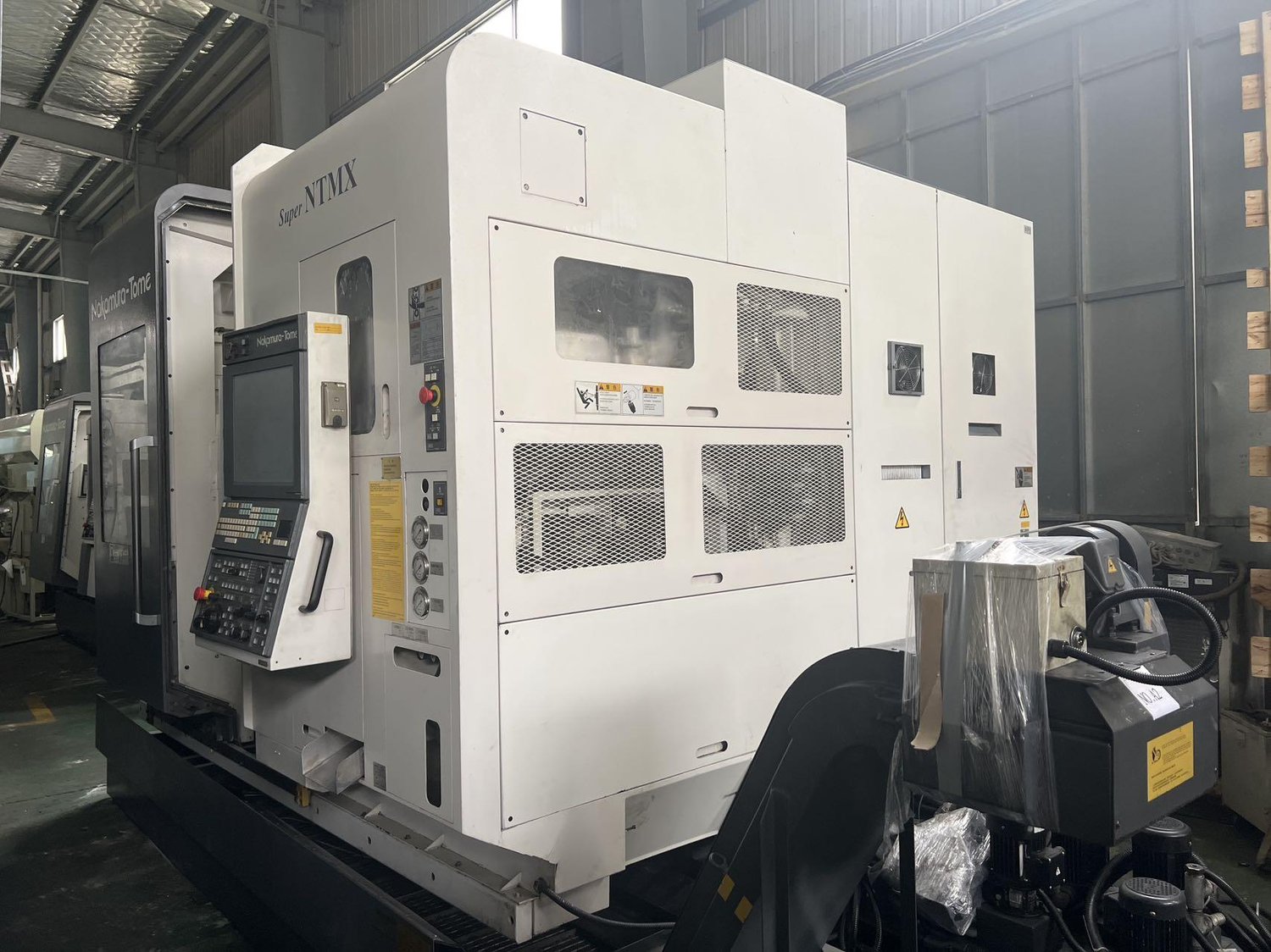

Nakamura Super NTMX Turn Mill Machining Centre

Maximum Machining Diameter: 200 mm
Maximum Machining Length: 780 mm
Spindle Center Distance: 980 mm
Machining Capacity: Ø 51 mm
Chuck Size: 6" / 8"
Spindle Speed: 5000 rpm
Spindle Motor Power: 11 / 7.5 kW
C-Axis Function: Milling
Rapid Traverse Speed: 600 mm/min
Minimum Command Increment: 0.001°
Milling Spindle Speed: 12,000 rpm
Milling Motor Power: 7.5 / 3.7 kW
B-Axis Rotation Range: 190° (±95°)
Y-Axis Travel: 200 mm

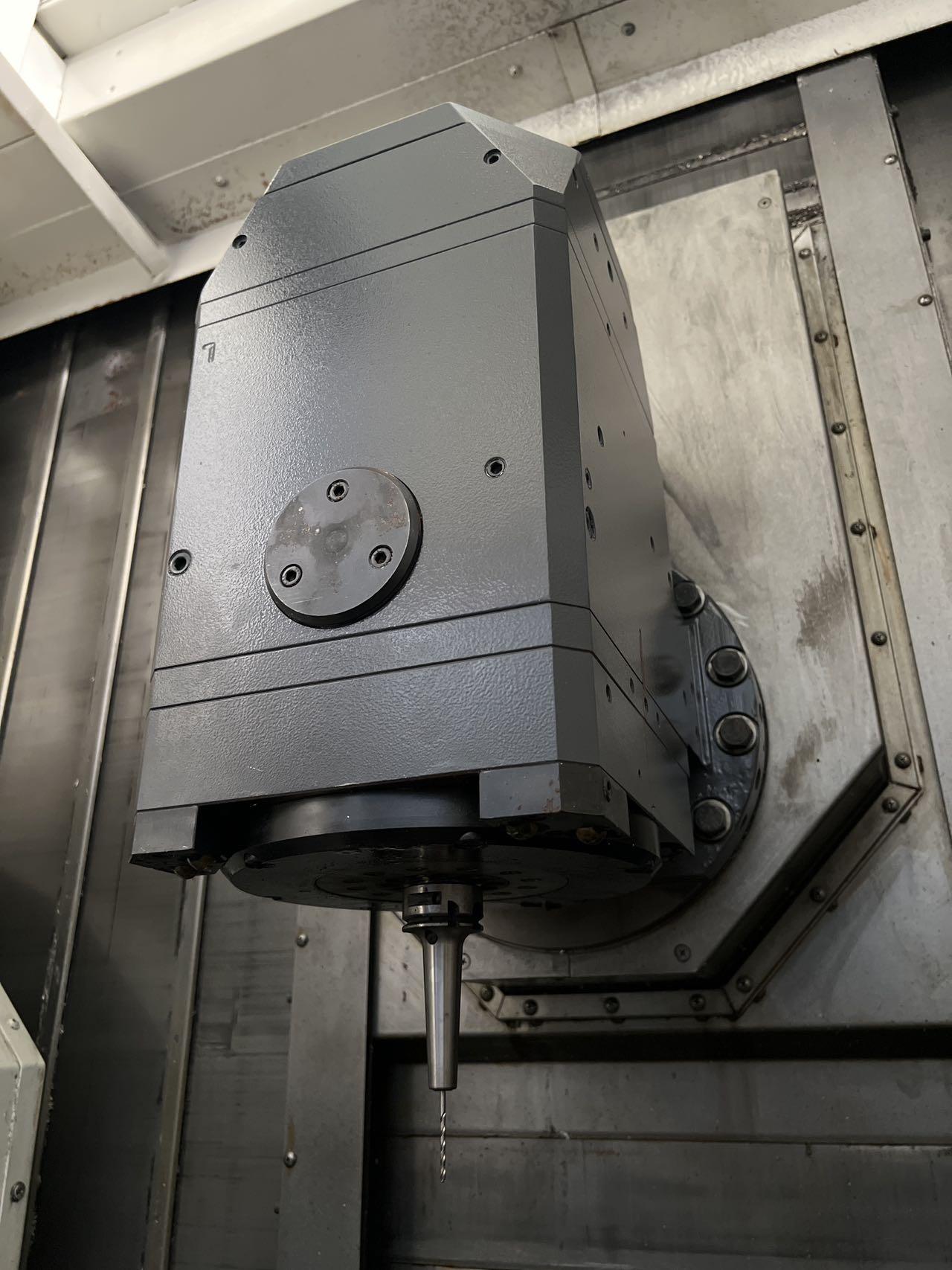

Swing Head: 9 axes, 5 simultaneous movements
Twin-Tool Magazine Capacity: 48 tools (24 × 2)
Machine Weight: 15,000 kg
