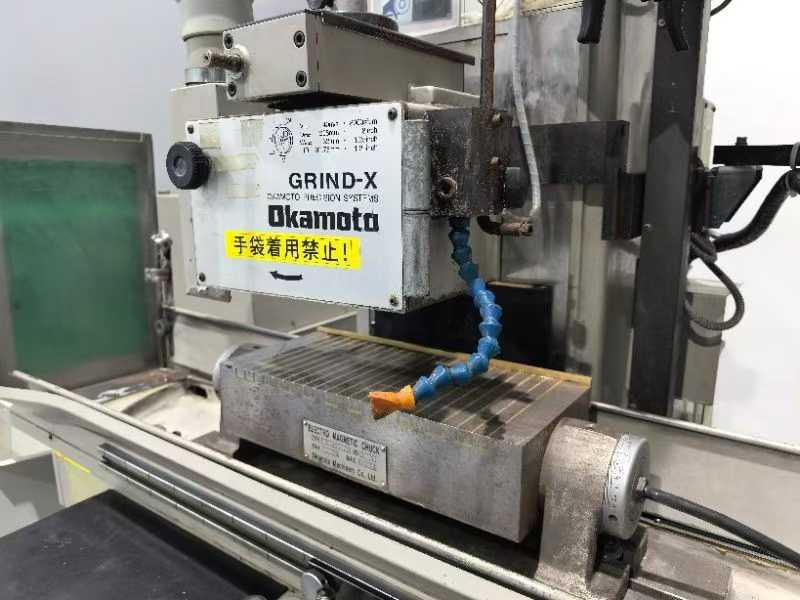

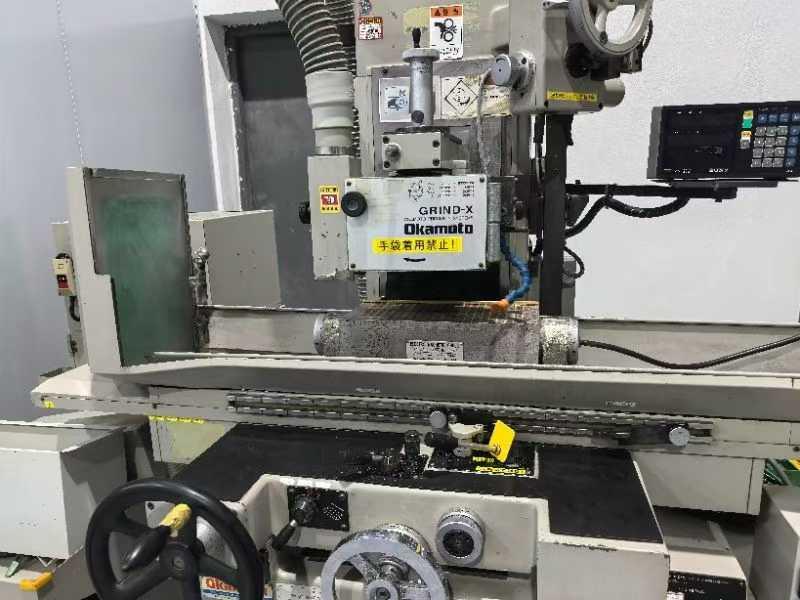

Okamoto PFG-500ALII Grinding machines

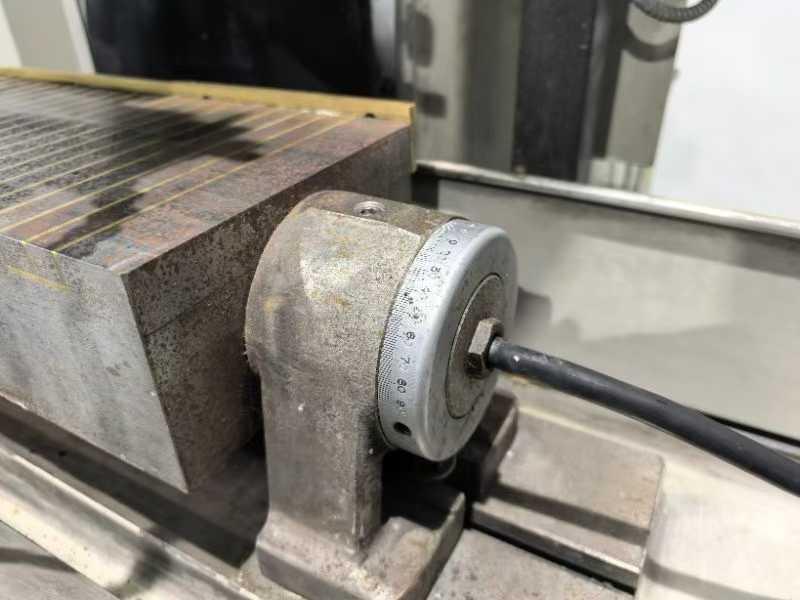

Magnetic stage size: 350×150× 80mm (can be tilted at 90°)
left-right travel (longitudinal) : 520 mm
Front and rear travel (lateral) : 180mm
Vertical travel up and down: 300mm
Distance from Worktabletop to the grinding wheel: 300mm
Maximum workpiece weight (including magnetic Worktable) : 80 kg
grinding wheel spindle
grinding wheel size: φ180×6-32× 31.75mm
grinding wheel speed (50Hz) : 2800 rpm
grinding wheel speed (60Hz) : 3400 rpm
spindle power: 1.5kW (2P)
Overall Footage (width × depth × height) : 2200×1350×1730 mm
