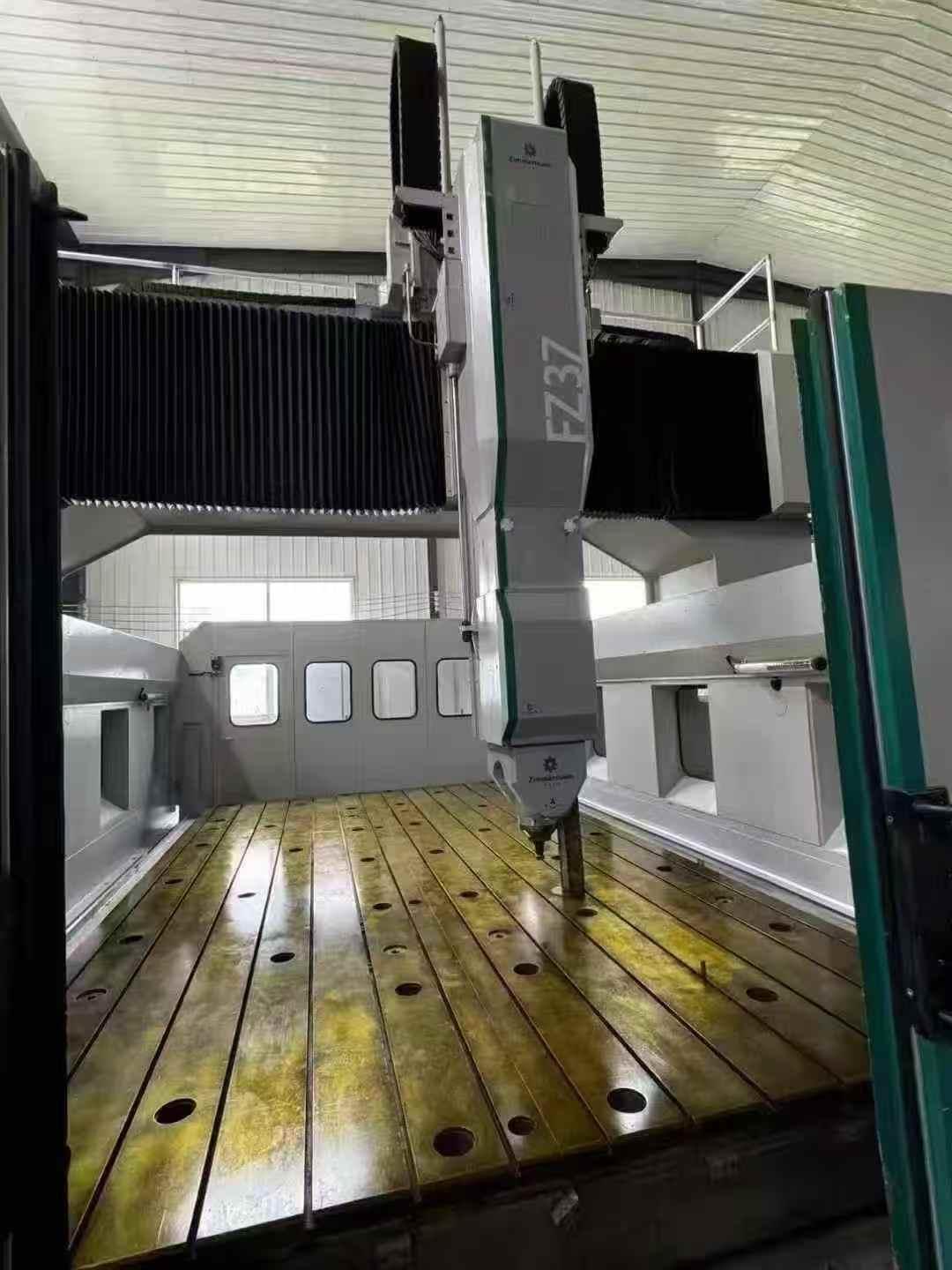

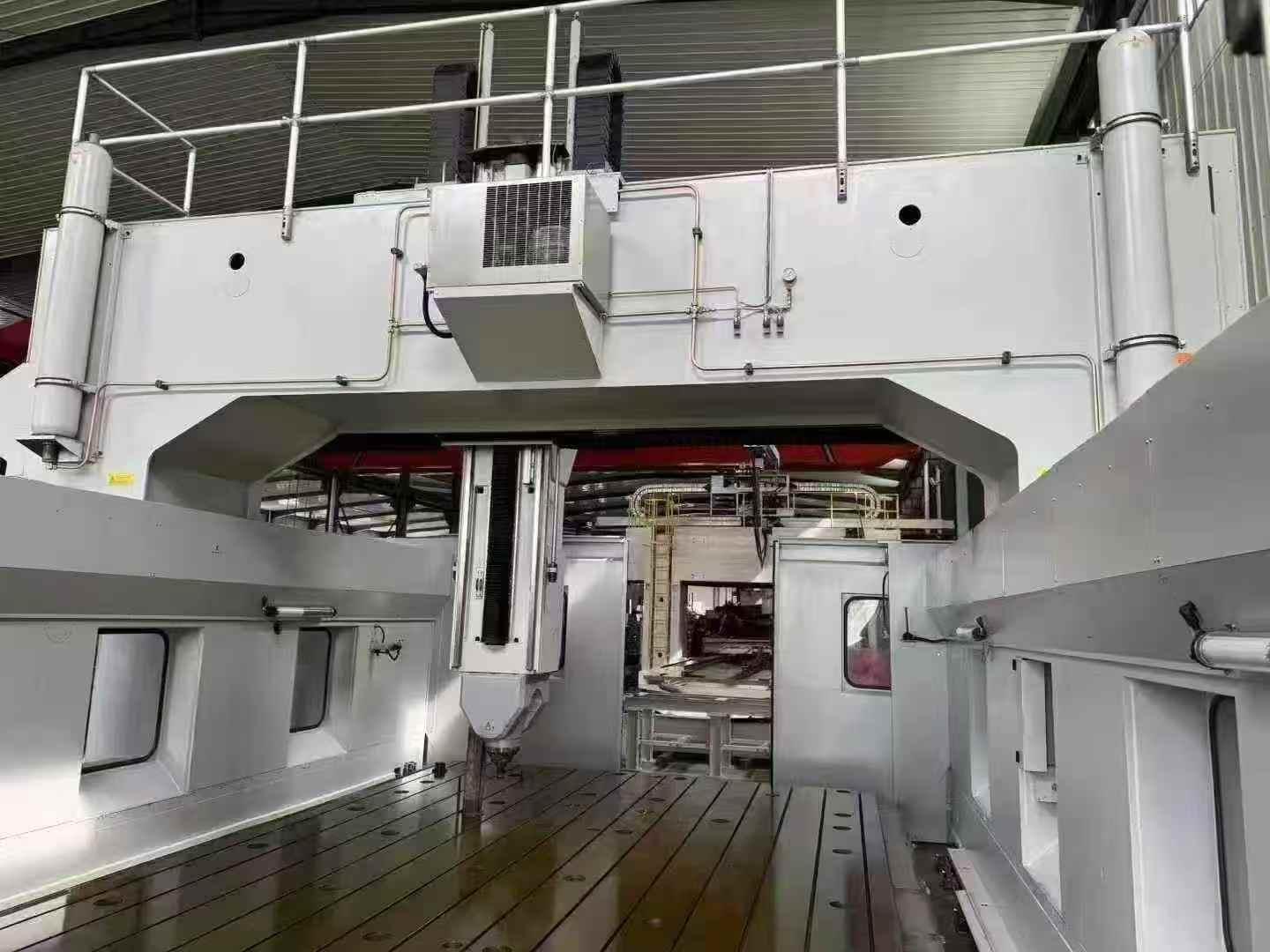

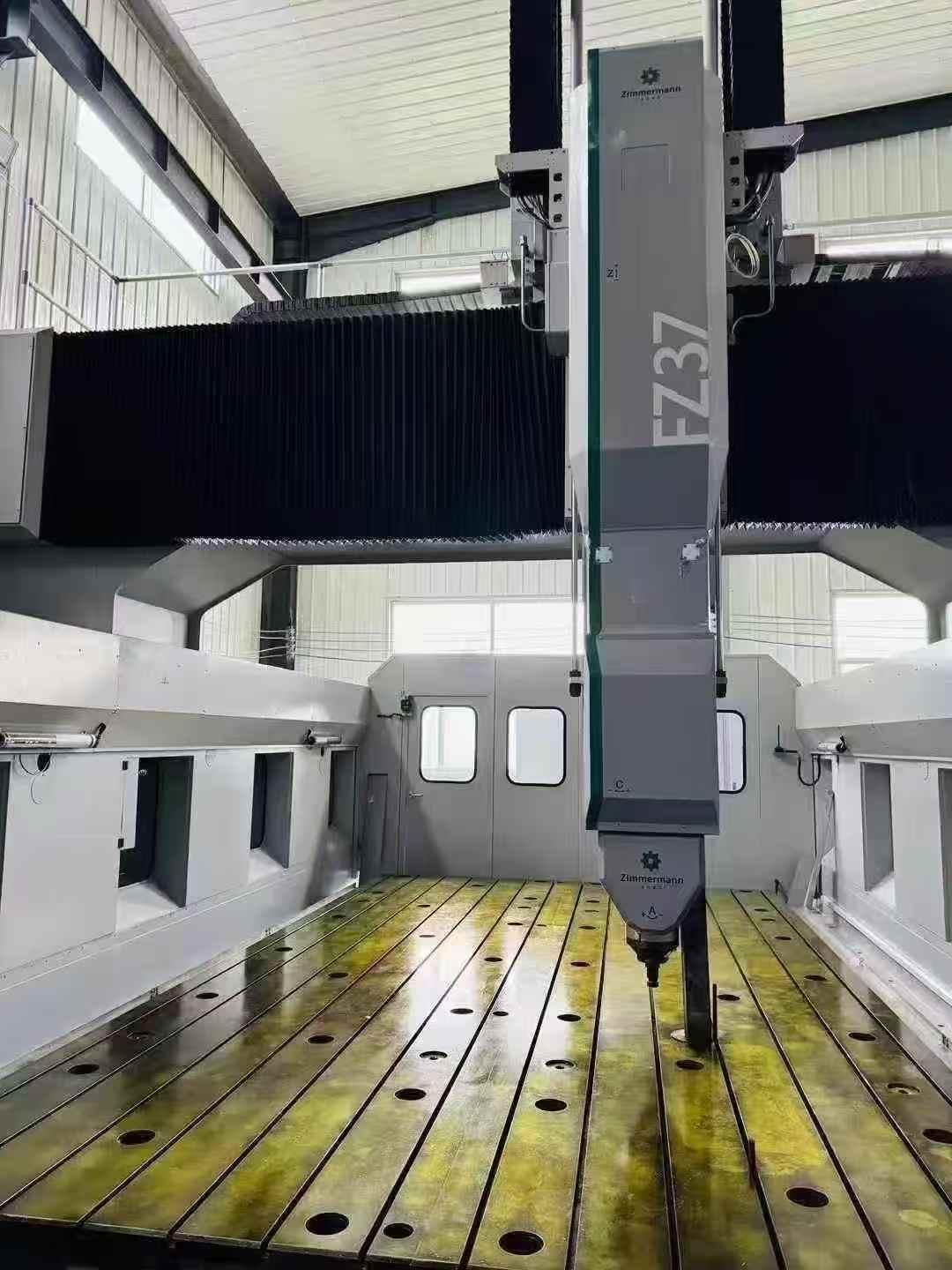

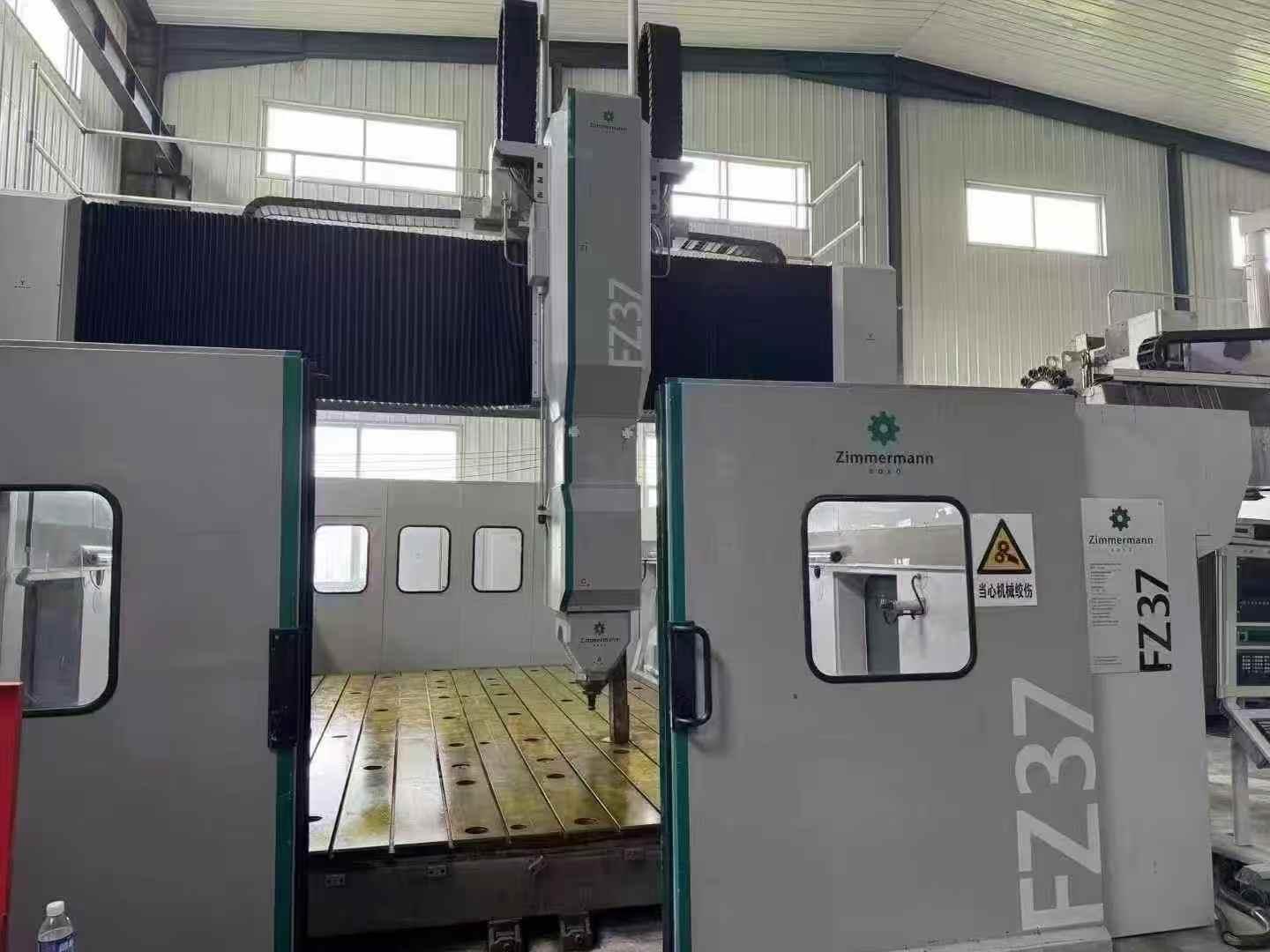

Zimmermann FZ37 Gantry machining centre

[Product Information]:

Inventory number：811221
Brand：Zimmermann
Model：FZ37
Origin：Germany
Location：China
Year：2012
Create Time：2026-03-13

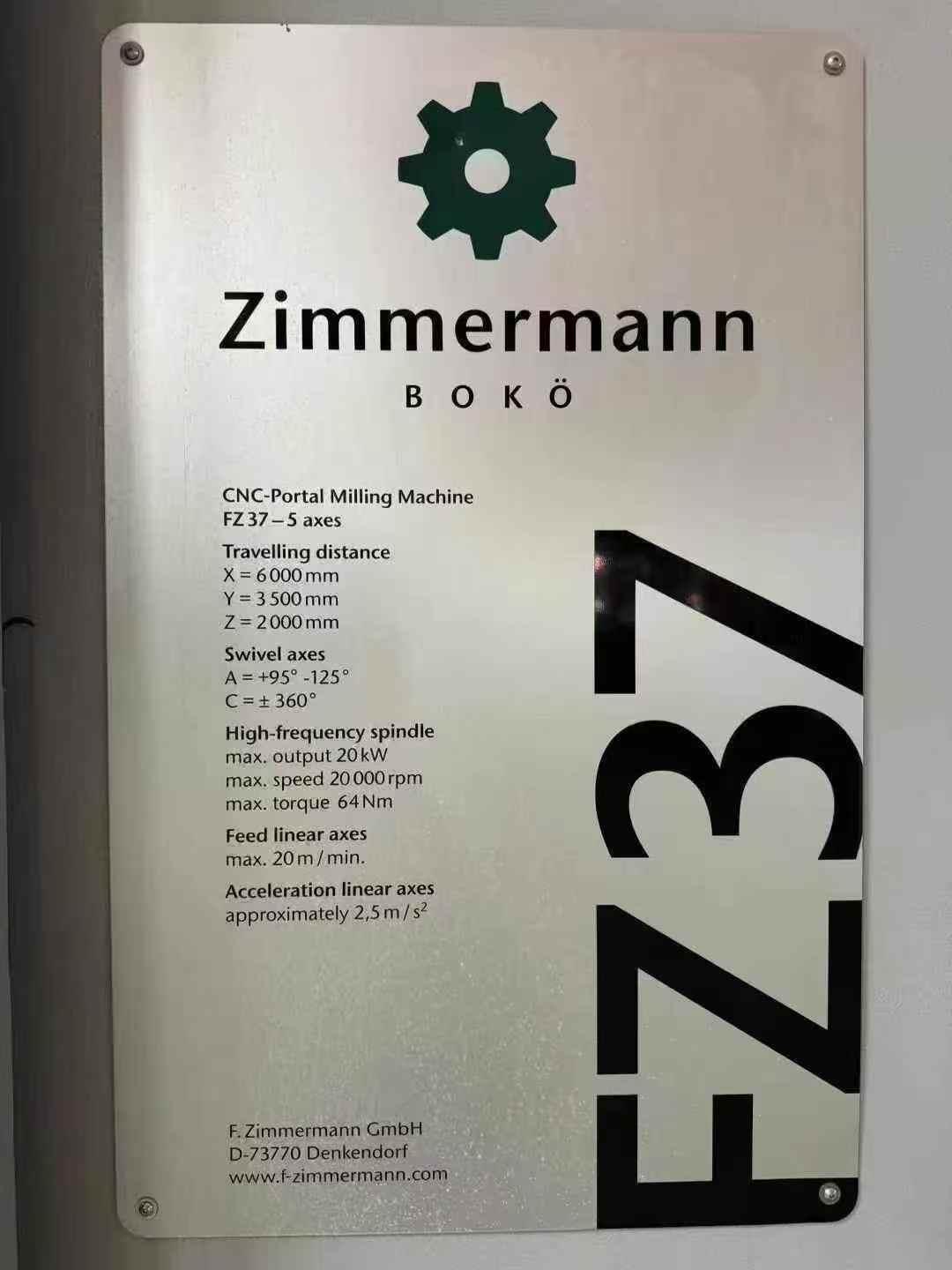

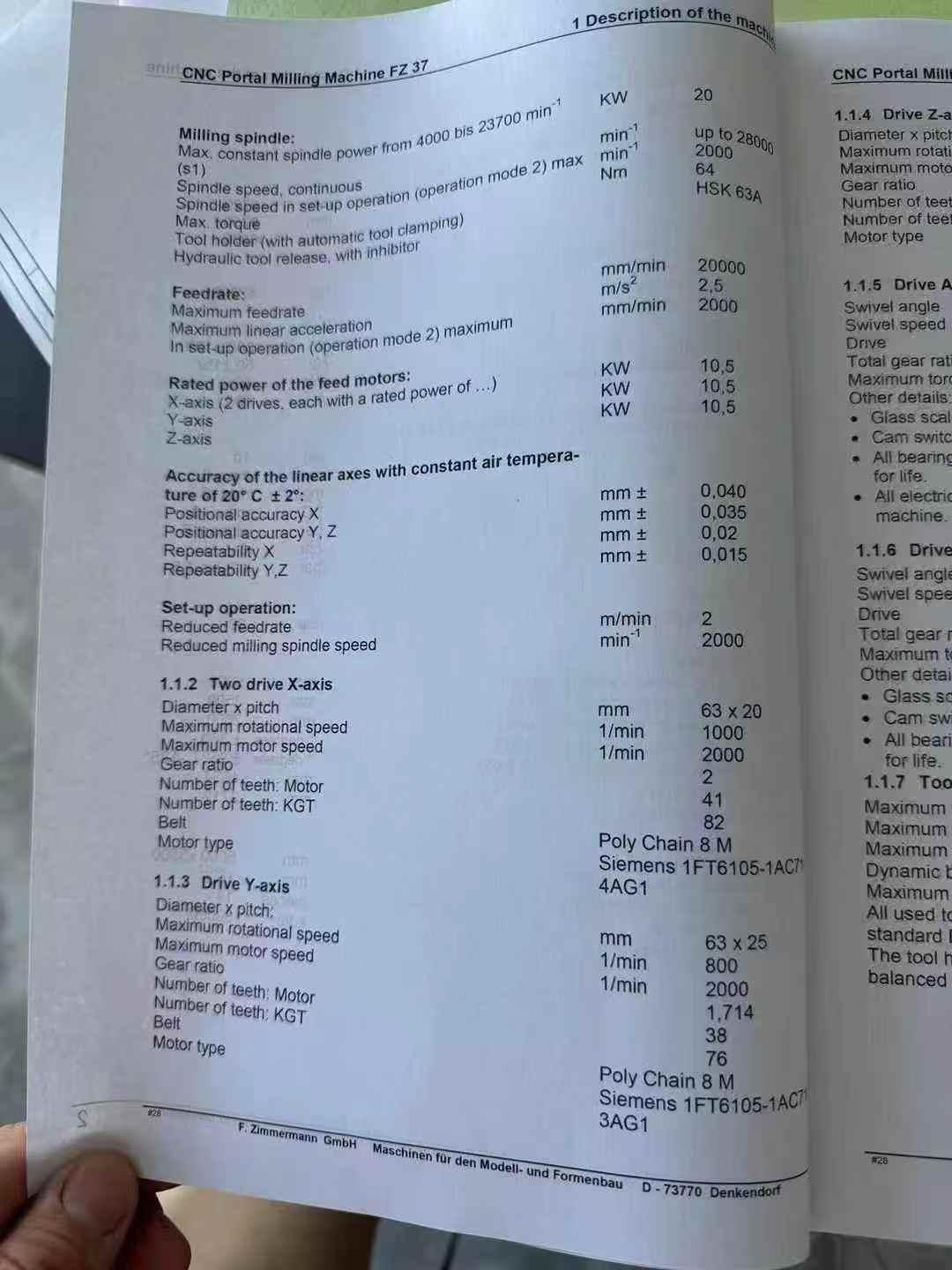

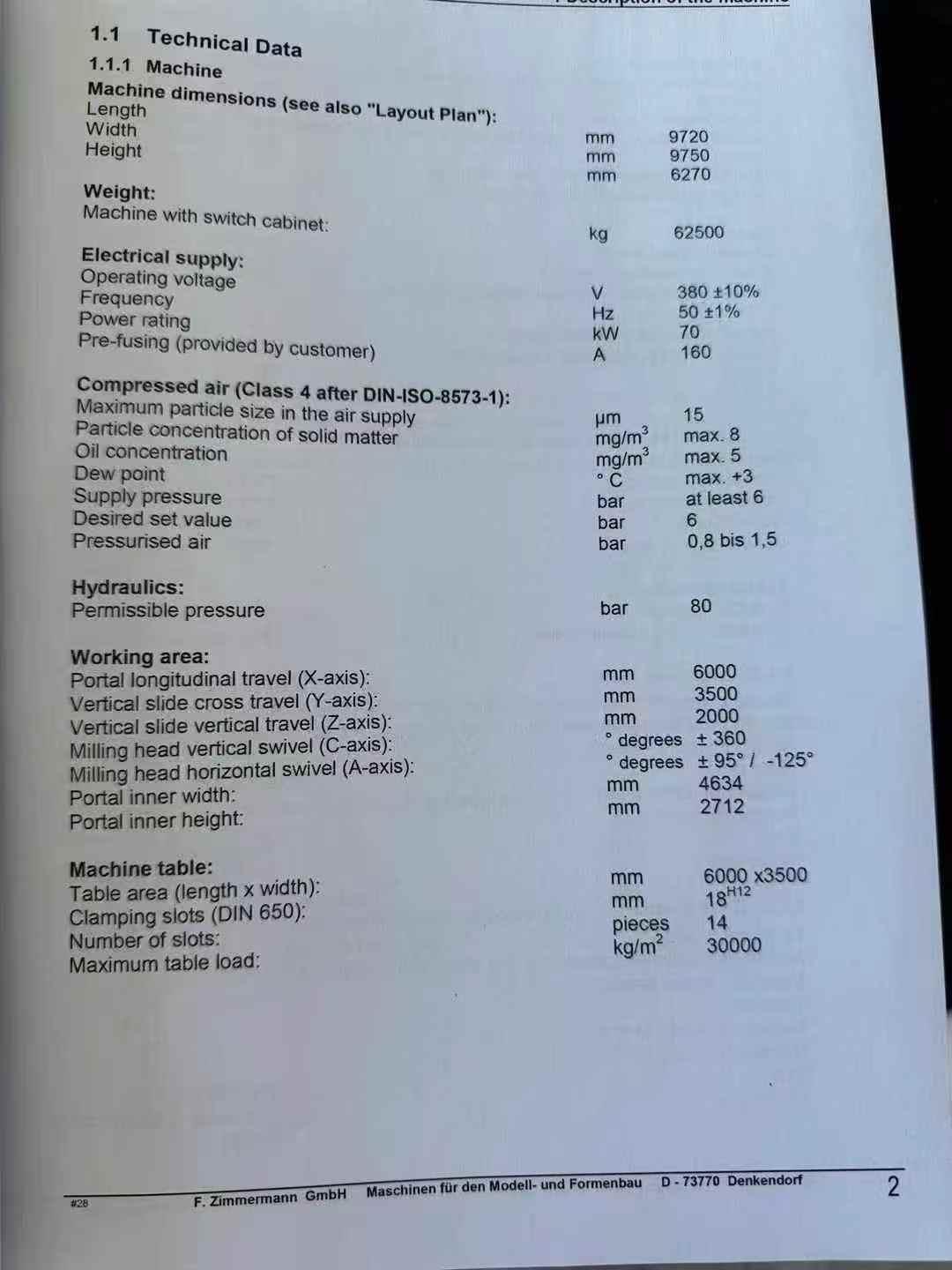

Specifications:

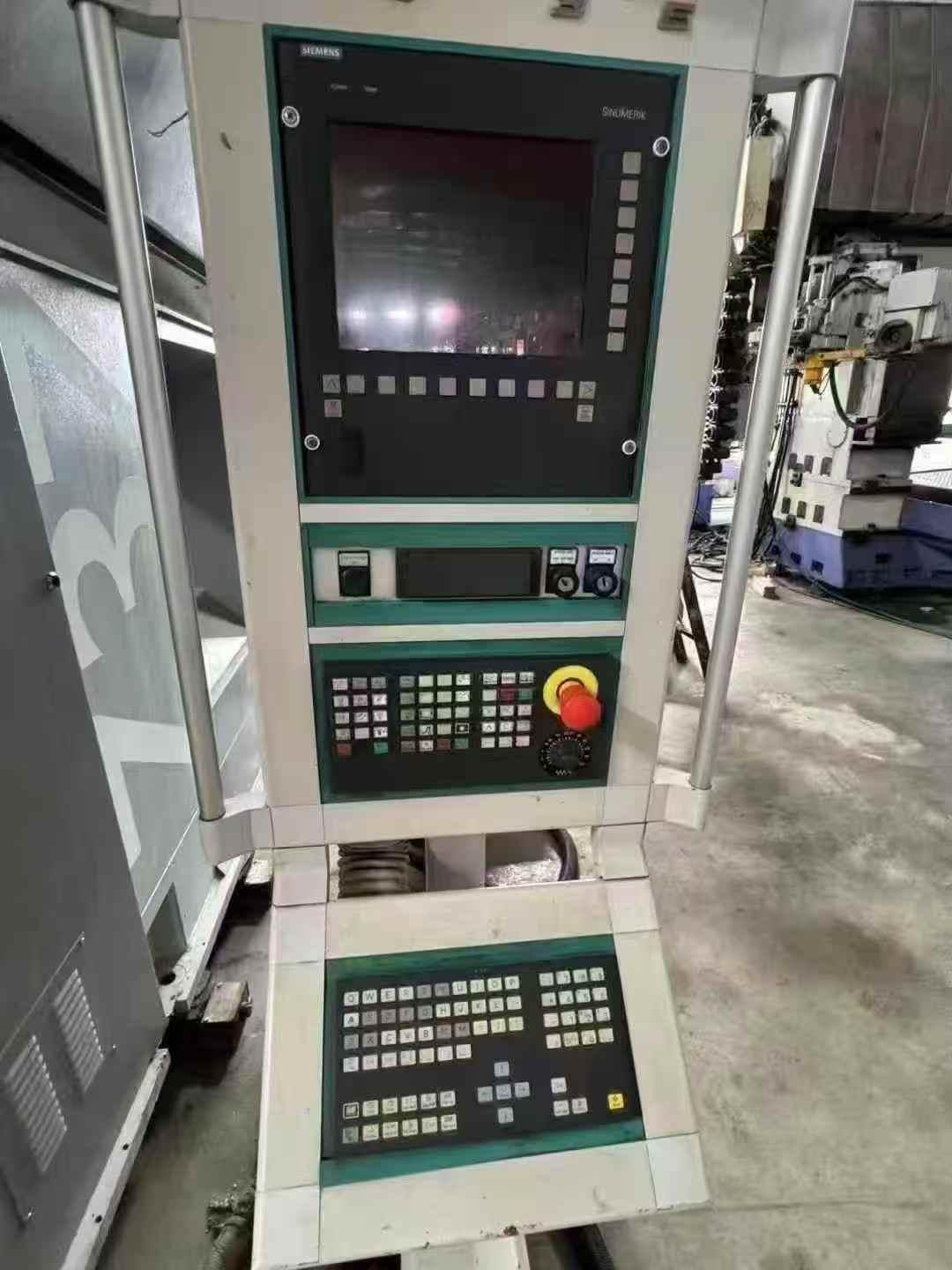

CNC System: Siemens 840D
Three-axis travel: 6000 × 3500 × 2000 mm
Worktable size: 3500 × 6000 mm
Gantry width: 4500 mm
Gantry height: 2300 mm
Maximum spindle speed: 18,000 rpm
Spindle power: 20 kW
Maximum torque: 64 N·m
Tool holder type: HSK63
A-axis rotation range: -95° to +125°
C-axis rotation range: 360°
