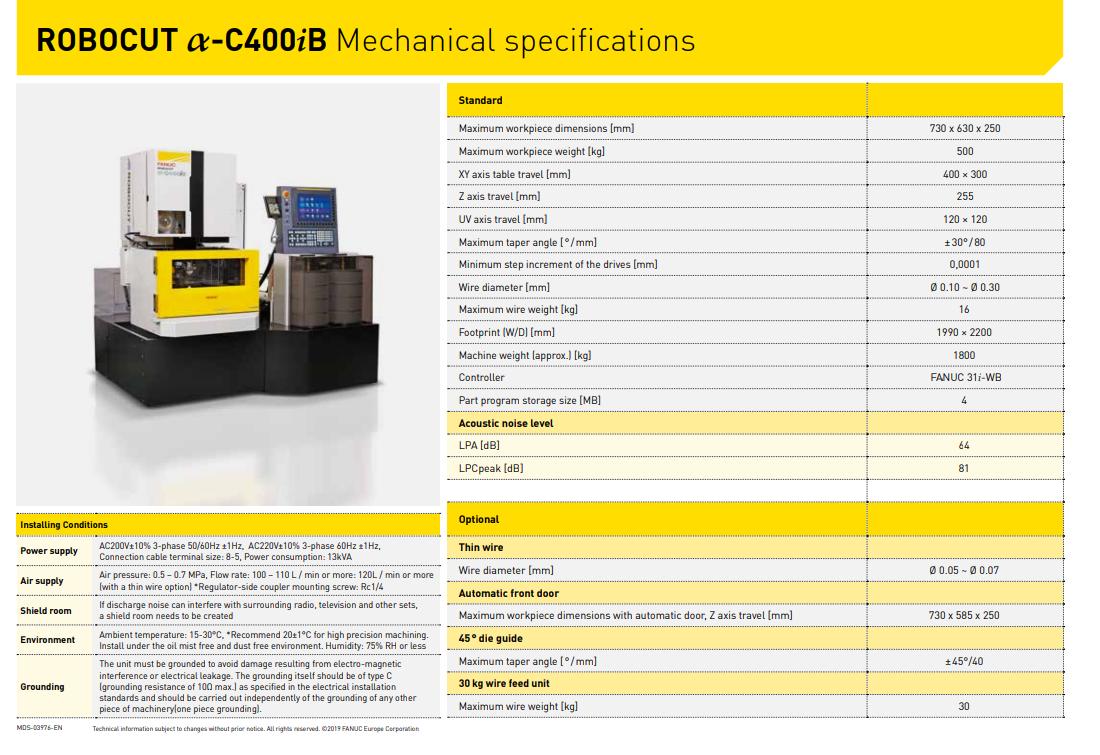

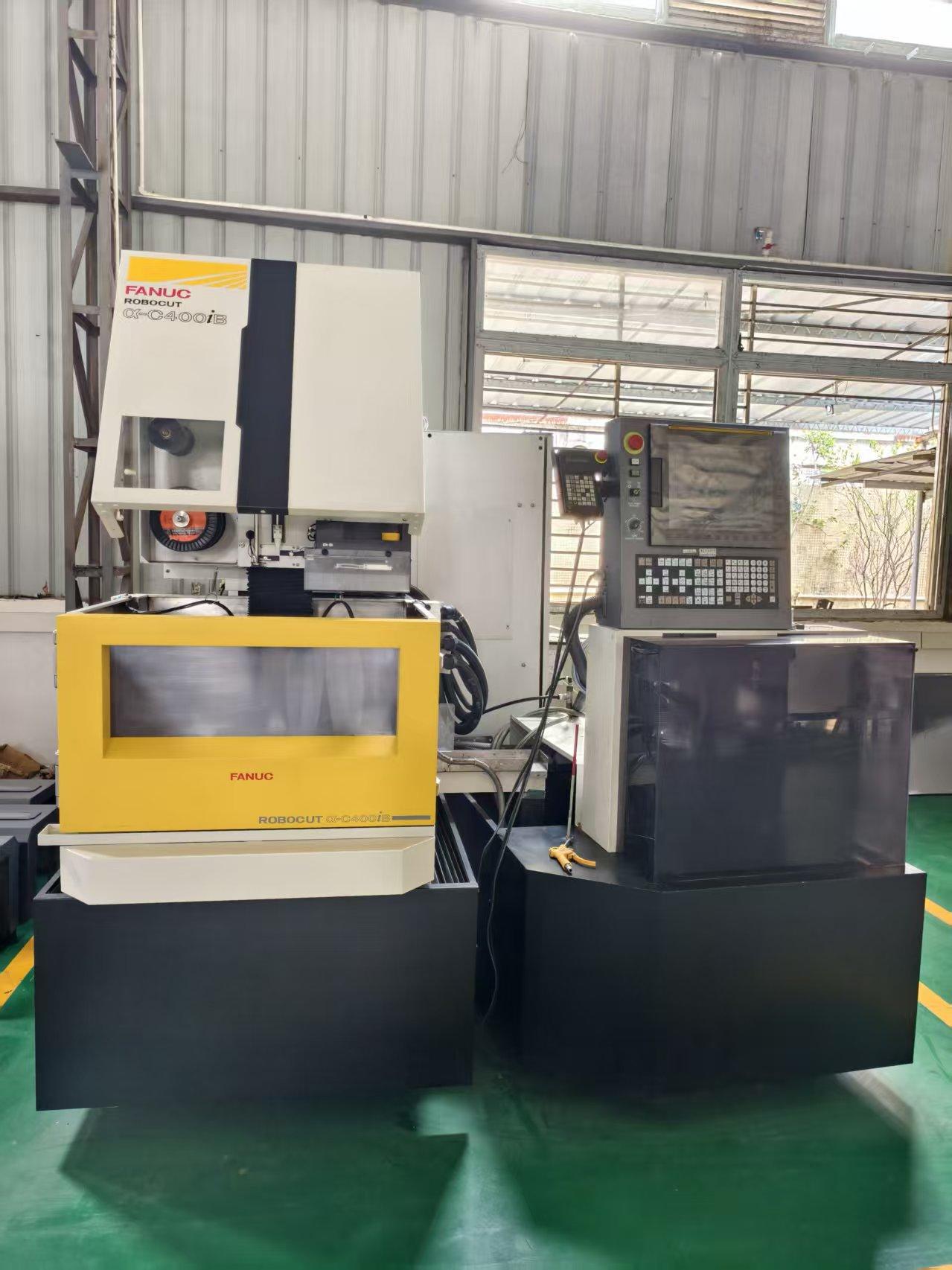

Fanuc ROBOCUT α-C400iB Wire cutting machine

CNC System: FANUC 31i-WB
Maximum workpiece size: 730 × 630 × 250 mm
Maximum workpiece weight: 500 kg
Axis travel (X/Y/Z): 400 × 300 × 255 mm
U/V axis travel: 120 × 120 mm
Maximum taper angle: ±30° / 80 mm
Minimum drive resolution: 0.0001 mm
Wire diameter: Ø0.10 – Ø0.30 mm
Maximum wire spool weight: 16 kg
Machine footprint (W × D): 1990 × 2200 mm
Machine weight: 1800 kg
