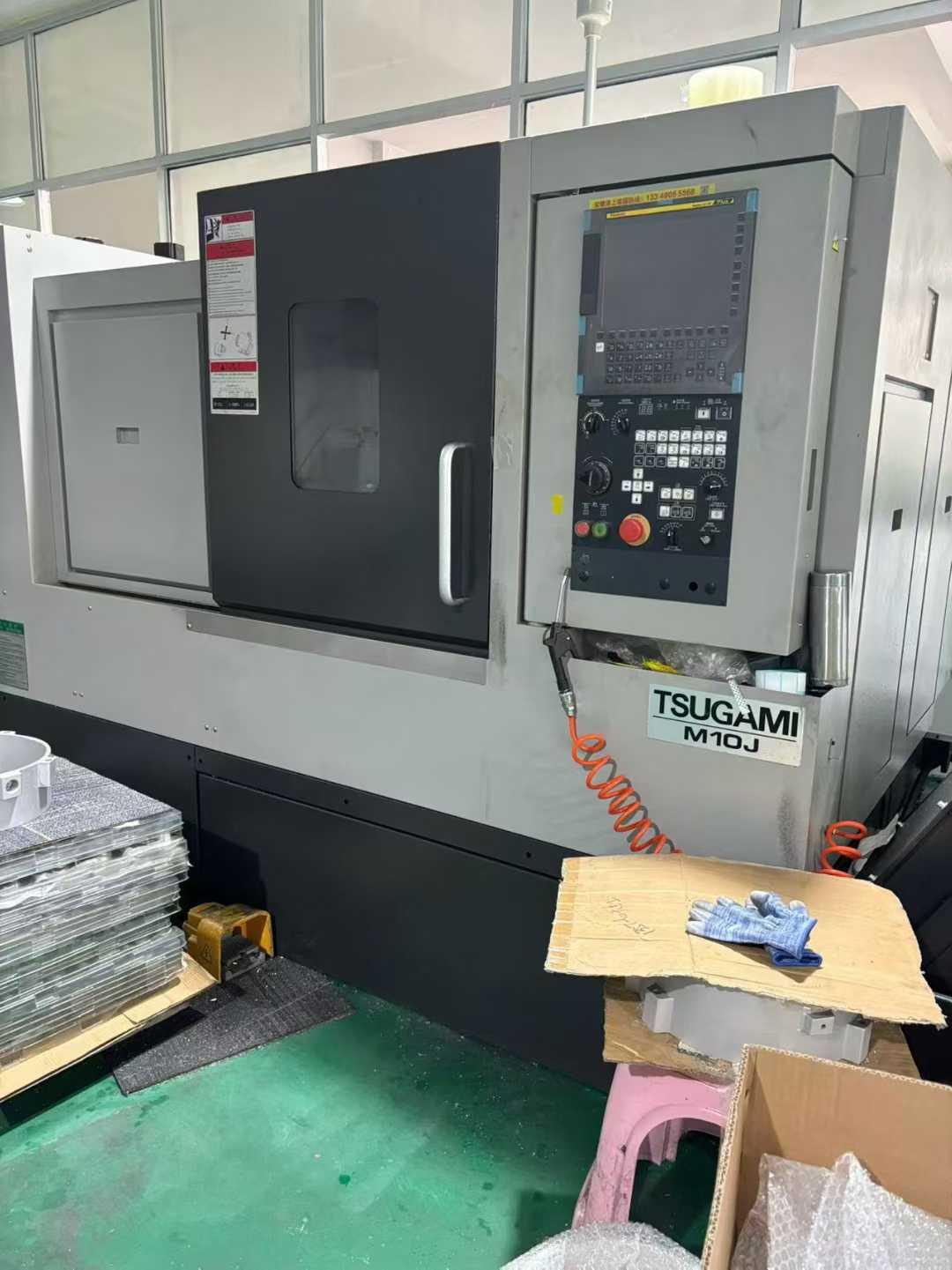

Tsugami M10J Turn Mill Machining Centre

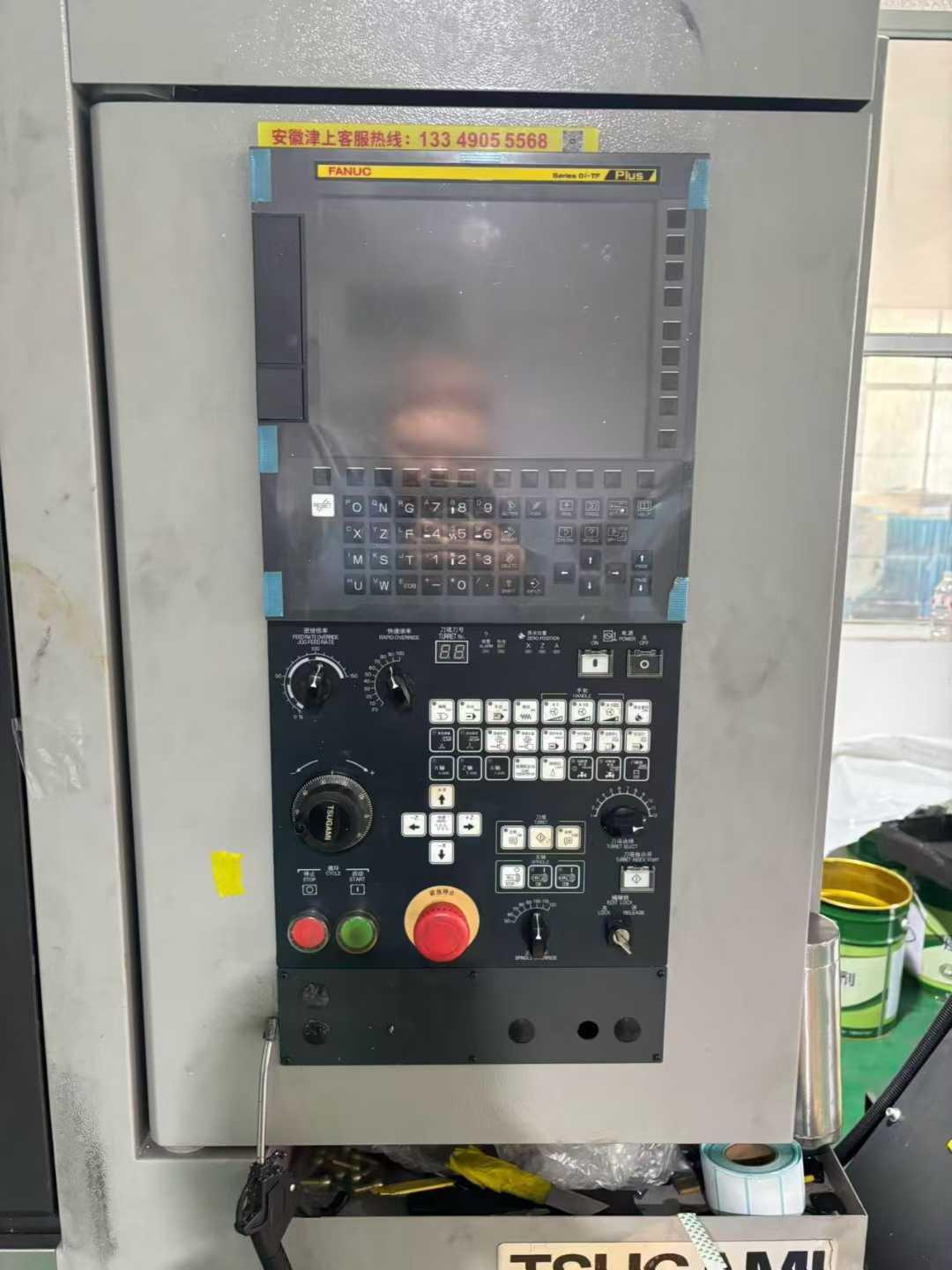

CNC System: FANUC
Maximum machining diameter: 660mm
Spindle through hole diameter: 90mm
Number of tool turret sides: 12
Fast moving rate on the X-axis: 30m/min
Fast moving rate on the Z-axis: 33m/min
Electric spindle: 1
Maximum machining length: 500mm
Maximum machining diameter of the bar: 80mm
Maximum tool rotary diameter: ￠680mm
Maximum spindle speed: 3500rpm
Power of the tool turret motor: 4.5KW
Spindle: 12-inch hollow

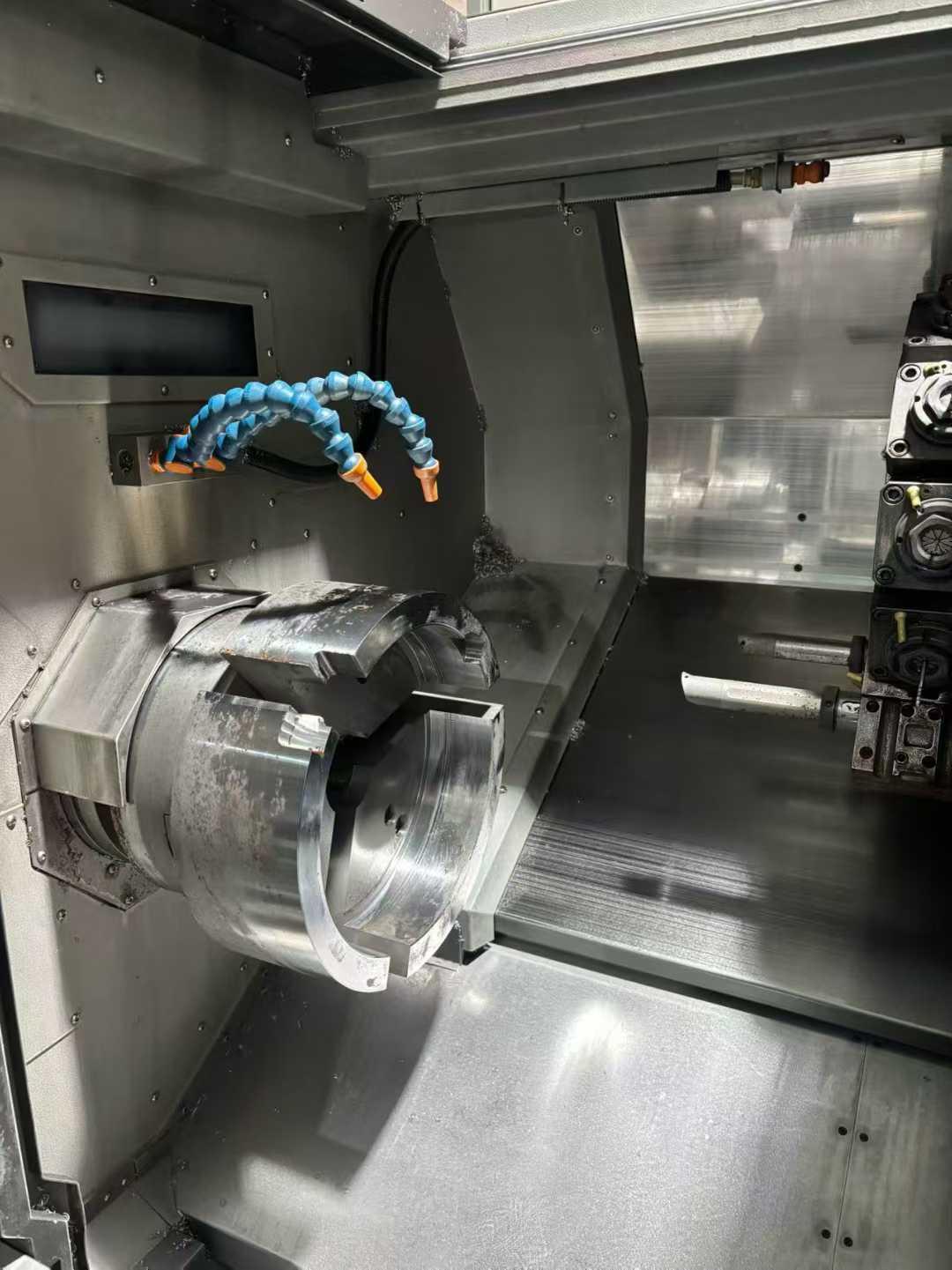

3-jaw chuck (Qian Dao OP-212-A8)
