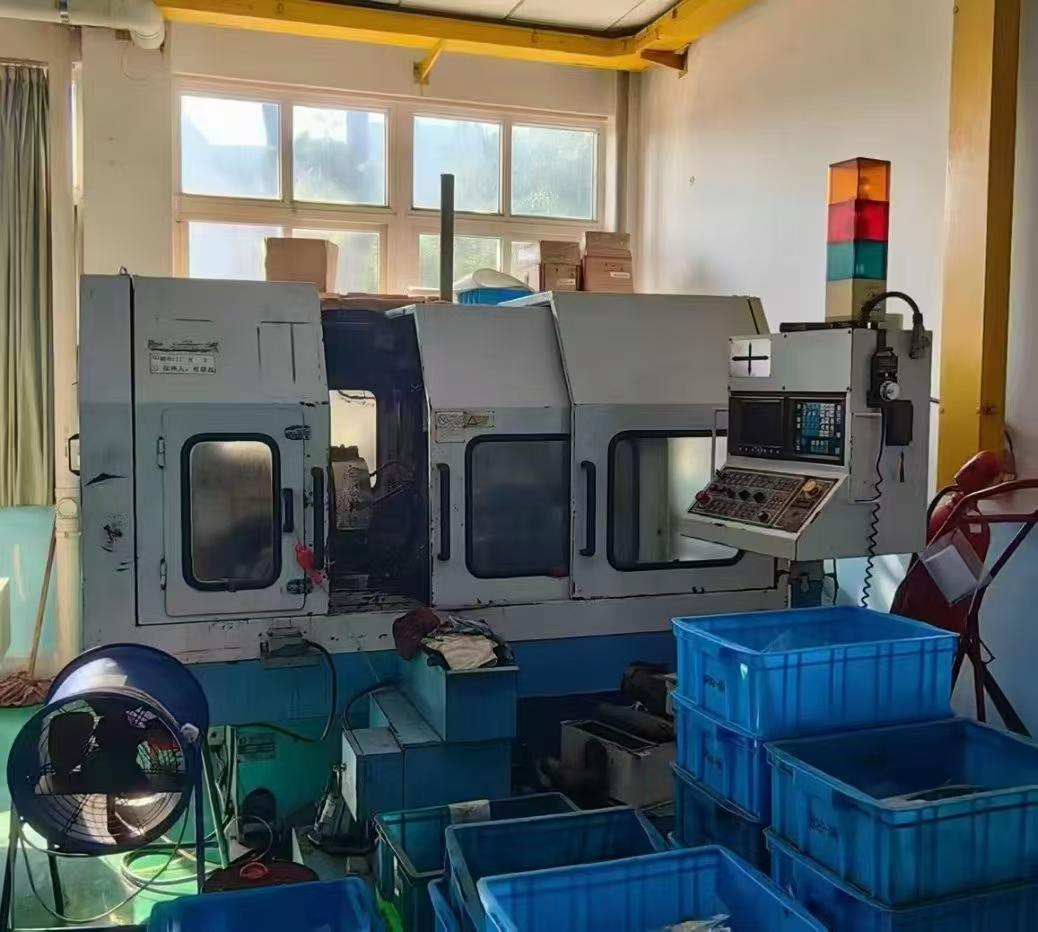

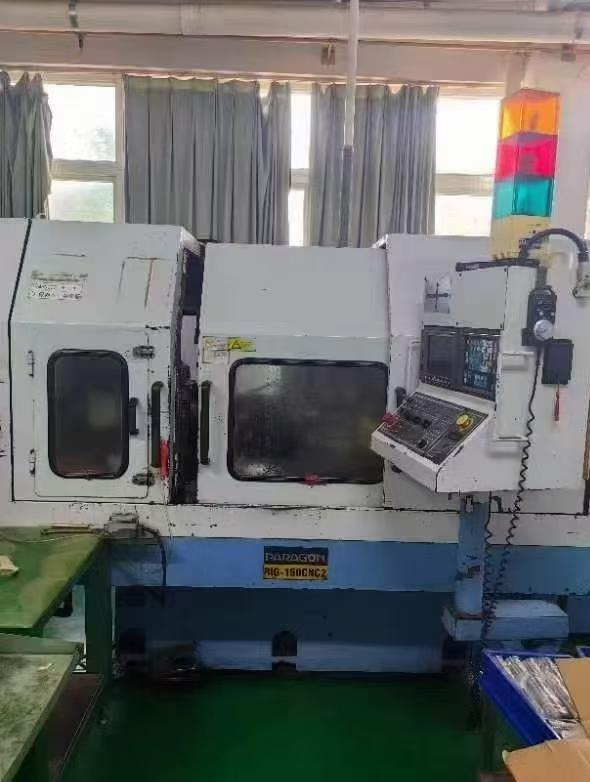

Paragon RIG150 CNC Internal grinder

Grinding range: 6–150 mm
Grinding depth: 150 mm
Worktable rotation diameter: 520 mm
Spindle speed: 5–800 rpm
Max. Z-axis worktable speed: 9000 mm/min
Max. worktable travel: 540 mm
Height from grinding wheel spindle center to floor: 1100 mm
Machine dimensions (L × W × H): 2600 × 1800 × 1700 mm
Machine weight: 2200 kg
Configuration:

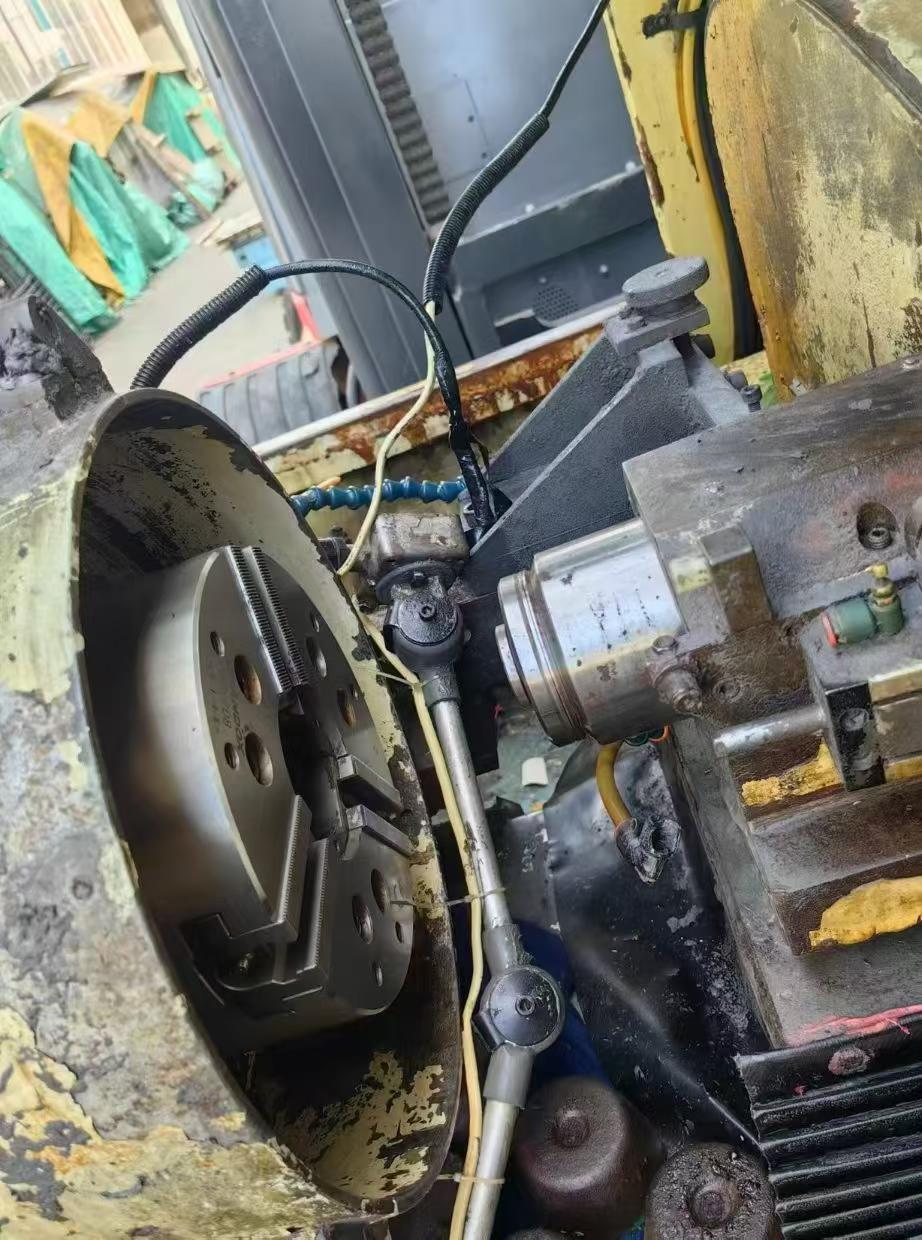

8-inch hydraulic chuck
With end-face grinding spindle
