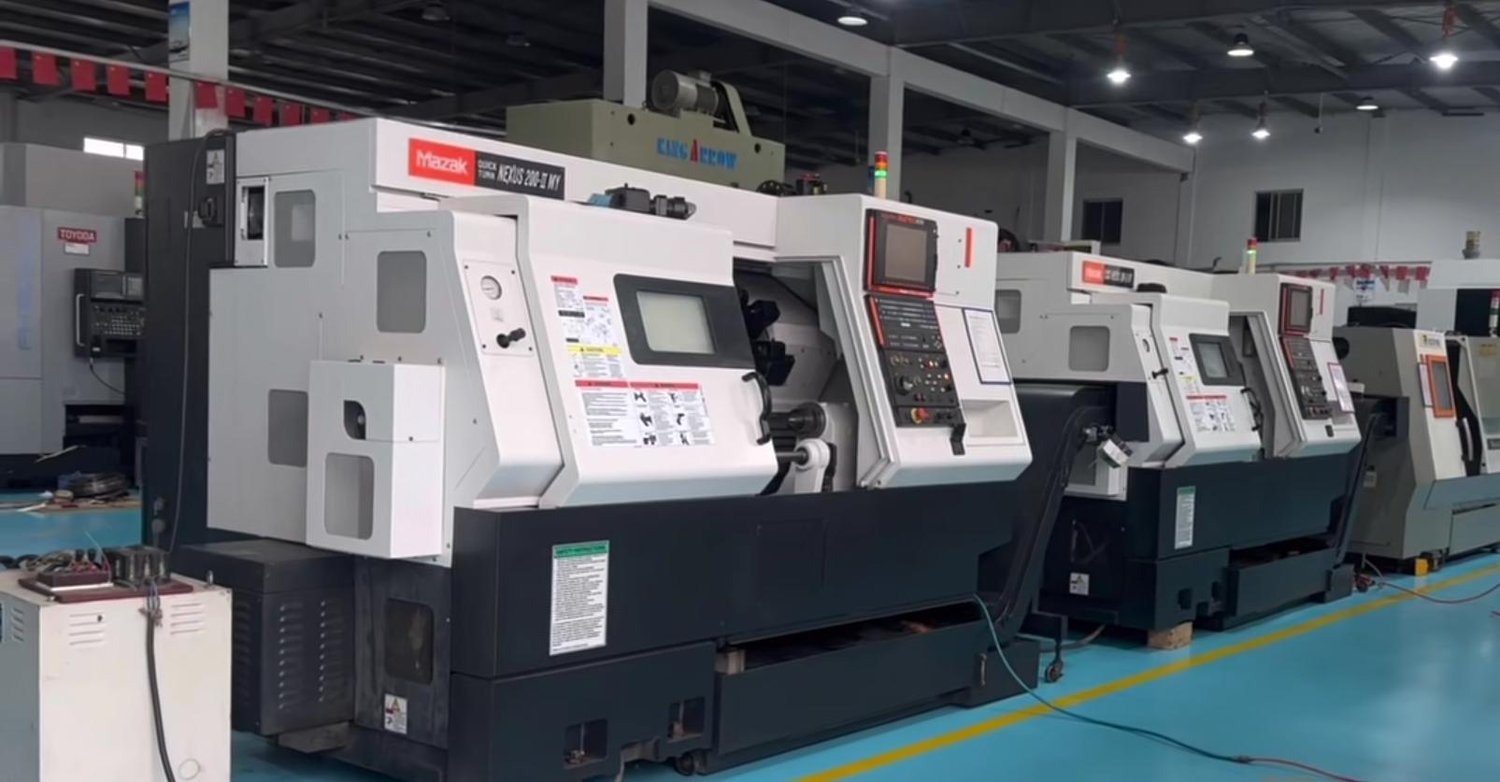

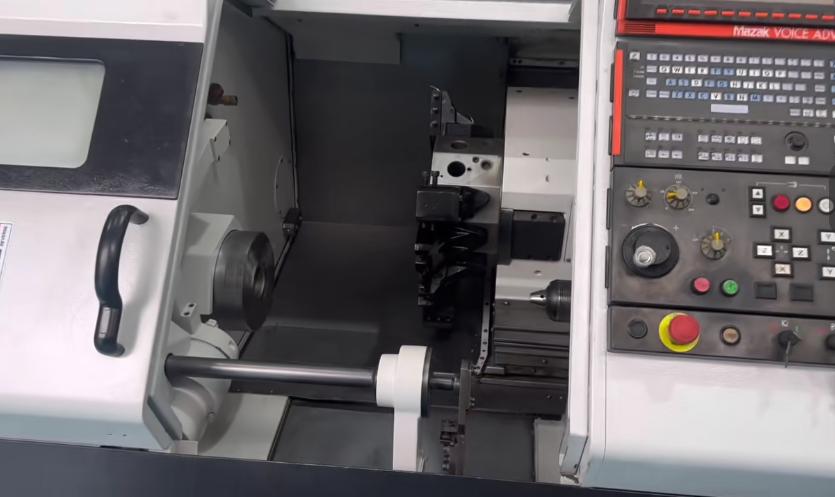

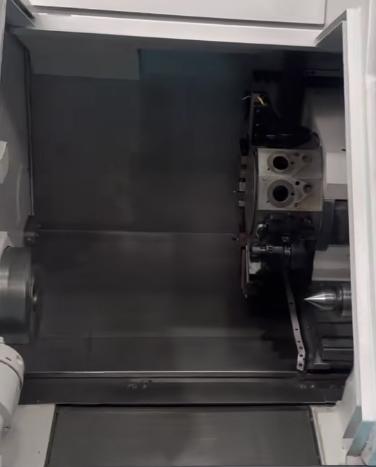

MAZAK QTN200-IIMY CNC turning lathe

X-axis travel: 234 mm
Y-axis travel: 100 (±50) mm
Z-axis travel: 625 mm
Spindle speed: 5000 rpm
Maximum swing diameter: 675 mm
Maximum machining diameter: 380 mm
Maximum machining length: 555 mm
Spindle power: 15 kW
Configuration:
8-inch hollow chuck from Kitagawa, Japan
Equipped with Y-axis
Drive head
Tool aligner
Chip conveyor
Tailstock
12-position power tool turret
