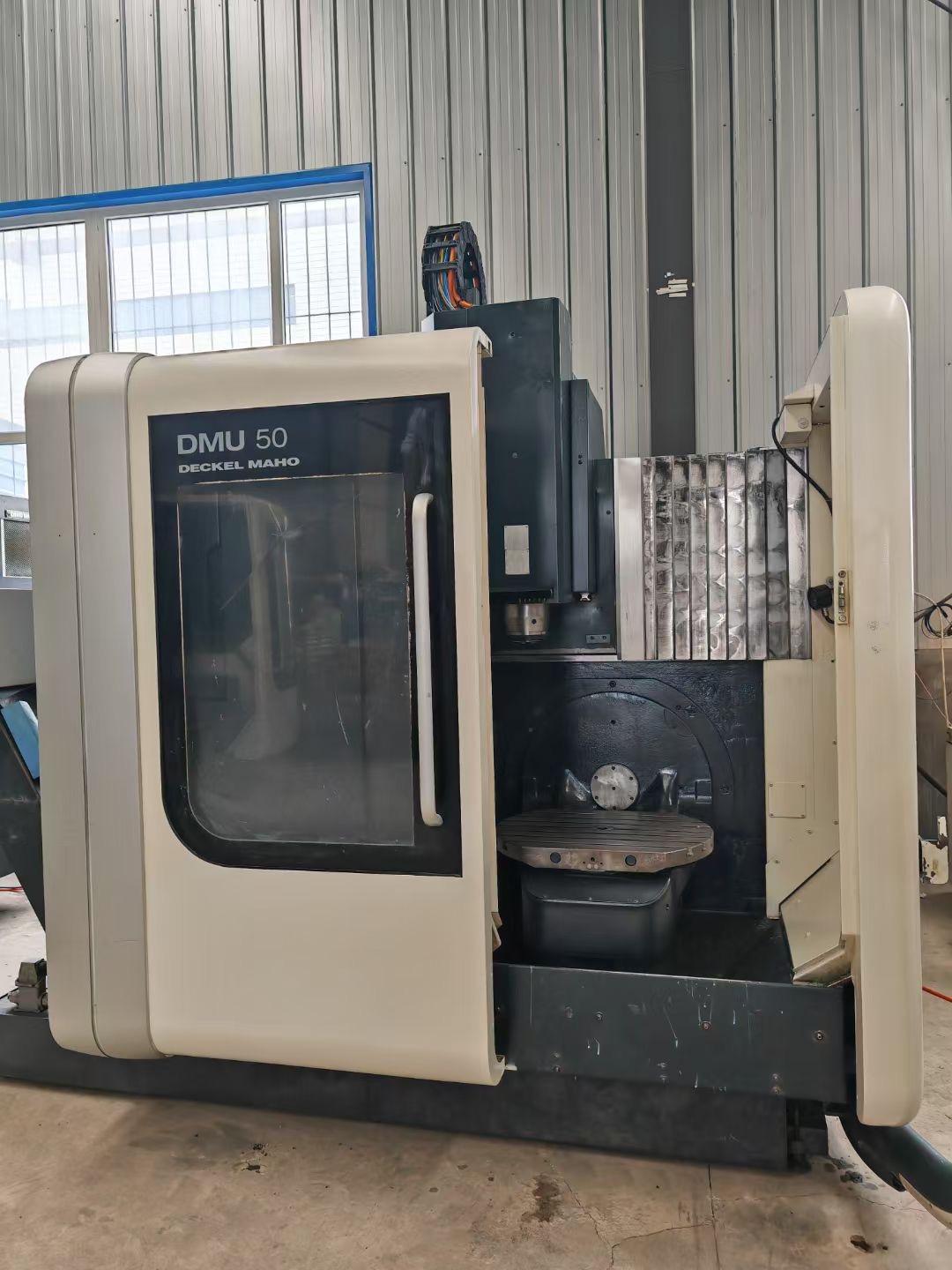

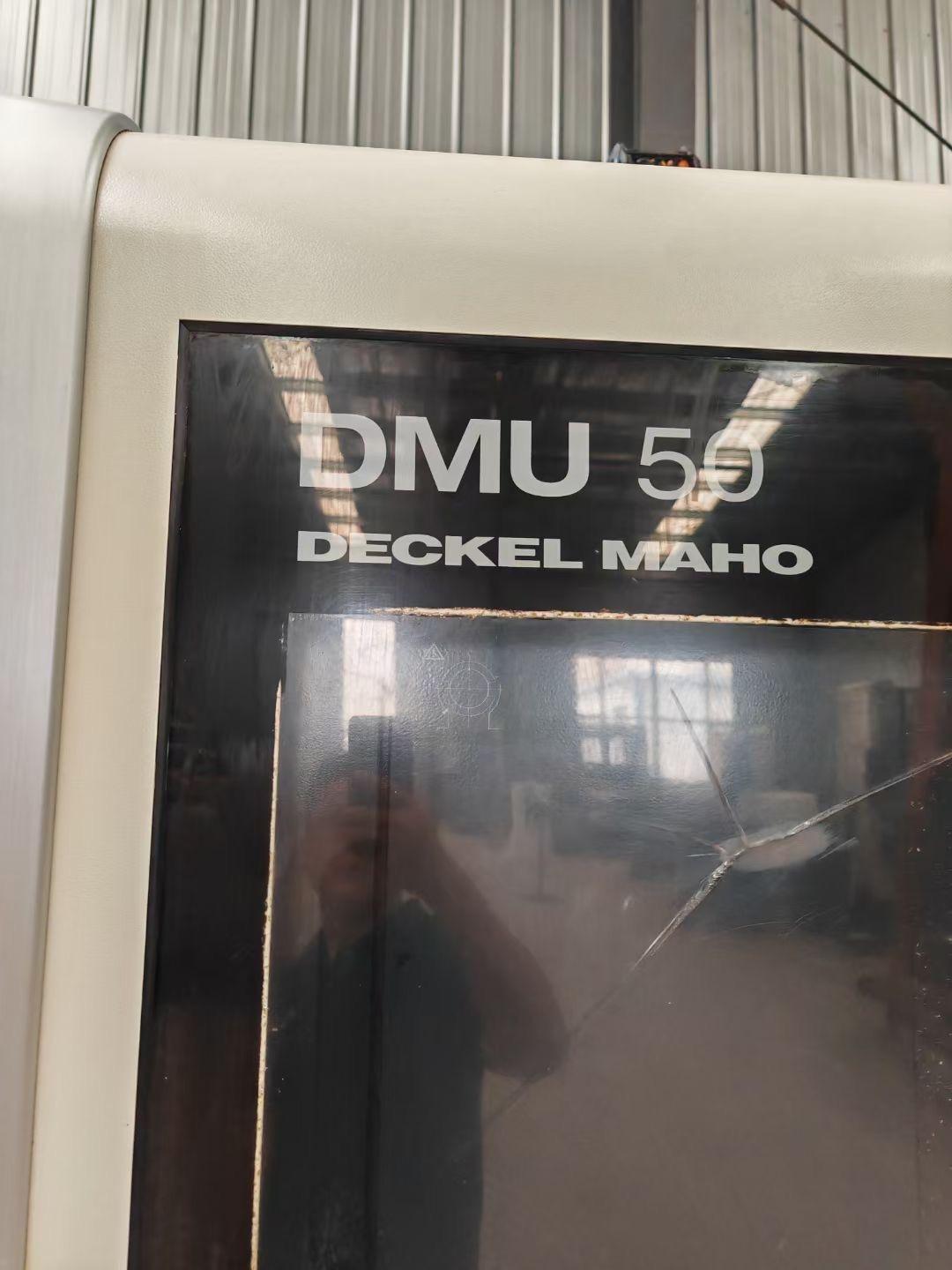

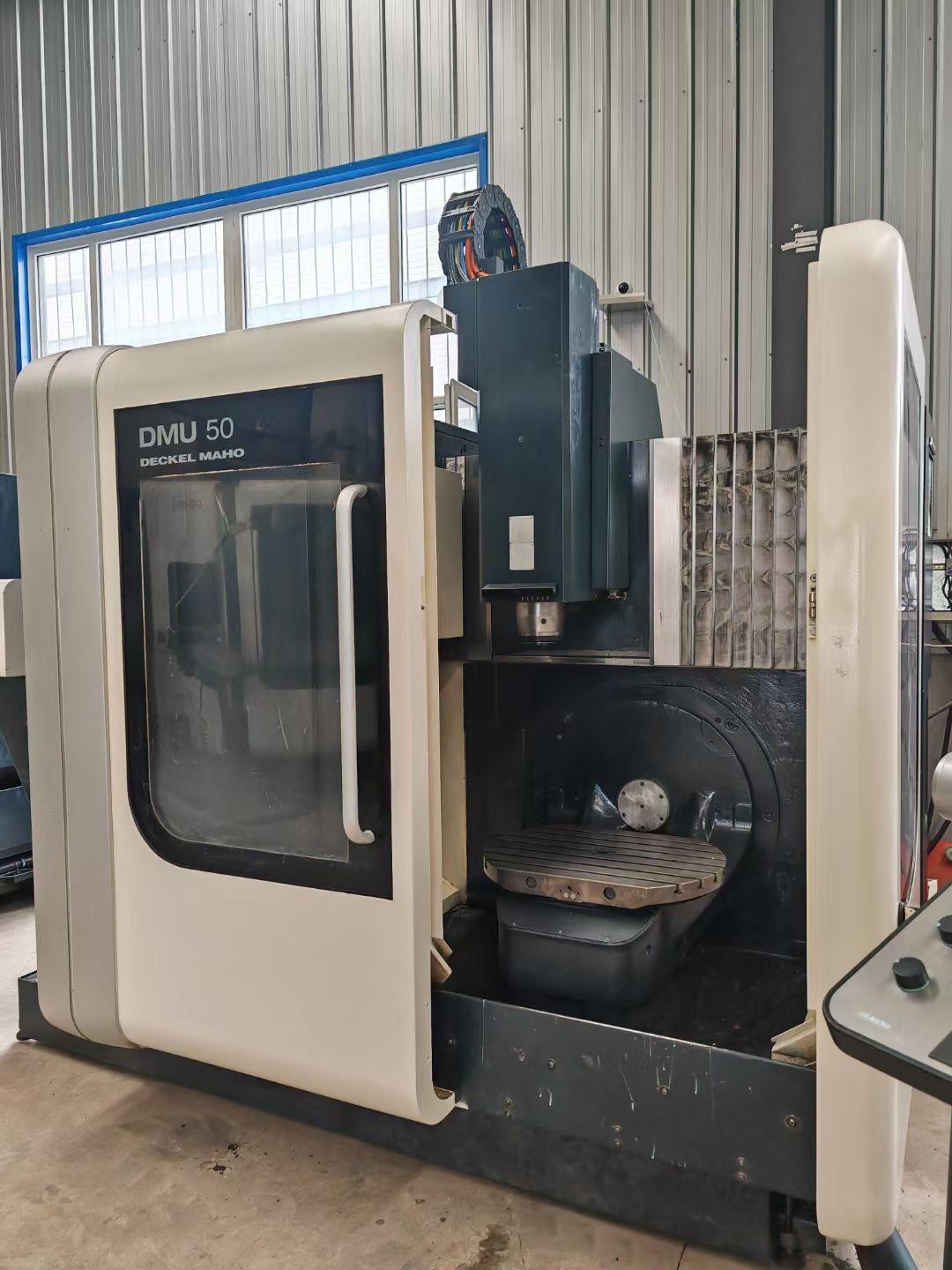

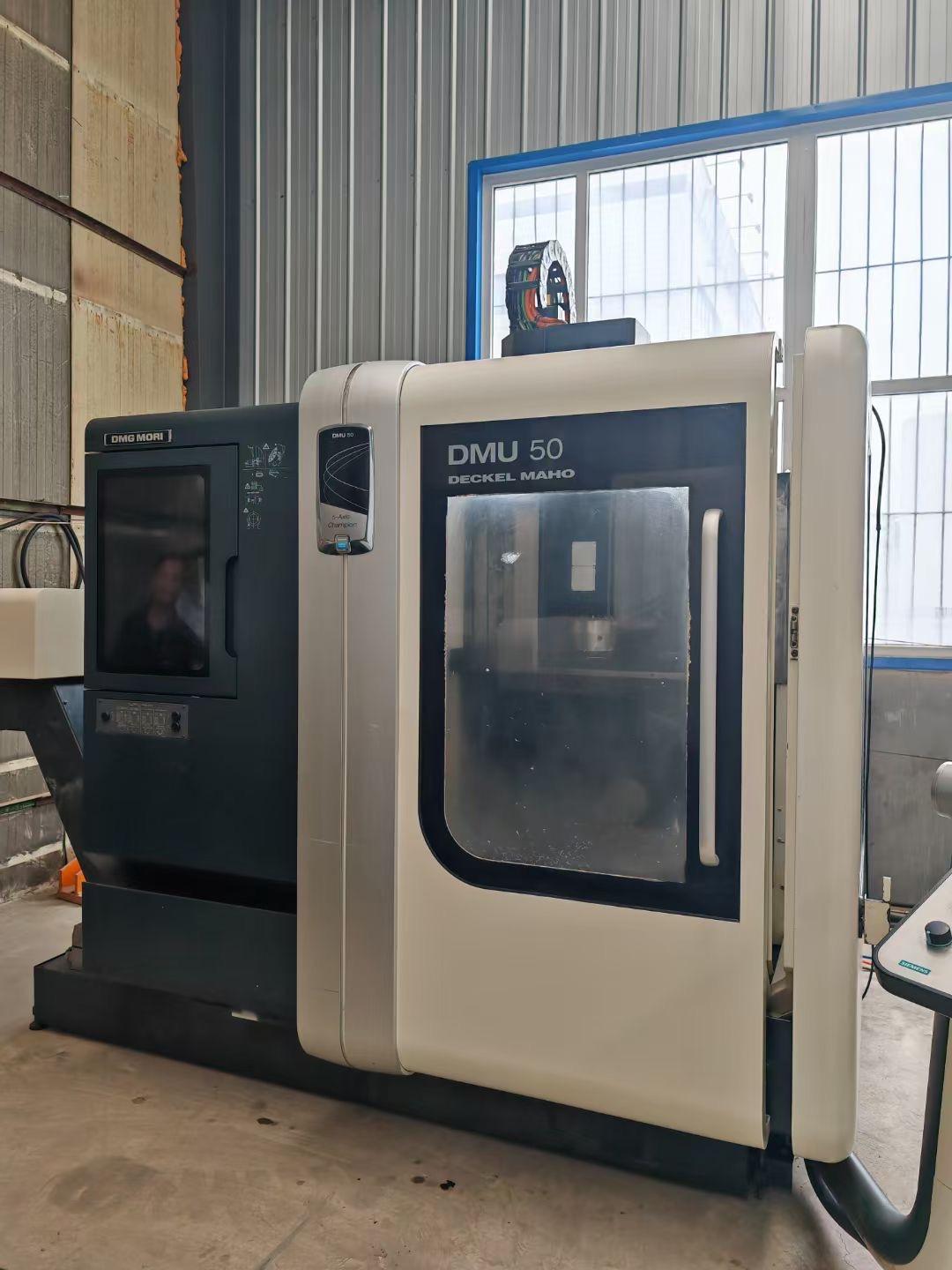

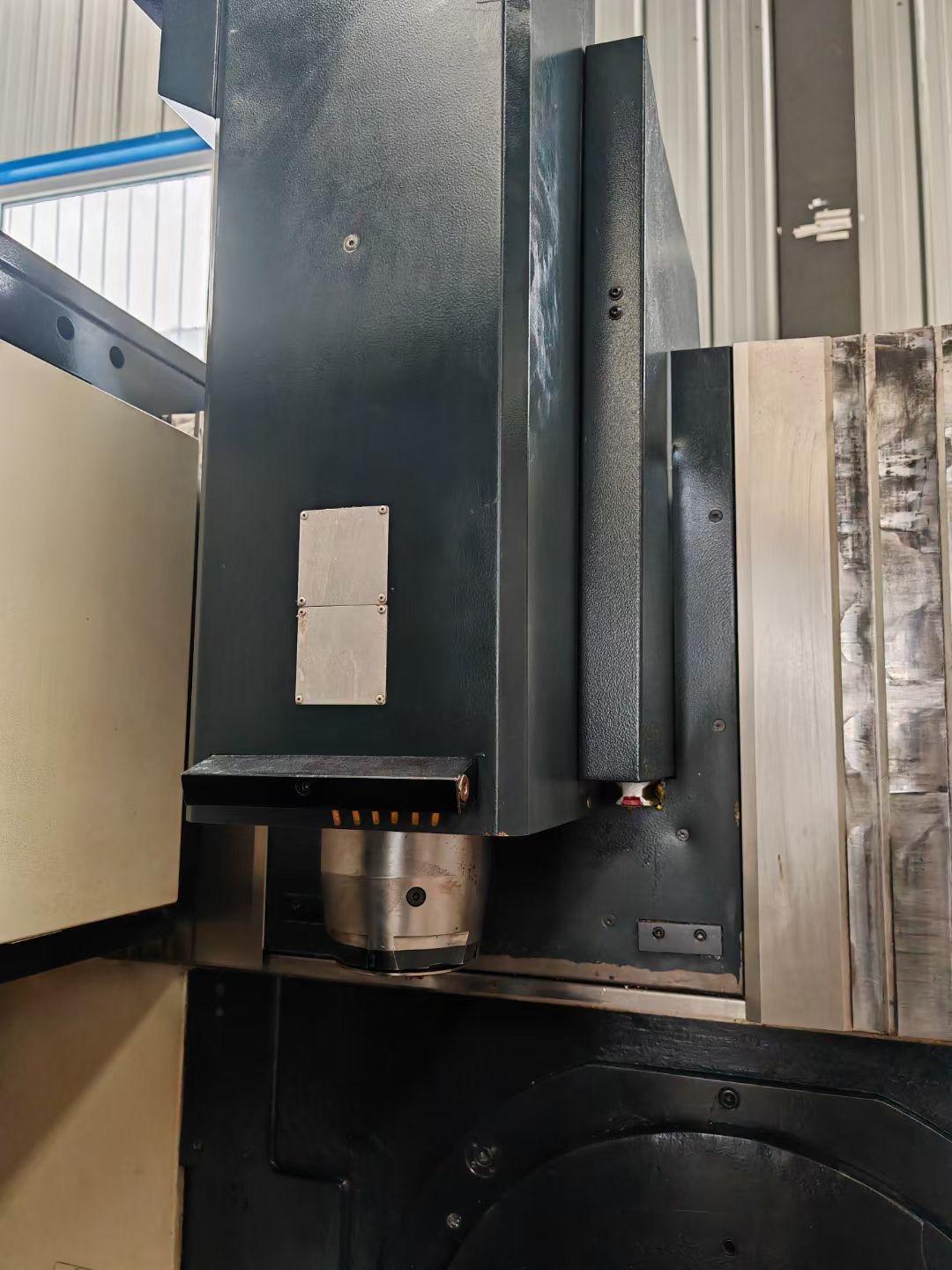

DMG DMU 50 DECKEL MAHO 5 axis machining centre

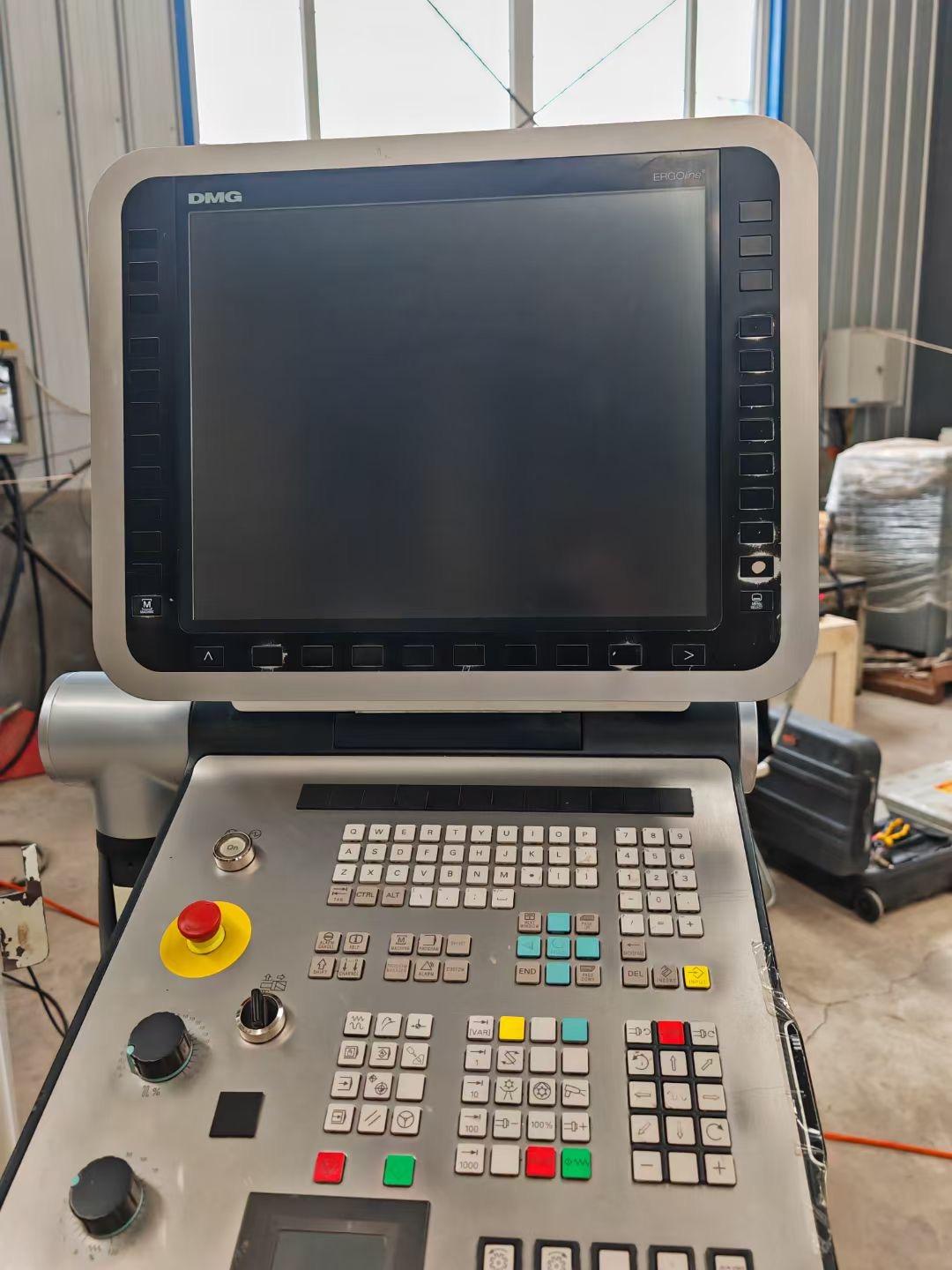

CNC System: Siemens 840D SL Operate
Three-axis travel: 500 × 450 × 400 mm
Three-axis fast traverse: 30 m/min

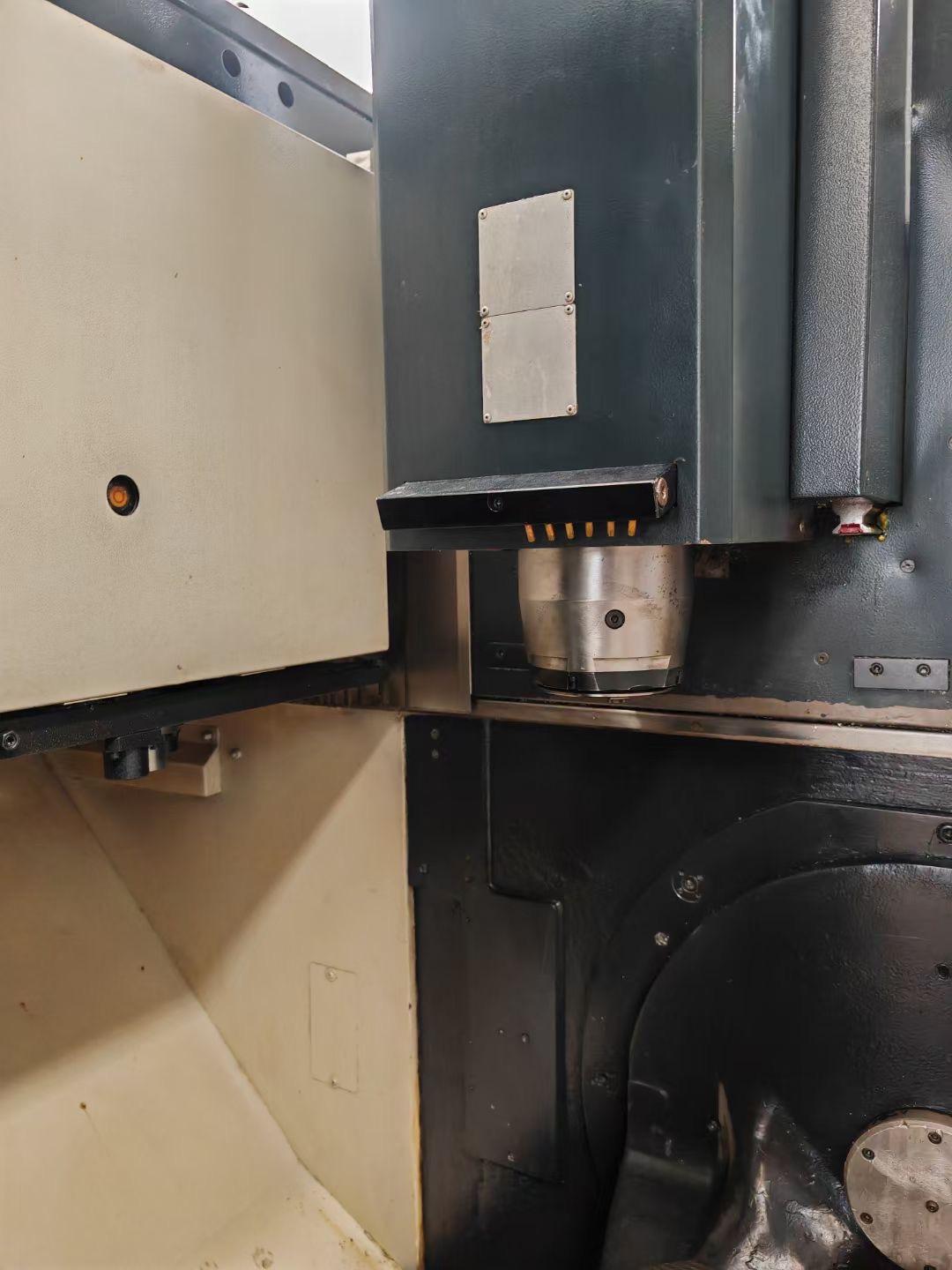

Spindle speed: 20 – 18,000 rpm
Spindle type: SK40
Tool holder: DIN 69871
Power: 35/25 kW / (40/100% DC)
Torque: 130/87 Nm / (40/100% DC)
Magazine capacity: 30

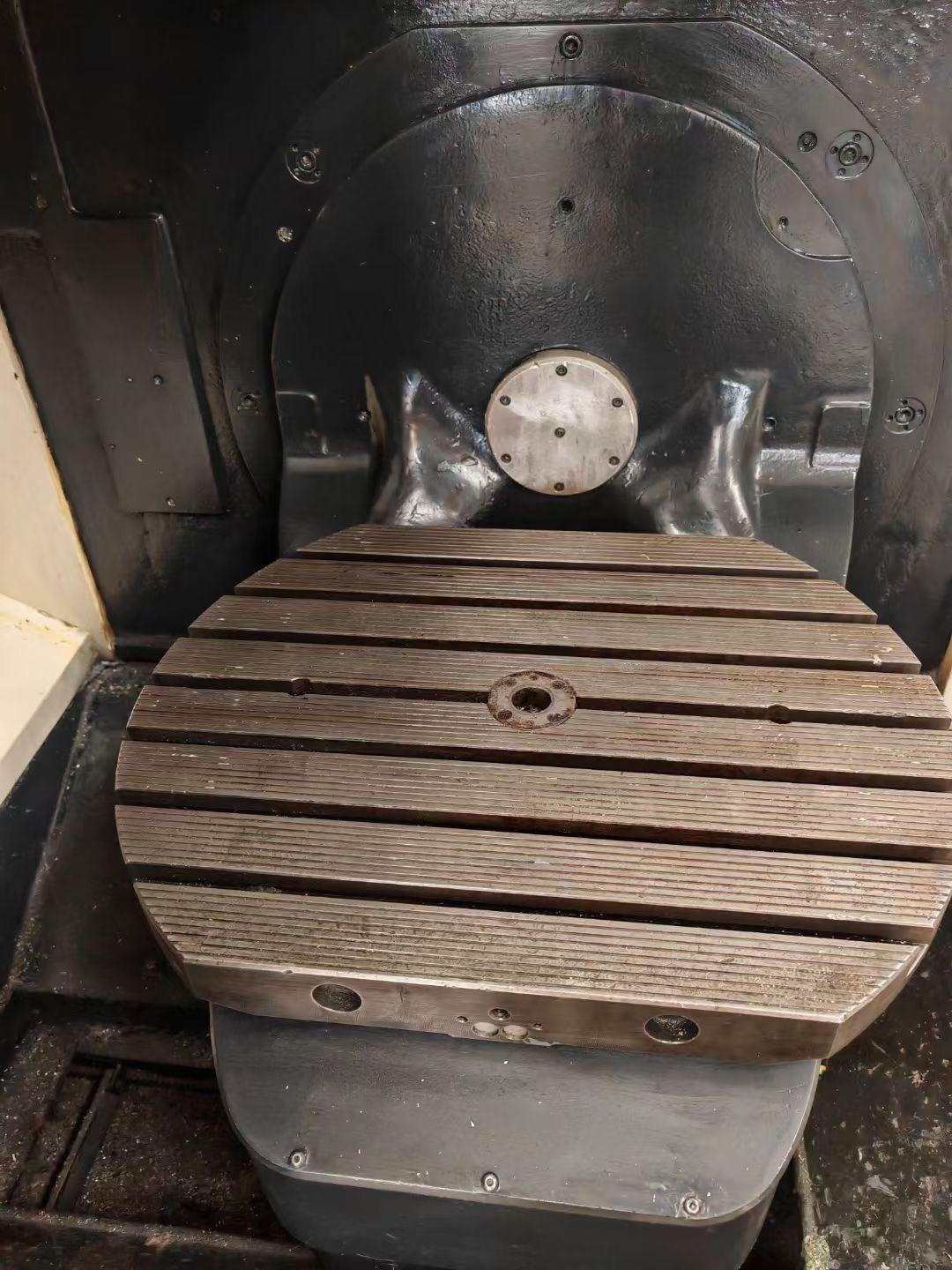

Rotary swing worktable
Diameter of the card mounting surface: 630 × 500 mm
Swing range: -5° to +110°
Rotary shaft: 360°
Configuration：
Includes direct measurement systems for the B-axis and C-axis, as well as machining surface transformation
3-axis glass scale measurement system
Positive pressure air  system
Forced cooling of the electrical cabinet
Electronic handwheel
Water gun
Chip conveyor
Infrared probe function (probe not included)
3D QuickSET: Control and compensate for the motion characteristics of 5-axis machine tools (excluding hardware)
