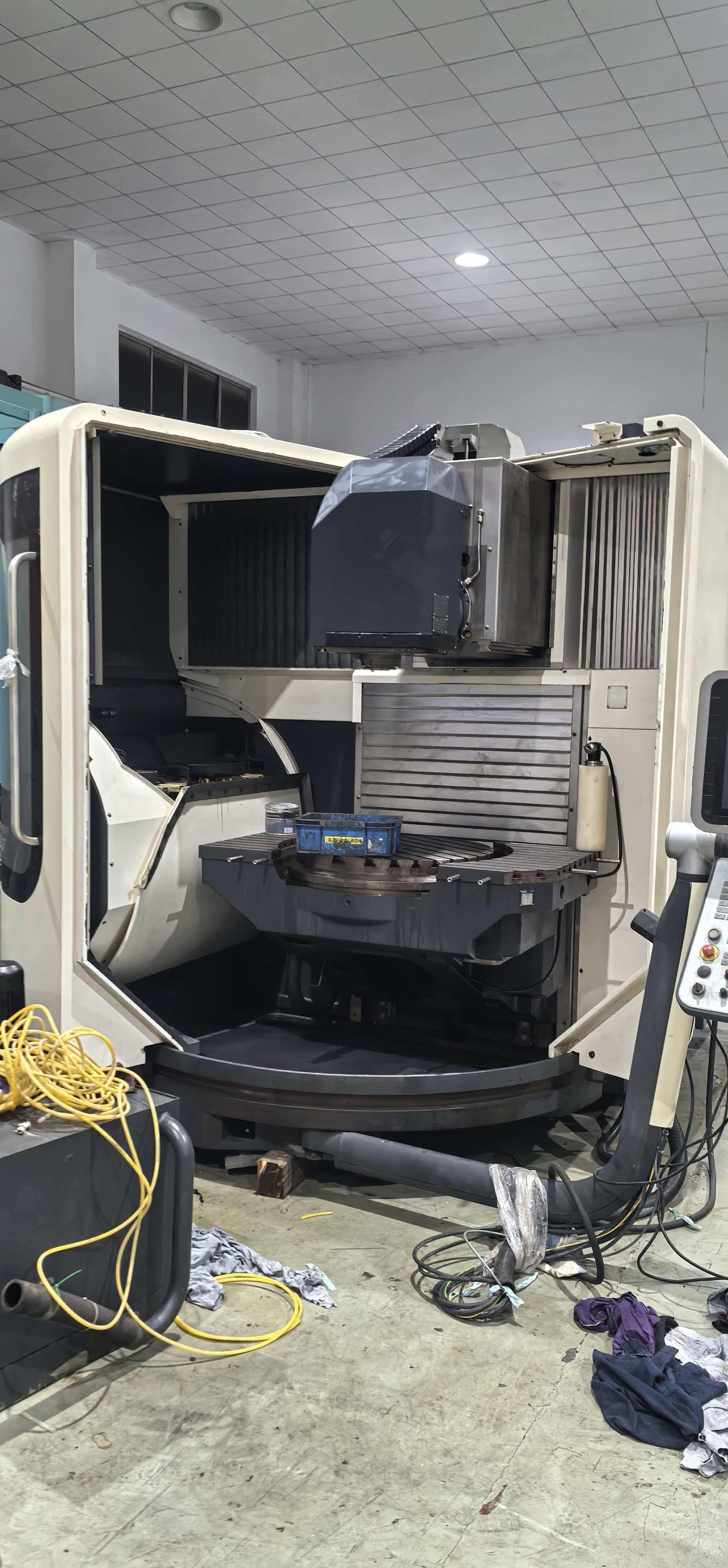

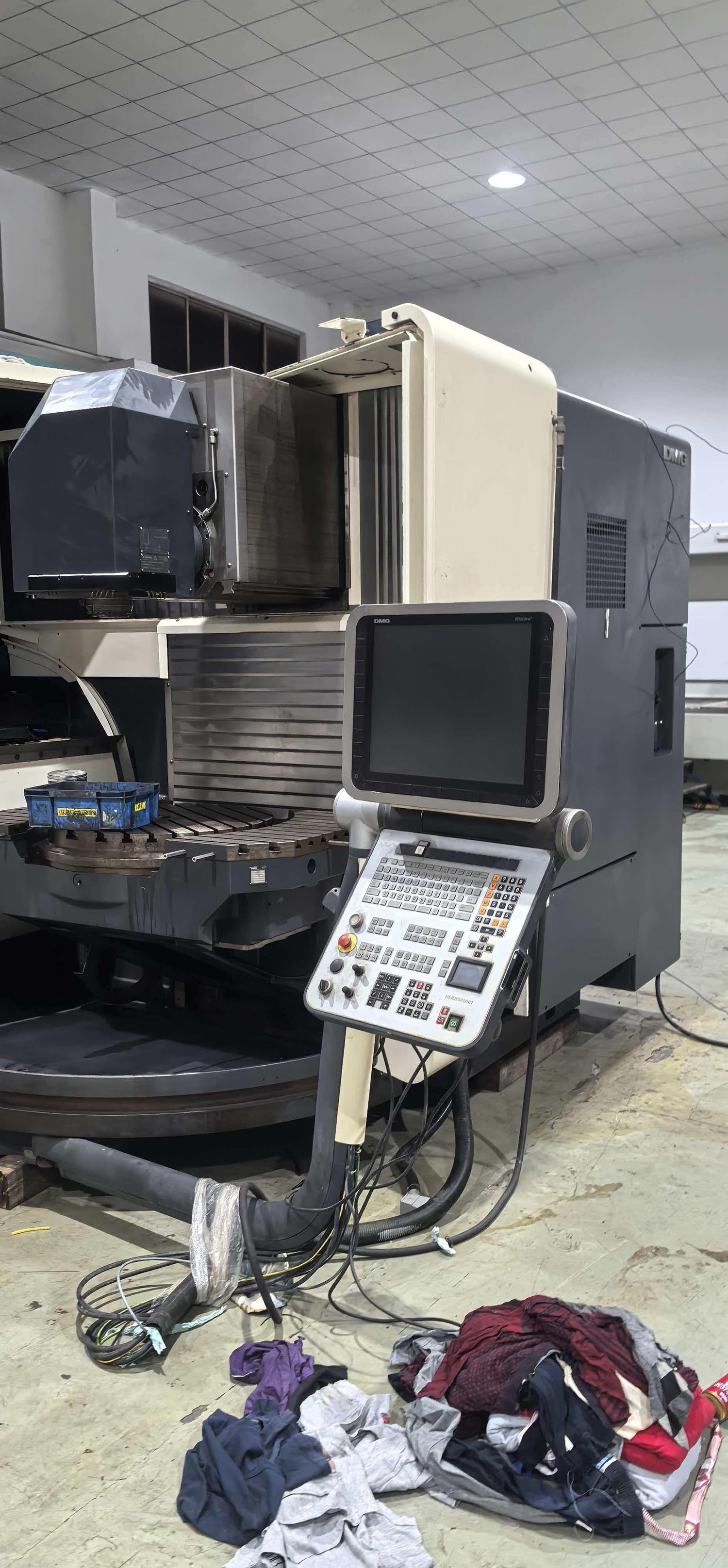

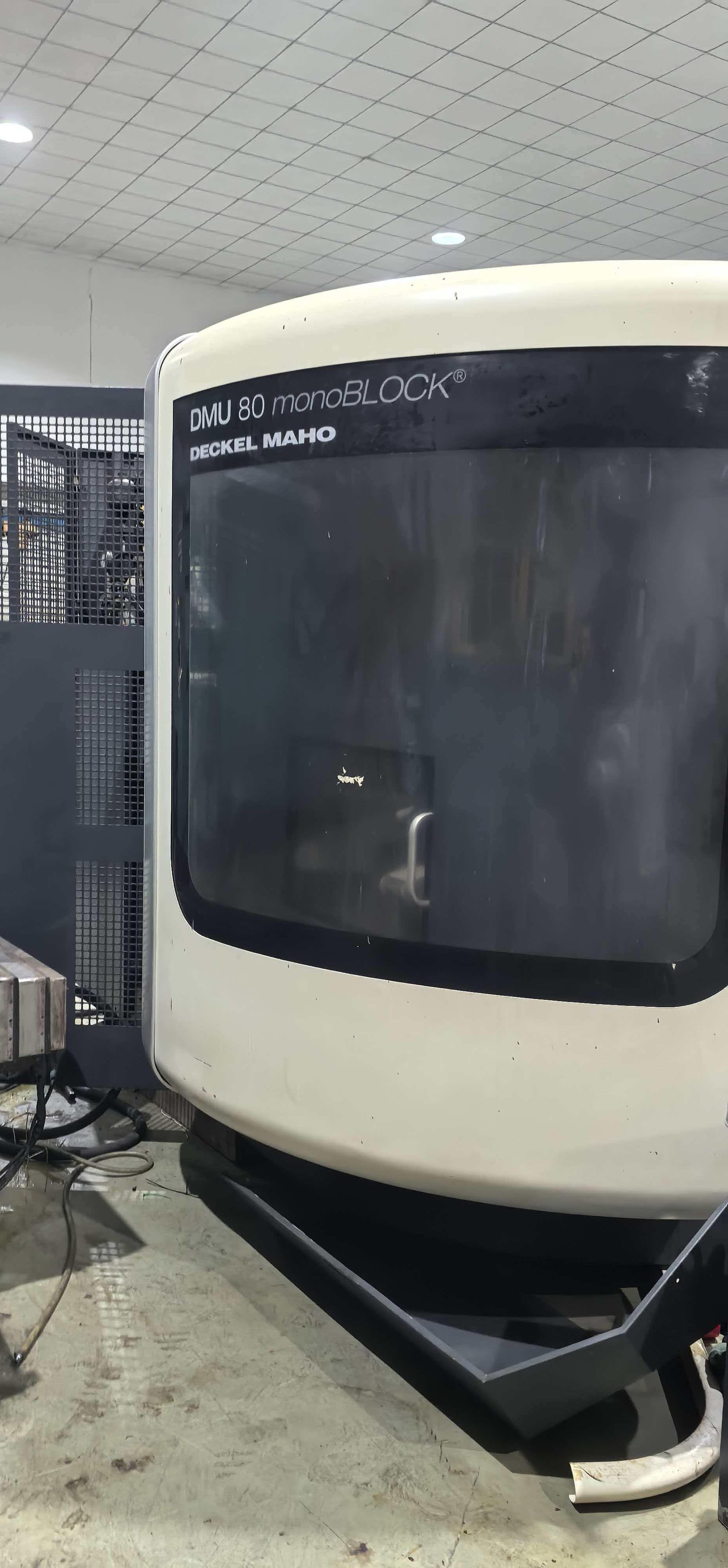

DMG DMU 80 monoBLOCK 5 axis machining centre

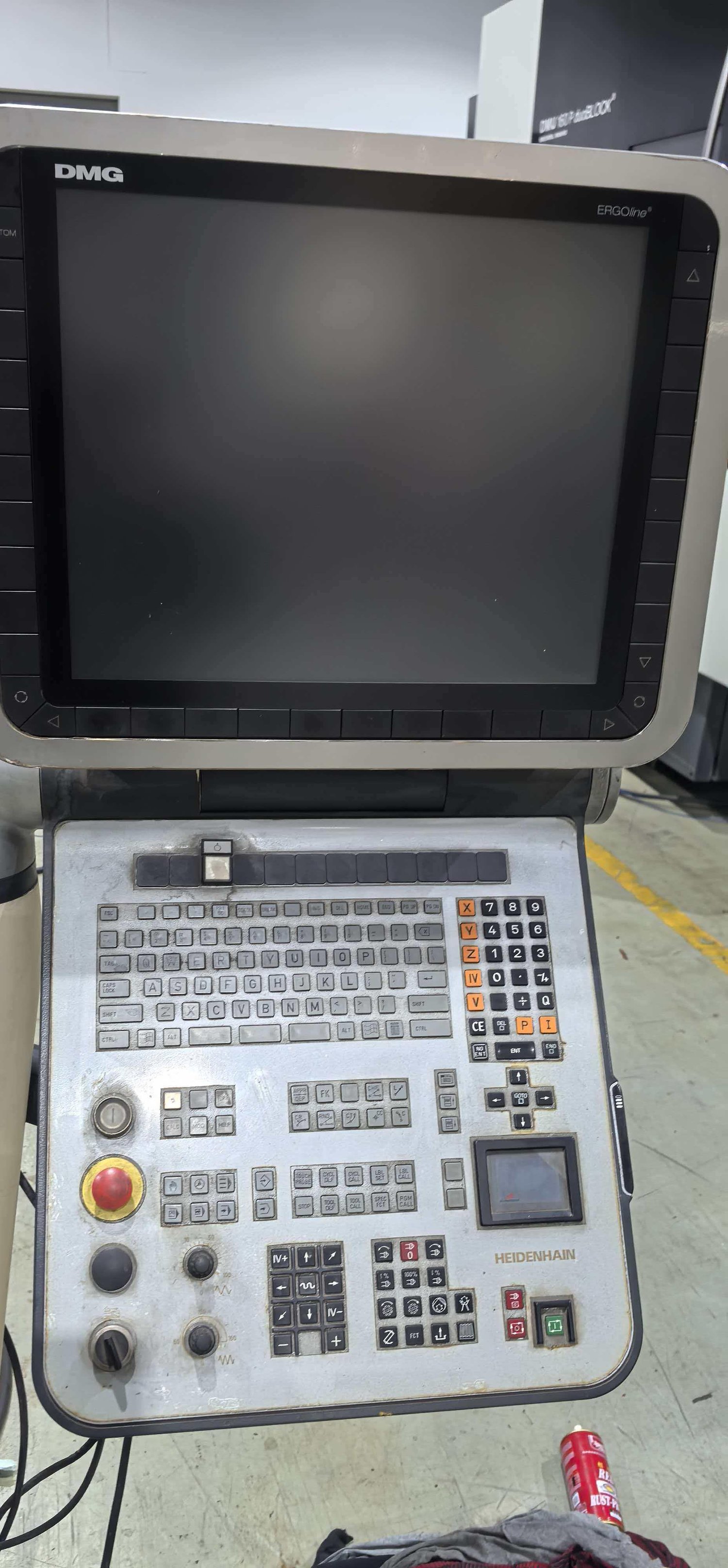

CNC System: Heidenhain
Three-axis travel: 980 × 630 × 630 mm
B-axis swing range: -120° to +30°
C-axis travel: 360°, continuous indexing

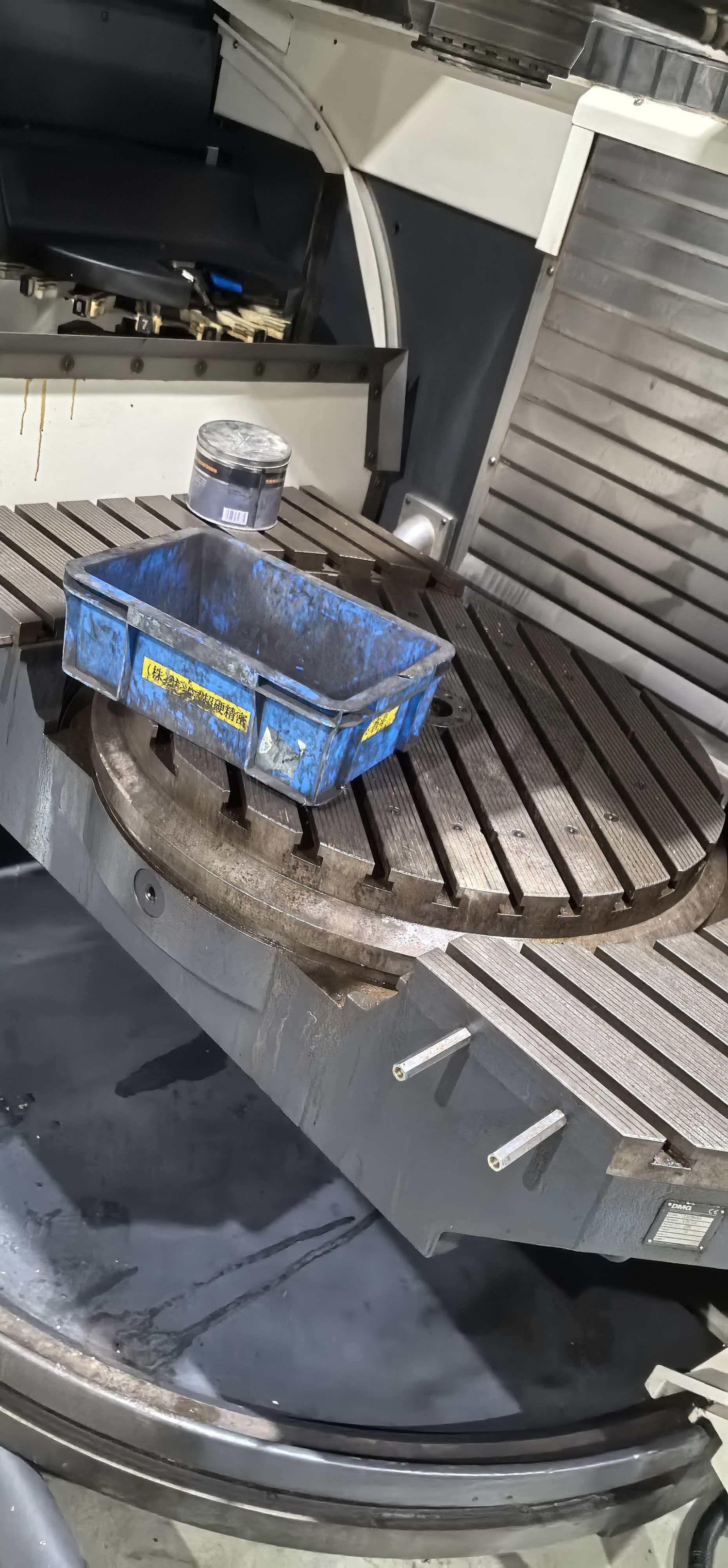

Worktable size: 1250 × 700 mm
Rotary worktable diameter: φ700 × 1250 mm
Maximum clamping weight: 650 kg

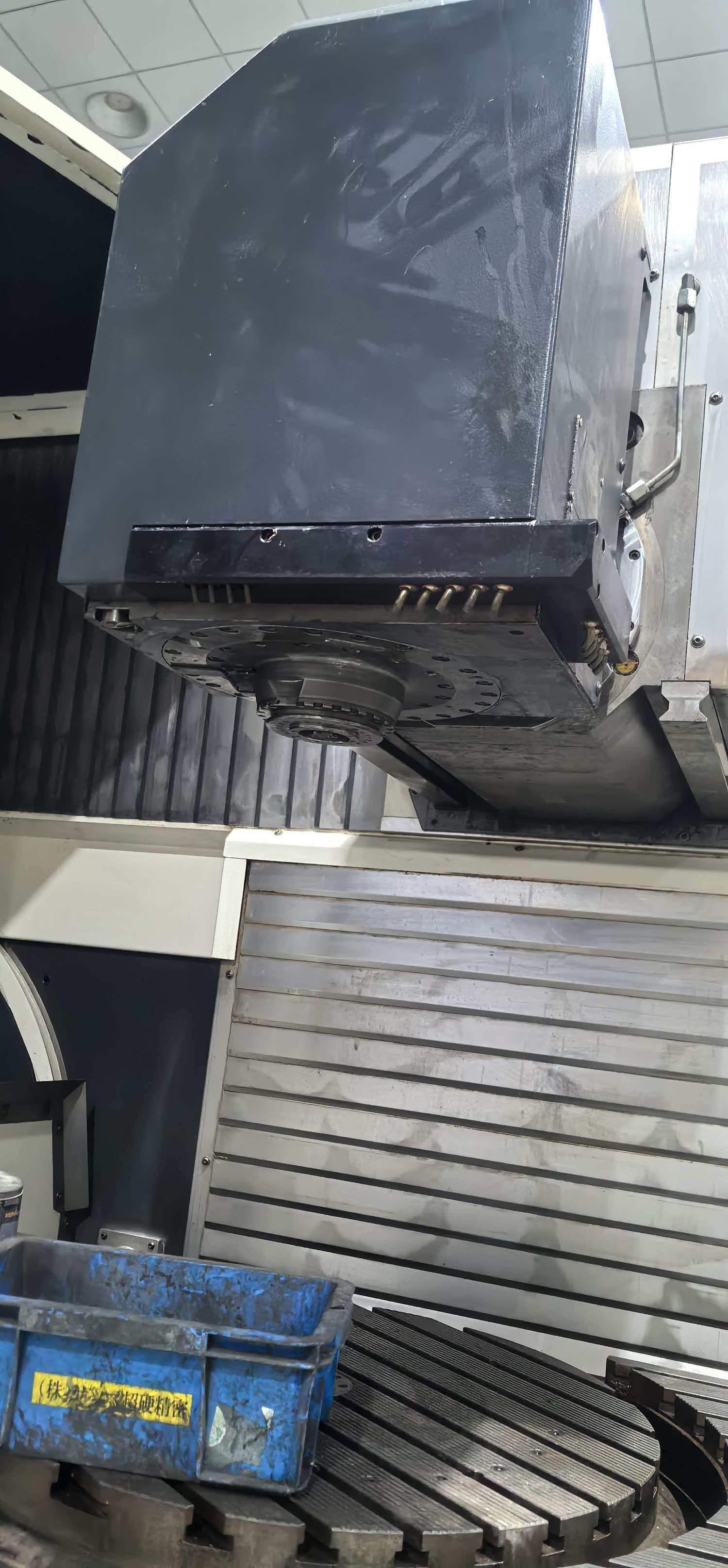

II. Spindle System
Standard spindle speed: 18,000 rpm
Tool holder: HSK - A63
Spindle power: 14.9 kW (approximately 20.2 HP)
Fast moving rate (X/Y/Z): 50 m/min

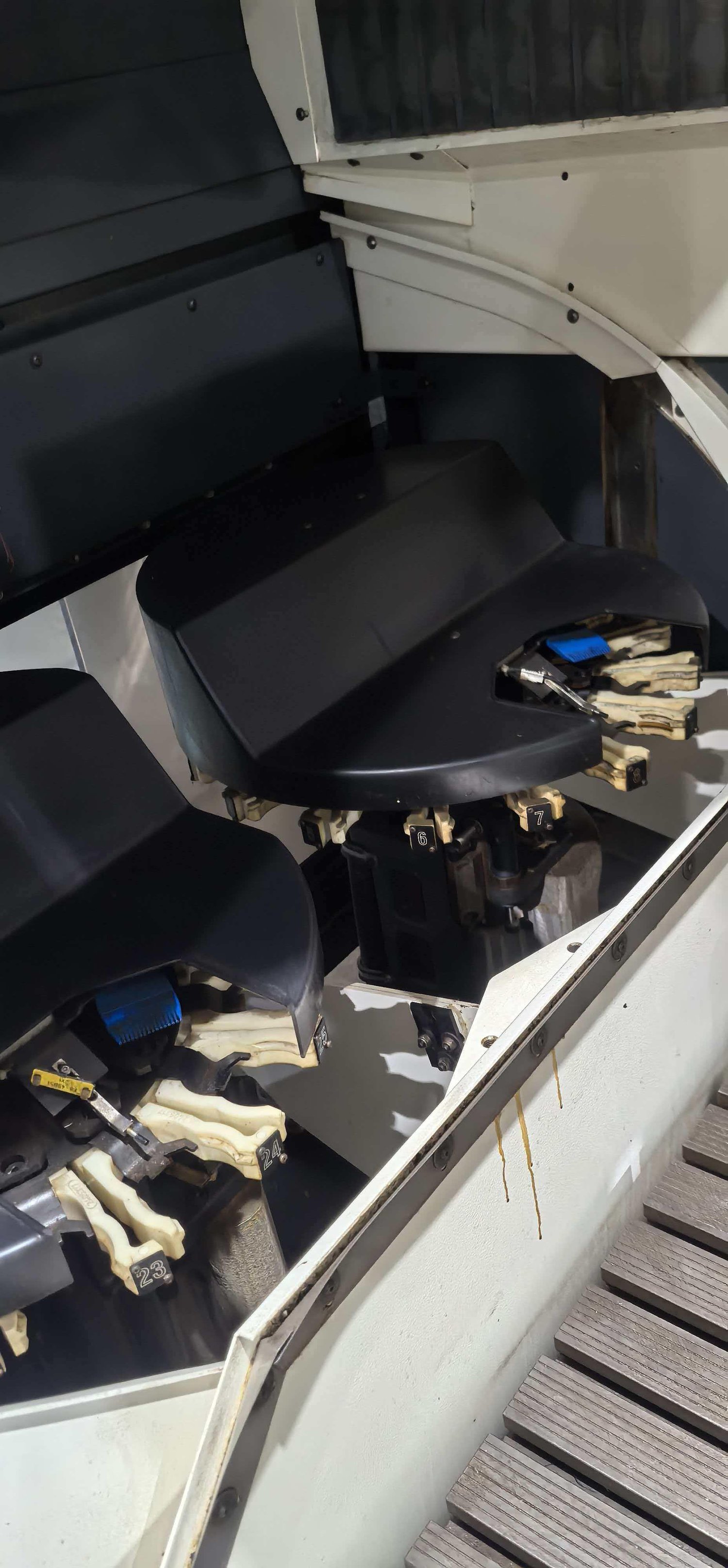

III. Tool Magazine and Tools
Standard magazine capacity: 32 tools (60-tool chain-type magazine available as an option)
Maximum tool length/diameter/weight: 315 mm / 130 mm (empty tool position) / 8 kg
IV. Precision and Drive
Guideway Linear roller guideway with full-axis glass scales (resolution: 0.001 mm)
Acceleration: Standard 0.7g, suitable for high-speed mold machining

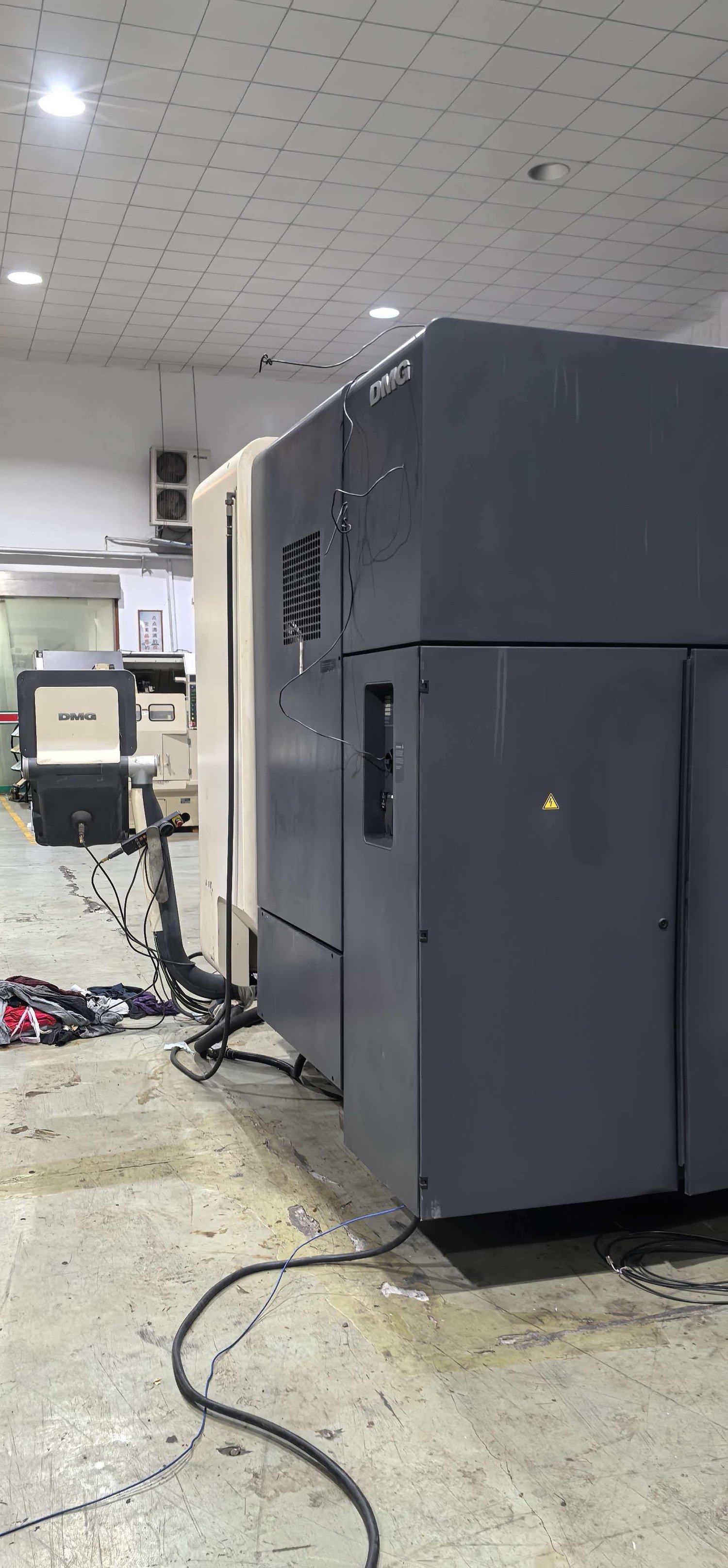

V. Overall Machine Specifications
Machine dimensions: 3900 × 2400 × 2900 mm
Machine weight: approximately 9,000 to 9,600 kg
