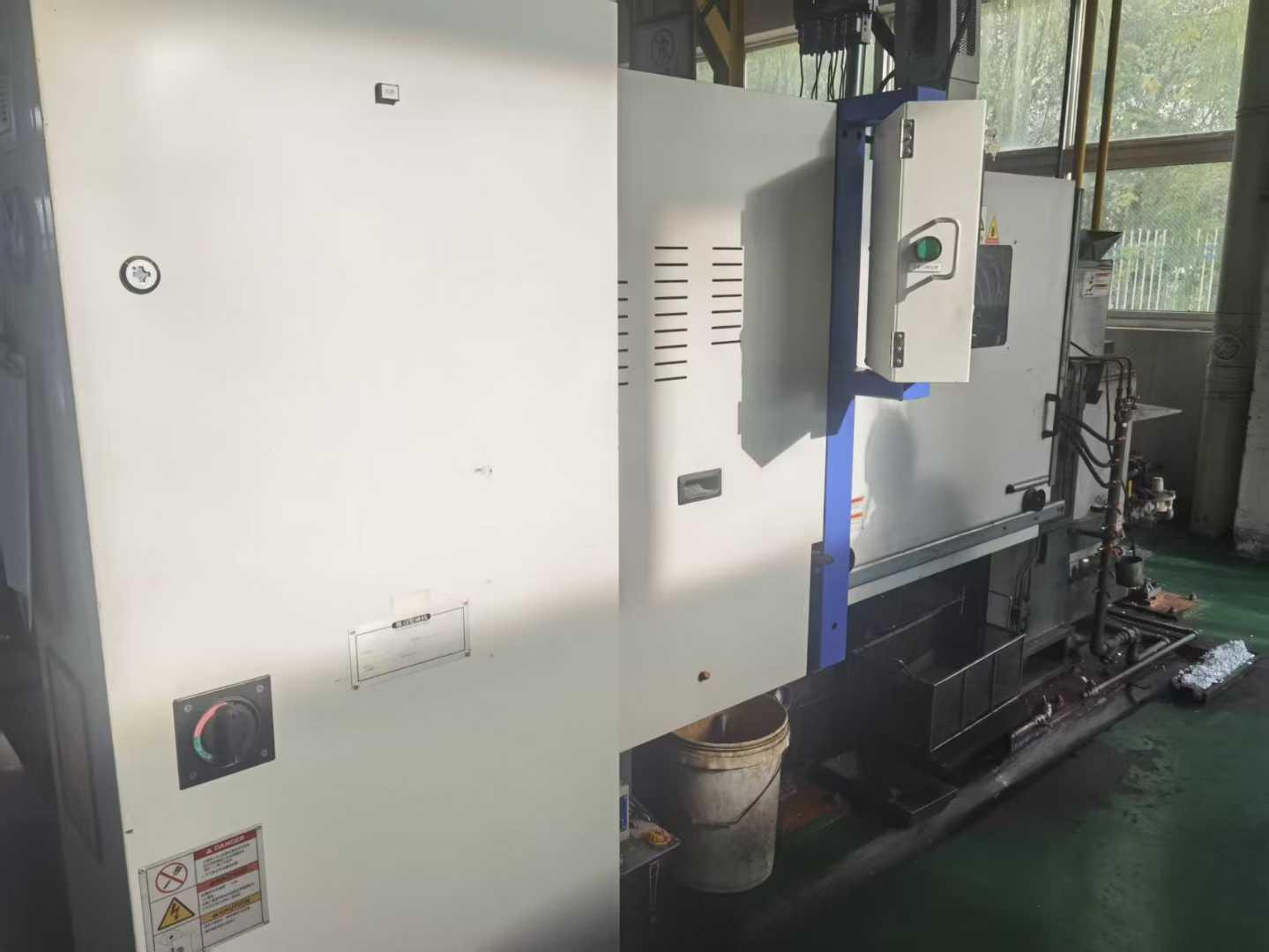

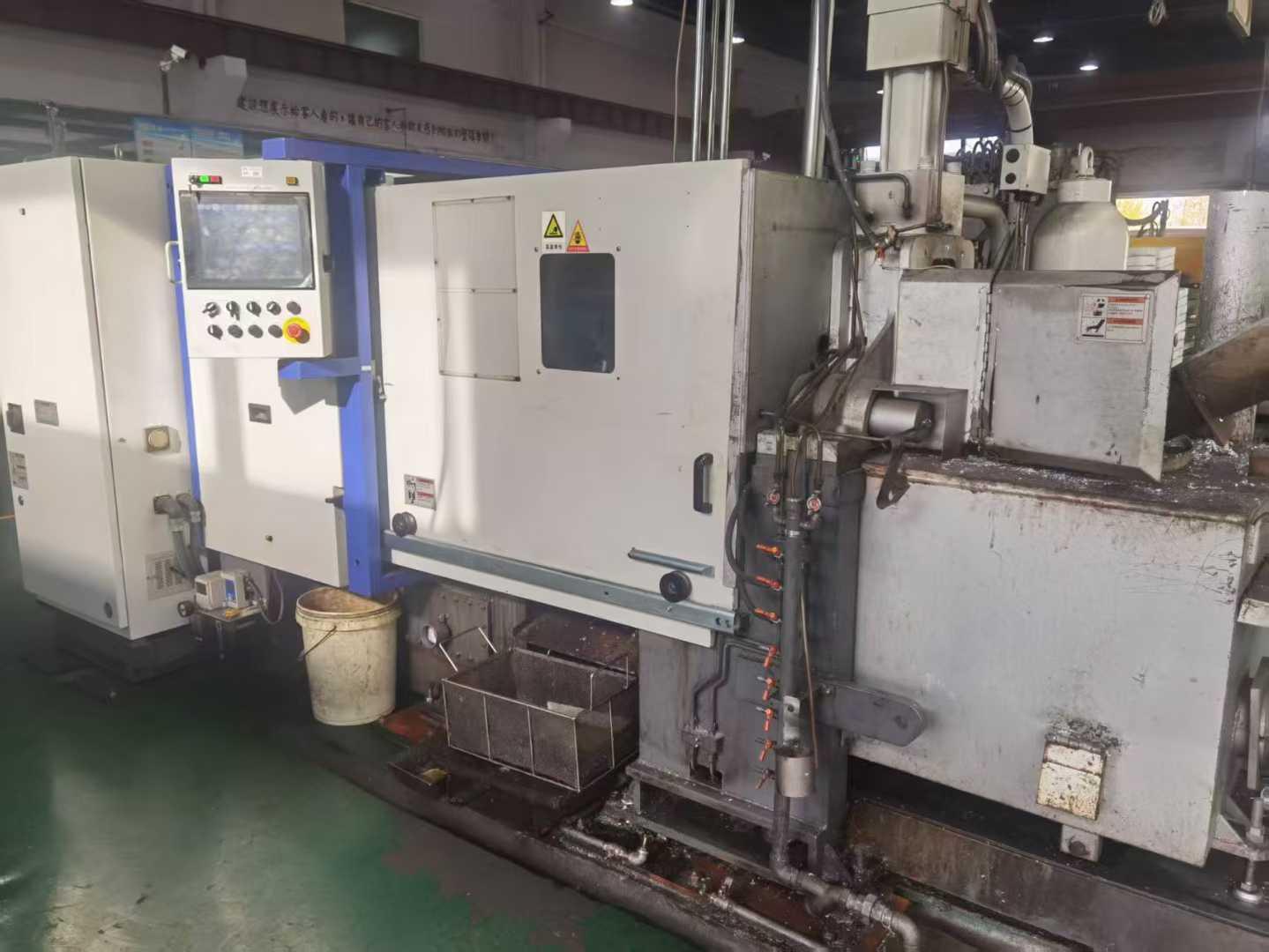

HISHINUMA CX100F3 other

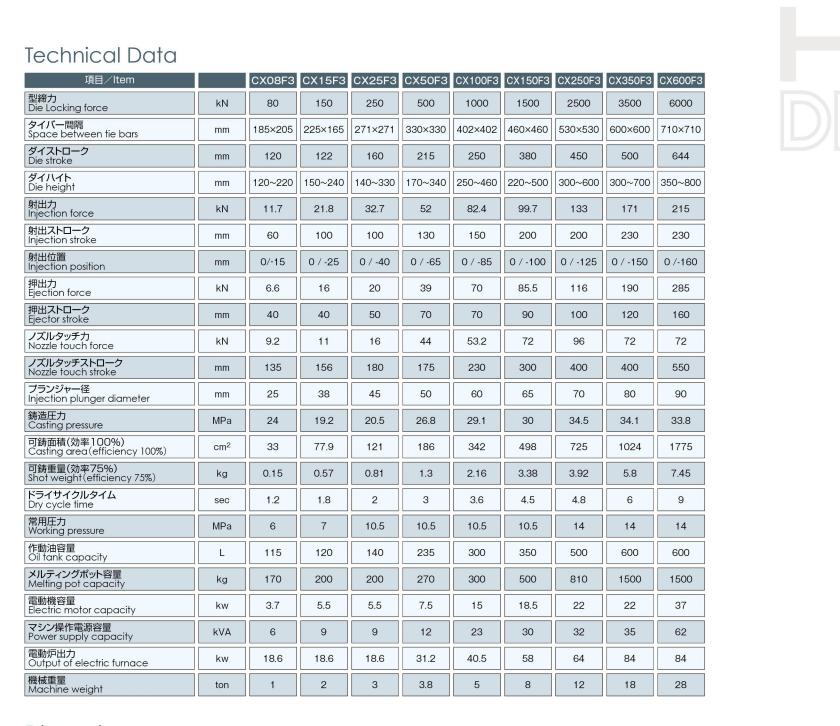

Clamping Force: 1000 kN
Template Size: 402 × 402 mm
Pull Rod Spacing: 250 mm
Injection Travel: 82.4 mm
Mold Travel: 250 – 460 mm
Mold Height: 150 mm
Top Force: 0/100 MPa
Ejection Travel: 70 mm
Injection Force: 53.2 kN
Injection Stroke: 53.2 mm
Injection Plunger Diameter: 60 mm
Injection Pressure: 29.1 MPa
Cooling Area (Efficiency 100%): 342 cm²
Die-Casting Capacity (Efficiency 75%): 2.16 kg
Dry Cycle Time: 3.6 seconds
Working Pressure: 10.5 MPa
Oil Tank Capacity: 300 L
Total Melting Capacity: 300 kg
Motor Capacity: 15 kW
Power Supply Capacity: 23 kVA
