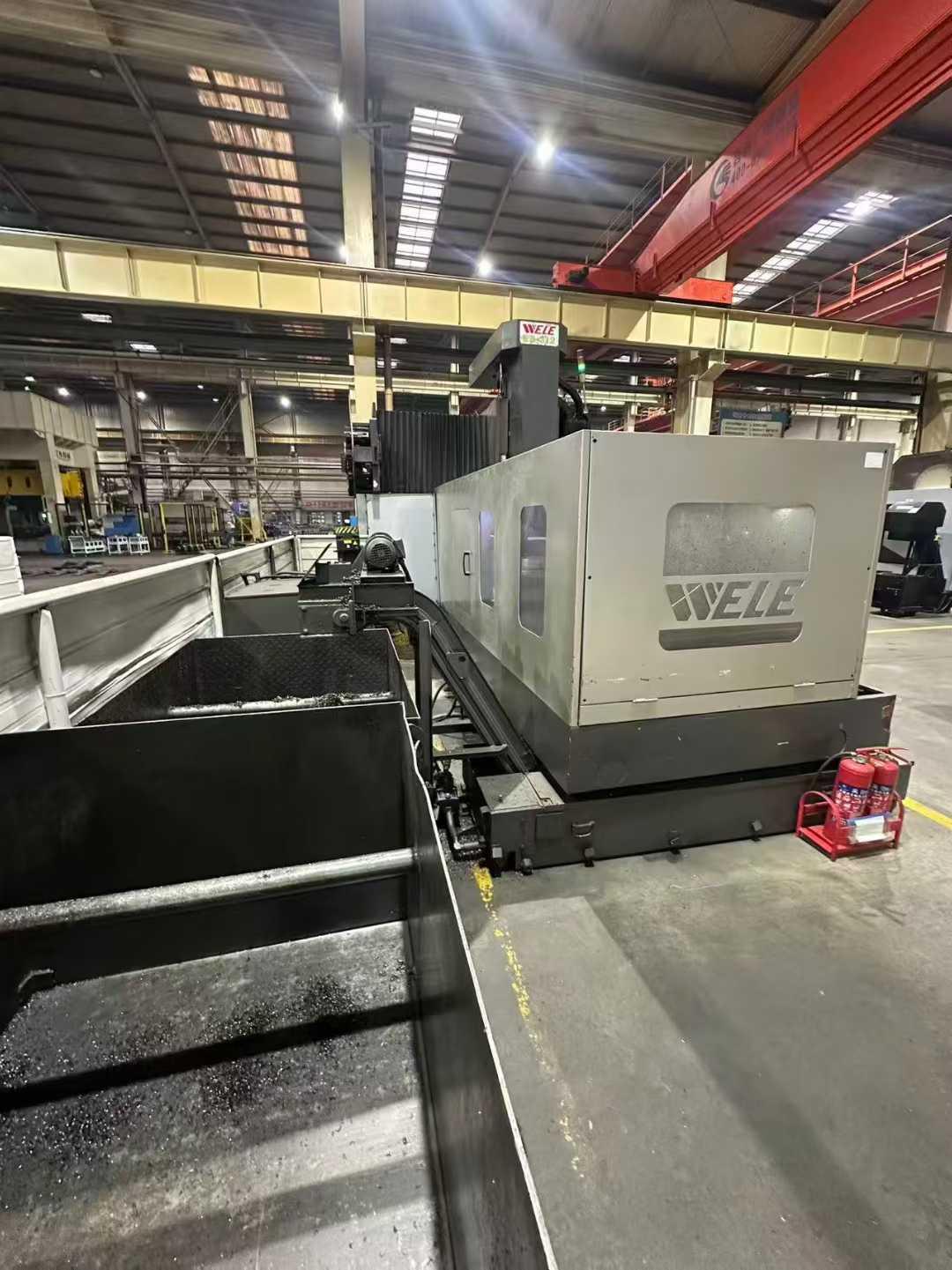

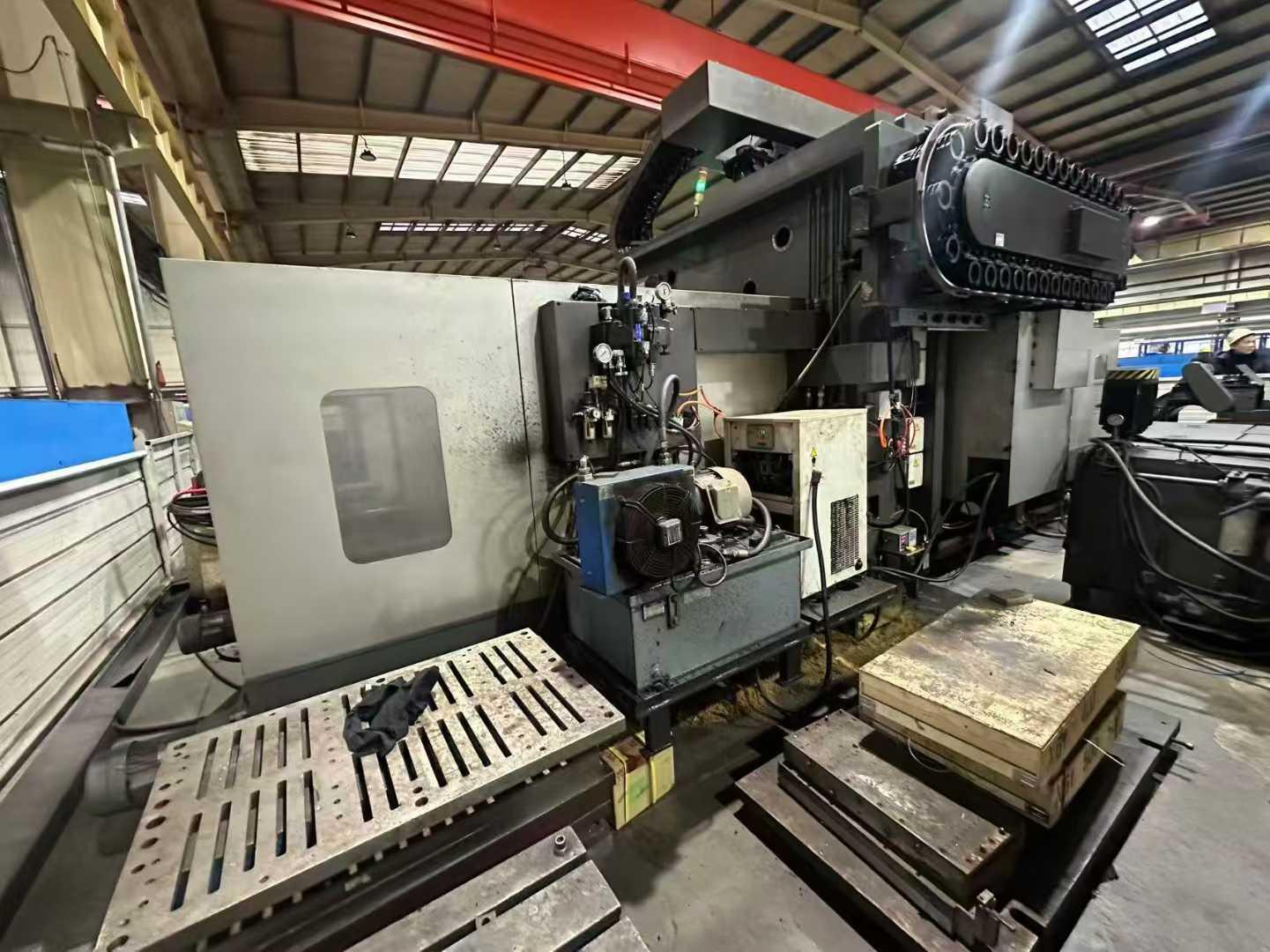

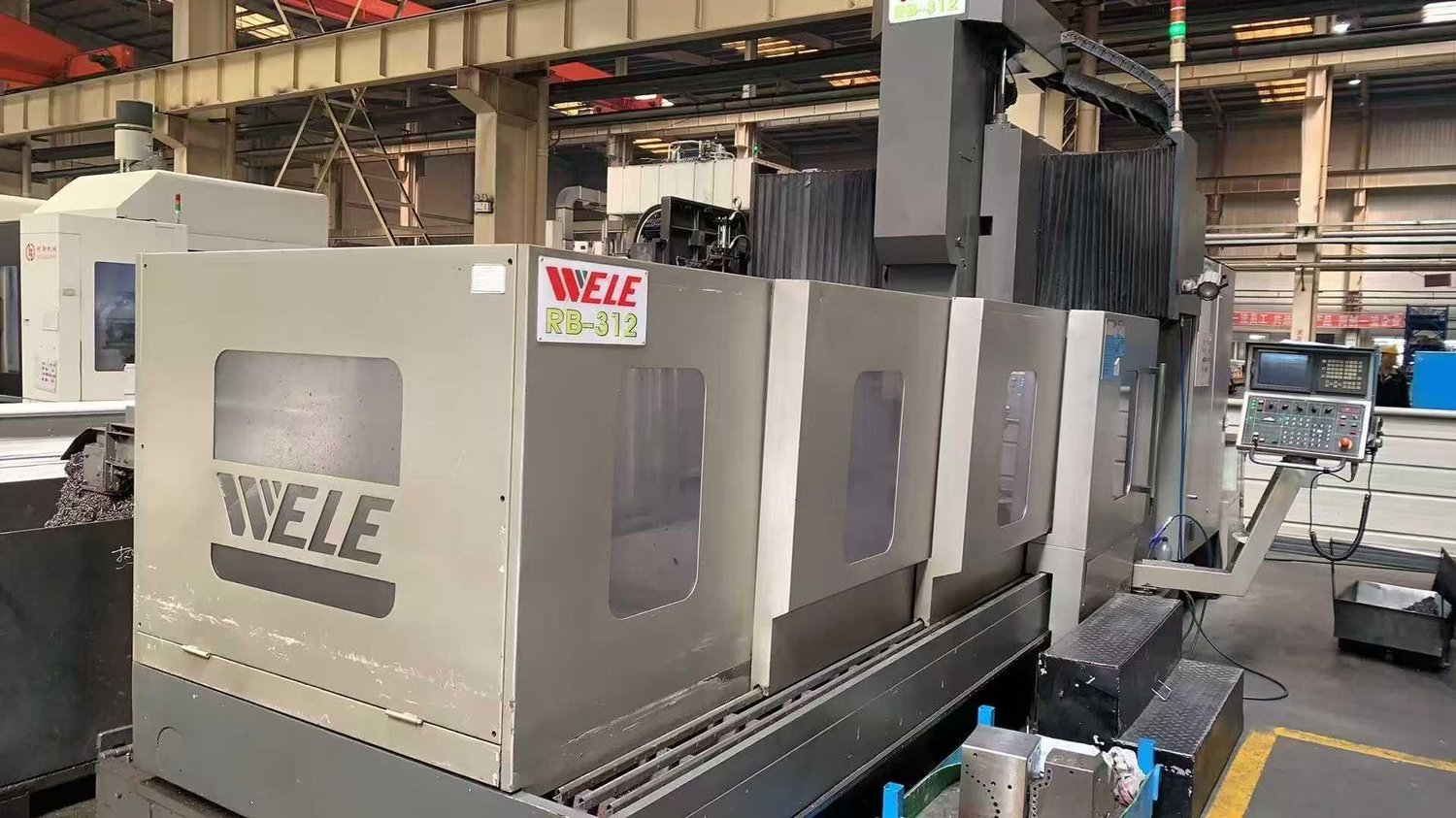

WELE RB-312 Gantry machining centre

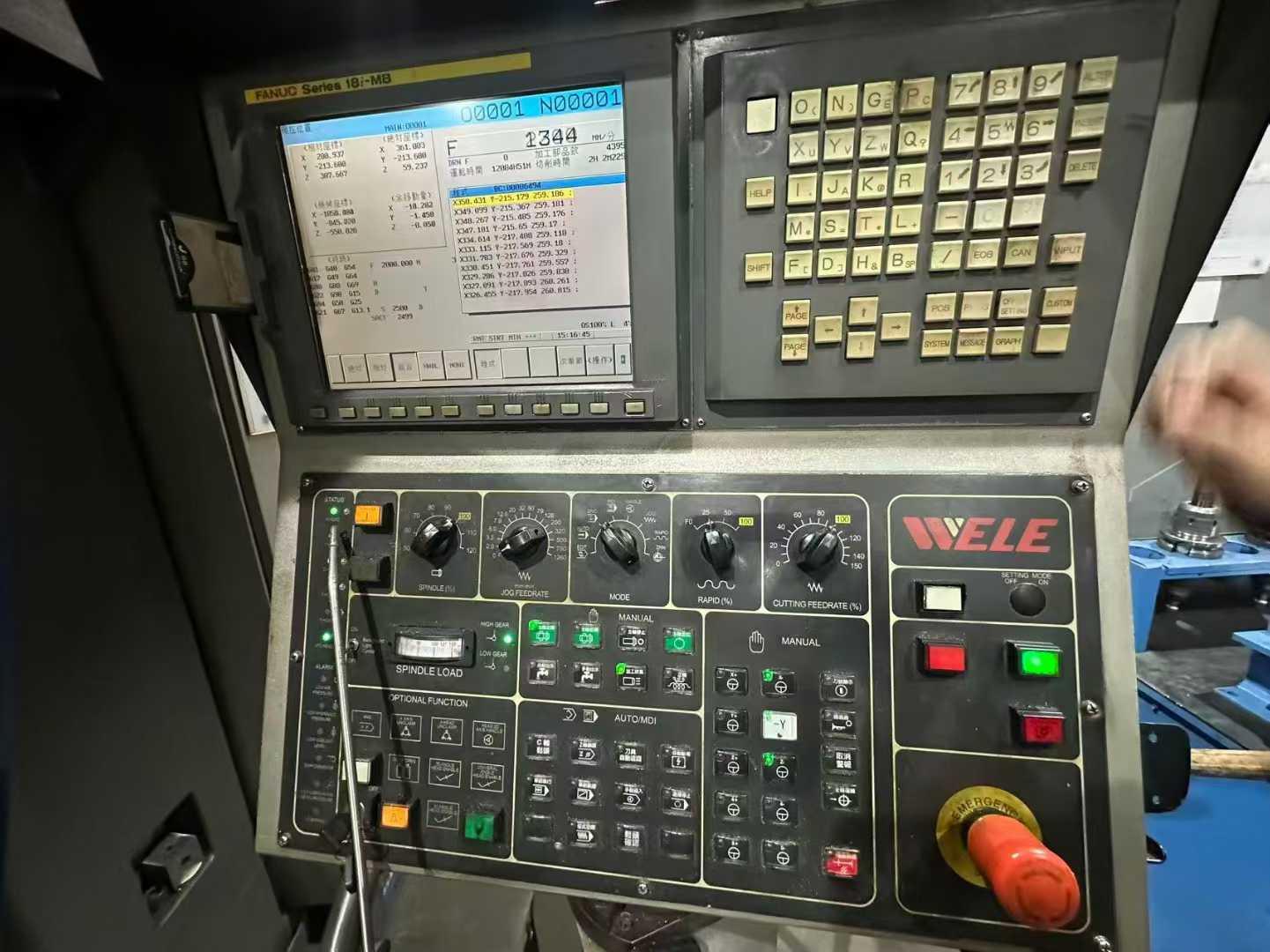

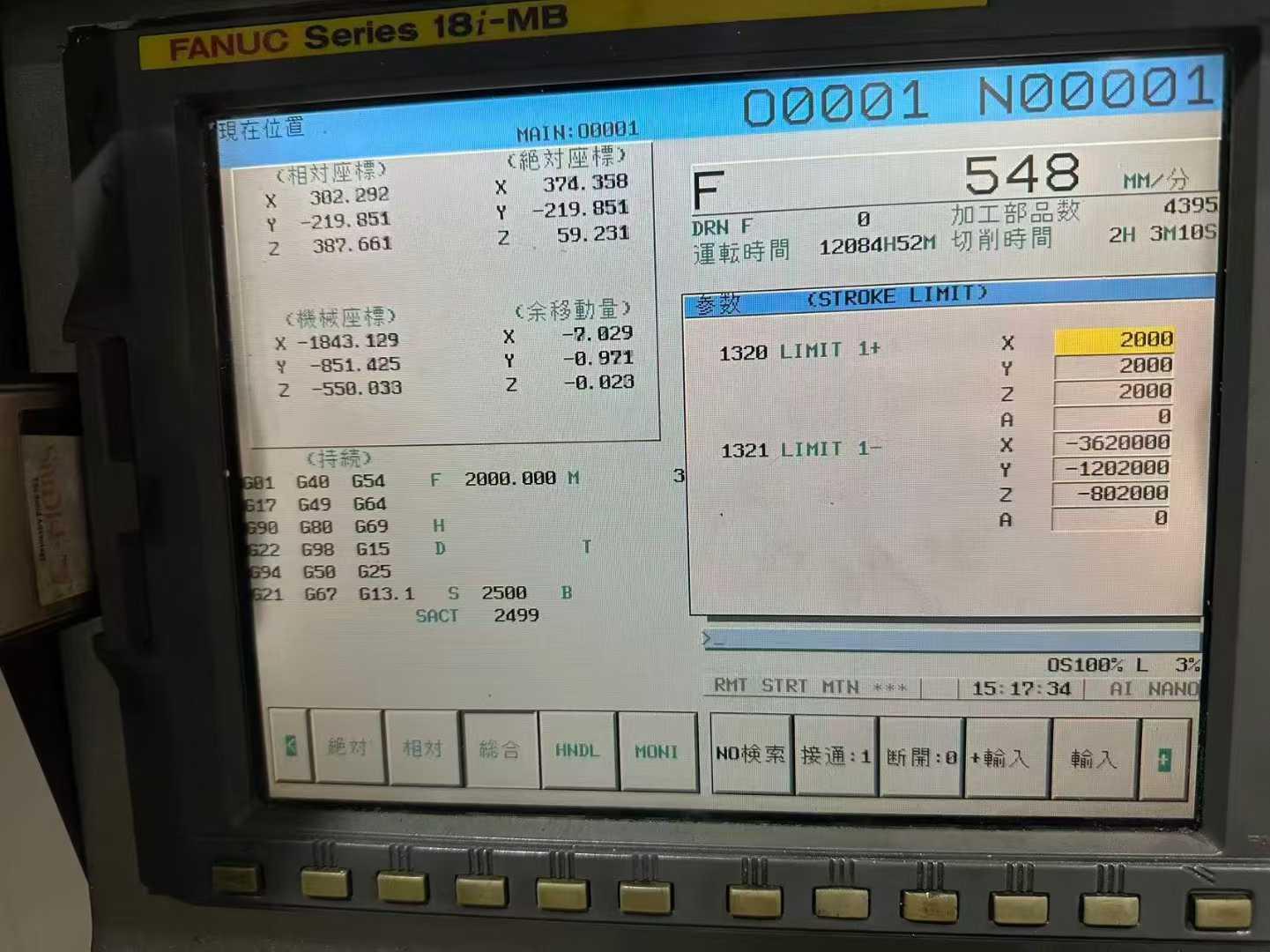

CNC System: FANUC 18i-MB

X-axis travel: 3060mm

Y-axis travel: 1200mm

Z-axis travel: 800 mm

Distance from spindle nose to workWorktable surface: 150-950mm

Distance between the two columns: 1300mm

WorkWorktable size: 3000x1100mm

spindle: BT50

Spindle speed :10-6000rpm

spindle maximum torque (continuous /30 minutes) : 426/526Nm

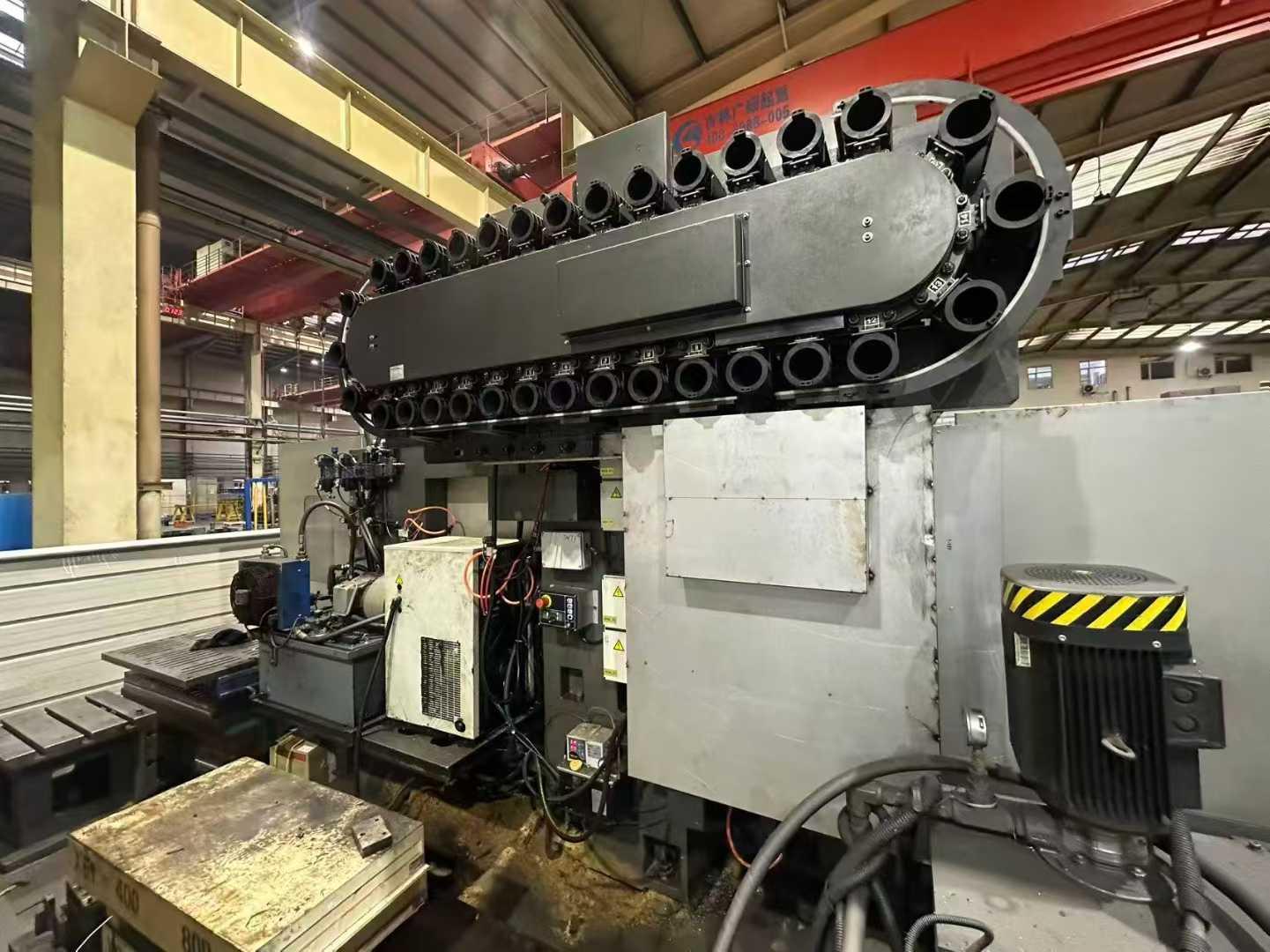

tools magazine: 32 sets

The weight of machine tool is approximately 22 tons
