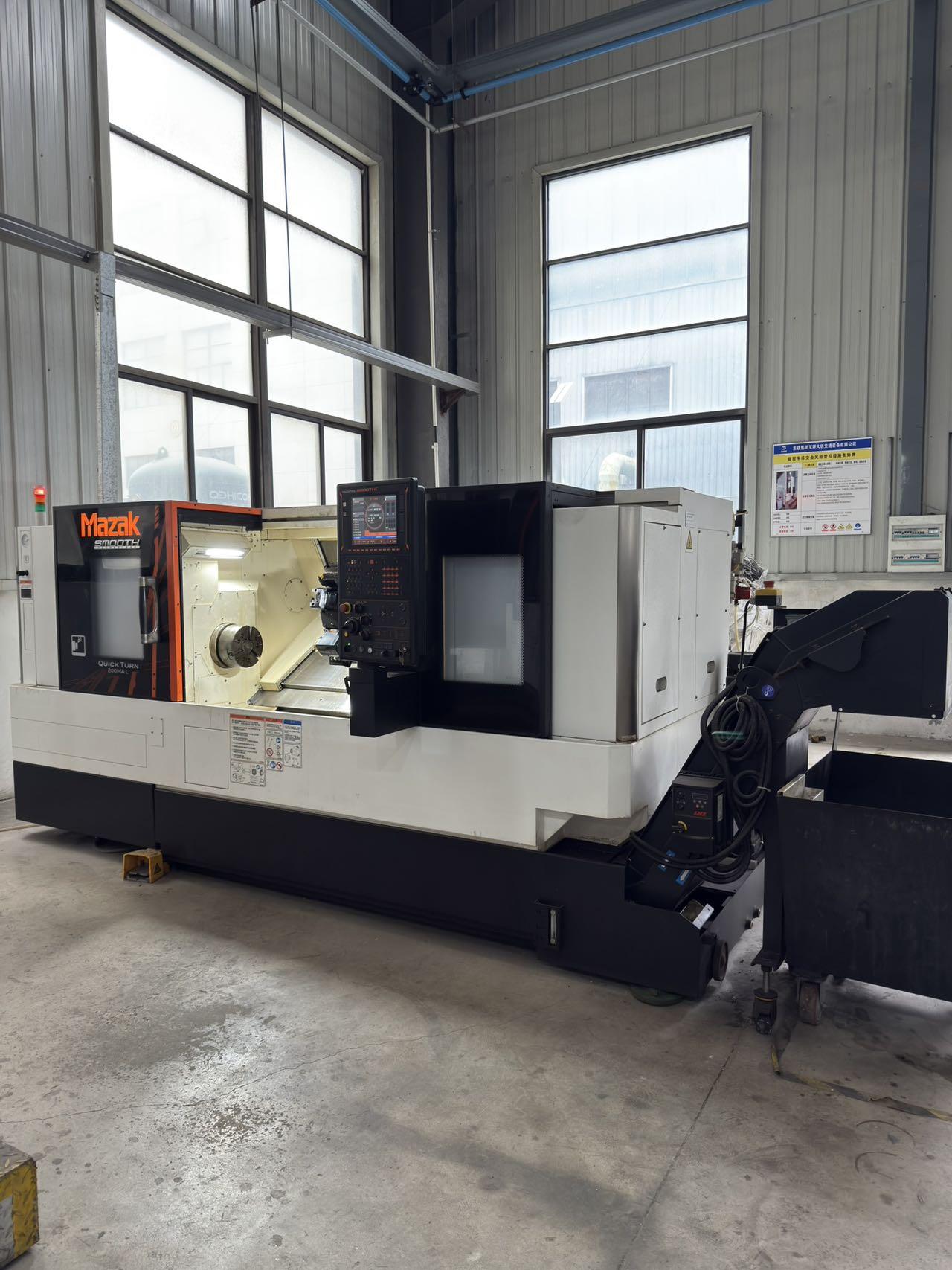

MAZAK QUICK TURN 200MAL Vertical Machining centre

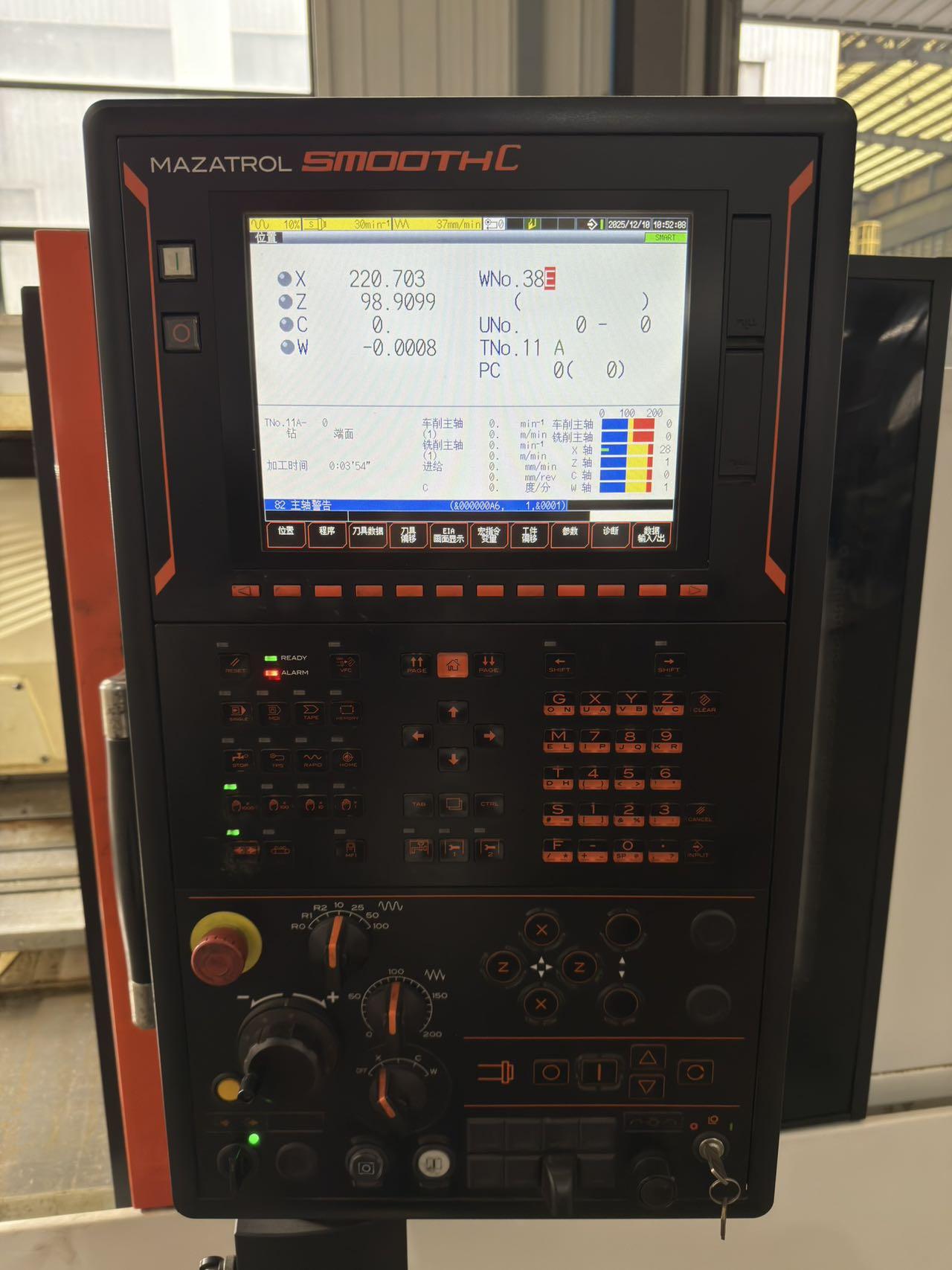

CNC System: Mazak Smooth C

Maximum spindle speed: 5000 rpm

power tool spindle speed: 5000 rpm

spindle through-hole diameter：76 mm

Center distance: 1000 U

Maximum swing diameter: 660 mm

Maximum machining diameter: 360 mm

Maximum machining length: 1055 mm

Maximum bar machining diameter: 65 mm

Axis travel

X-axis travel: 225 mm

Z-axis travel: 1125 mm

Tailstock travel: 565 mm / 1075 mm

Machine Dimension(length × width × height): 3385 × 1720 × 1703 mm

The weight of the machine tool is approximately 5,900 kg

configuration：

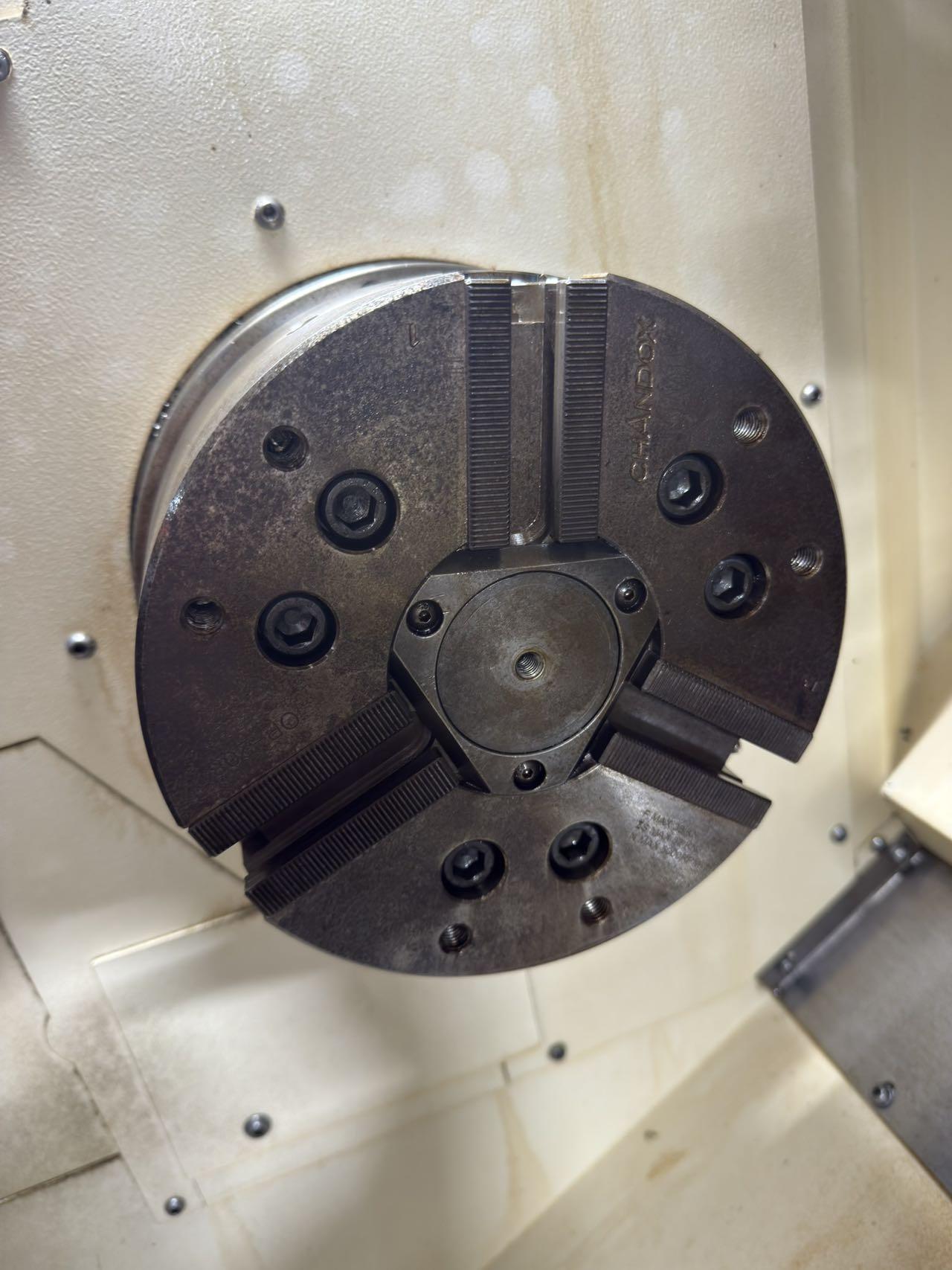

8-inch chuck

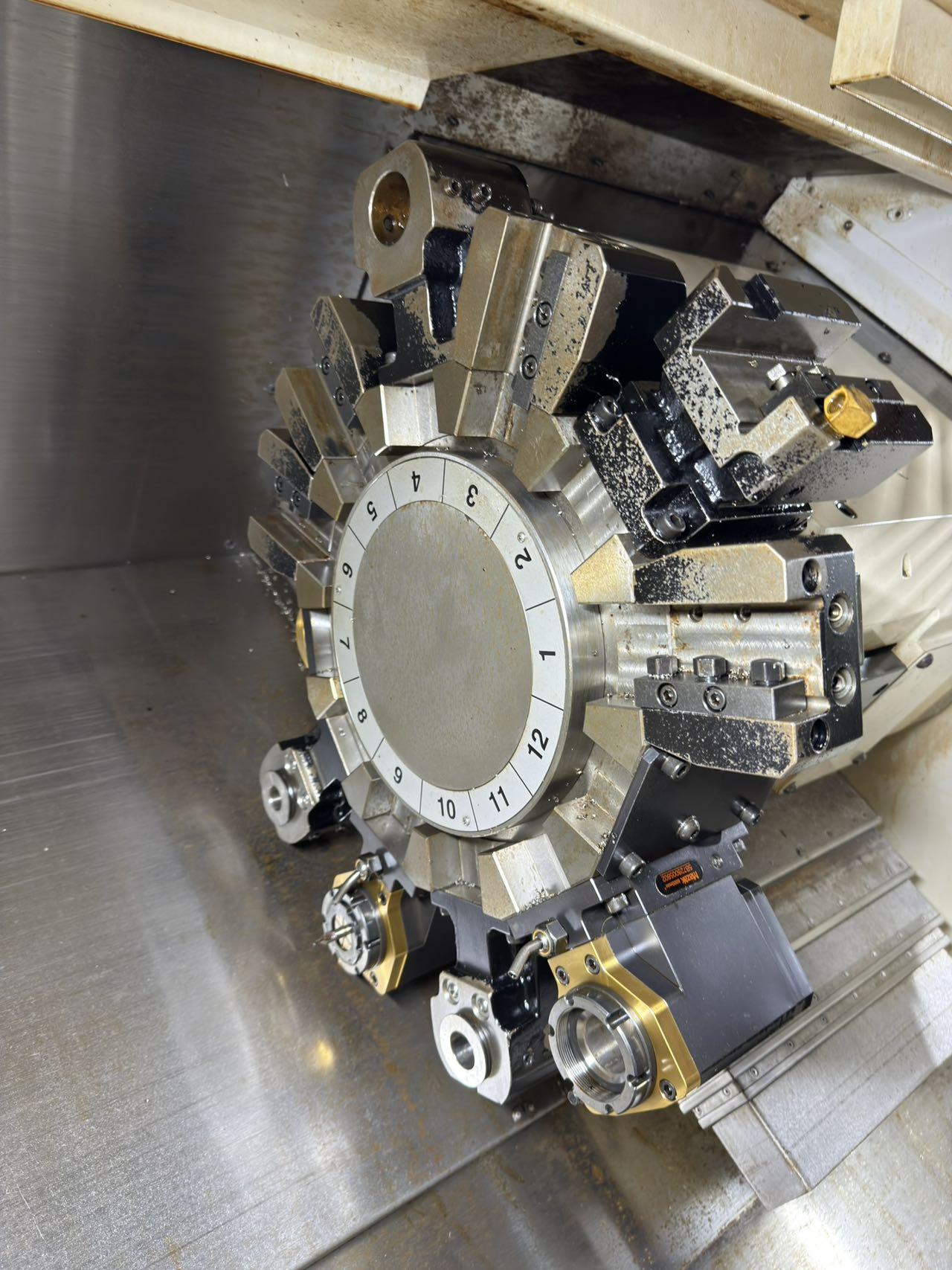

12-position tool turret

Equipped with 4 power tool heads

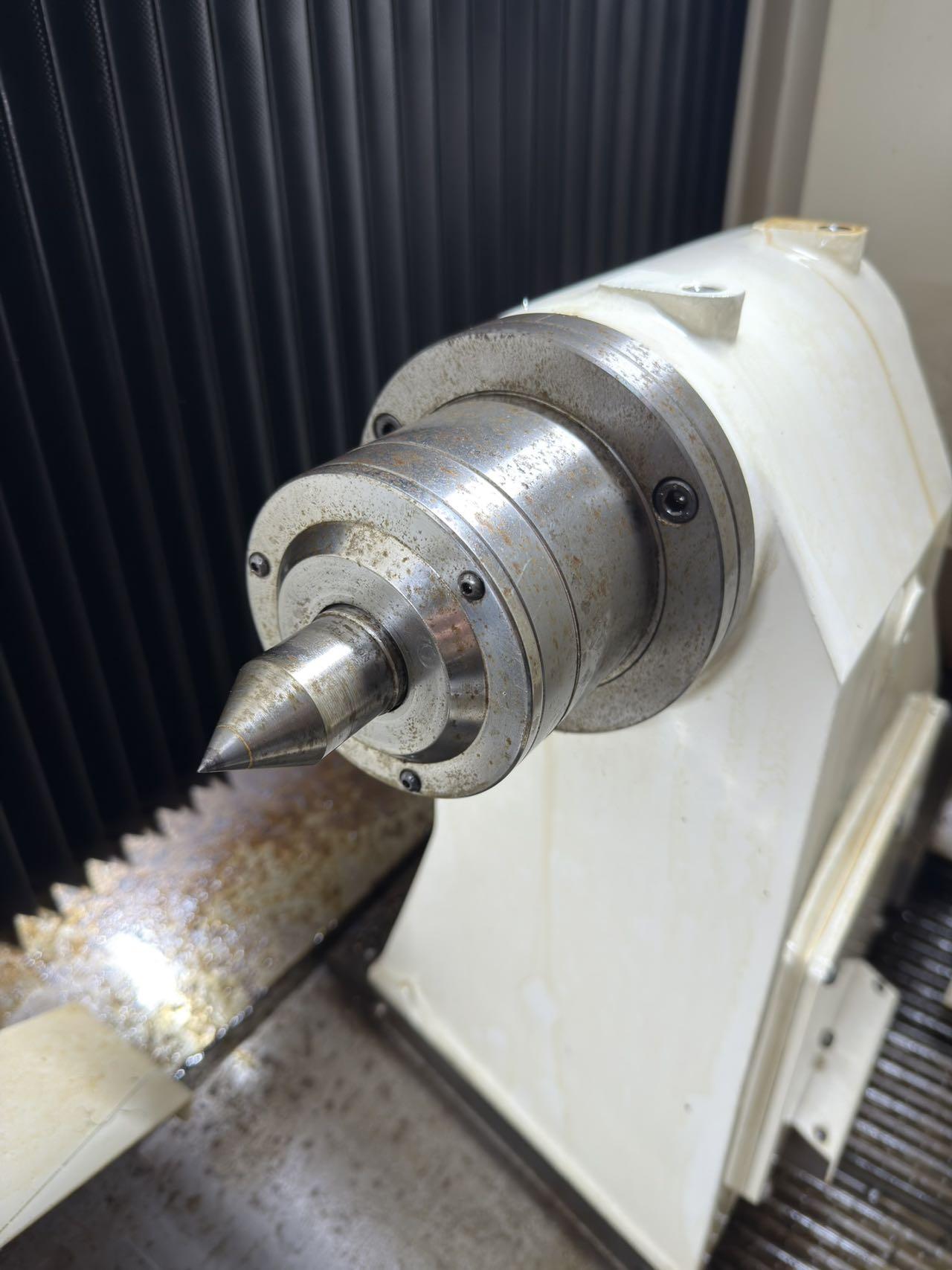

High-precision tailstock with center

Original 4 power tool heads

Machining situation: approximately 200 workpieces
