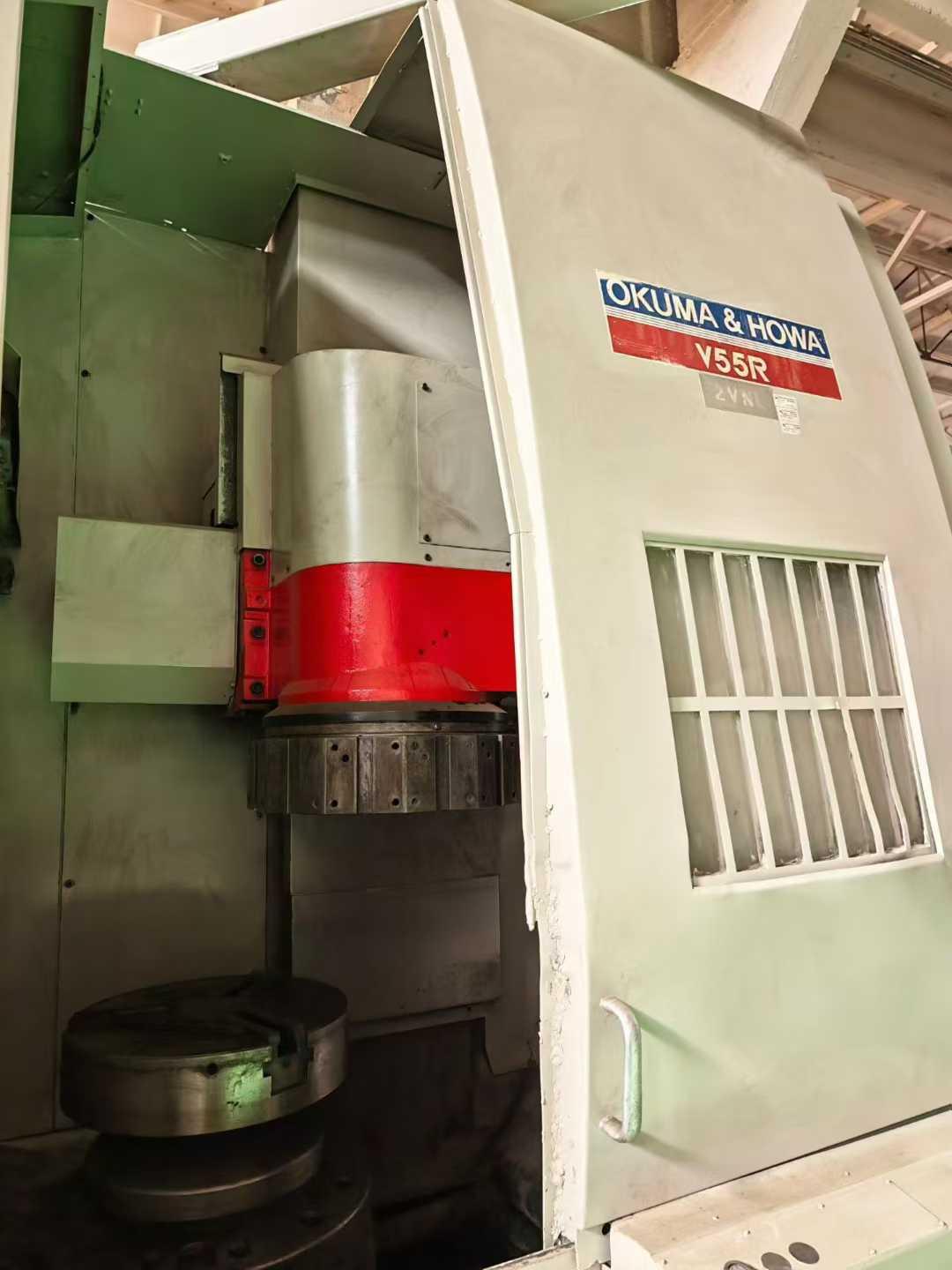

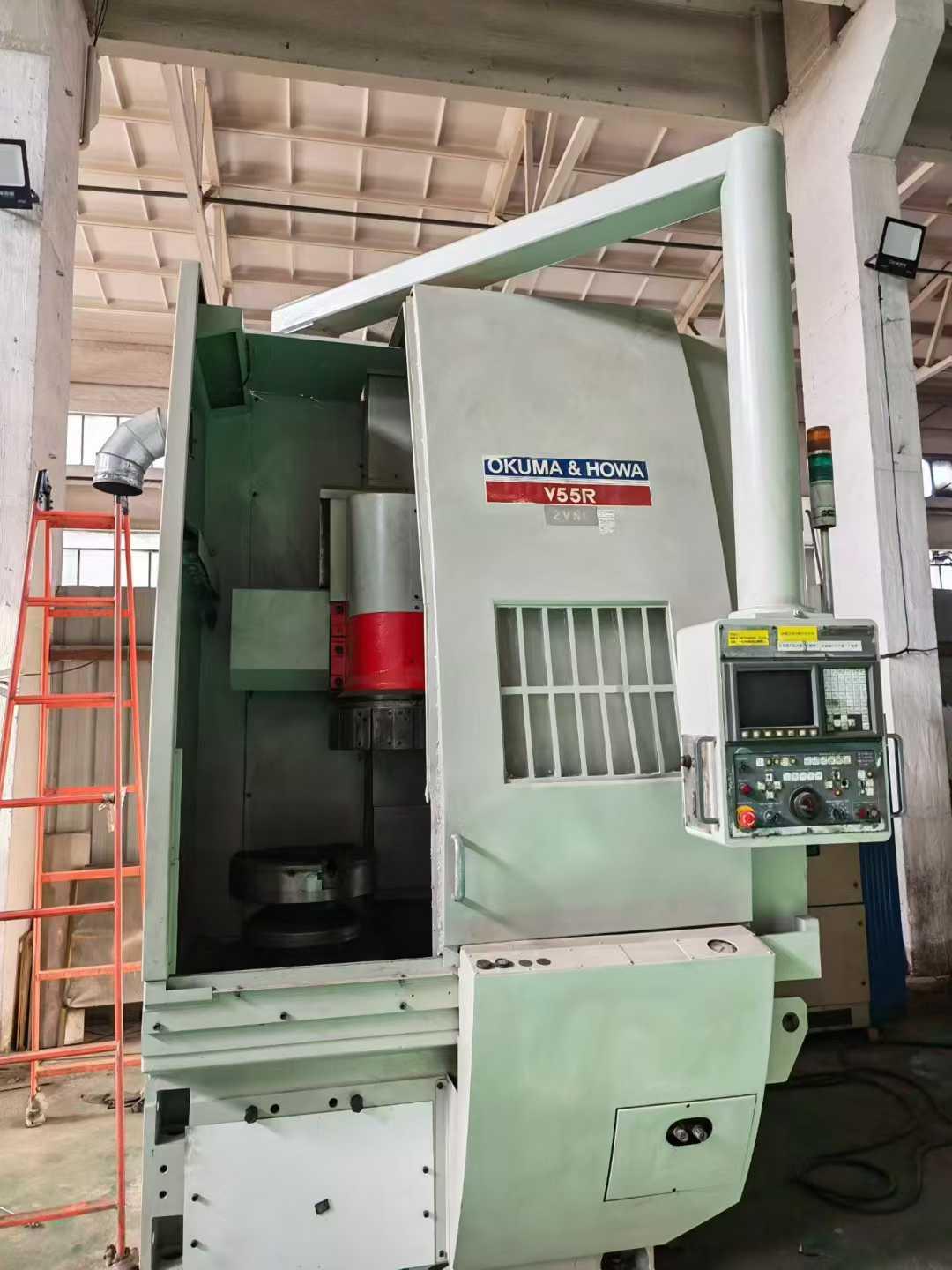

OKUMA&HOWA V55R CNC vertical lathe

CNC System: FANUC 18T
Maximum Rotational Diameter: 700 mm
Chuck Diameter: 530 mm
Maximum Machining Diameter: 550 mm
Maximum Machining Length: 635 mm
Spindle Nose Shape: JIS A2-8
Through-Hole Diameter: 110 mm
Spindle Speed: 25 to 2000 rpm
Tool Capacity: 12
X-Axis Travel: 340 mm
Z-Axis Travel: 635 mm
Fast Traverse Rate: 20 m/min
Spindle Motor Power: AC 22/18.5 kW
Electrical Capacity: 38 kVA
Machine Dimensions: 2055 × 2590 × 3610 mm
Machine Weight: 9500 kg
