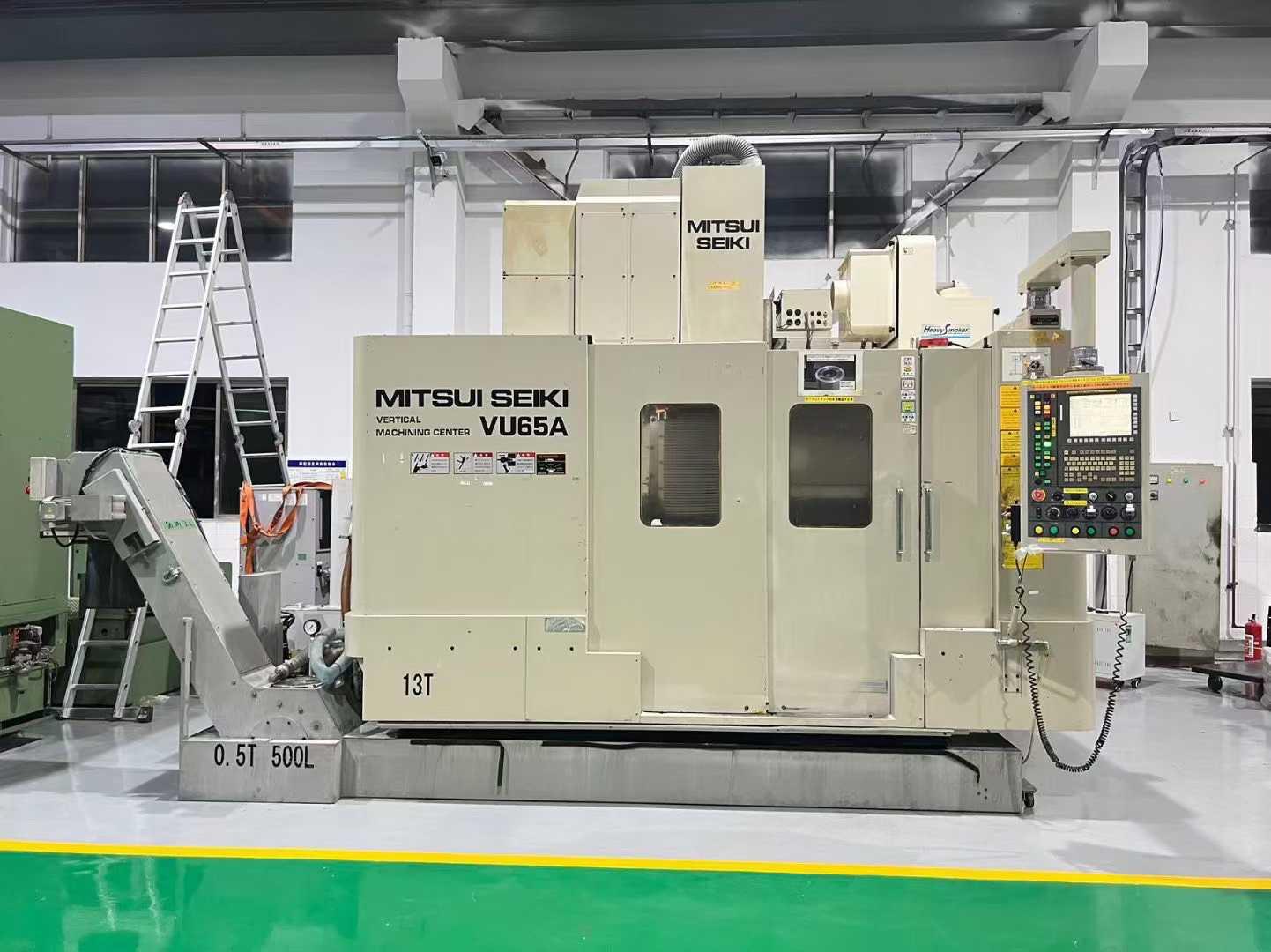

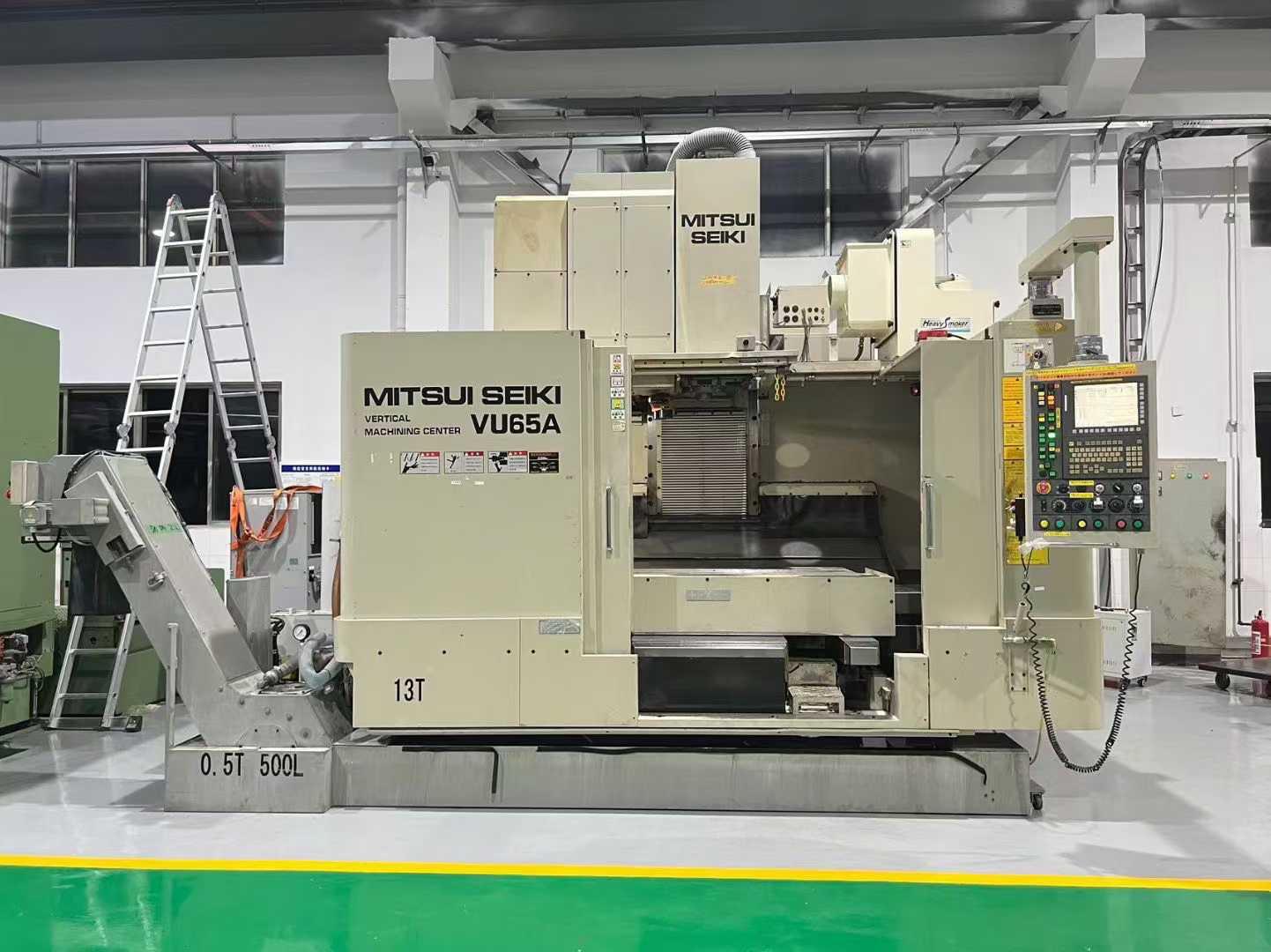

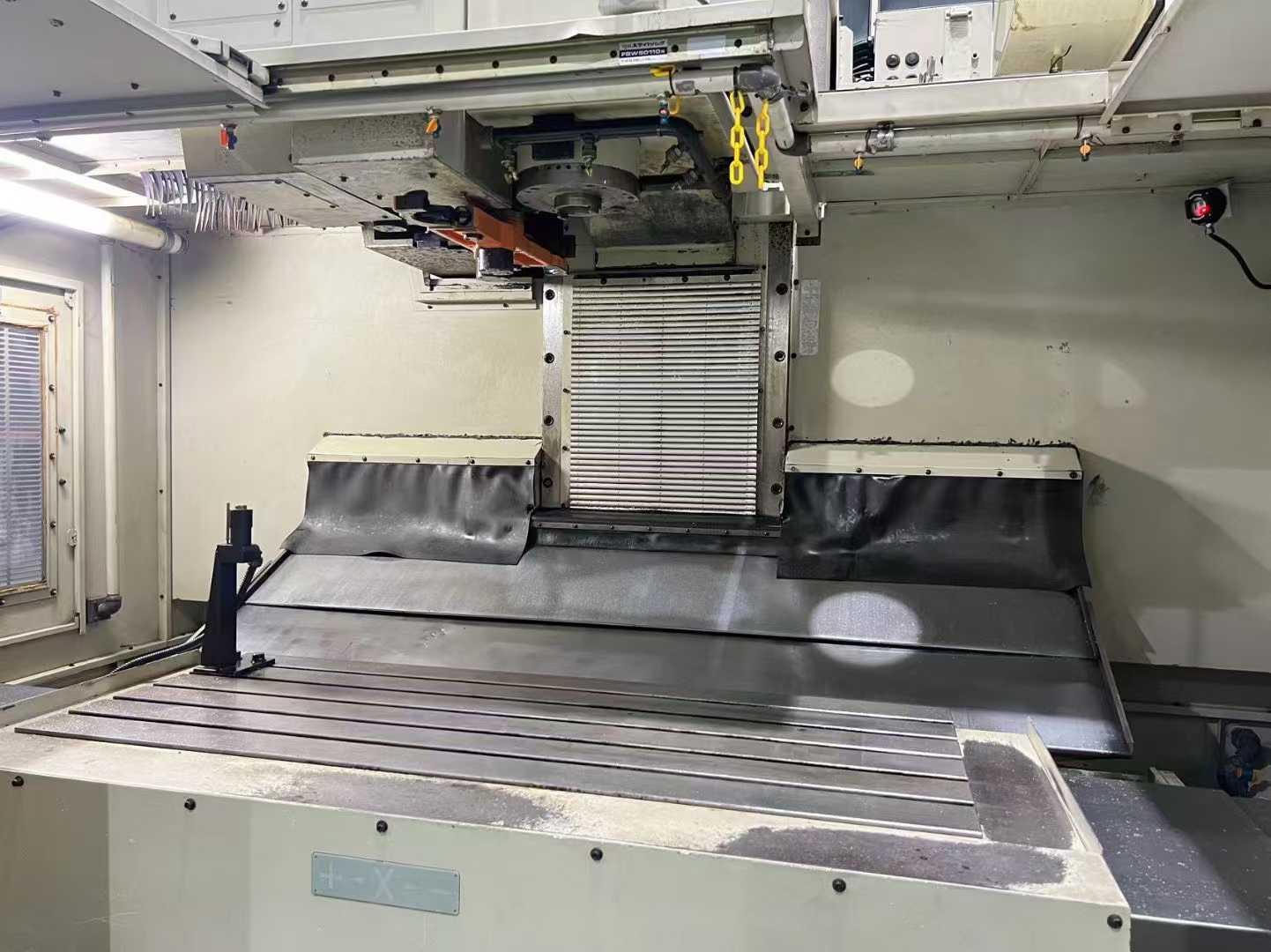

Mitsui Seiki VU65A Vertical Machining centre

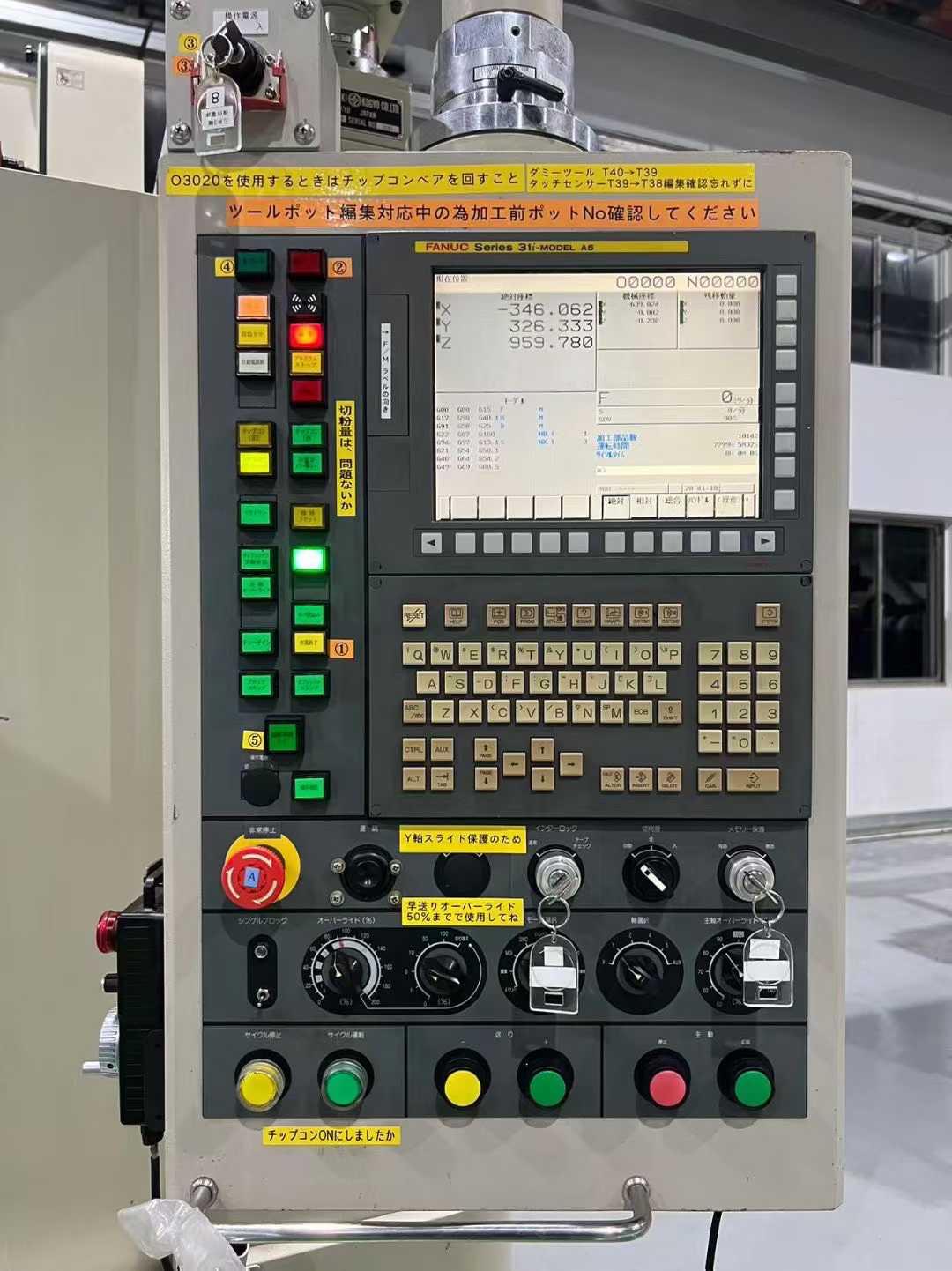

CNC System: FANUC 31i-A5

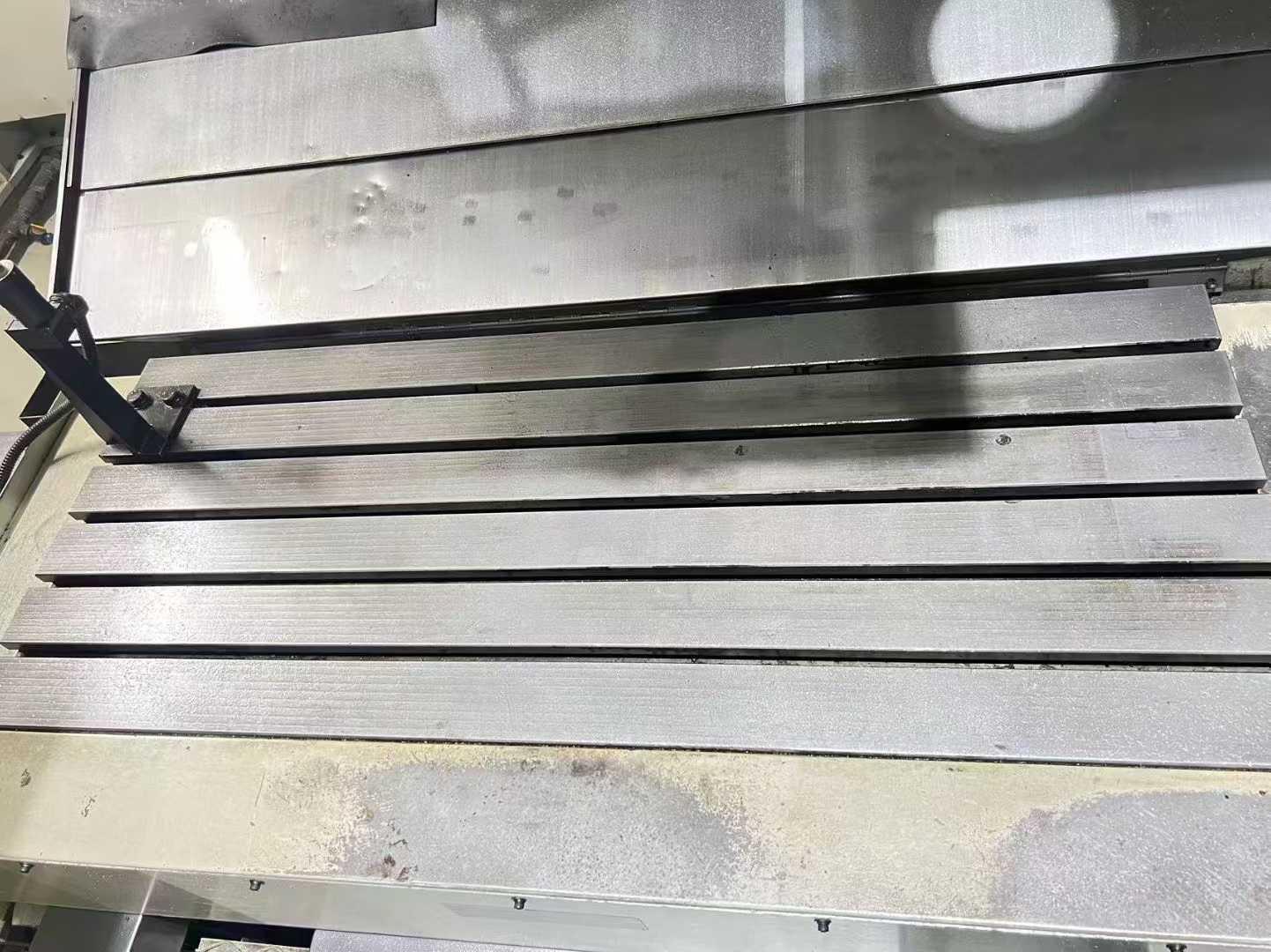

Worktable Size: 1500 x 600 mm
Three-Axis Travel: 1280 x 650 x 610 mm
Maximum Worktable Load: 1500 kg
Spindle: BT50
Spindle Speed: 15,000 RPM
Tools Magazine Capacity: 40 tools

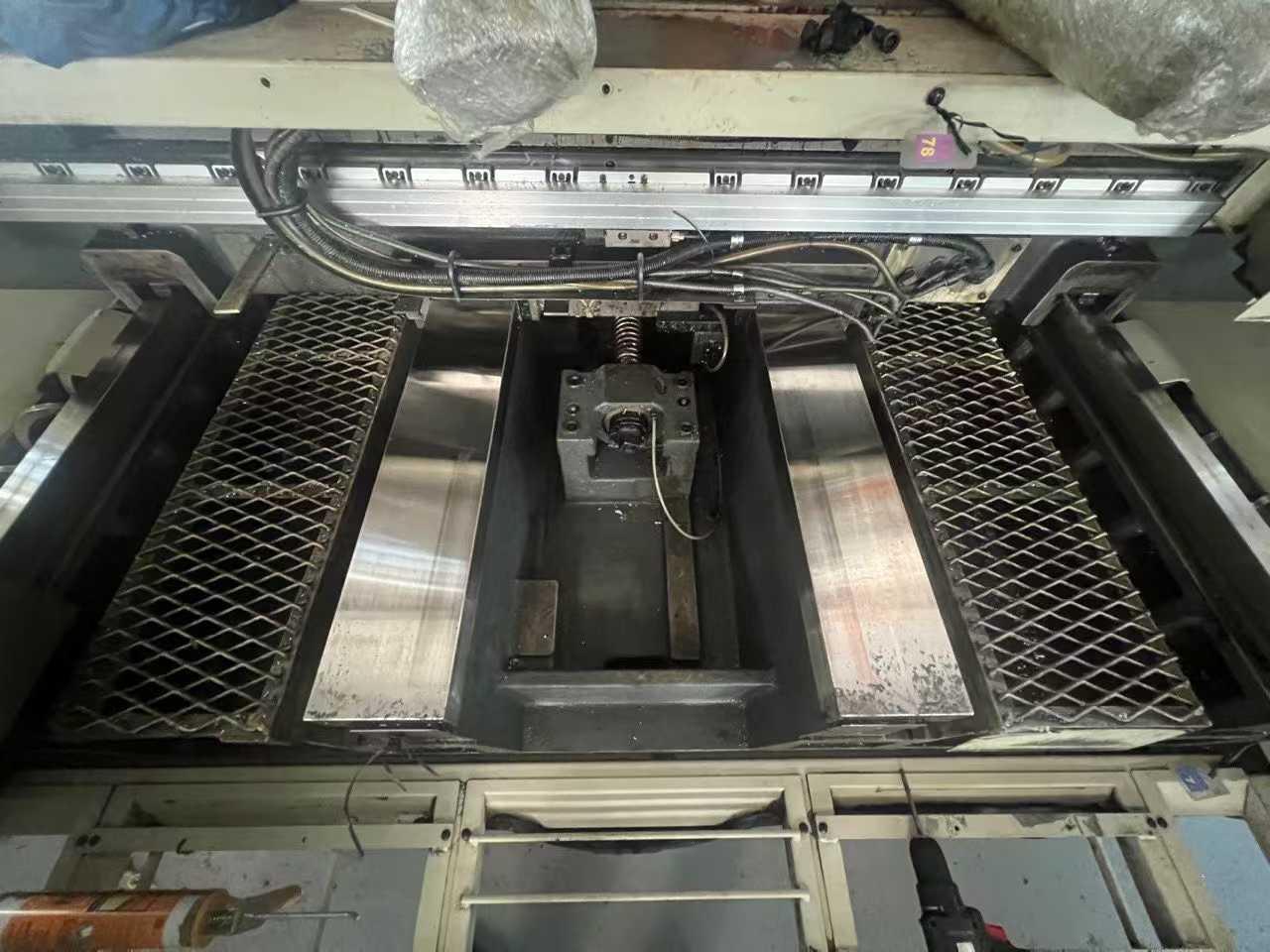

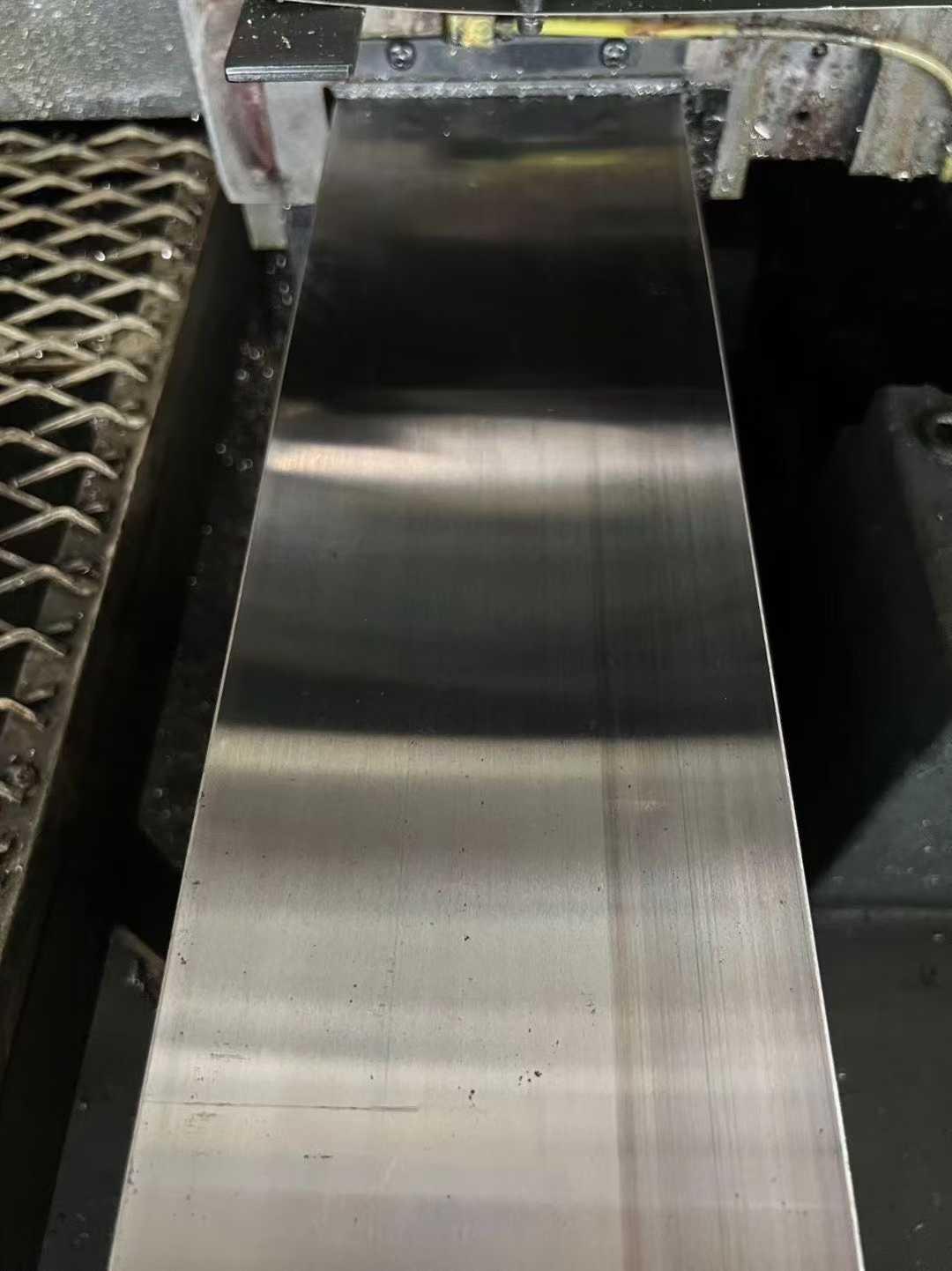

ATC Guideway: 3-axis rigid guideways, Y-axis with 4 guideways
Weight: 13 tons
Configuration: Three-Axis with Heidenhain full closed-loop glass scales, Renishaw probe
Water Outlet: From the center of the spindle
Oil Chiller: Included
Chip Conveyor: tape-type
