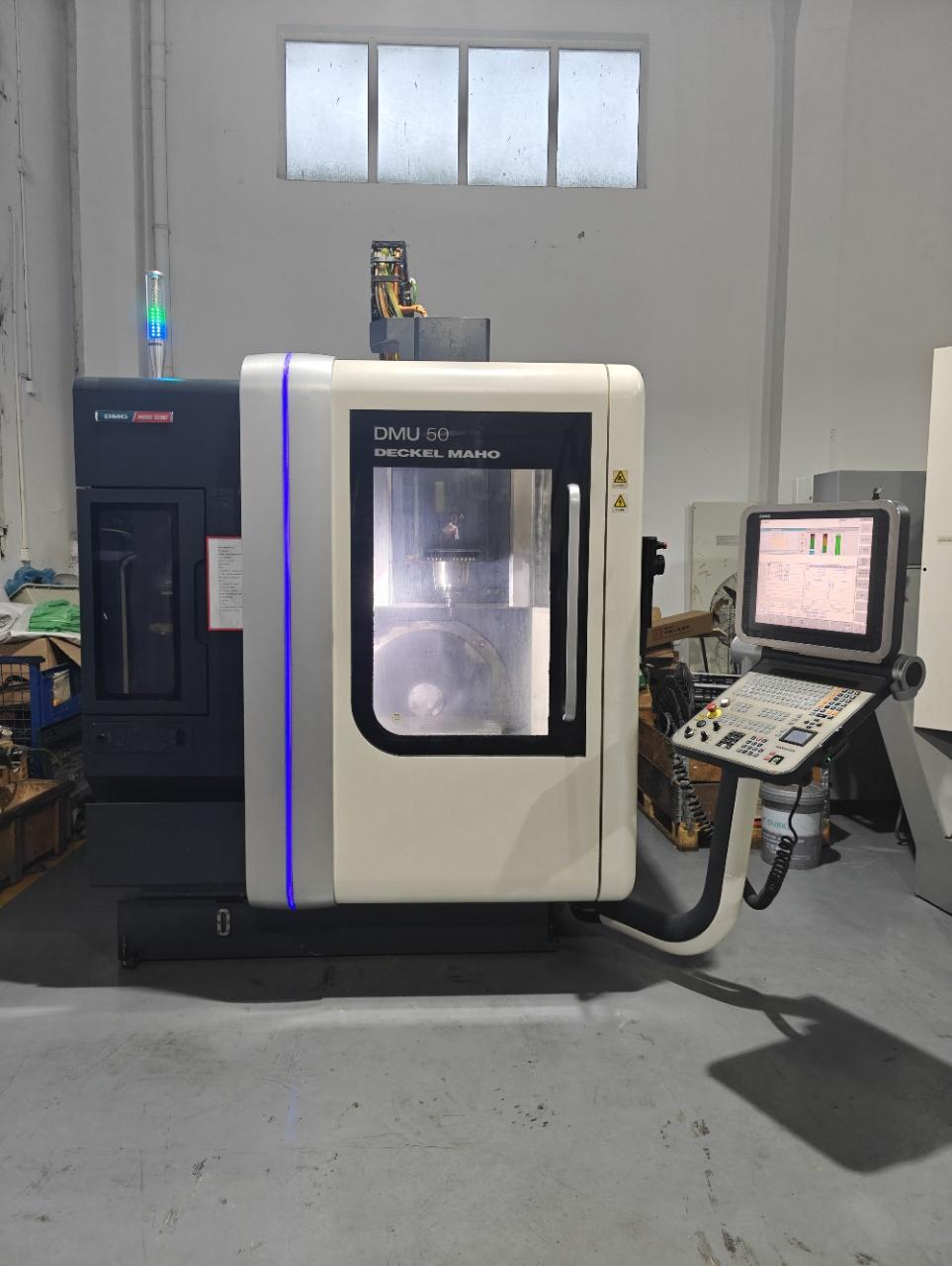

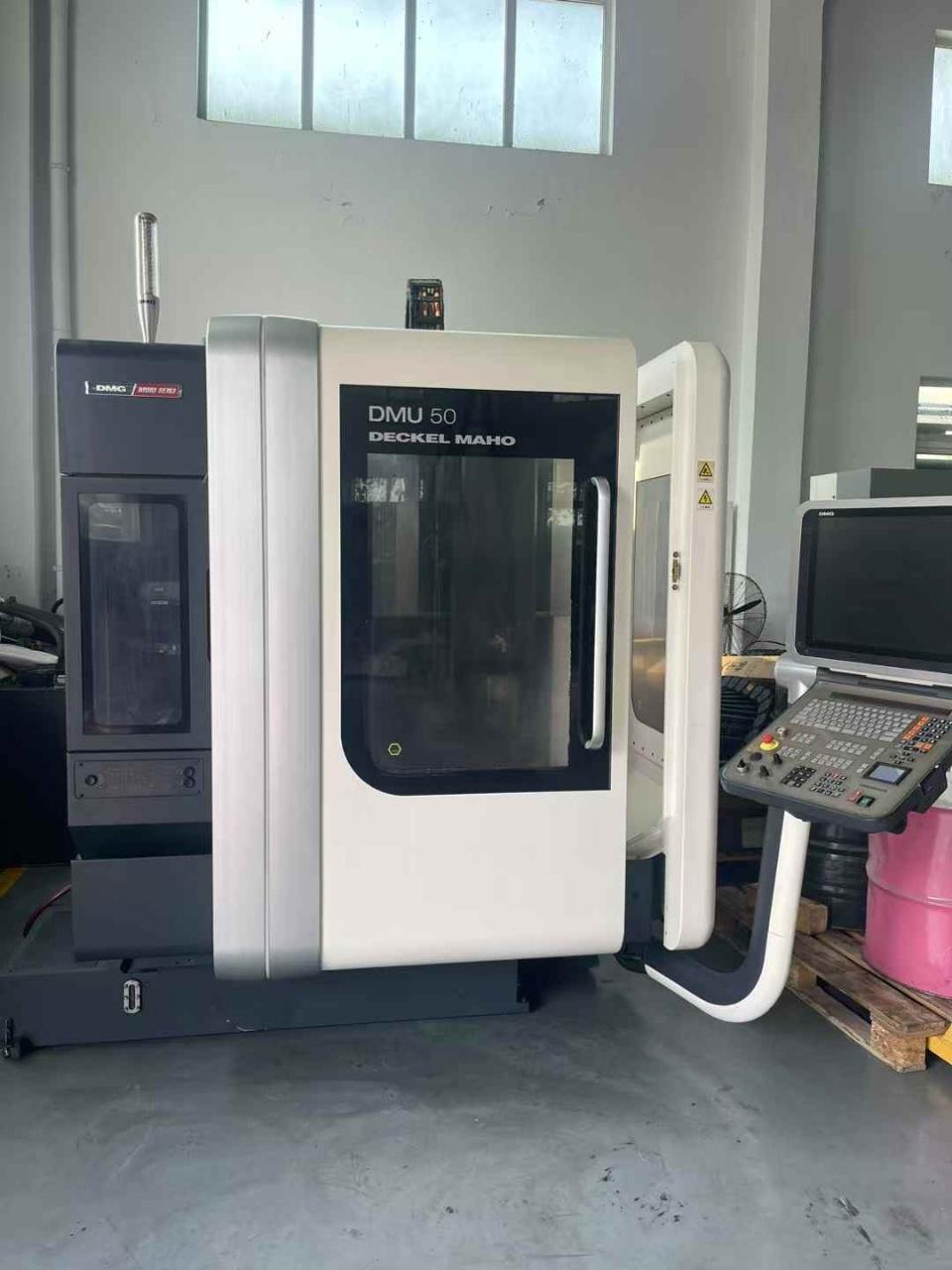

DMG DMU 50 5 axis machining centre
[Product Information]:
- Inventory number：810817
- Brand：DMG
- Model：DMU 50
- Origin：Germany
- Location：China
- Year：2012
- Create Time：2026-02-03
Specifications:

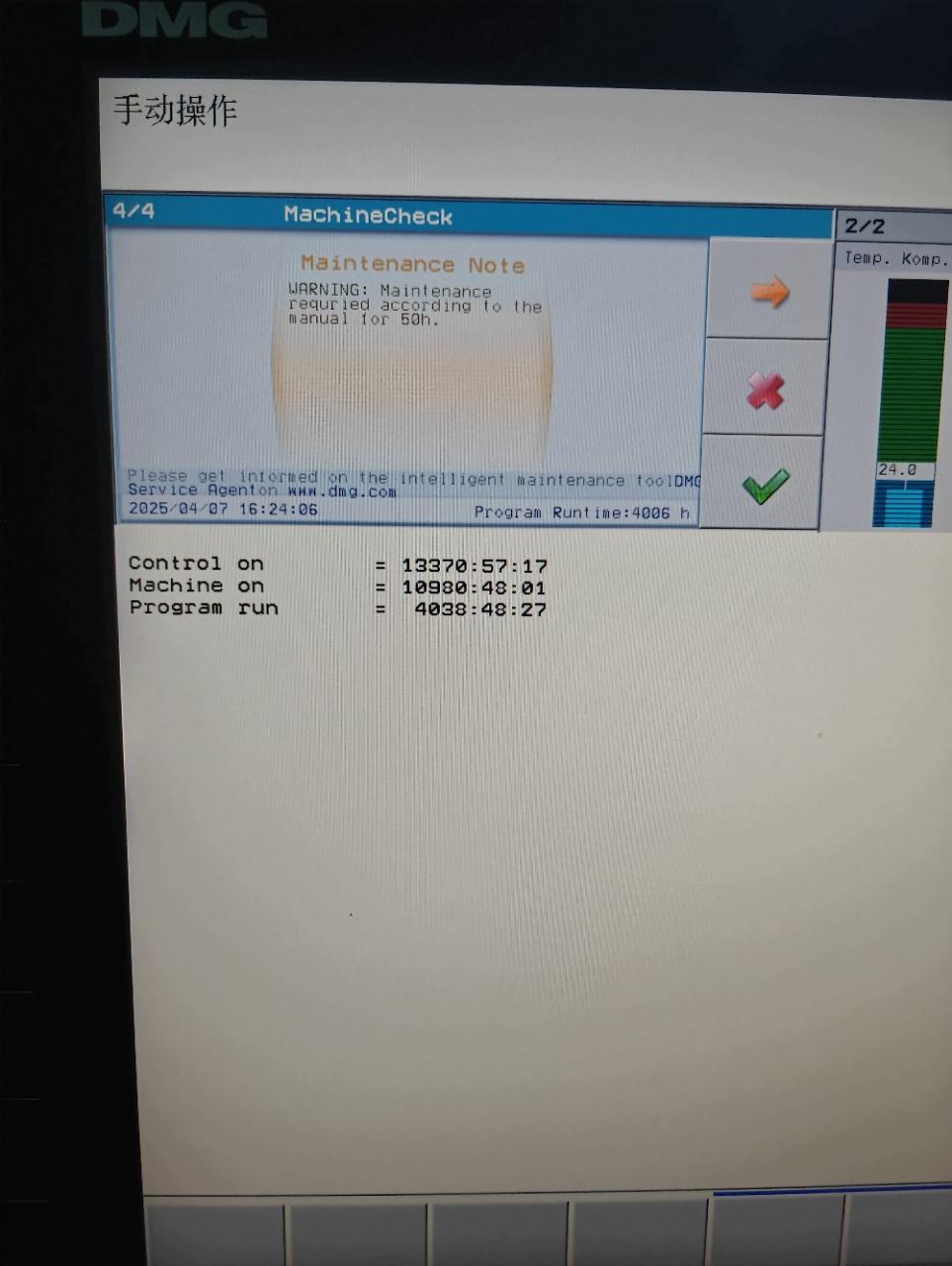

CNC System: Heidenhain 530
Three-Axis Travel: 500 mm (X) × 450 mm (Y) × 400 mm (Z)
Spindle Speed: 20 – 18,000 rpm
Fast Moving Rate: 30 m/min
Options:
Spindle Type: SK40
Tool Holder: DIN 69871
Power: 35/25 kW (40/100% DC)
Torque: 130/87 Nm (40/100% DC)

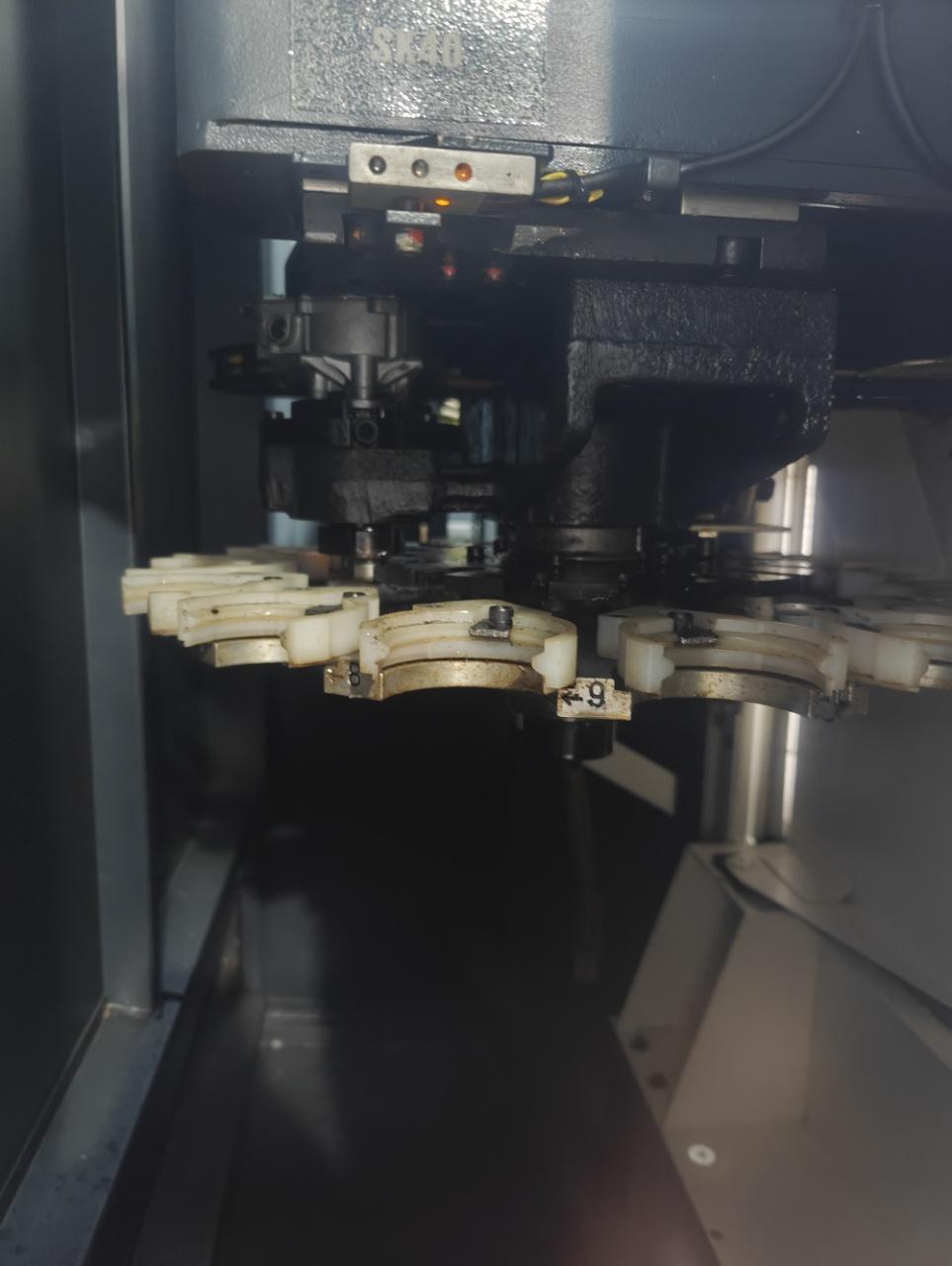

Tool Magazine Capacity: 16 tools
Diameter of the Mounting Surface: 630 mm × 500 mm
Swing Range: -5° to +110°
Rotary Shaft: 360°
Forced Cooling of the Electrical Cabinet
Electronic Handwheel
X, Y, Z Axes Measurement: Glass scale
Includes Positive Pressure Air
Infrared Probe Function (excluding probe hardware)
