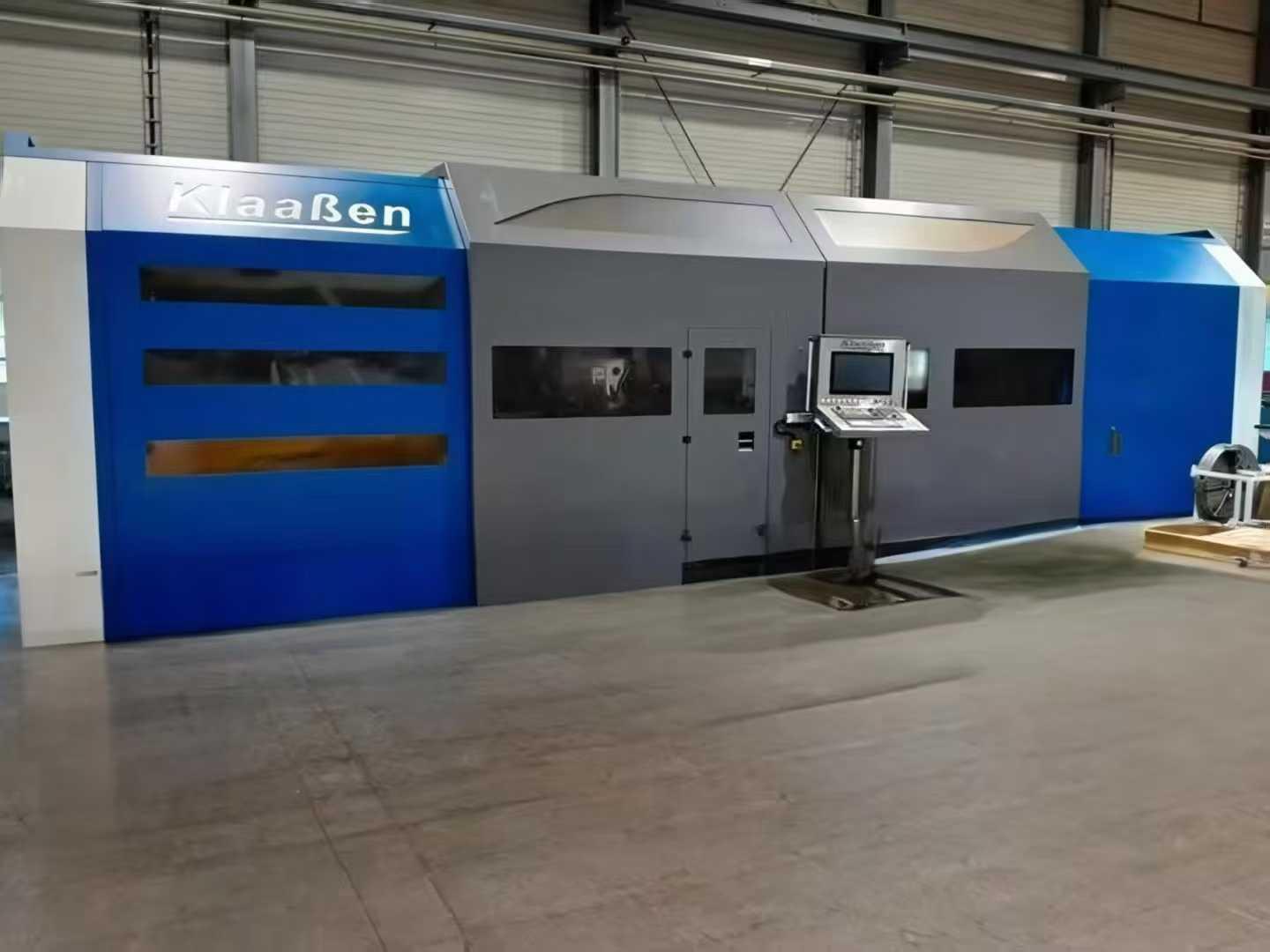

Klaaßen SDM15-5 Machining centre

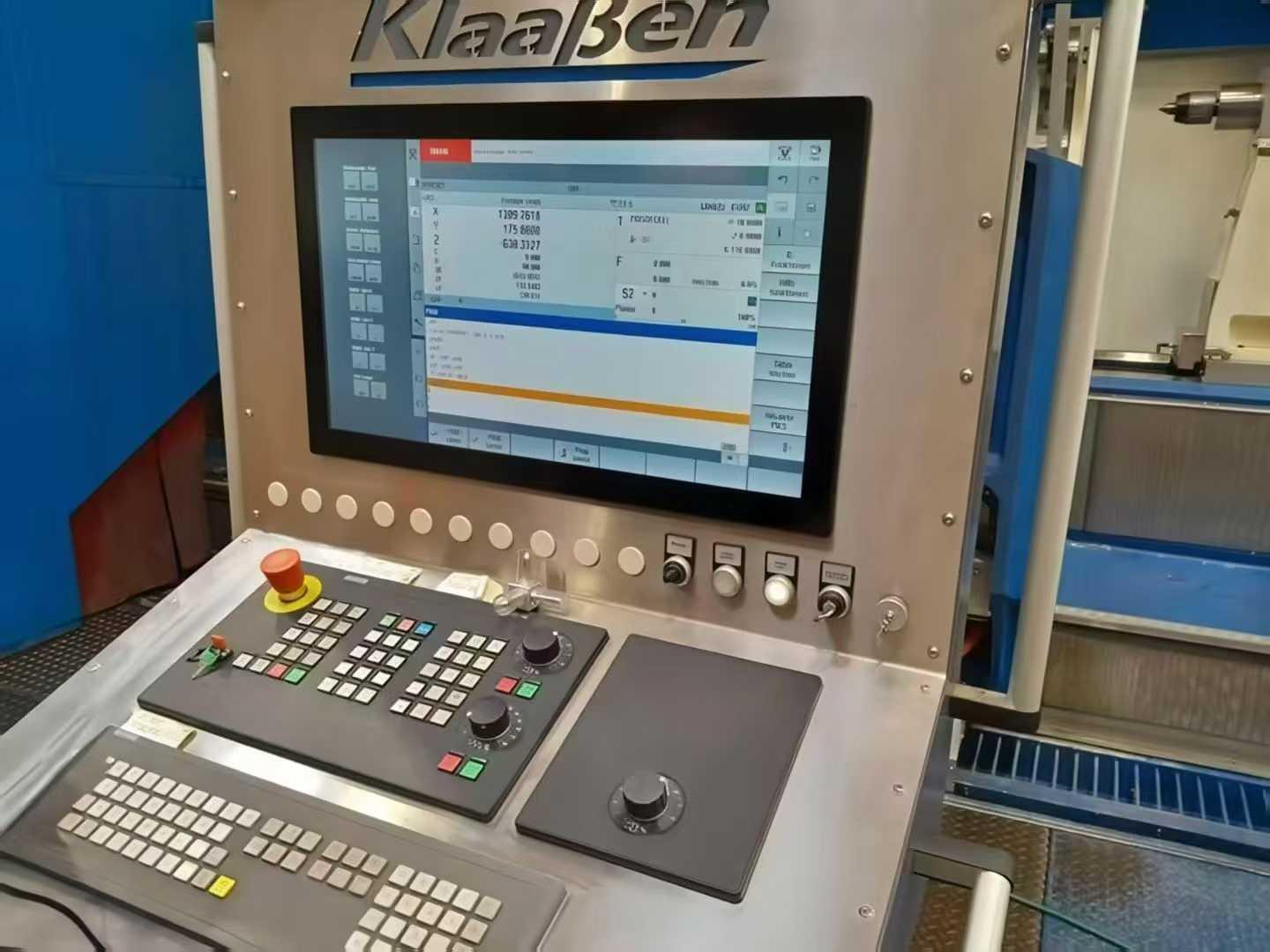

CNC System: Siemens 840 DSL
Chuck diameter: 1000 mm
Workpiece diameter: 1500 mm
Machining length: 4500 mm
Central load capacity: 6 tons
Supporting load capacity: 3 to 6 tons
X-axis travel: 1000 mm
Y-axis (eccentric) travel: 340 mm
Z-axis travel: 5000 mm
B-axis: ±100°
Turning spindle:
Type: Capto C6
Maximum speed: 450 RPM
Power: 62 kW

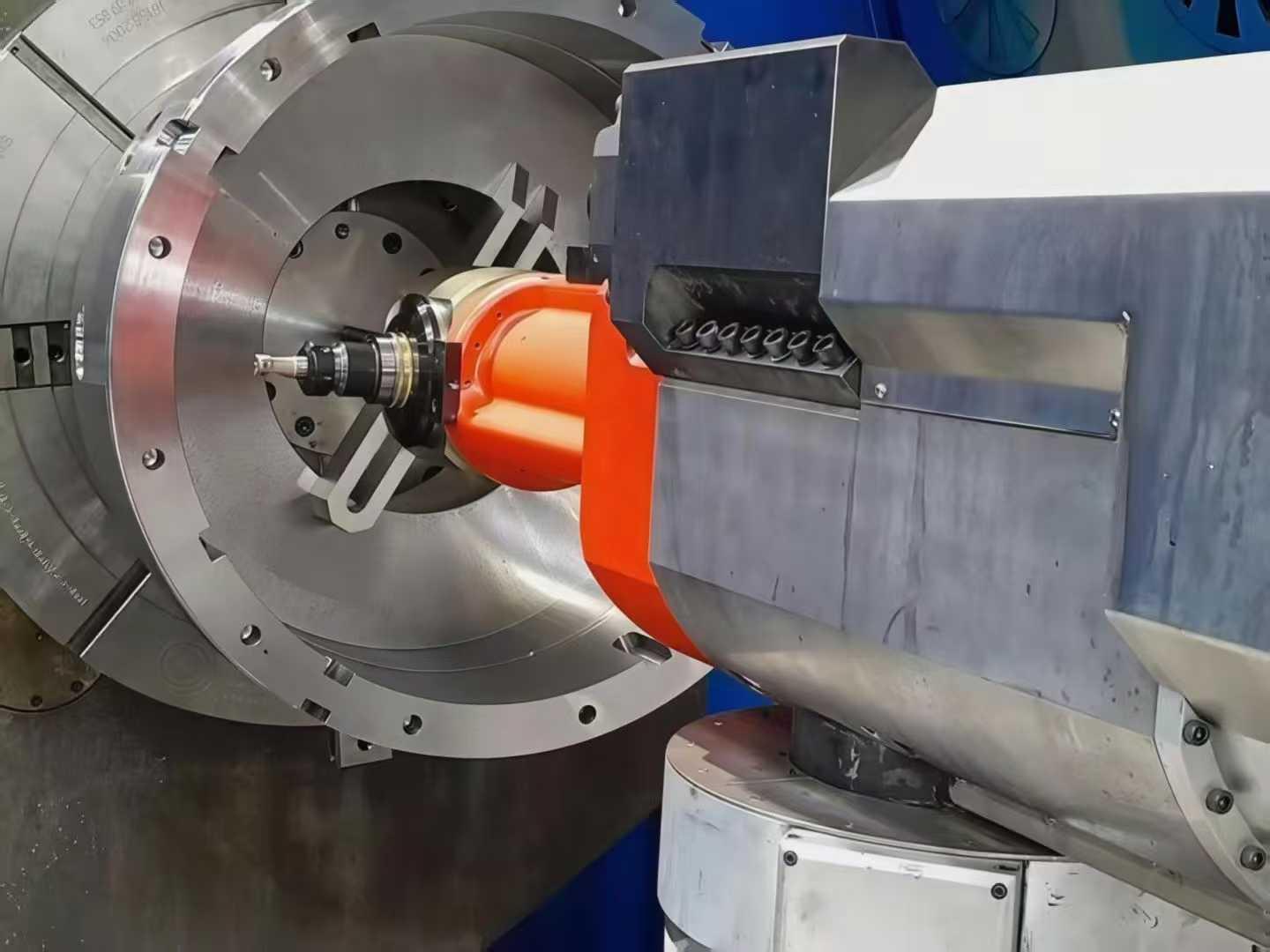

Milling spindle:
Type: BT 50
Maximum rotational speed: 4000 RPM
Power: 37 kW

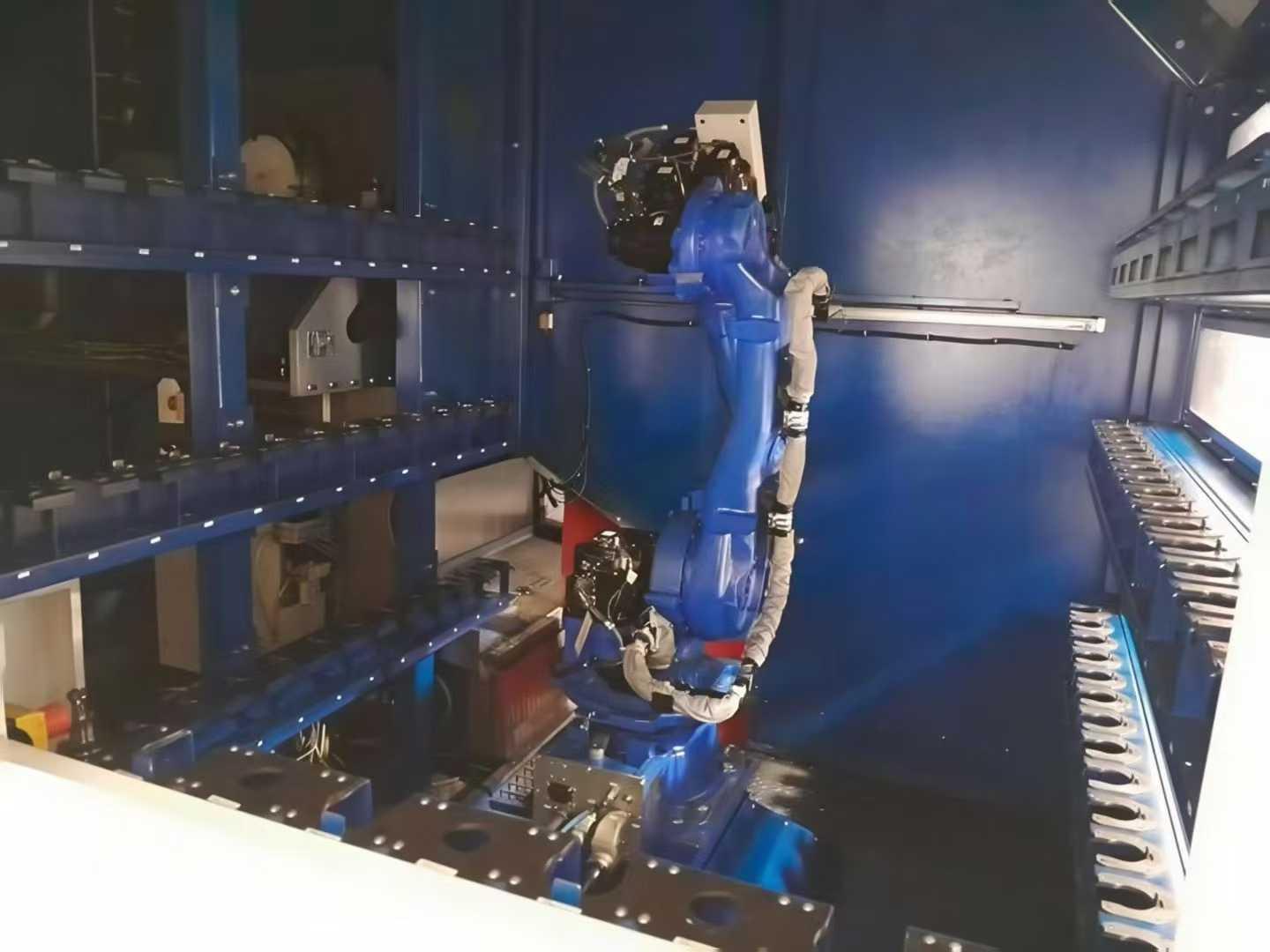

Tool magazine: ATC 2×16
Shock-absorbing boring bar: Ø100 × 1500 mm
Grinding wheel diameter: 400 mm
Tailstock travel: 300 mm
Tailstock diameter: Ø160 mm
Bracket diameter: Ø400 - 900 mm

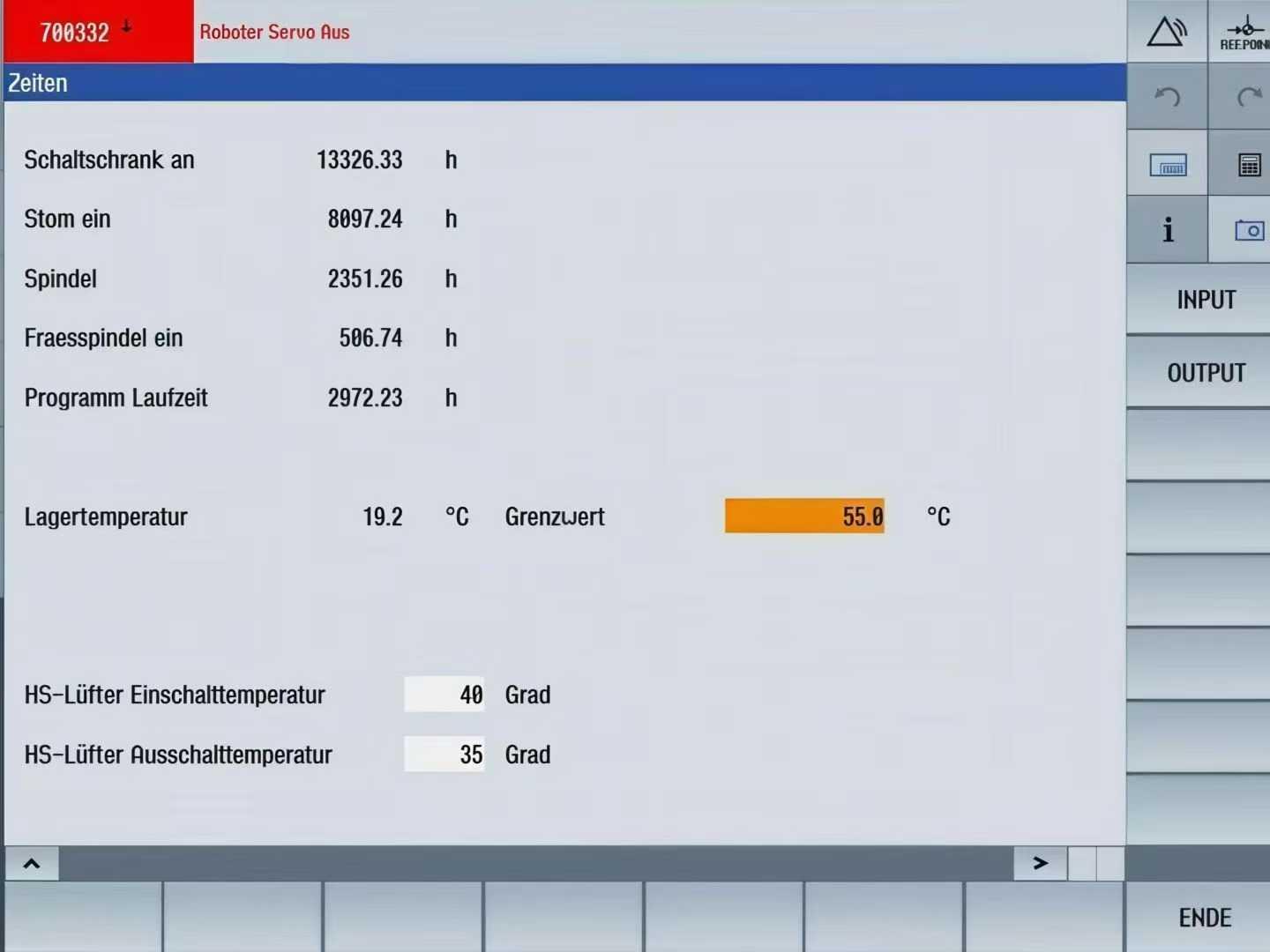

Usage duration: Over 2000 hours
