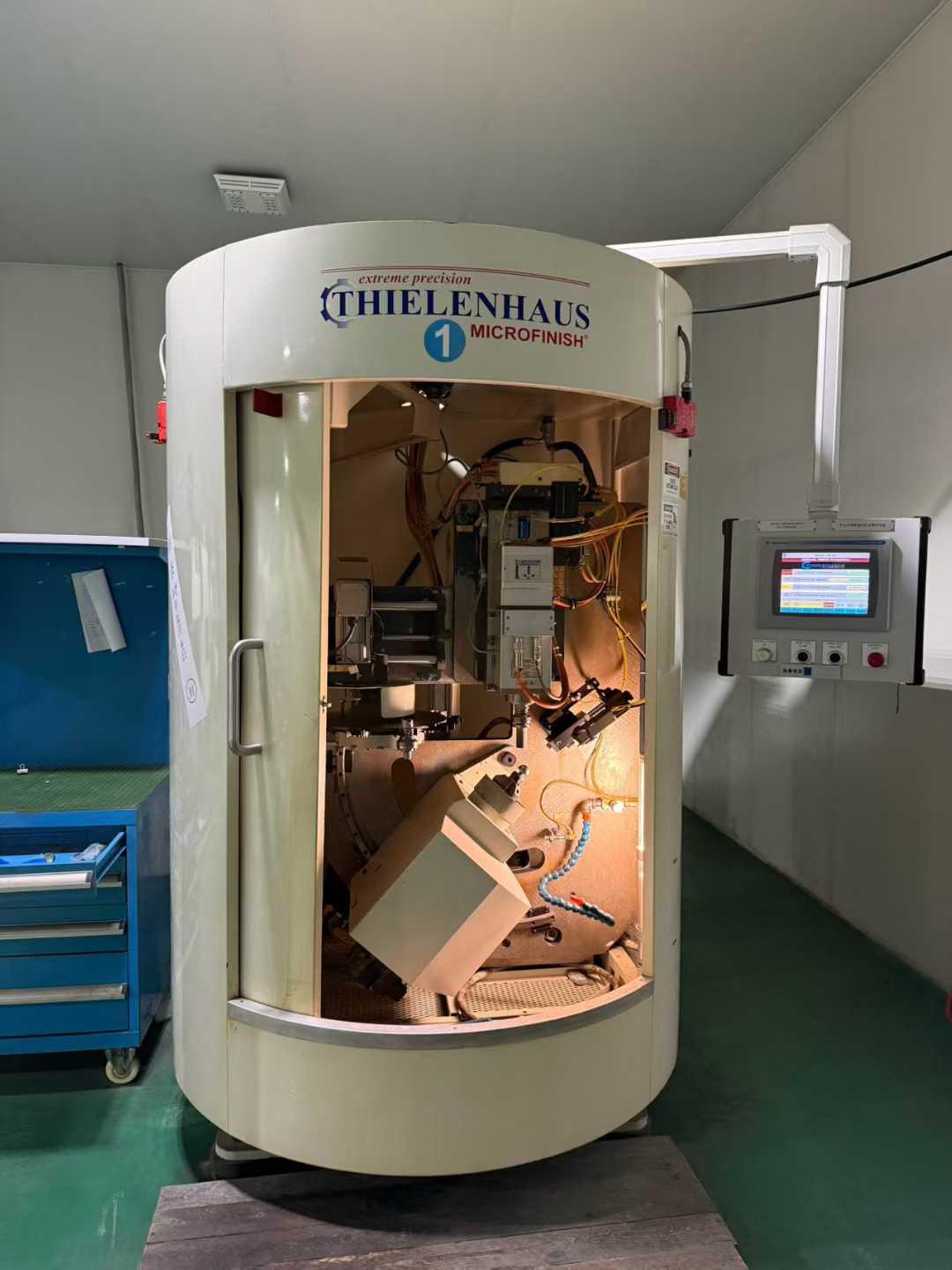

THIELENHAUS EndoStarV111 Grinding machines

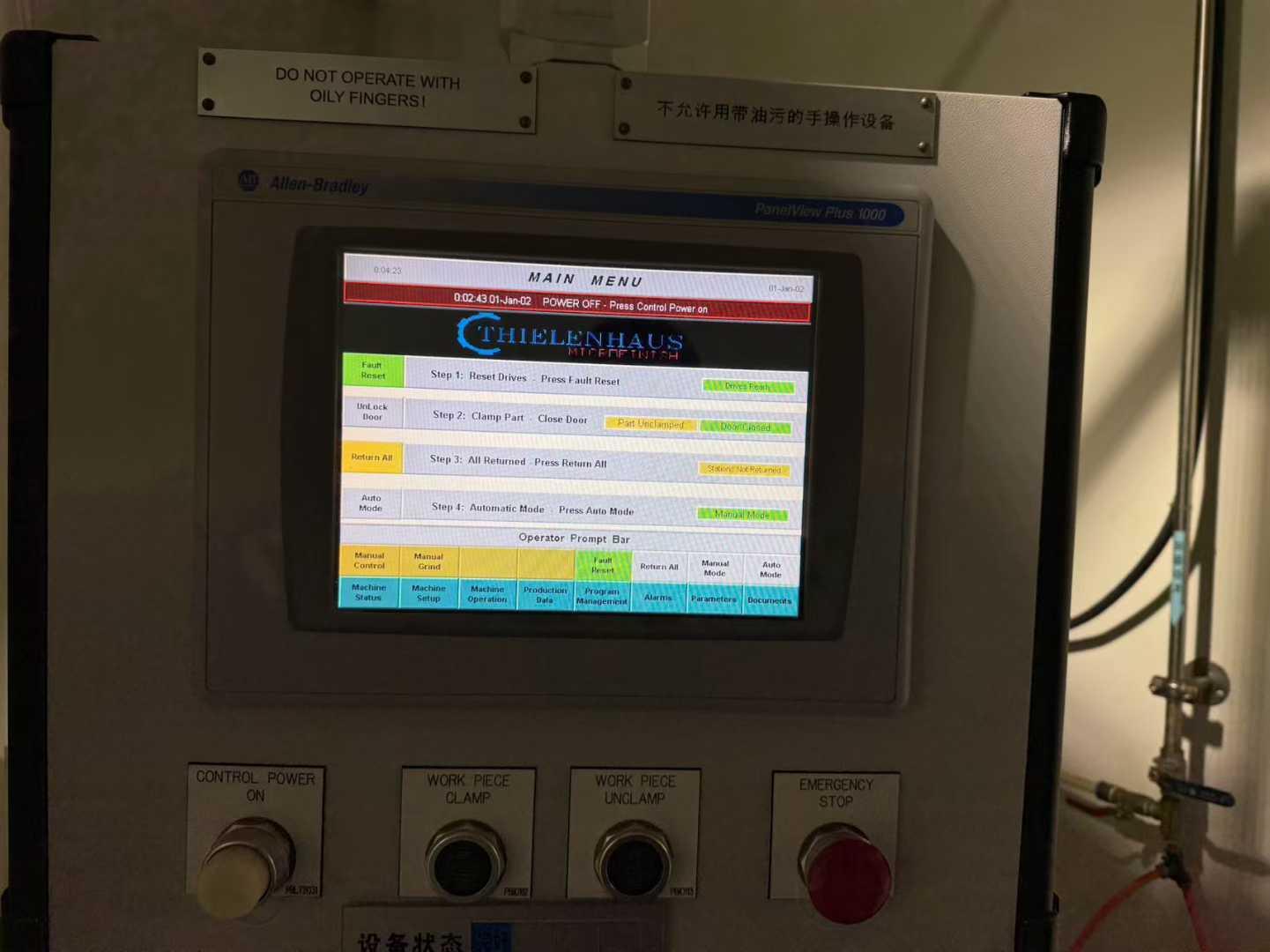

CNC System: MicroSens

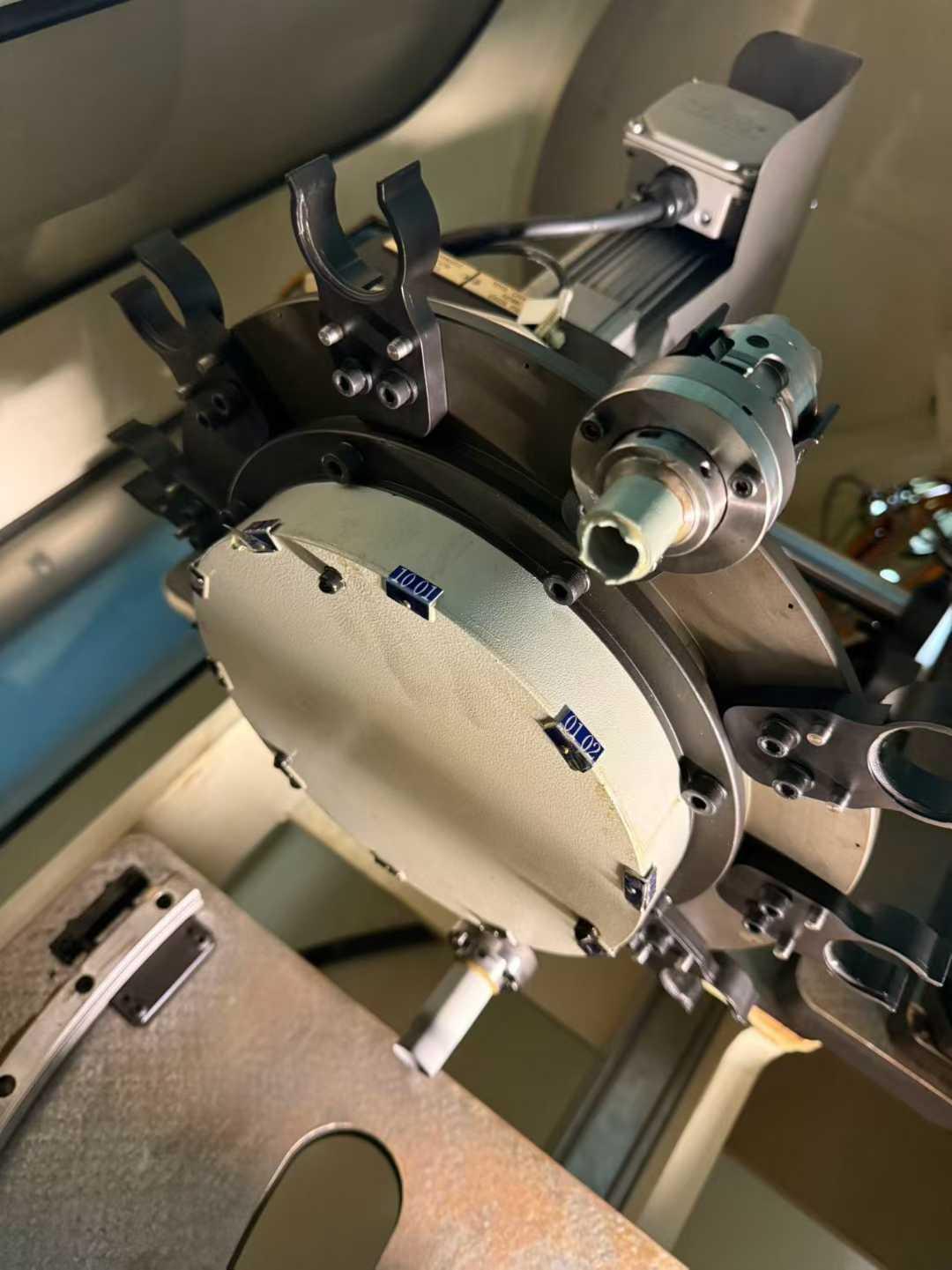

Rotary Worktable Angle: ±90°
Machining radius: 75 mm
Workpiece (spindle) rotational speed: 0-2000 RPM

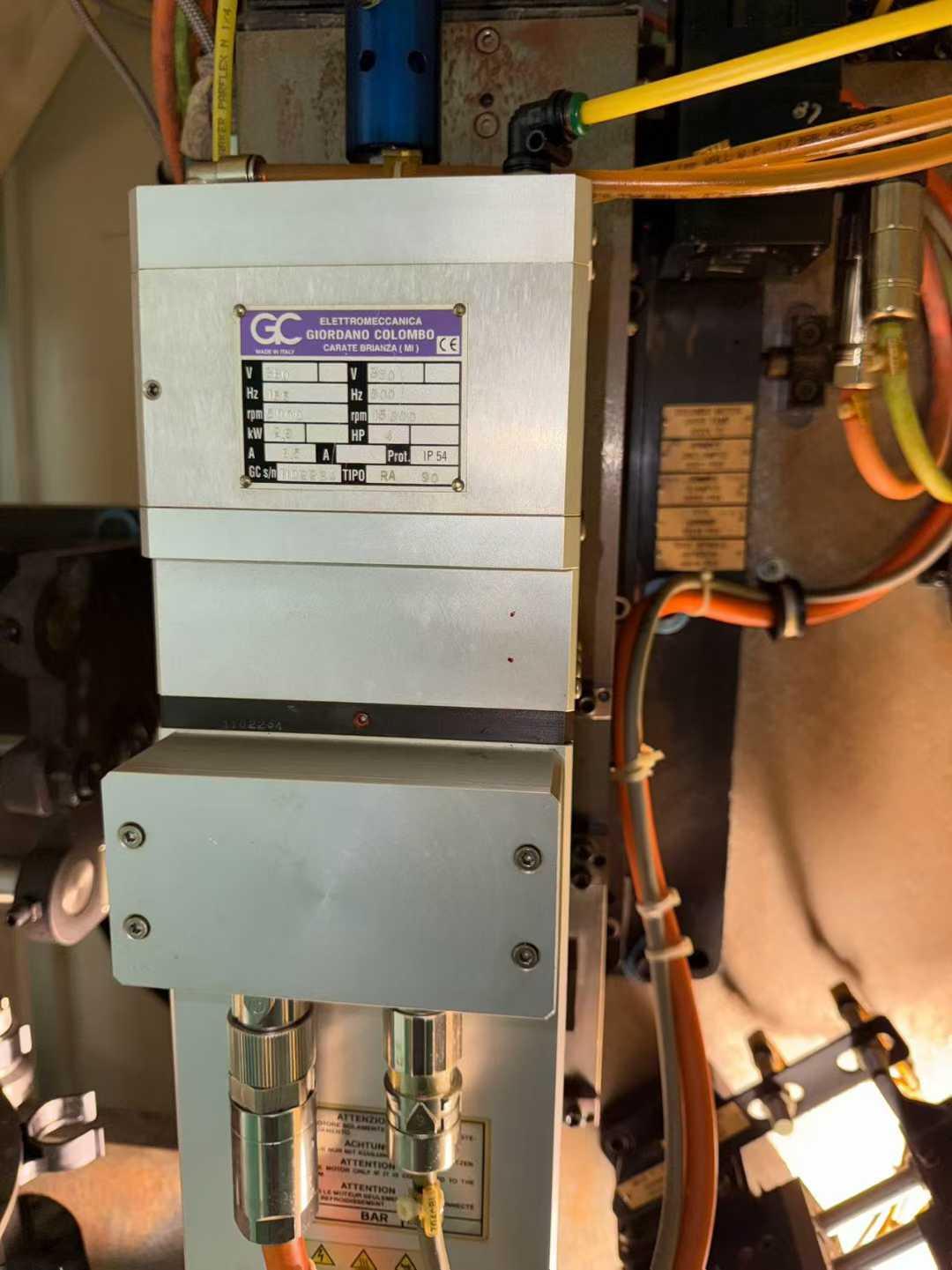

Tool (spindle) speed: 1500-15000 RPM
Spindle radial (workpiece clamping direction) adjustment travel: approximately ±5 mm
Spindle axial (workpiece length direction) feed travel: approximately 20 to 50 mm
Radial feed travel of ultra-precision grinding stone (machining tool): ≤ 1 mm
Swing travel of the ultra-precision grinding stone: approximately 5 to 15 mm
Fixture adjustment travel: Radial positioning adjustment travel of the workpiece fixture is approximately ±10 mm
Axial positioning travel: 30 to 100 mm
Surface roughness (Ra): ≤ 0.03 µm

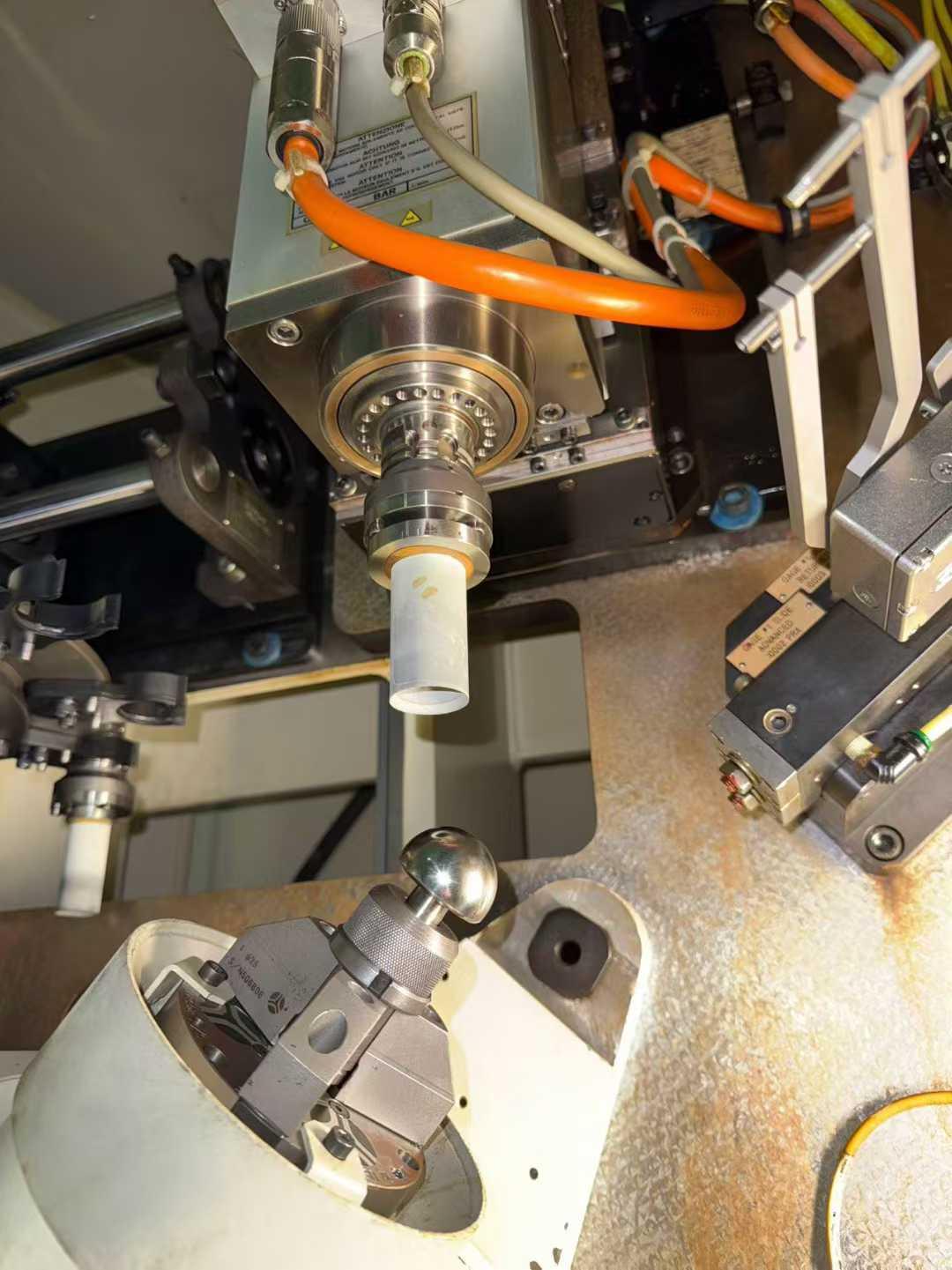

Spherical gasket
Roundness: 2.0 µm
Surface roughness (Ra): ≤ 0.03 µm
