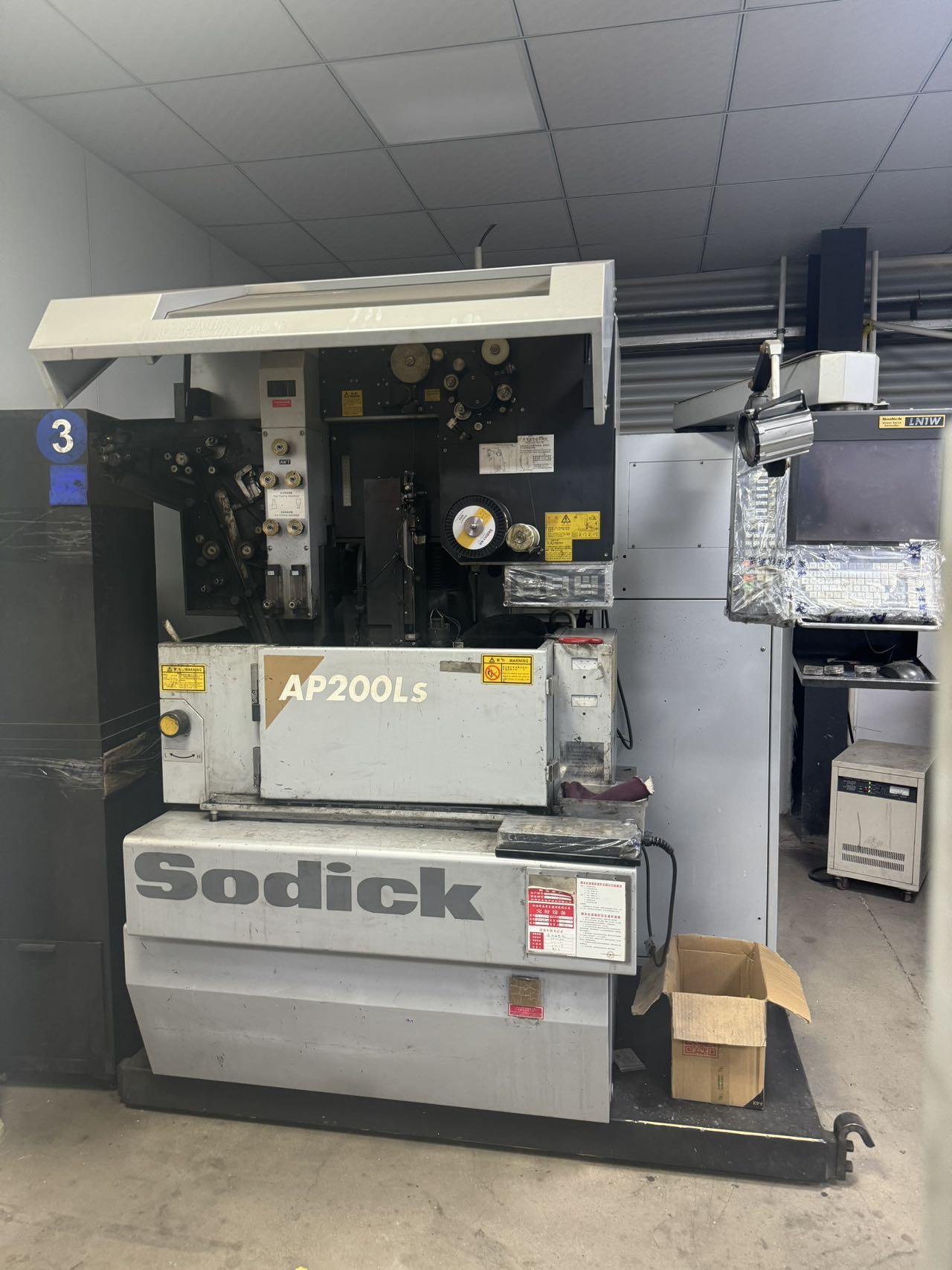

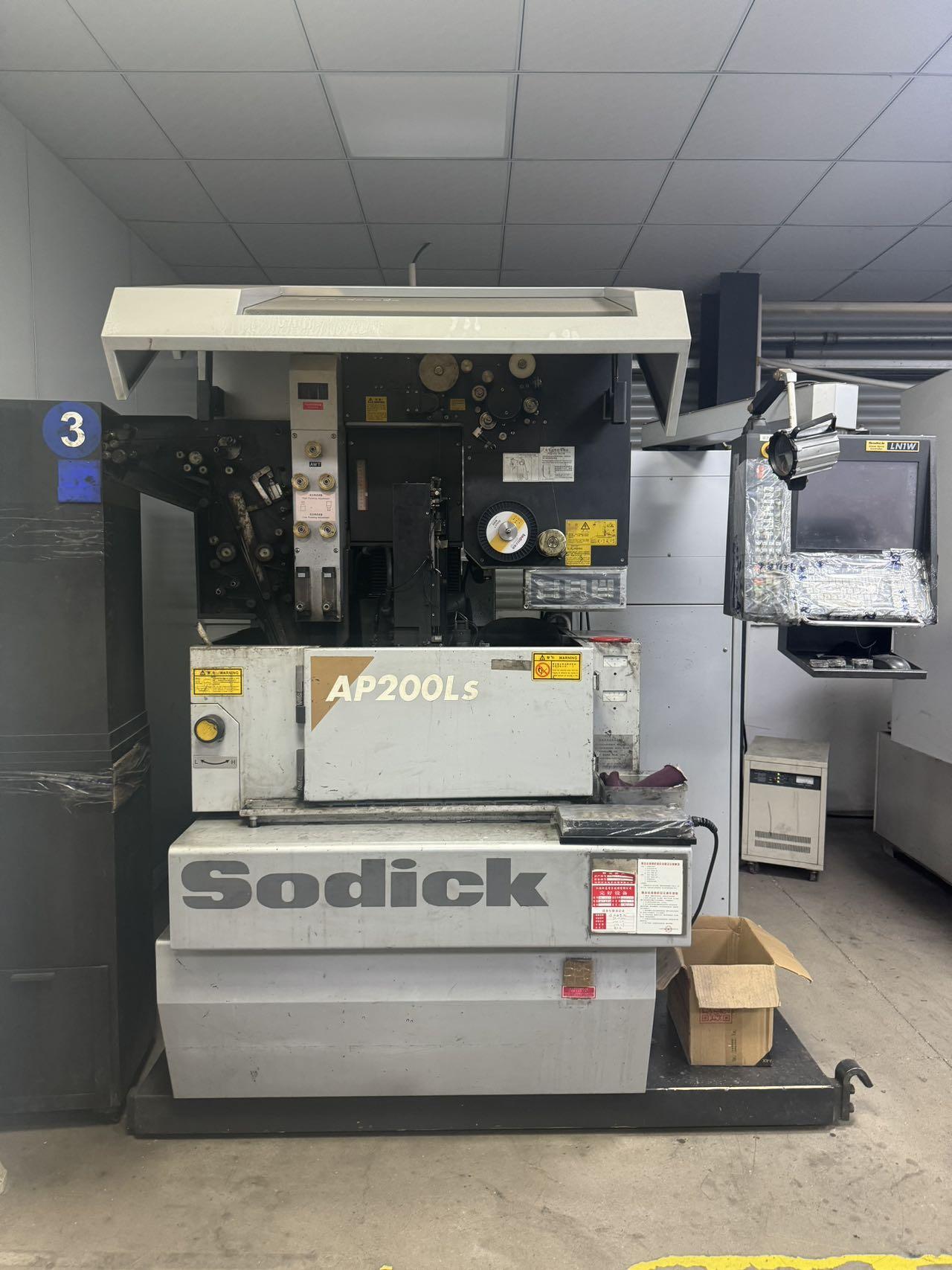

Sodick AP200Ls Spark eroder

Three-axis travel (X/Y/Z): 200 × 150 × 120 mm
U/V axis travel: 35 × 35 mm
Maximum slope angle: ±7° (board thickness 100 mm)
Maximum machining size: 300 × 270 × 100 mm
Maximum workpiece weight: 50 kg
Electrode wire diameter: 0.03 - 0.2 mm
Adaptable for machining with 0.03 mm fine wire
Machining smoothness: Can achieve a mirror-like finish with RY0.8
Machining precision: ±1 μm
Machine tool dimensions: 2240 × 2715 × 2065 mm
