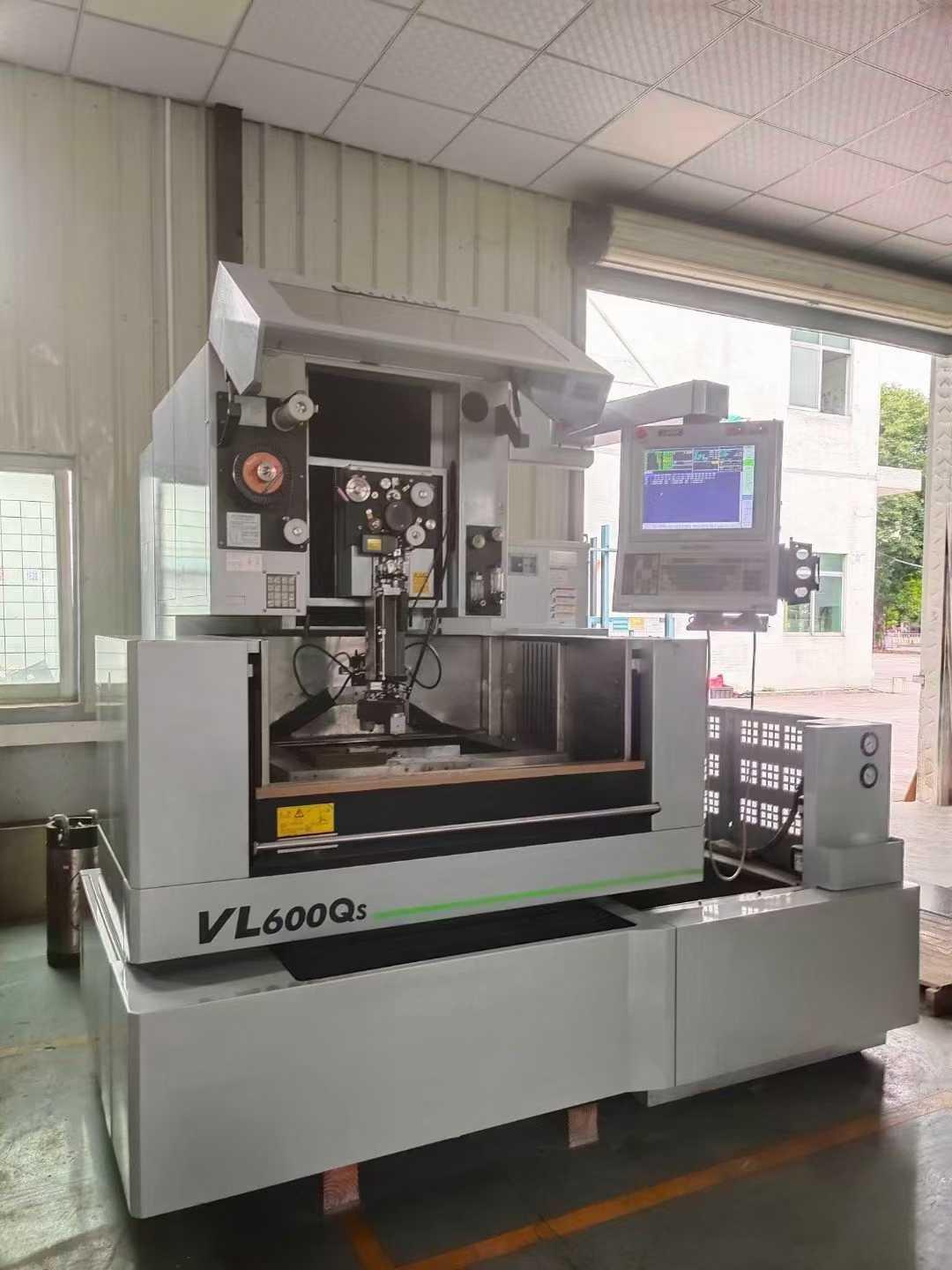

Sodick VL600QS Wire cutting machine

Machining water tank Dimension(width × depth): 1150mm x 840mm
X-axis travel: 600mm
Y-axis travel: 400mm
Z-axis travel: 310mm
U×V axis travel: 90mm x 90mm
Maximum taper angle: ±15° (Plate thickness: 120mm)
Maximum workpiece size:
When performing jet machining (width × length × height): 1100mm x 820mm x 305mm
During impregnation machining (width × length × height): 1100mm x 820mm x 295mm
Maximum machining mass:
When performing jet machining: 850kg
During impregnation machining: 850kg
Electrode wire specification: φ0.1 to φ0.3
Electrode wire tension: 3 to 23N
Maximum electrode wire feed rate: 420mm/sec
Distance from the ground to the top surface of the worktable: 1000mm
